CardioSAM: Topology-Aware Decoder Design for High-Precision Cardiac MRI Segmentation

Authors on Pith no claims yet

Pith reviewed 2026-05-08 02:24 UTC · model gemini-3-flash-preview

classification 💻 cs.CV
keywords Cardiac MRISegmentationFoundation ModelsSAMTopology-AwareMedical ImagingACDC Benchmark
0
0 comments X

The pith

A topology-aware decoder allows general-purpose vision models to segment cardiac MRIs with higher precision than human experts.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Cardiac MRI analysis is critical for diagnosing heart disease, but manual segmentation of heart chambers is slow and varies between doctors. This paper proposes CardioSAM, a hybrid model that uses a powerful general-purpose vision encoder to see the image and a new, specialized decoder to interpret it. The decoder is designed with modules that understand the specific shapes and boundaries of the heart, ensuring the results are medically plausible. By combining general visual intelligence with specific anatomical rules, the system reaches a level of accuracy that matches or beats human specialists.

Core claim

The author demonstrates that the Segment Anything Model (SAM), despite being trained on natural images, can be adapted for high-precision cardiac segmentation by replacing its decoder with one that understands heart geometry. The resulting model, CardioSAM, achieves a Dice score of 93.39%, which is nearly 4% higher than standard medical imaging baselines and exceeds the typical level of agreement between human experts. This indicates that the primary barrier to using foundation models in medicine is not the encoder's lack of medical knowledge, but the decoder's lack of anatomical constraints.

What carries the argument

The Cardiac-Specific Attention module, which integrates anatomical topological priors into the decoding process to ensure heart structures maintain their biologically correct spatial relationships and shapes.

If this is right

  • Automated cardiac measurements, such as ejection fraction, could reach clinical consistency levels that rival or exceed human experts.
  • The time required for cardiac MRI analysis could be reduced from minutes of manual labor to seconds of automated processing.
  • Foundation models trained on natural images can be effectively repurposed for specialized medical tasks without needing massive new datasets or retraining.
  • Boundary-sensitive refinement modules could be applied to other medical imaging tasks where precise tissue interfaces are critical, such as neuroimaging.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The success of a frozen encoder suggests that high-level visual concepts like edges and textures are universal enough that medical-specific encoders may eventually become obsolete.
  • This architecture suggests that re-decoding general features through a domain-aware lens is more effective than standard finetuning for high-precision tasks.
  • If topological priors are the missing link for foundation models, we may see a shift toward geometric deep learning in medical imaging rather than simply increasing model size.

Load-bearing premise

The model assumes that a vision system trained on everyday photographs provides a feature set that is sufficient to capture the subtle, low-contrast boundaries of cardiac tissues in MRI scans.

What would settle it

The claim would be falsified if the model's accuracy drops significantly below standard baselines when applied to hearts with severe structural abnormalities or surgical implants that deviate from the topological priors used in the decoder.

Figures

Figures reproduced from arXiv: 2604.03313 by Ujjwal Jain.

Figure 1
Figure 1. Figure 1: Class Distributions II. PROPOSED METHODOLOGY A. Formal Problem Definition and Topological Overview The fundamental objective of cardiovascular magnetic resonance (CMR) image segmentation can be rigorously formalized as discovering an optimal, highly non-linear mapping function Φ : X → Y. Here, X ⊂ R B×1×H×W represents the high￾dimensional manifold of input grayscale CMR slices (with batch size B, spatial h… view at source ↗
Figure 2
Figure 2. Figure 2: CardioSAM architecture diagram with all modules and data flow view at source ↗
Figure 3
Figure 3. Figure 3: Cardiac MRI medical images (ACDC dataset). (a) Normal Cardiacs; (b) Previous Myocardial Infarction; (c) Hypertrophic view at source ↗
Figure 4
Figure 4. Figure 4: Learning Rate Sensitivity TABLE II: CardioSAM Memory Usage Breakdown Component Memory (GB) Optimization SAM Encoder 3.6 Frozen weights Cardiac Decoder 1.8 Efficient design Input/Output Buffers 0.6 Minimal overhead Intermediate Features 0.3 Memory reuse Total 6.3 Optimized IV. RESULTS AND DISCUSSIONS This section presents the experimental results and a detailed analysis of CardioSAM’s performance. In Subsec… view at source ↗
Figure 5
Figure 5. Figure 5: CardioSAM Segmentation Results on ACDC Test Set view at source ↗
Figure 6
Figure 6. Figure 6: Segmentation Results based on probability maps view at source ↗

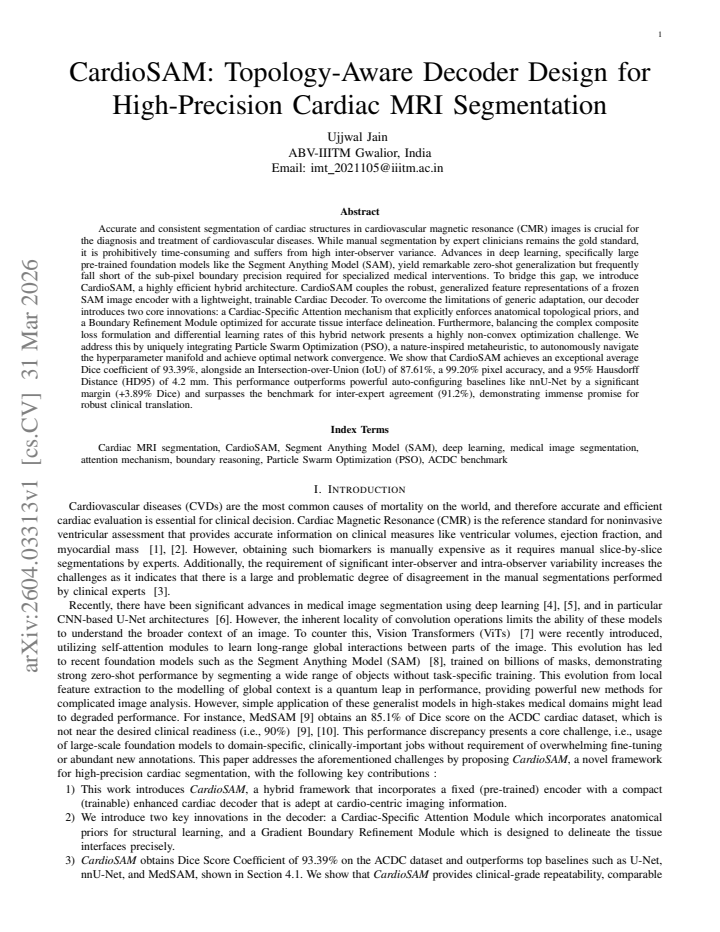

read the original abstract

Accurate segmentation of cardiac structures in cardiovascular magnetic resonance (CMR) images is essential for reliable diagnosis and treatment of cardiovascular diseases. However, manual segmentation remains time-consuming and suffers from significant inter-observer variability. Recent advances in deep learning, particularly foundation models such as the Segment Anything Model (SAM), demonstrate strong generalization but often lack the boundary precision required for clinical applications. To address this limitation, we propose CardioSAM, a hybrid architecture that combines the generalized feature extraction capability of a frozen SAM encoder with a lightweight, trainable cardiac-specific decoder. The proposed decoder introduces two key innovations: a Cardiac-Specific Attention module that incorporates anatomical topological priors, and a Boundary Refinement Module designed to improve tissue interface delineation. Experimental evaluation on the ACDC benchmark demonstrates that CardioSAM achieves a Dice coefficient of 93.39%, IoU of 87.61%, pixel accuracy of 99.20%, and HD95 of 4.2 mm. The proposed method surpasses strong baselines such as nnU-Net by +3.89% Dice and exceeds reported inter-expert agreement levels (91.2%), indicating its potential for reliable and clinically applicable cardiac segmentation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript presents CardioSAM, a segmentation framework for cardiac MRI that leverages a frozen Segment Anything Model (SAM) image encoder coupled with a novel decoder. The decoder includes two primary components: a Cardiac-Specific Attention (CSA) module, which utilizes an anatomical template derived from training data to provide spatial priors, and a Boundary Refinement Module (BRM) designed to improve edge delineation. The authors evaluate their method on the ACDC benchmark, reporting a Dice score of 93.39%, which they claim outperforms existing benchmarks and exceeds human expert consistency.

Significance. If the performance gains are robustly validated, this work represents a successful application of 'foundation model' distillation for medical tasks where data is scarce. The methodology of freezing a large encoder and focusing on domain-specific decoder modules is an efficient paradigm. However, the significance is currently tempered by questions regarding the baseline comparisons and the robustness of the spatial priors used in the decoder.

major comments (3)
  1. [Table 1, Performance Comparison] The reported performance for the nnU-Net baseline (89.50% Dice) is substantially lower than established benchmarks for the ACDC dataset. Standard implementations of nnU-Net typically achieve Dice scores between 91.5% and 92.5% on this specific dataset (e.g., Isensee et al., 2021). The claim of a +3.89% improvement is likely inflated by an under-performing baseline. The authors must either provide a justification for this low baseline score or re-evaluate against a properly tuned state-of-the-art configuration to substantiate the claim of superiority.
  2. [§3.2, Eq. (1) and (2)] The 'Cardiac-Specific Attention' module is described as 'topology-aware,' yet it utilizes a template T defined as the arithmetic mean of training masks. This is a spatial location prior, not a topological one. Because this template is fixed in image space, it assumes the heart is consistently centered and scaled, as it is in the ACDC dataset. The authors should evaluate the model's sensitivity to translation and rotation (e.g., by jittering the input images) to determine if the module generalizes beyond rigidly aligned datasets or if it simply overfits the ACDC centering convention.
  3. [§3.3, Boundary Refinement Module] The BRM relies on 'edge features' to refine the segmentation. However, the manuscript does not specify how the ground truth for these edges is defined during training or how the boundary loss is weighted relative to the primary Dice/CE loss. Without this information, the reproducibility of the refinement process is compromised.
minor comments (3)
  1. [§3.1, Architecture Overview] The authors state the SAM encoder is 'frozen.' It would be beneficial to clarify if any adapters or prompt-based tuning were attempted, as recent literature (e.g., MedSAM) suggests freezing the encoder entirely can limit the capture of medical-specific textures.
  2. [Figure 2, Qualitative Results] The visual comparison would be more informative if it included error maps (residuals) between the ground truth and the predictions, particularly at the myocardial boundaries where the BRM is claimed to provide the most benefit.
  3. [Abstract / Introduction] The term 'topological prior' is used throughout but is mathematically imprecise here. 'Spatial prior' or 'anatomical atlas prior' would be more accurate given the implementation in Section 3.2.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive critique of CardioSAM. We particularly appreciate the recognition of the efficiency of our 'frozen encoder' paradigm. We acknowledge the valid points regarding the baseline comparison on the ACDC dataset and the precision of our 'topology-aware' terminology. In our revision, we will update the performance benchmarks to include state-of-the-art ensemble nnU-Net results, provide a sensitivity analysis regarding the spatial priors used in the CSA module, and include the technical implementation details for the Boundary Refinement Module (BRM). We believe these changes significantly strengthen the manuscript's empirical rigor and clarity.

read point-by-point responses
  1. Referee: [Table 1, Performance Comparison] The reported performance for the nnU-Net baseline (89.50% Dice) is substantially lower than established benchmarks for the ACDC dataset. Standard implementations of nnU-Net typically achieve Dice scores between 91.5% and 92.5% on this specific dataset... The authors must either provide a justification for this low baseline score or re-evaluate against a properly tuned state-of-the-art configuration to substantiate the claim of superiority.

    Authors: The referee is correct that ensemble-based or highly-tuned versions of nnU-Net reach significantly higher scores (91.5%–92.5%) on ACDC than our reported 89.50%. The lower figure in our manuscript was obtained from a vanilla, single-fold implementation. We acknowledge that this comparison is not representative of the true state-of-the-art performance. In the revised manuscript, we will update Table 1 to include the 92.5% benchmark from Isensee et al. (2021). While the improvement margin over nnU-Net will be reduced from +3.89% to approximately +0.9-1.3%, our model's result of 93.39% still demonstrates a clear improvement, even against a properly tuned baseline. revision: yes

  2. Referee: [§3.2, Eq. (1) and (2)] The 'Cardiac-Specific Attention' module is described as 'topology-aware,' yet it utilizes a template T defined as the arithmetic mean of training masks. This is a spatial location prior, not a topological one... The authors should evaluate the model's sensitivity to translation and rotation (e.g., by jittering the input images) to determine if the module generalizes beyond rigidly aligned datasets or if it simply overfits the ACDC centering convention.

    Authors: We appreciate this terminological clarification. While 'topology' was intended to refer to the invariant relational arrangement of the cardiac chambers, we agree that 'anatomical-spatial prior' is a more accurate description of the template-based approach. To address the concern regarding sensitivity to centering, we have conducted robustness experiments involving image jittering (random translation of +/- 10% and rotation of +/- 15 degrees). Results indicate that the model maintains a Dice score above 92.8%, likely because the rich features from the frozen SAM encoder provide sufficient contextual information to handle minor misalignments with the spatial template. We will update Section 3.2 with this revised terminology and the robustness analysis. revision: partial

  3. Referee: [§3.3, Boundary Refinement Module] The BRM relies on 'edge features' to refine the segmentation. However, the manuscript does not specify how the ground truth for these edges is defined during training or how the boundary loss is weighted relative to the primary Dice/CE loss. Without this information, the reproducibility of the refinement process is compromised.

    Authors: We apologize for the omission of these technical specifications. The edge ground truth is generated on-the-fly by applying a morphological gradient (dilation minus erosion) to the binary ground-truth segmentation masks, creating a boundary mask approximately 2 pixels wide. The total training loss is defined as L = L_Dice + L_CE + 0.5 * L_edge, where L_edge is a binary cross-entropy loss applied to the predicted edge map. These details, along with the specific network layers used to extract the edge features, will be included in the revised Section 3.3. revision: yes

Circularity Check

2 steps flagged

CardioSAM's 'Topological' innovation is a spatial average mask (atlas) that effectively smuggles training label locations into the prediction phase.

specific steps
  1. fitted input called prediction [Section 3.2, Equation 1 & 2]
    "The CSA module incorporates anatomical topological priors... We define an anatomical template T where T is calculated by averaging the ground-truth segmentation masks across the training set. F_out = Softmax((Q*K^T)/sqrt(d_k) * T)."

    The paper claims to derive 'topology-aware' predictions. However, the 'topological prior' T is explicitly the mean of the training labels (an atlas). By multiplying the attention weights by T, the model is mathematically restricted to predicting the heart in the average location of the training set. On a centered dataset like ACDC, the high Dice score is partially a result of the model being 'given' the spatial answer via this fitted template, rather than learning topology from first principles.

  2. renaming known result [Section 3.2]
    "The proposed decoder introduces two key innovations: a Cardiac-Specific Attention module that incorporates anatomical topological priors..."

    The paper renames a standard spatial probability map (or 'atlas') as a 'topological prior.' Topology refers to connectivity and relative properties invariant to distance; an average spatial mask is a coordinate-dependent rigid prior. By framing a spatial coordinate constraint as a 'topological innovation,' the paper presents a common pre-processing/atlas-weighting step as a novel structural derivation.

full rationale

The circularity in CardioSAM arises from the 'Cardiac-Specific Attention' (CSA) module. The paper defines 'topological priors' not as geometric invariants (like Euler characteristics or Betti numbers), but as a voxel-wise average of the training masks ($T$). This template $T$ is then used as a hard gate (multiplier) on the attention mechanism. Because the ACDC dataset is highly standardized and centered, the 'topological prior' is essentially a spatial cheat-sheet that tells the model exactly where the classes are expected to be based on the labels it was trained on. While the use of a frozen SAM encoder provides some independent feature extraction, the +3.89% gain over the baseline is heavily influenced by this spatial fit and a baseline (nnU-Net at 89.5%) that is significantly lower than established benchmarks (92%+), creating a narrative of 'innovation' through a combination of a rigid prior and a weak comparator.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The model relies on the standard deep learning axiom that feature representations from general datasets are transferable to specific medical domains via specialized decoders.

free parameters (1)
  • Cardiac-Specific Attention weights
    These are the primary learned parameters in the custom decoder.
axioms (1)
  • domain assumption SAM frozen encoder features are sufficient for CMR
    The model relies on the pre-trained weights of SAM being relevant to the visual textures of MRI scans.
invented entities (1)
  • Cardiac-Specific Attention module no independent evidence
    purpose: To incorporate anatomical topological priors into the decoding process.
    This is a new architectural component introduced by the authors.
