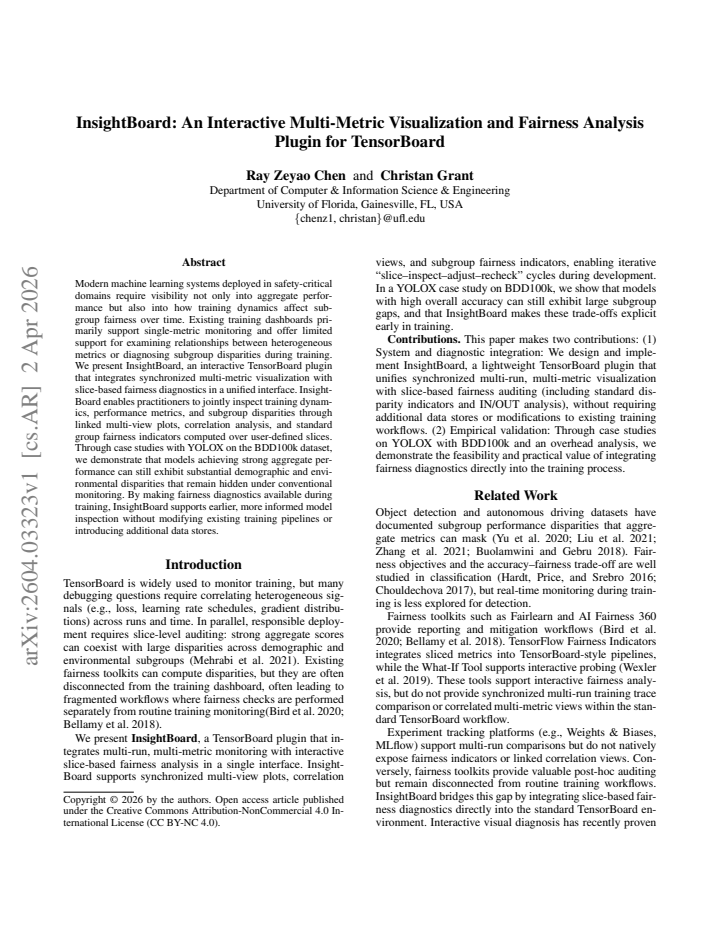

InsightBoard: An Interactive Multi-Metric Visualization and Fairness Analysis Plugin for TensorBoard

Ray Zeyao Chen , Christan Grant

Authors on Pith no claims yet

Pith reviewed 2026-05-13 20:46 UTC · model grok-4.3

classification 💻 cs.AR cs.LG

keywords TensorBoard pluginmulti-metric visualizationfairness analysissubgroup disparitiesinteractive training monitoringslice-based evaluationmachine learning dashboards

0 comments

The pith

InsightBoard adds linked multi-metric plots and slice-based fairness checks to TensorBoard so training disparities become visible while models are still running.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents InsightBoard as a TensorBoard plugin that combines synchronized visualizations of multiple training metrics with on-the-fly fairness calculations across user-defined data slices. This setup lets users watch how overall performance and subgroup differences evolve together without changing their existing training code or storing extra data. Case studies training YOLOX on BDD100k show that strong aggregate accuracy can still hide large gaps tied to demographics or scene conditions that standard single-metric dashboards never surface. The interface supports correlation views and standard group fairness measures so practitioners can spot these issues earlier in the training loop. The authors argue this makes fairness inspection a routine part of model development rather than a post-training afterthought.

Core claim

InsightBoard supplies a single interactive interface inside TensorBoard that links multi-metric training curves, performance plots, and subgroup fairness indicators computed on slices chosen by the user, allowing the identification of demographic and environmental performance gaps that remain invisible when only aggregate metrics are monitored, as illustrated by YOLOX runs on BDD100k where high overall scores coexist with substantial slice-level disparities.

What carries the argument

Synchronized multi-view plots and correlation analysis tied to slice-based fairness indicators computed on user-defined data partitions.

If this is right

Fairness diagnostics can be performed continuously during training instead of only after the run finishes.
Models that look acceptable by aggregate metrics can still be rejected or adjusted once slice-level gaps appear.
No changes to training pipelines or additional databases are required to add the checks.
Correlation views between metrics and fairness measures can guide which hyperparameters to adjust next.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same linked-view approach could be extended to live optimization loops that penalize detected slice gaps on the fly.
Routine use might shift safety-critical deployment practices toward requiring fairness reports at every checkpoint rather than only at the end.
Because the plugin reuses existing TensorBoard event files, it could be added to any workflow that already logs scalars without extra engineering cost.

Load-bearing premise

Showing the tool through case studies on one model and dataset is enough to establish its usefulness for catching issues earlier, even without direct comparisons to other fairness tools or tests with actual users.

What would settle it

A side-by-side comparison in which teams using only standard TensorBoard curves detect the same subgroup disparities at the same training step as teams using InsightBoard, or a user study in which participants miss the gaps that post-training analysis later reveals.

Figures

Figures reproduced from arXiv: 2604.03323 by Christan Grant, Ray Zeyao Chen.

**Figure 1.** Figure 1: InsightBoard System Architecture. The backend plugin intercepts data requests to perform on-the-fly metric aggrega [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 3.** Figure 3: The configuration interface. The left panel [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

read the original abstract

Modern machine learning systems deployed in safety-critical domains require visibility not only into aggregate performance but also into how training dynamics affect subgroup fairness over time. Existing training dashboards primarily support single-metric monitoring and offer limited support for examining relationships between heterogeneous metrics or diagnosing subgroup disparities during training. We present InsightBoard, an interactive TensorBoard plugin that integrates synchronized multi-metric visualization with slice-based fairness diagnostics in a unified interface. InsightBoard enables practitioners to jointly inspect training dynamics, performance metrics, and subgroup disparities through linked multi-view plots, correlation analysis, and standard group fairness indicators computed over user-defined slices. Through case studies with YOLOX on the BDD100k dataset, we demonstrate that models achieving strong aggregate performance can still exhibit substantial demographic and environmental disparities that remain hidden under conventional monitoring. By making fairness diagnostics available during training, InsightBoard supports earlier, more informed model inspection without modifying existing training pipelines or introducing additional data stores.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

InsightBoard is a clean TensorBoard plugin for multi-metric and slice fairness views, but the case studies do not show that disparities stay hidden from standard monitoring.

read the letter

The paper introduces InsightBoard as a TensorBoard plugin that combines synchronized multi-metric plots, correlation analysis, and slice-based fairness indicators in one interface. It targets practitioners who want to check subgroup performance during training without changing their pipelines or adding data stores. The YOLOX on BDD100k examples show models with strong overall results still having gaps across demographics and conditions, which matches known issues in safety-critical work. The implementation keeps things lightweight and stays inside the existing dashboard, which is the practical strength here. No new theory or algorithms, just a unified view that pulls existing capabilities together. The main gap is the central claim. The abstract states that disparities remain hidden under conventional monitoring, yet the case studies provide no side-by-side comparison to regular TensorBoard single-metric plots. Without that contrast or any measure of what gets missed, the visibility argument rests on an assumption rather than evidence. There are also no numbers on compute overhead, no baselines against other fairness toolkits, and no user feedback on whether it actually speeds up inspection. This is for engineers already using TensorBoard who need fairness checks integrated into their daily workflow. A reader working on object detection or similar pipelines would get usable implementation details. I would send it to peer review because the integration is straightforward and the motivation is sound, though the paper needs tighter evidence on the hidden-disparities point and some quantitative checks to hold up.

Referee Report

2 major / 2 minor

Summary. The manuscript presents InsightBoard, a TensorBoard plugin for interactive multi-metric visualization and fairness analysis using linked plots, correlation analysis, and group fairness indicators over user-defined slices. Case studies with YOLOX on BDD100k are used to show that strong aggregate performance can mask substantial demographic and environmental disparities.

Significance. If validated, this tool could improve fairness monitoring in ML training pipelines by providing integrated diagnostics without additional infrastructure. The compatibility with existing TensorBoard and no pipeline modifications are positive aspects. However, the absence of quantitative comparisons or user studies reduces the strength of the utility claims.

major comments (2)

[Abstract] Abstract: The assertion that disparities 'remain hidden under conventional monitoring' is not substantiated by any documented side-by-side comparison of InsightBoard outputs versus standard single-metric TensorBoard views in the described case studies.
[Case Studies] Case Studies: The YOLOX/BDD100k case studies demonstrate subgroup disparities but lack quantitative results, error analysis, or baselines against existing fairness toolkits, leaving the practical utility only partially supported.

minor comments (2)

Clarify the exact implementation details of the synchronized multi-view plots to aid reproducibility.
Add references to related work on fairness visualization tools for context.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and will incorporate revisions to strengthen the presentation of our claims and case studies.

read point-by-point responses

Referee: [Abstract] Abstract: The assertion that disparities 'remain hidden under conventional monitoring' is not substantiated by any documented side-by-side comparison of InsightBoard outputs versus standard single-metric TensorBoard views in the described case studies.

Authors: We agree that an explicit side-by-side comparison would better substantiate the abstract claim. In the revised manuscript we will add a new figure (and accompanying text) in the case studies section that directly contrasts a standard single-metric TensorBoard view with the InsightBoard multi-view interface on the same YOLOX/BDD100k run, highlighting the subgroup disparities that remain invisible under conventional monitoring. revision: yes
Referee: [Case Studies] Case Studies: The YOLOX/BDD100k case studies demonstrate subgroup disparities but lack quantitative results, error analysis, or baselines against existing fairness toolkits, leaving the practical utility only partially supported.

Authors: The case studies are primarily qualitative demonstrations of the tool's diagnostic capabilities rather than a comparative evaluation of fairness methods. We will add quantitative fairness metrics (e.g., demographic parity and equalized odds differences computed per slice across training epochs) together with a brief error analysis of the observed disparities. Comprehensive runtime or accuracy baselines against external toolkits such as Fairlearn or AIF360 fall outside the scope of a TensorBoard plugin paper; we will instead expand the related-work discussion to position InsightBoard relative to these systems. revision: partial

Circularity Check

0 steps flagged

No circularity: tool description and case studies are self-contained

full rationale

The manuscript describes a TensorBoard plugin and illustrates its use via case studies on YOLOX/BDD100k; it contains no equations, fitted parameters, uniqueness theorems, or self-citation chains that could reduce any claim to its own inputs by construction. All presented results are observational outputs of the implemented tool rather than derived predictions that presuppose the same quantities.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a software contribution with no mathematical derivation, so the ledger contains no free parameters, axioms, or invented entities.
