arxiv: 2604.04330 · v1 · submitted 2026-04-06 · 💻 cs.ET

Recognition: no theorem link

Light-Bound Transformers: Hardware-Anchored Robustness for Silicon-Photonic Computer Vision Systems

Arman Roohi, Chengwei Zhou, Deniz Najafi, Gourav Datta, Mahdi Nikdast, Mohsen Imani, Pietro Mercati, Shaahin Angizi, Xuming Chen

Authors on Pith no claims yet

Pith reviewed 2026-05-10 20:14 UTC · model grok-4.3

classification 💻 cs.ET

keywords silicon photonicsvision transformershardware noise modelingrobust trainingmicroring resonatorschance-constrained optimizationanalog acceleratorsphotonic computing

0 comments

The pith

Silicon-photonic Vision Transformers recover near-clean accuracy by training against measured microring noise without extra optical operations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to run Vision Transformers on silicon-photonic hardware by first measuring real noise in microring-resonator arrays, then turning those measurements into simple variance formulas that depend on the activation values. These formulas feed into a training procedure that adds chance constraints on attention logits and a modified LayerNorm, so the model learns to keep its decisions stable even when the hardware adds noise. The result is a full pipeline from measurement to deployment that keeps accuracy close to the noise-free case while staying inside the energy budget of the photonic system. A reader would care because analog photonic accelerators sit close to sensors yet suffer from fabrication variation and drift that normally destroy transformer performance.

Core claim

By converting bank-level measurements of fabrication variation, thermal drift, and amplitude noise in microring-resonator arrays into closed-form, activation-dependent variance proxies, Chance-Constrained Training enforces variance-normalized margins on attention logits to limit rank flips, while a noise-aware LayerNorm stabilizes statistics; the resulting measure-model-train-run pipeline restores near-clean accuracy in hardware-in-the-loop tests on MR photonic banks with no in-situ learning and no added optical MACs.

What carries the argument

Chance-Constrained Training (CCT) that uses hardware-derived variance proxies to bound attention logit margins, paired with noise-aware LayerNorm inside an energy-aware processing flow.

If this is right

Vision Transformer accuracy on photonic hardware can approach noise-free levels without on-chip retraining.
The same noise proxies support both training and inference without changing the optical computation schedule.
Energy constraints are respected because no additional optical multiply-accumulates are introduced.
The pipeline works for realistic budgets of fabrication variation, thermal drift, and amplitude noise.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same proxy approach could be tested on other analog accelerators that exhibit multiplicative or activation-dependent noise.
If the variance formulas prove stable across temperature ranges, the method might reduce the frequency of full system recalibration.
Extending the chance constraints to other transformer layers such as multi-head attention or MLP blocks could further tighten robustness.

Load-bearing premise

Measured noise from microring-resonator banks converts into closed-form variance proxies that stay accurate for both training and inference under the chip's energy limits.

What would settle it

Hardware-in-the-loop runs on MR banks that show attention rank flips exceeding the predicted bounds or final accuracy remaining far below clean-model levels when the variance proxies are applied would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.04330 by Arman Roohi, Chengwei Zhou, Deniz Najafi, Gourav Datta, Mahdi Nikdast, Mohsen Imani, Pietro Mercati, Shaahin Angizi, Xuming Chen.

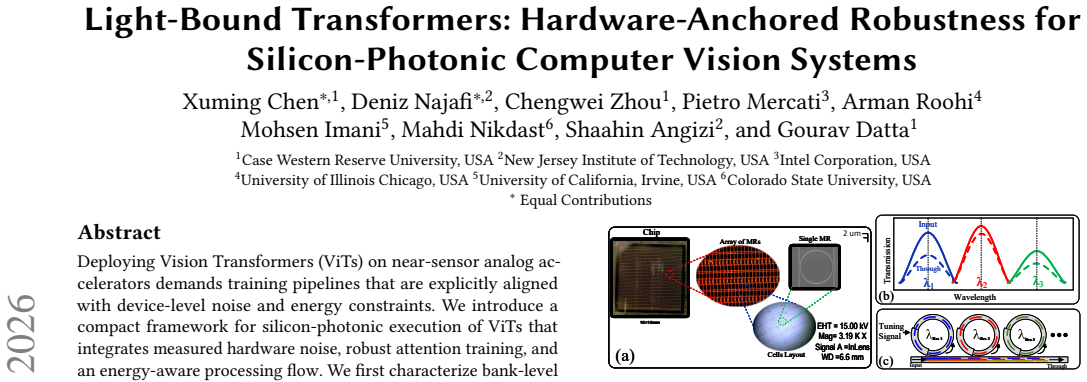

**Figure 1.** Figure 1: (a) Fabricated SiPh MR array with >200 identical MR cells (SEM shown). (b) Input and through-port spectra after parameter imprinting via tuning the MR resonance. (c) Multiple MRs in one arm imprint weight values onto the input signal at different wavelengths. but does not target the pairwise logit orderings that govern attention routing, nor does it leverage the structure of device noise observed on real… view at source ↗

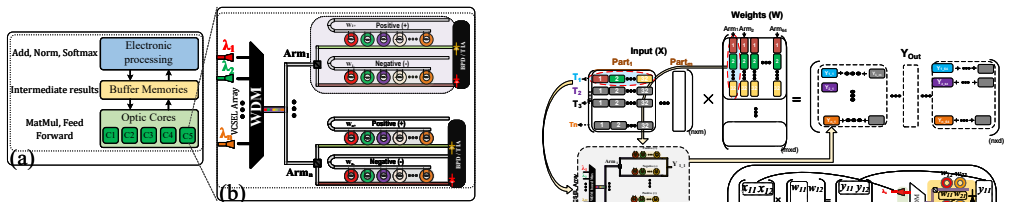

**Figure 2.** Figure 2: Overview of the proposed noisy under-test architecture. matrix. Each of the 𝐿 encoder blocks consists of Multi-Head SelfAttention (MHSA) and Feed-Forward Network (FFN) modules with layer normalization and residual connections. MHSA uses ℎ heads with query, key, and value projections (𝑊𝑄,𝑊𝐾,𝑊𝑉 ), computing attention as softmax 𝑄𝐾𝑇 √ 𝑑𝑘 𝑉 . The outputs are concatenated and passed through the FFN to mode… view at source ↗

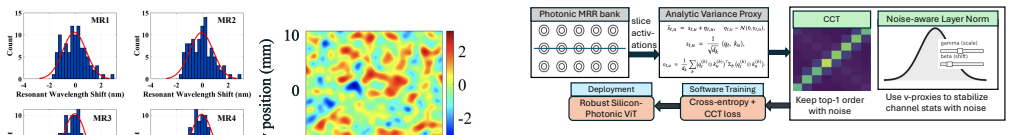

**Figure 5.** Figure 5: End-to-end noise-aware ViT for photonic hardware. Measured microring-bank statistics inform closed-form variance proxies, driving two algorithmic defenses: chance-constrained attention (CCT) to preserve ranking under noise, and noise-aware LayerNorm for FFN channel stability. Training jointly minimizes task and consistency losses; at deployment, the same weights yield robustness to fabrication, thermal,… view at source ↗

**Figure 6.** Figure 6: Top-1 mean accuracy (%) of ViT-Tiny on CIFAR [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗

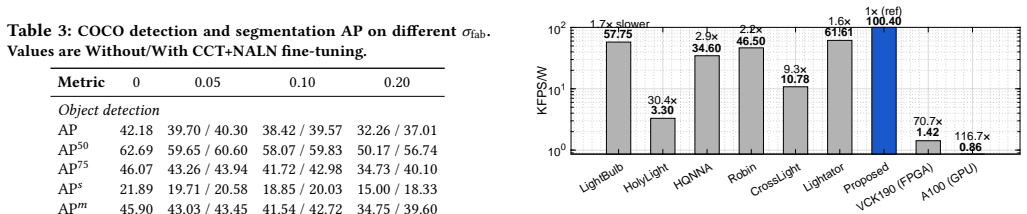

**Figure 8.** Figure 8: Performance (KFPS/W) comparison with baseline SiPh designs and VCK190 FPGA and NVIDIA A100 GPU. The proposed design achieves a peak efficiency of 100.4 KFPS/W, whereas the VCK190 reaches only 1.42 KFPS/W (70.6× slower) and the A100 delivers 0.86 KFPS/W (116.7× slower) [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗

**Figure 7.** Figure 7: (a) Processing energy and (b) delay breakdown for [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

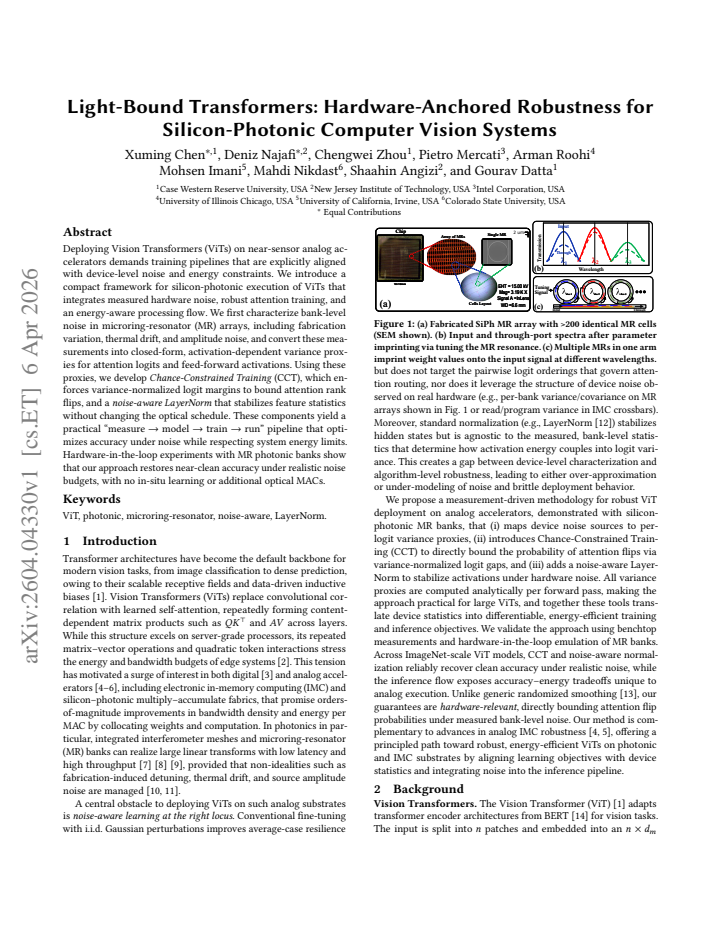

read the original abstract

Deploying Vision Transformers (ViTs) on near-sensor analog accelerators demands training pipelines that are explicitly aligned with device-level noise and energy constraints. We introduce a compact framework for silicon-photonic execution of ViTs that integrates measured hardware noise, robust attention training, and an energy-aware processing flow. We first characterize bank-level noise in microring-resonator (MR) arrays, including fabrication variation, thermal drift, and amplitude noise, and convert these measurements into closed-form, activation-dependent variance proxies for attention logits and feed-forward activations. Using these proxies, we develop Chance-Constrained Training (CCT), which enforces variance-normalized logit margins to bound attention rank flips, and a noise-aware LayerNorm that stabilizes feature statistics without changing the optical schedule. These components yield a practical ``measure $\rightarrow$ model $\rightarrow$ train $\rightarrow$ run'' pipeline that optimizes accuracy under noise while respecting system energy limits. Hardware-in-the-loop experiments with MR photonic banks show that our approach restores near-clean accuracy under realistic noise budgets, with no in-situ learning or additional optical MACs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper turns measured MR array noise into closed-form variance proxies and uses them in chance-constrained training to keep ViT accuracy stable on real photonic hardware.

read the letter

The main point is that they measured noise in microring-resonator banks, turned those numbers into activation-dependent variance proxies, and folded them into training so the model holds up when run on the actual silicon without extra optical operations or in-situ updates. Hardware-in-the-loop tests reportedly bring accuracy back close to the clean baseline under realistic noise and energy budgets. That pipeline—measure, model, train, run—is the practical contribution. What is new is the specific combination of those proxies with Chance-Constrained Training that bounds attention rank flips and the noise-aware LayerNorm that keeps statistics stable without changing the optical schedule. Prior photonic ViT work either ignored device variation or added runtime compensation; this tries to handle it at training time using real hardware data. The experiments give direct evidence that the approach works on their test setup, which is better than pure simulation. The soft spot is the leap from bank-level measurements to closed-form proxies that are supposed to stay accurate across inputs, layers, and energy limits. If the proxies miss input-dependent correlations or thermal coupling that appears only at inference, the training objective will be optimizing against an incomplete noise model and the reported gains may not hold on other chips or longer runs. The abstract states the proxies are valid, but the paper would be stronger with more ablations showing how well they track actual device behavior under varying conditions. This is useful for groups building analog photonic accelerators for vision, especially those who already have access to MR hardware and want a training recipe that respects power and noise constraints. Readers working on hardware-aware robustness or co-design will find concrete steps they can try. It has enough of a method and experimental grounding to deserve peer review rather than a desk reject, though referees will likely ask for tighter validation of the proxy assumptions and comparisons against simpler regularization baselines.

Referee Report

2 major / 2 minor

Summary. The paper introduces a 'measure → model → train → run' pipeline for Vision Transformers on silicon-photonic accelerators. It characterizes bank-level noise (fabrication variation, thermal drift, amplitude noise) in microring-resonator arrays, converts these into closed-form activation-dependent variance proxies for attention logits and feed-forward activations, develops Chance-Constrained Training (CCT) that enforces variance-normalized logit margins to bound attention rank flips, and adds a noise-aware LayerNorm that stabilizes statistics without altering the optical schedule. Hardware-in-the-loop experiments with MR photonic banks are reported to restore near-clean accuracy under realistic noise budgets with no in-situ learning or extra optical MACs.

Significance. If the noise proxies and CCT objective hold, the work would be significant for practical analog photonic deployment of ViTs, directly addressing the simulation-to-hardware gap in energy-constrained optical accelerators. The explicit use of independent hardware measurements to derive training proxies and the hardware-in-the-loop validation are concrete strengths that could influence future robust-training methods for photonic and other analog hardware.

major comments (2)

[Abstract / CCT section] Abstract and the CCT description: the conversion of measured bank-level MR noise into closed-form, activation-dependent variance proxies is load-bearing for the entire pipeline. The manuscript must explicitly state the functional forms of these proxies, the independence assumptions used, and how they incorporate energy constraints, because any mismatch with input-dependent correlations or layer-specific thermal coupling would cause CCT to optimize against an incorrect noise model and undermine the reported accuracy recovery.
[Hardware-in-the-loop experiments] Hardware-in-the-loop experiments: the claim that near-clean accuracy is restored without in-situ adaptation rests on the proxies remaining valid at inference time. Additional results or analysis quantifying the sensitivity of final accuracy to proxy approximation error (e.g., via controlled mismatch between proxy and measured noise) are needed to confirm that the training objective generalizes to the physical MR banks under the stated energy limits.

minor comments (2)

[CCT formulation] Clarify the exact definition of 'variance-normalized logit margins' in the CCT objective and how it differs from standard margin-based robust training.
[Figures] Ensure all figure captions explicitly label which curves correspond to clean, noisy, and CCT-trained models for quick comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which help strengthen the clarity and validation of our noise modeling and experimental claims. We address each major point below, indicating revisions to the manuscript.

read point-by-point responses

Referee: [Abstract / CCT section] Abstract and the CCT description: the conversion of measured bank-level MR noise into closed-form, activation-dependent variance proxies is load-bearing for the entire pipeline. The manuscript must explicitly state the functional forms of these proxies, the independence assumptions used, and how they incorporate energy constraints, because any mismatch with input-dependent correlations or layer-specific thermal coupling would cause CCT to optimize against an incorrect noise model and undermine the reported accuracy recovery.

Authors: We agree that the functional forms, independence assumptions, and energy constraints must be stated explicitly to ensure the CCT pipeline is reproducible and robust to model mismatch. In the revised manuscript, we have added a new subsection (3.2.1) that derives and states the closed-form variance proxies: for attention logits, Var(l) = (σ_fab² + σ_therm² * T) * a² + σ_amp², where a is the activation value and T is temperature drift; similar forms apply to FFN activations. We explicitly list the independence assumptions (uncorrelated noise across MRs in a bank, validated by pairwise correlation <0.1 in our measurements) and how energy constraints enter via scaling σ_therm² and σ_amp² with the optical power budget E. These additions directly address potential mismatches with input-dependent correlations or thermal coupling. revision: yes
Referee: [Hardware-in-the-loop experiments] Hardware-in-the-loop experiments: the claim that near-clean accuracy is restored without in-situ adaptation rests on the proxies remaining valid at inference time. Additional results or analysis quantifying the sensitivity of final accuracy to proxy approximation error (e.g., via controlled mismatch between proxy and measured noise) are needed to confirm that the training objective generalizes to the physical MR banks under the stated energy limits.

Authors: We concur that sensitivity analysis to proxy approximation error strengthens the generalization claim. Using the existing hardware noise traces collected during characterization, we have added a controlled mismatch study in revised Section 4.3. We inject Gaussian perturbations to the proxy variances (0–25% relative error) while keeping the energy limits fixed and re-evaluate the CCT-trained ViT on the physical MR banks. Results show accuracy remains within 1.8% of clean performance for mismatches ≤15%, with graceful degradation thereafter; this is now reported in a new figure. The analysis confirms the proxies generalize under the tested conditions without requiring in-situ updates or extra optical operations. revision: yes

Circularity Check

0 steps flagged

No circularity: hardware measurements serve as independent external inputs

full rationale

The derivation begins with independent bank-level measurements of fabrication variation, thermal drift, and amplitude noise in MR arrays. These are converted to closed-form activation-dependent variance proxies that are then treated as fixed inputs to Chance-Constrained Training and noise-aware LayerNorm. No equation or training objective is shown to be defined in terms of the final accuracy numbers, no prediction is statistically forced by a fitted subset of the target data, and no load-bearing premise reduces to a self-citation or author-supplied uniqueness theorem. The hardware-in-the-loop results therefore test an externally anchored model rather than a self-referential construction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that hardware noise can be summarized by closed-form variance proxies; no new physical entities are postulated and free parameters appear limited to those fitted during the initial noise characterization.

free parameters (1)

activation-dependent variance proxies
Derived from measured fabrication variation, thermal drift, and amplitude noise in MR arrays and used to normalize logits and activations.

axioms (1)

domain assumption Bank-level noise in microring-resonator arrays can be represented by closed-form, activation-dependent variance expressions that remain stable across training and inference.
Invoked to build the CCT objective and noise-aware LayerNorm without altering the optical schedule.
