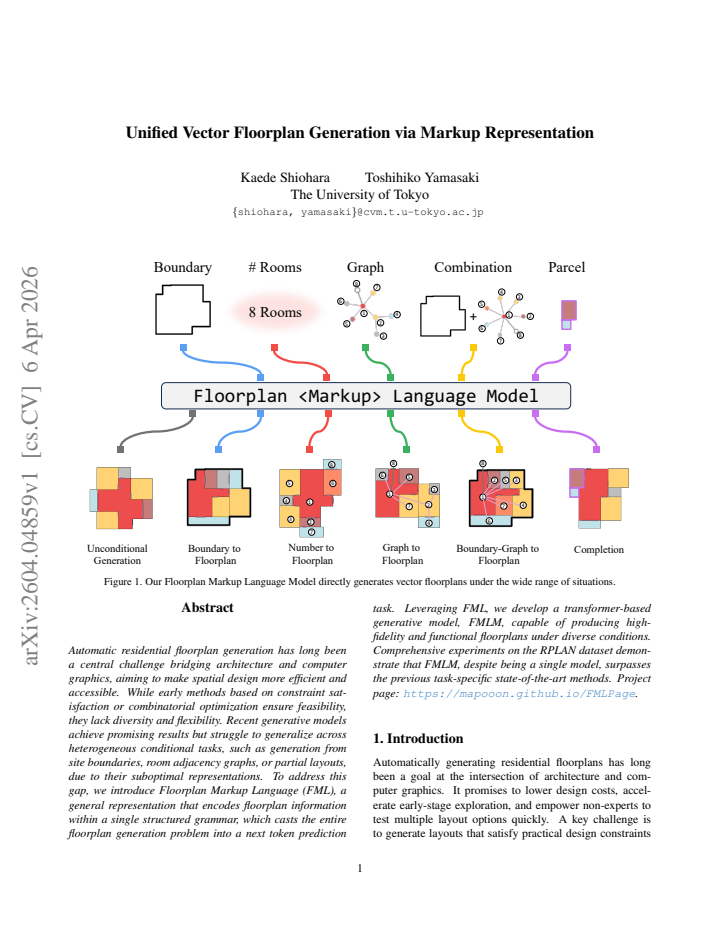

Unified Vector Floorplan Generation via Markup Representation

Kaede Shiohara , Toshihiko Yamasaki

Authors on Pith no claims yet

Pith reviewed 2026-05-10 19:56 UTC · model grok-4.3

classification 💻 cs.CV

keywords floorplan generationtransformer modelmarkup languagevector representationconditional generationRPLAN datasetgenerative modelunified architecture

0 comments

The pith

A markup language encodes floorplans as token sequences so one transformer model can handle every conditional generation task.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Floorplan Markup Language (FML), a structured grammar that represents all floorplan information in a single sequence format. This representation converts the generation problem into next-token prediction, allowing a single transformer-based model called FMLM to accept inputs such as site boundaries, adjacency graphs, or partial layouts and produce complete vector floorplans. Experiments on the RPLAN dataset show that this unified model exceeds the performance of prior methods built for individual tasks. A sympathetic reader would care because it removes the need for separate specialized systems while preserving functionality and geometric precision.

Core claim

Encoding floorplan data in FML casts generation as autoregressive token prediction, so a single transformer produces high-fidelity, functional vector floorplans from heterogeneous conditions without task-specific retraining or architectures.

What carries the argument

Floorplan Markup Language (FML), a grammar that serializes rooms, walls, doors, and constraints into a token sequence for transformer prediction.

If this is right

One model replaces multiple task-specific generators while maintaining or improving output quality on each task.
Floorplans remain vector-based and editable rather than raster approximations.
New conditional inputs can be incorporated by extending the grammar without redesigning the model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same token-sequence approach could be tested on 3D building layouts or non-residential spaces if an extended grammar is defined.
Training cost drops because a single model serves all conditions instead of one per task.
Interactive design tools become simpler since users can supply mixed constraints in the same format.

Load-bearing premise

The FML grammar can represent every spatial relationship, functional constraint, and geometric detail of any valid floorplan without ambiguity or information loss.

What would settle it

Any valid residential floorplan that cannot be losslessly encoded in FML, or any input condition for which the trained model produces invalid or non-functional outputs.

Figures

Figures reproduced from arXiv: 2604.04859 by Kaede Shiohara, Toshihiko Yamasaki.

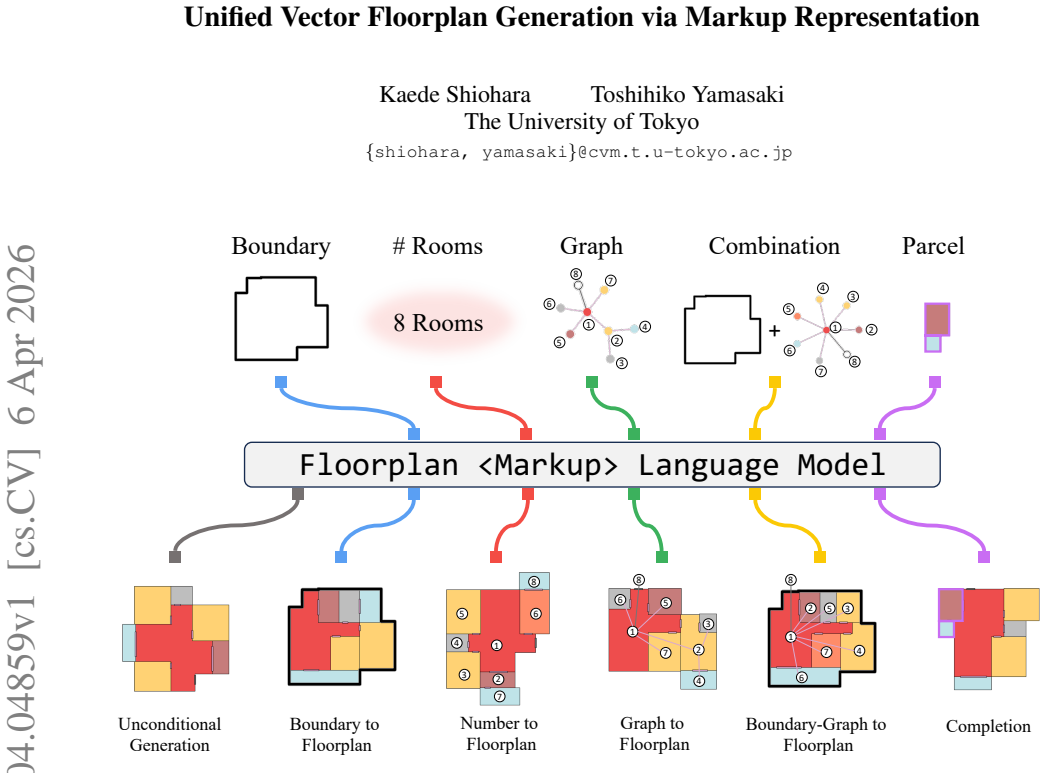

**Figure 1.** Figure 1: Our Floorplan Markup Language Model directly generates vector floorplans under the wide range of situations. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

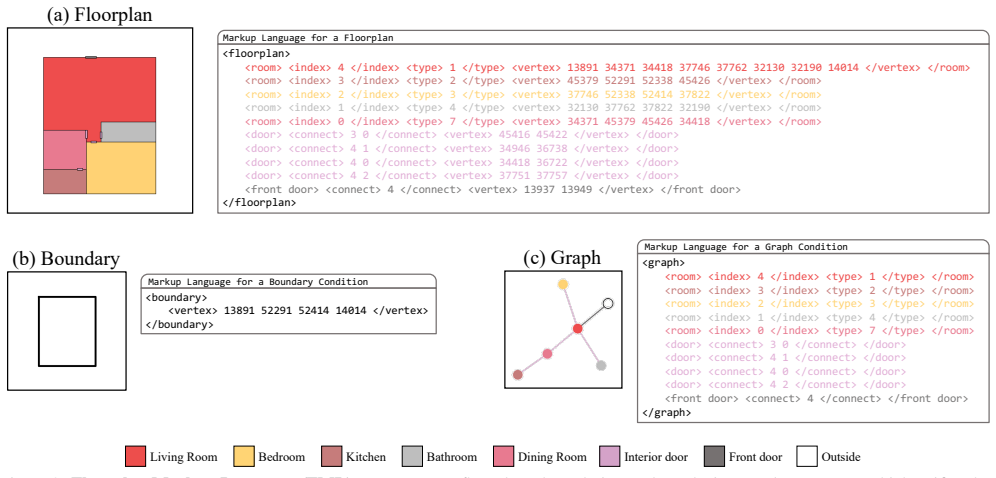

**Figure 2.** Figure 2: Floorplan Markup Language (FML). We represent floorplans, boundaries, and graphs in a markup manner, which unifies the various floorplan generation tasks into a single task of FML sequence generation. in advance specifying the number of rooms and the number of vertices each room should have [11, 26], or to require additional networks to infer the underlying structures including edge extraction and room t… view at source ↗

**Figure 3.** Figure 3: Overview of FMLM. Similarly to LLMs, FMLM is based on a simple transformer model that is trained by next token prediction and performs autoregressive inference. spond to the beginning and ending of condition information, respectively. FML can use <boundary> and <graph> to start to describe the information about boundary and graph condition, respectively. FML always describes in the order of boundary → grap… view at source ↗

**Figure 4.** Figure 4: Floorplan completion and editing. (a) Our model complements incomplete floorplans by just starting with an incomplete sequence. (b) With this capability, our model can be incorporated into interactive editing with users. a length of L and f be the transformer that takes {xi} l i=1 and outputs embedding f({xi} l i=1) ∈ R C in the teacherforcing manner to predict the next token xl+1. The embedding f({xi} … view at source ↗

**Figure 5.** Figure 5: Qualitative comparison with Graph2Plan and HouseDiffusion. Our model generates more consistent and realistic examples from various types of conditions, (a) boundary, (b) graph, (c) boundary and graph, than task-specific models such as Graph2Plan and HouseDiffusion. Note that Graph2Plan generates only a single floorplan for each condition. Best viewed in zoom. distribution distance between real floorplan im… view at source ↗

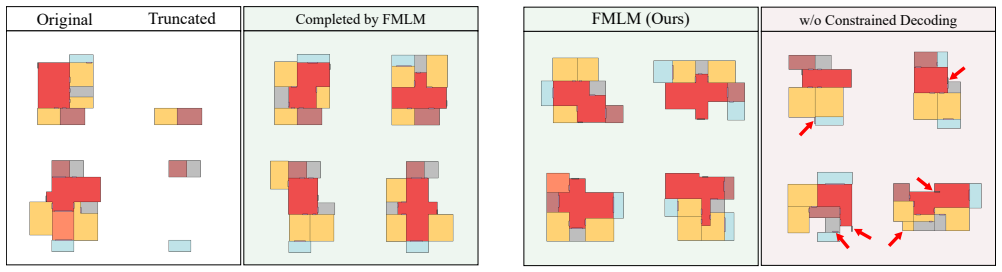

**Figure 6.** Figure 6: Floorplan completion. Condition Setting FID (↓) GED (↓) IoU (↑) B & G w/o Permutation 24.36 2.35 95.82 Ours 14.17 1.24 97.59 [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

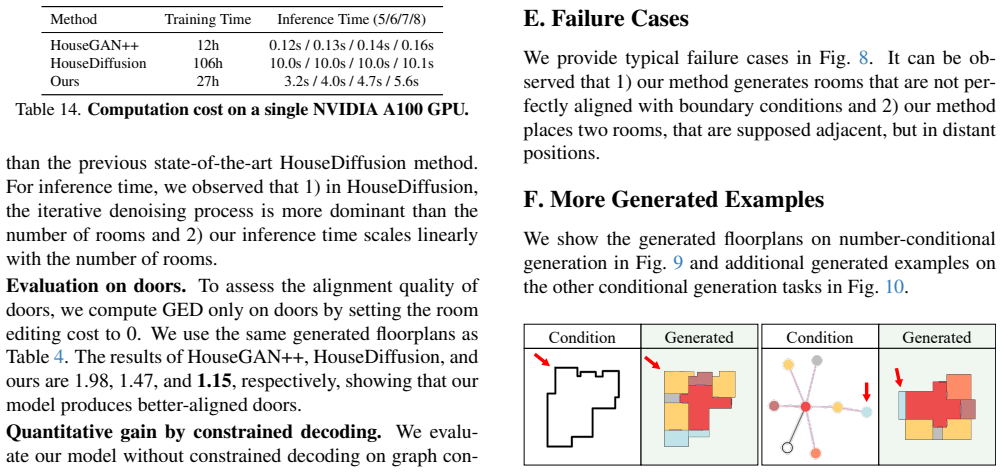

**Figure 8.** Figure 8: Failure cases. Dataset Sample FMLM (Ours) FMLM (Ours) 8 Rooms 7 Rooms Dataset Sample FMLM (Ours) Dataset Sample FMLM (Ours) 6 Rooms 5 Rooms Dataset Sample [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗

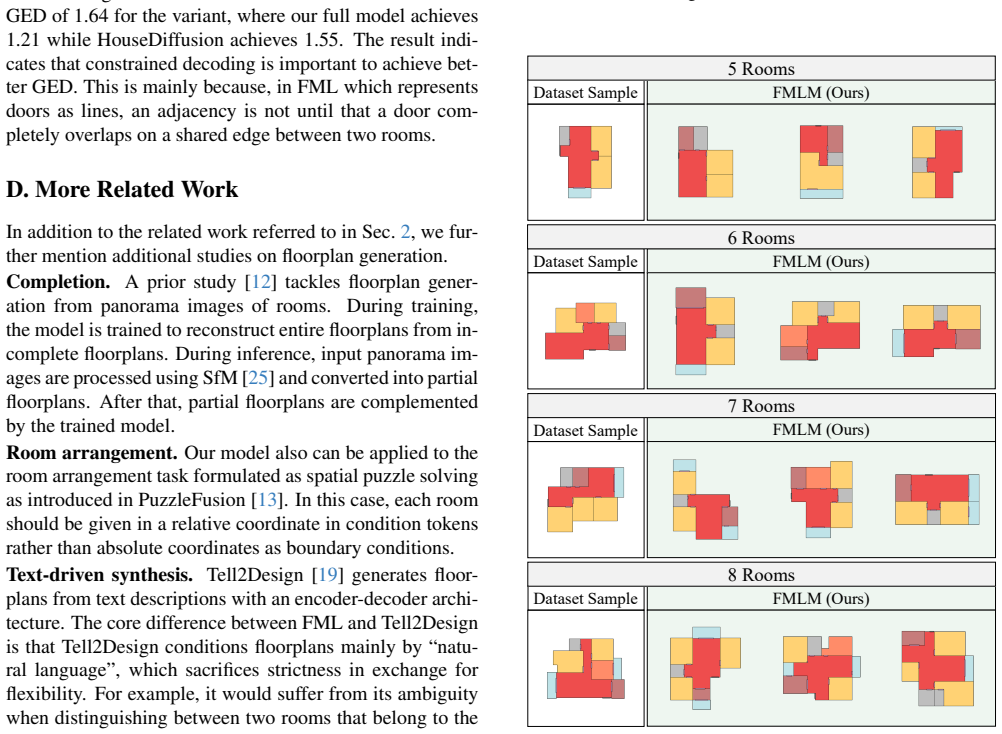

**Figure 9.** Figure 9: Number-conditional generation. 12 [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗

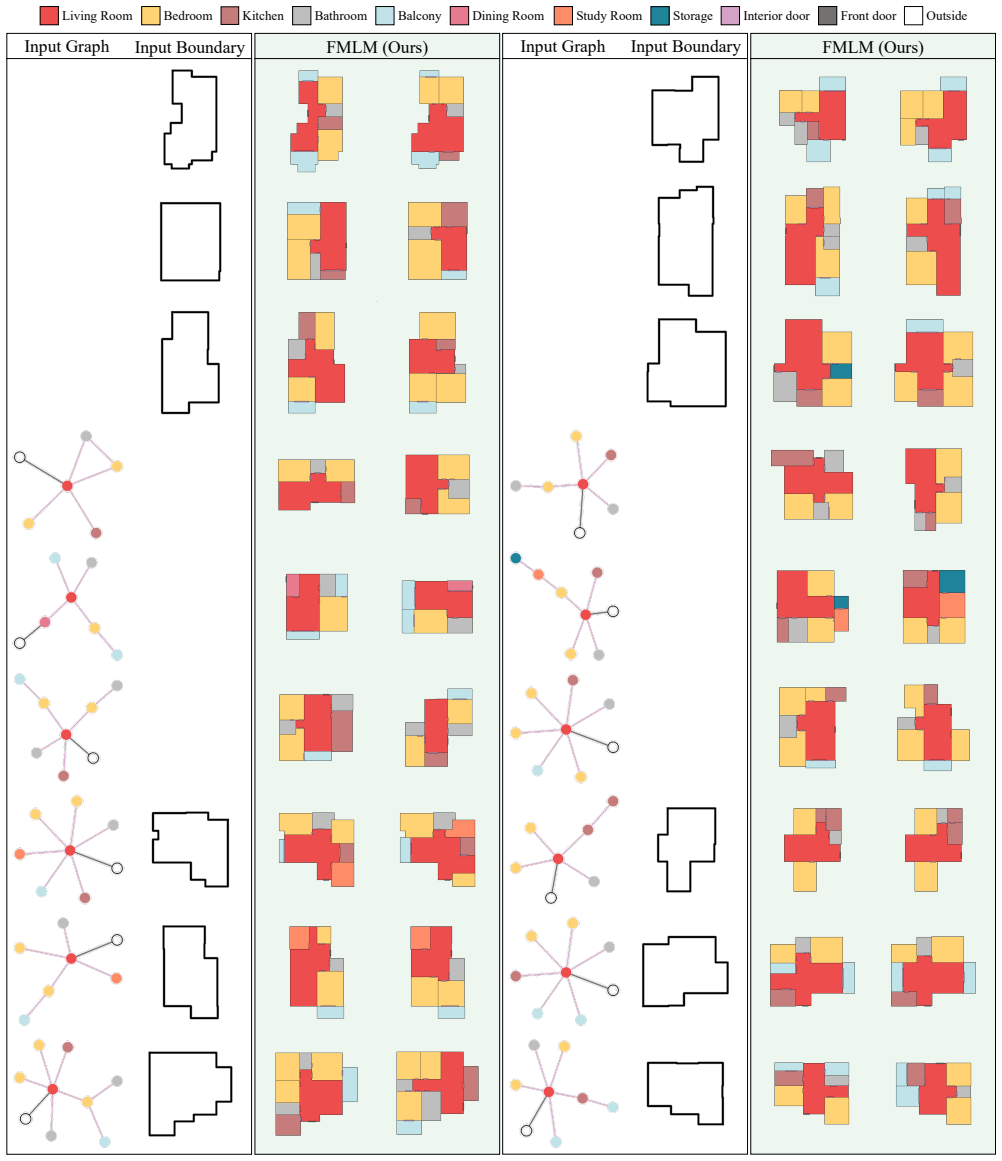

**Figure 10.** Figure 10: Additional generated examples. 13 [PITH_FULL_IMAGE:figures/full_fig_p013_10.png] view at source ↗
