arxiv: 2604.04887 · v1 · submitted 2026-04-06 · 💻 cs.CV

Recognition: no theorem link

HorizonWeaver: Generalizable Multi-Level Semantic Editing for Driving Scenes

Mauricio Soroco , Francesco Pittaluga , Zaid Tasneem , Abhishek Aich , Bingbing Zhuang , Wuyang Chen , Manmohan Chandraker , Ziyu Jiang

Authors on Pith no claims yet

Pith reviewed 2026-05-10 19:35 UTC · model grok-4.3

classification 💻 cs.CV

keywords driving scene editinginstruction-guided editingsemantic image editingautonomous drivingphotorealistic synthesismulti-level editingscene generalizationpaired dataset generation

0 comments

The pith

HorizonWeaver enables photorealistic editing of dense driving scenes using language instructions at multiple levels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish a practical way to generate varied, realistic driving scenes from text instructions so that autonomous vehicle systems can be tested more thoroughly than real-world collection alone allows. Existing editors trained on simpler or artistic images cannot keep up with crowded traffic layouts that require simultaneous object changes and scene-wide adjustments while staying consistent across weather or location shifts. It does this by assembling a large set of paired original and edited images, directing edits with masks tied to language prompts, and training under combined objectives that enforce both visual fidelity to the source and adherence to the given instructions. If the approach holds, it would let developers create targeted variations of safety-critical situations at scale without introducing obvious artifacts or losing performance when conditions change.

Core claim

HorizonWeaver tackles multi-level granularity, rich semantics, and domain shifts in driving scene editing by generating a large paired real/synthetic dataset from driving sources, introducing language-guided masks that incorporate semantic information for precise control, and applying joint losses that enforce content preservation alongside instruction alignment, yielding a collection of 255K images across 13 categories that improves on prior methods in standard image metrics and downstream task accuracy.

What carries the argument

Language-guided masks enriched with semantic prompts that direct fine-grained edits while joint content-preservation and instruction-alignment losses maintain scene coherence.

If this is right

Edits remain coherent at both individual object and full scene scales inside crowded traffic environments.
Performance improves on image similarity measures such as L1 distance, CLIP alignment, and DINO features relative to earlier editors.
Downstream bird's-eye-view segmentation accuracy rises by a substantial margin on edited data.
User studies show markedly higher preference for the resulting images over those from prior approaches.
The method supports generation of controllable scenes for safety validation beyond what real recordings provide.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same pairing and masking strategy could be adapted to generate synthetic training data for other perception tasks such as object detection or lane following.
Temporal extensions might add frame-to-frame consistency so the technique applies to video sequences of driving scenes.
The emphasis on domain-shift handling suggests the framework could transfer to editing other dense real-world imagery such as pedestrian crowds or construction sites.

Load-bearing premise

A paired real/synthetic dataset built from multiple driving sources together with language-guided masks and joint losses can produce coherent multi-level edits that generalize to new climates, layouts, and traffic without major artifacts or overfitting.

What would settle it

Evaluating the edited outputs on a held-out collection of driving scenes from previously unseen regions or weather conditions and checking whether photorealism, instruction match, and any downstream segmentation gains hold; a clear drop would indicate the central claim does not generalize.

Figures

Figures reproduced from arXiv: 2604.04887 by Abhishek Aich, Bingbing Zhuang, Francesco Pittaluga, Manmohan Chandraker, Mauricio Soroco, Wuyang Chen, Zaid Tasneem, Ziyu Jiang.

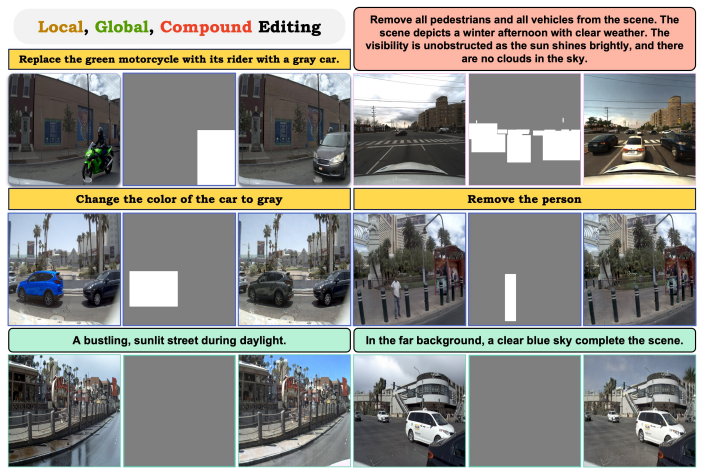

**Figure 1.** Figure 1: In each example, from left to right are the input image, LangMasks, and output image. Masks for global edits are blank. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** Figure 2: Dataset Construction. Real-world data (Sec. 3.2.1) are paired by camera pose and annotated using an image descriptor pipeline and passed to an LLM to produce instructions. Pseudo-data (Sec 3.2.2) for Local edits crop an annotated object before VLM filtering; global edits apply VLM filtering to full images. Our dataset is composed of image pairs, global editing instructions, and masks indicating fine-graine… view at source ↗

**Figure 3.** Figure 3: LangMask Generation and Training. Left: To provide fine-grained instructions with rich semantics, we insert CLIP text features into binary masks (Section 3.3). Right: To support LangMasks, we copy and expand the VAE. It is trained end to end with the editing model. As shown in [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

**Figure 4.** Figure 4: Training language-guided driving scene image editing. Our training pipeline supports both supervised training for paired images and unsupervised training for unpaired ones (e.g. downstream unseen real scenarios). We include three training objectives: supervised fine-tuning Lsft (Section 3.4.1), cycle consistency Lcycle (Section 3.4.2), and Lclip (Section 3.4.3) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

**Figure 5.** Figure 5: HorizonWeaver Editing. Rows 1,2 Local edits: the masks (projected as binary images and stated in text for reference) enable modifications to traffic. Rows 3, 4 Global edits: the text prompt informs the appearance of the scene. For brevity, only the portions relevant to the shown edits are displayed. Rows 5, 6 Compound edits: The masks (projected as binary images) enable modifications to traffic while the t… view at source ↗

**Figure 6.** Figure 6: Annotation pipeline prompt used for the VLM. [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗

**Figure 7.** Figure 7: Example annotation produced by the annotation pipeline. [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗

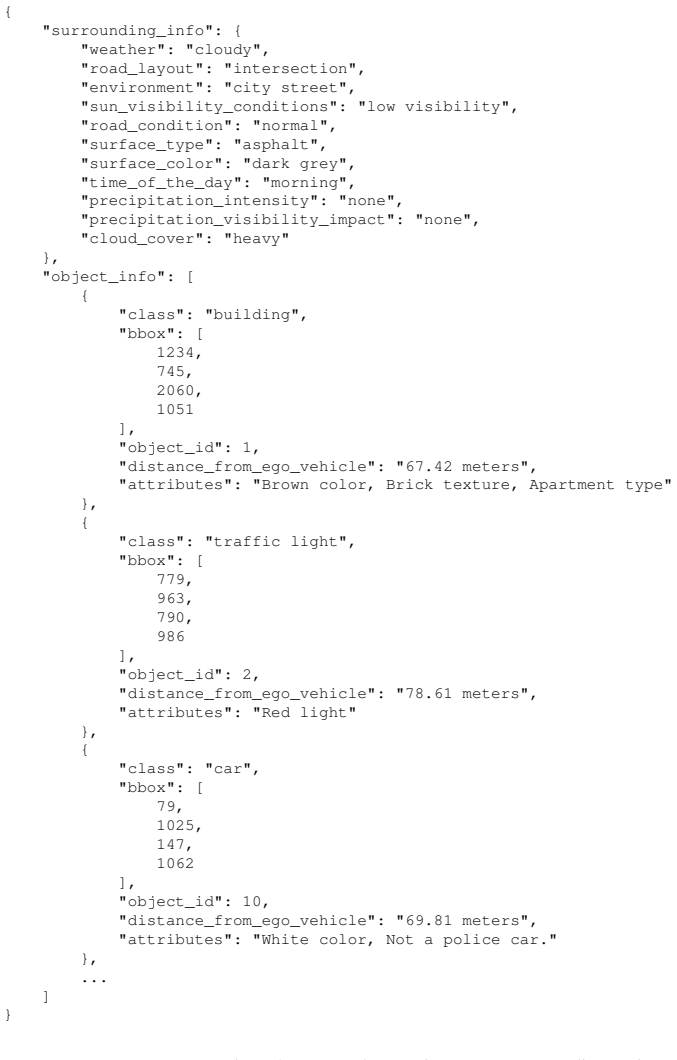

**Figure 8.** Figure 8: Truncated annotation output corresponding to Fig. [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗

**Figure 9.** Figure 9: Prompt used to generate real-world image editing instructions. [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗

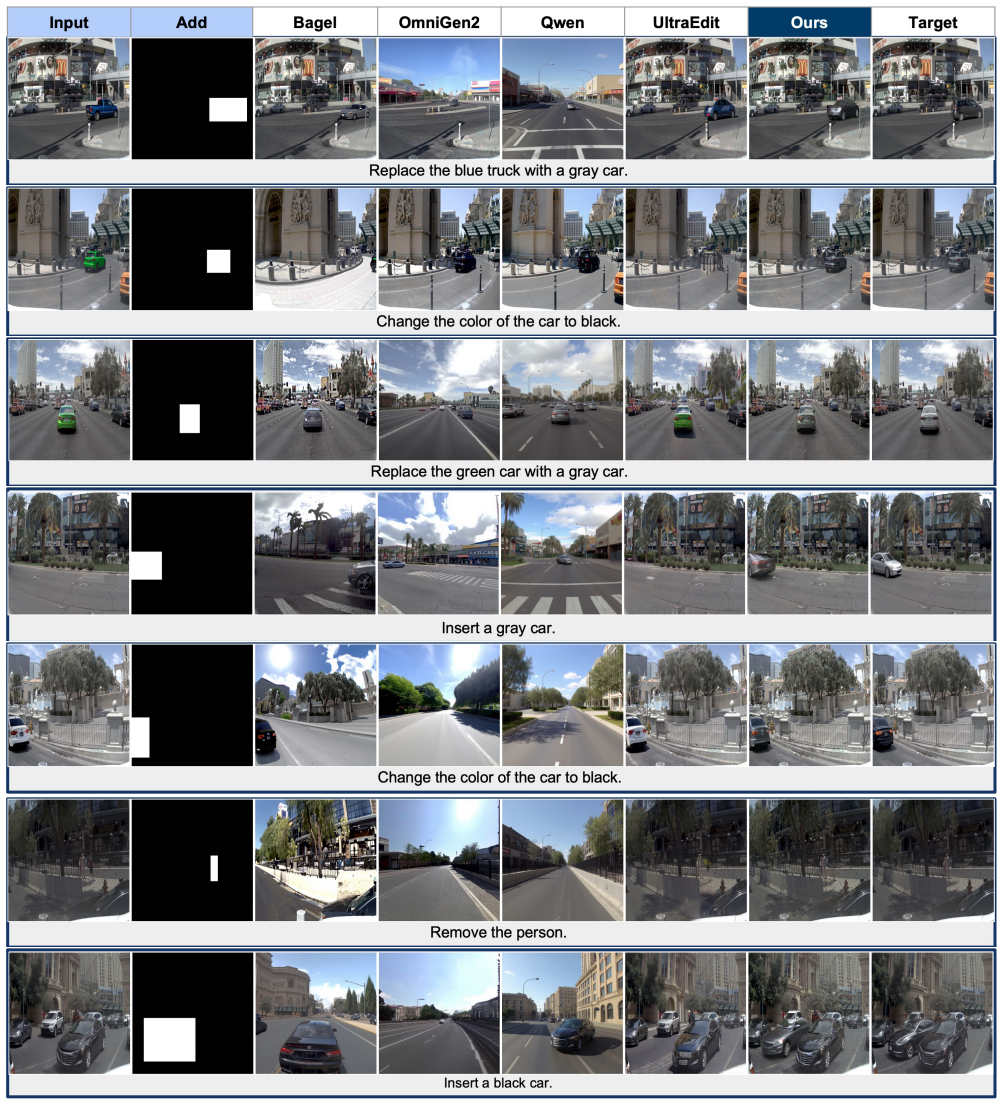

**Figure 10.** Figure 10: HorizonWeaver Editing. Local edits: the masks (projected as binary images and stated in text for reference) enable modifications to traffic. We compare to Qwen [60], OmniGen2 [61], UltraEdit [72], and BAGEL [13]. tency and outperforms baselines in temporal consistency and visual quality. Our model has fewer than 8B parameters whereas Qwen has 20B. We further evaluate geometric consistency by comparing t… view at source ↗

**Figure 11.** Figure 11: HorizonWeaver Editing. Global edits: the text prompt informs the appearance of the scene. For brevity, only the portions relevant to the shown edits are displayed. We compare to Qwen [60], OmniGen2 [61], UltraEdit [72], and BAGEL [13] [PITH_FULL_IMAGE:figures/full_fig_p021_11.png] view at source ↗

**Figure 12.** Figure 12: HorizonWeaver Editing. Compound edits: The masks (projected as binary images) enable modifications to traffic while the text prompt informs the desired global appearance. We compare to Qwen [60], OmniGen2 [61], UltraEdit [72], and BAGEL [13] [PITH_FULL_IMAGE:figures/full_fig_p021_12.png] view at source ↗

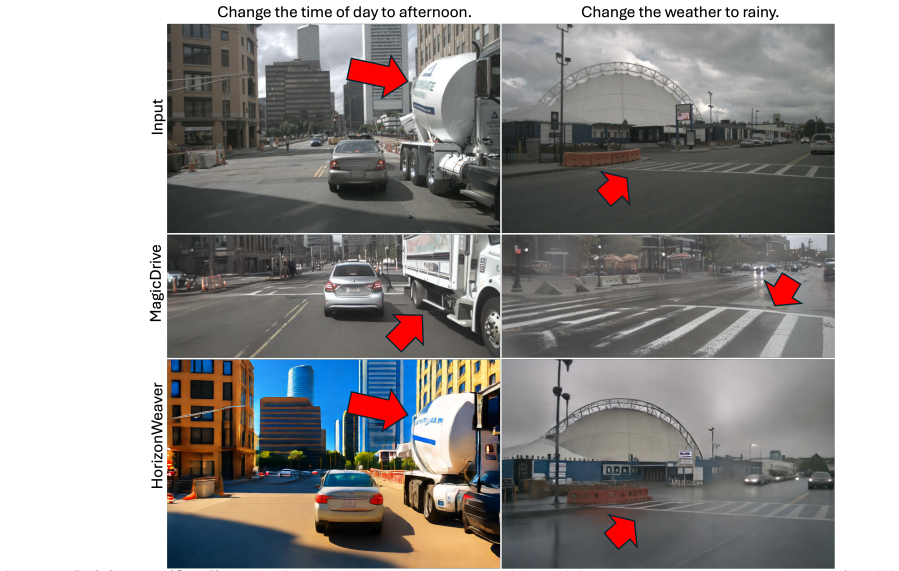

**Figure 13.** Figure 13: Driving specific editor. MagicDrive [14], cannot preserve critical driving scene components (appearance of vehicles, construction infrastructure, road signs, etc.) Long-Trail Editing our edits can extend to rare scenarios, e.g., crosswalks, road signs, and specialized vehicles (cement mixer) which are not preserved by MagicDrive [PITH_FULL_IMAGE:figures/full_fig_p022_13.png] view at source ↗

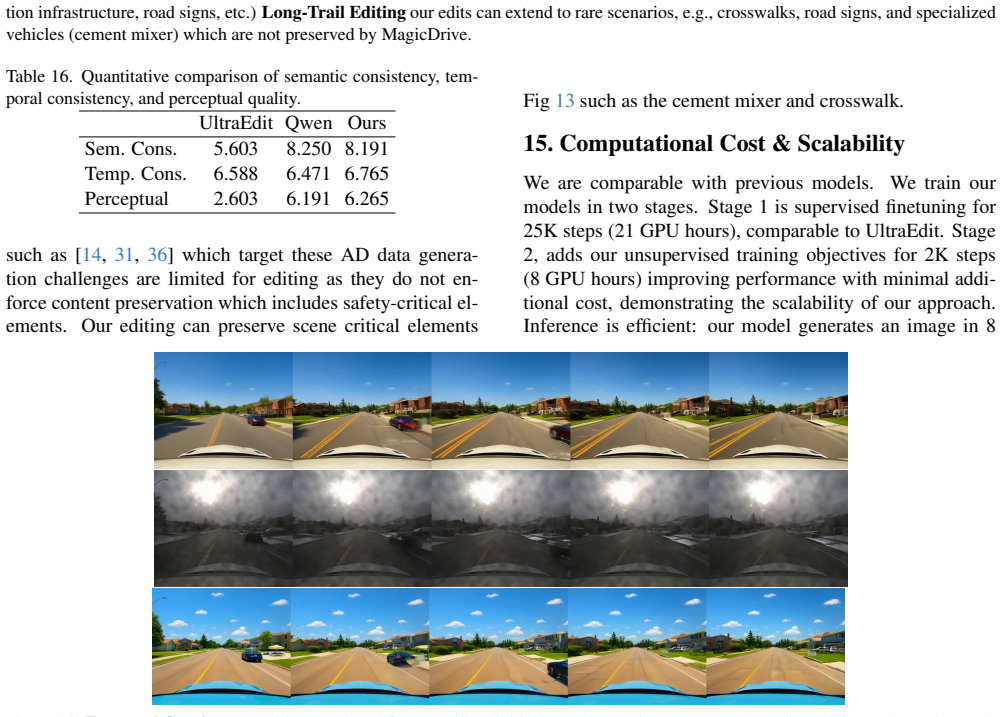

**Figure 14.** Figure 14: Temporal Consistency. Videos produced from an edited initial image by HorizonWeaver, UltraEdit, and Qwen (top to bottom). UltraEdit leaves the initial image unchanged. Prompt: Change the season to summer [PITH_FULL_IMAGE:figures/full_fig_p022_14.png] view at source ↗

**Figure 15.** Figure 15: Driving scenes are dense; thus it is difficult to de [PITH_FULL_IMAGE:figures/full_fig_p023_15.png] view at source ↗

**Figure 16.** Figure 16: Overlapping Edits, HorizonWeaver will apply insertion edits to empty spaces in crowded regions 18. Limitations A failure case appears in [PITH_FULL_IMAGE:figures/full_fig_p023_16.png] view at source ↗

read the original abstract

Ensuring safety in autonomous driving requires scalable generation of realistic, controllable driving scenes beyond what real-world testing provides. Yet existing instruction guided image editors, trained on object-centric or artistic data, struggle with dense, safety-critical driving layouts. We propose HorizonWeaver, which tackles three fundamental challenges in driving scene editing: (1) multi-level granularity, requiring coherent object- and scene-level edits in dense environments; (2) rich high-level semantics, preserving diverse objects while following detailed instructions; and (3) ubiquitous domain shifts, handling changes in climate, layout, and traffic across unseen environments. The core of HorizonWeaver is a set of complementary contributions across data, model, and training: (1) Data: Large-scale dataset generation, where we build a paired real/synthetic dataset from Boreas, nuScenes, and Argoverse2 to improve generalization; (2) Model: Language-Guided Masks for fine-grained editing, where semantics-enriched masks and prompts enable precise, language-guided edits; and (3) Training: Content preservation and instruction alignment, where joint losses enforce scene consistency and instruction fidelity. Together, HorizonWeaver provides a scalable framework for photorealistic, instruction-driven editing of complex driving scenes, collecting 255K images across 13 editing categories and outperforming prior methods in L1, CLIP, and DINO metrics, achieving +46.4% user preference and improving BEV segmentation IoU by +33%. Project page: https://msoroco.github.io/horizonweaver/

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

HorizonWeaver builds a multi-source paired dataset and language-guided masks for driving scene edits, with reported metric gains, but the generalization story needs hold-out tests to hold up.

read the letter

HorizonWeaver adds a paired dataset from Boreas, nuScenes, and Argoverse2 plus language-guided masks and joint preservation-alignment losses to handle instruction-driven edits in dense driving scenes. The paper collects 255K images across 13 categories and shows gains on L1, CLIP, DINO, a user study, and downstream BEV IoU. That dataset scale and the focus on multi-level granularity in safety-critical layouts are the concrete steps forward. The masks let prompts control object and scene changes without breaking traffic layouts, and the losses try to keep content stable while following instructions, which matches the needs of AV simulation work. The approach builds on existing editors but tailors them to driving data in a direct way. The main soft spot is evaluation transparency. The abstract lists improvements but gives no full baseline list, ablation tables, or split details, so it is hard to separate the contribution of the masks and losses from the new data itself. Generalization to unseen climates or layouts rests on the three-source mix, yet the stress-test note is right that no explicit cross-dataset hold-outs or domain-gap numbers appear in the summary. If test scenes stay close to the training sources, the +33% IoU and +46% preference could shrink. No discussion of failure cases in complex edits either. This paper is for researchers building controllable simulators for autonomous driving safety tests. A reader who needs realistic edited scenes for validation would find the dataset and framework useful even before the numbers are fully stress-tested. It deserves peer review because the problem is real and the pieces are plausible, though the referee should ask for clearer ablations and hold-out results.

Referee Report

2 major / 0 minor

Summary. The paper proposes HorizonWeaver, a framework for photorealistic instruction-driven editing of complex driving scenes. It tackles multi-level granularity, rich semantics, and domain shifts via three contributions: a paired real/synthetic dataset of 255K images across 13 editing categories constructed from Boreas, nuScenes, and Argoverse2; language-guided masks enriched with semantics and prompts; and joint losses enforcing content preservation and instruction alignment. The method claims to outperform prior editors on L1, CLIP, and DINO metrics, achieve +46.4% user preference, and deliver +33% gains in downstream BEV segmentation IoU.

Significance. If the generalization and editing coherence claims hold, the work would be significant for autonomous driving research, offering a scalable way to generate controllable, safety-critical scene variations beyond real-world collection limits. The scale of the constructed dataset and the downstream IoU improvement on BEV segmentation are notable strengths that could support broader use in simulation and testing pipelines.

major comments (2)

[Abstract and Experiments] The central claim of generalization to unseen climates, layouts, and traffic (abstract) depends on the 3-source paired dataset enabling robust domain-shift handling, yet no explicit cross-dataset hold-out splits, climate-specific test sets, or quantitative domain-gap metrics (e.g., FID or distribution distances between train and test) are described. Without these, the reported L1/CLIP/DINO margins and +33% BEV IoU could be attributable to reduced distributional shift rather than the language-guided masks or joint losses.
[Evaluation] The quantitative support for the +46.4% user preference and +33% BEV IoU gains lacks sufficient detail on baseline implementations, data splits, ablation studies isolating the joint losses and mask generation, or controls for post-hoc selection. This makes it difficult to verify that the gains are load-bearing on the proposed model components rather than dataset construction alone.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback, which highlights important areas for clarifying our experimental design and evaluation. We address each major comment below and will revise the manuscript to incorporate the requested details.

read point-by-point responses

Referee: [Abstract and Experiments] The central claim of generalization to unseen climates, layouts, and traffic (abstract) depends on the 3-source paired dataset enabling robust domain-shift handling, yet no explicit cross-dataset hold-out splits, climate-specific test sets, or quantitative domain-gap metrics (e.g., FID or distribution distances between train and test) are described. Without these, the reported L1/CLIP/DINO margins and +33% BEV IoU could be attributable to reduced distributional shift rather than the language-guided masks or joint losses.

Authors: We agree that the manuscript would benefit from explicit documentation of these elements to better isolate the contributions of our components. The paired dataset was constructed from Boreas, nuScenes, and Argoverse2 specifically to introduce diversity in climates, layouts, and traffic during training, with evaluation on held-out portions intended to test generalization. However, cross-dataset hold-out splits, climate-specific test sets, and quantitative metrics such as FID are not detailed. In the revision, we will add: (1) a clear description of the train/test splits across the three sources with no scene overlap, (2) performance breakdowns on climate-specific subsets where feasible, and (3) FID and distribution distance metrics between training and test distributions. These additions will help substantiate that the L1/CLIP/DINO and BEV IoU improvements arise from the language-guided masks and joint losses. revision: yes
Referee: [Evaluation] The quantitative support for the +46.4% user preference and +33% BEV IoU gains lacks sufficient detail on baseline implementations, data splits, ablation studies isolating the joint losses and mask generation, or controls for post-hoc selection. This makes it difficult to verify that the gains are load-bearing on the proposed model components rather than dataset construction alone.

Authors: We acknowledge that greater transparency is required to confirm the load-bearing role of our proposed components. The reported gains were measured against adapted prior editors on our 255K-image dataset using the described metrics and user study protocol. In the revised manuscript and supplementary material, we will provide: (1) detailed specifications of baseline implementations and any adaptations to driving scenes, (2) exact data splits and sample counts for each quantitative result, (3) full ablation studies isolating the joint losses and language-guided mask generation, and (4) controls such as results on randomly sampled (non-cherry-picked) outputs to address post-hoc selection. These changes will enable verification that the improvements are attributable to the model rather than dataset construction. revision: yes

Circularity Check

0 steps flagged

No significant circularity in HorizonWeaver derivation

full rationale

The paper presents an empirical method with three contributions: constructing a paired real/synthetic dataset from public sources (Boreas, nuScenes, Argoverse2), language-guided masks for editing, and joint losses for consistency. Results are reported on external metrics (L1, CLIP, DINO) plus user study and BEV IoU on a newly collected 255K-image dataset across 13 categories. No equations, predictions, or claims reduce by construction to fitted parameters, self-definitions, or self-citation chains; all load-bearing steps rely on independent benchmarks and hold-out evaluations outside the training process.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard deep learning assumptions about the ability of generative models to follow instructions while preserving content, plus the representativeness of the constructed dataset for domain shifts. No new physical entities are introduced.

free parameters (1)

Hyperparameters for the joint losses and mask generation
Standard training choices whose specific values are not detailed in the abstract but are required for the reported performance.

axioms (2)

domain assumption Language-enriched masks and prompts can enable precise, coherent edits at multiple granularities in dense scenes
Invoked in the model contribution section of the abstract.
domain assumption Joint losses can simultaneously enforce scene consistency and instruction fidelity without trade-offs that degrade photorealism
Invoked in the training contribution of the abstract.

pith-pipeline@v0.9.0 · 5606 in / 1587 out tokens · 68997 ms · 2026-05-10T19:35:13.695096+00:00 · methodology

discussion (0)
