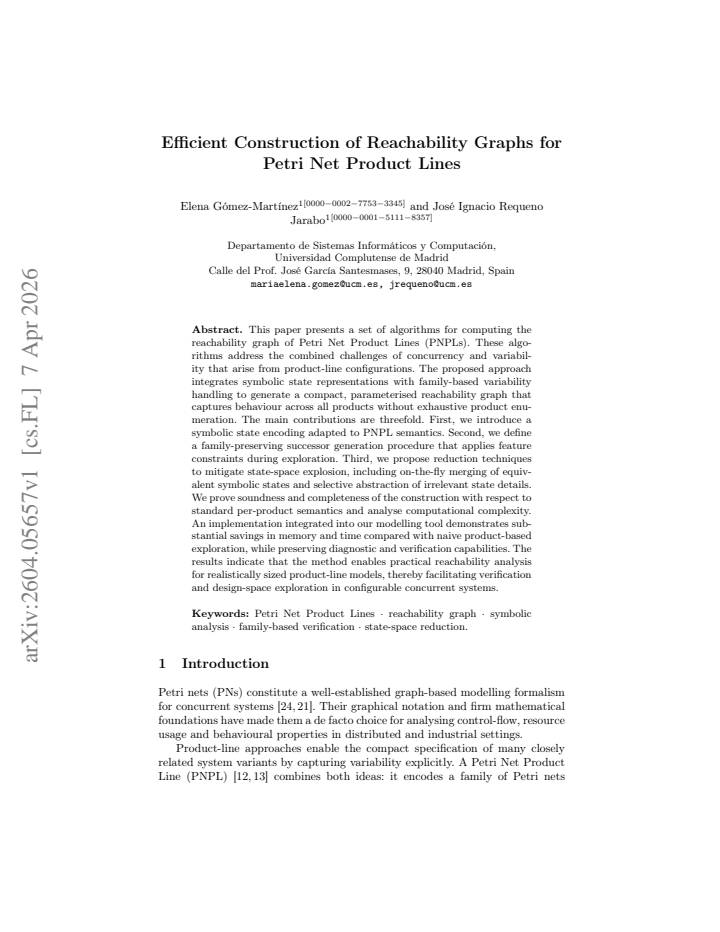

Efficient Construction of Reachability Graphs for Petri Net Product Lines

Elena G\'omez-Mart\'inez, Jos\'e Ignacio Requeno Jarabo

Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:57 UTC · model grok-4.3

classification 💻 cs.FL

keywords Petri net product linesreachability graphssymbolic statesfamily-based analysisvariabilitystate space reductionconcurrent systemsverification

0 comments

The pith

Symbolic state representations with family-based rules produce a compact parameterized reachability graph for all products in a Petri net product line.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents algorithms that combine symbolic state encoding with variability handling to explore reachability in Petri net product lines. This creates one graph that represents the possible behaviors for every valid product configuration at once. The approach applies feature constraints when generating successors and merges equivalent states during construction to control the size of the graph. Reductions like selective abstraction further help avoid state-space explosion. The result is proven to match the reachability information obtained from analyzing each product on its own, with reported gains in efficiency for practical models.

Core claim

The core discovery is that a symbolic state encoding adapted to PNPL semantics, together with a family-preserving successor generation procedure that applies feature constraints during exploration, and reduction techniques including on-the-fly merging and selective abstraction, allow construction of a compact parameterized reachability graph. This graph captures the behavior across all products without requiring exhaustive product enumeration. The construction is shown to be sound and complete with respect to standard per-product reachability semantics.

What carries the argument

Parameterized reachability graph built from symbolic states that encode multiple product configurations and transitions constrained by feature requirements.

If this is right

The graph supports verification tasks for the entire product line in one pass.
Memory and time requirements drop substantially compared to per-product construction for models with many variants.
Diagnostic capabilities such as identifying reachable states remain available for any specific product.
The method facilitates design-space exploration in systems with both concurrency and configurability.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same symbolic approach could be applied to other concurrent models that include feature variability beyond Petri nets.
Properties expressed over feature constraints could be checked directly on the parameterized graph without generating separate instances.
Further reductions might come from integrating more advanced abstraction techniques specific to variability.

Load-bearing premise

That the symbolic state encoding and the family-preserving successor rules preserve the exact reachability semantics for every valid product without spurious or missing states.

What would settle it

Finding a small Petri net product line where the states reachable in the parameterized graph differ from those in the individual reachability graphs of its products.

Figures

Figures reproduced from arXiv: 2604.05657 by Elena G\'omez-Mart\'inez, Jos\'e Ignacio Requeno Jarabo.

**Figure 1.** Figure 1: A PNPL representing a Simplistic Flexible Assembly Line. Structural properties — such as marked graphs, state machines, free-choice, and extended free-choice structures — are formally analysed using lifted analysis techniques [27]. These techniques translate structural properties into first-order logical propositions that can be efficiently resolved through satisfiability (SAT) solvers [13]. Furthermore, b… view at source ↗

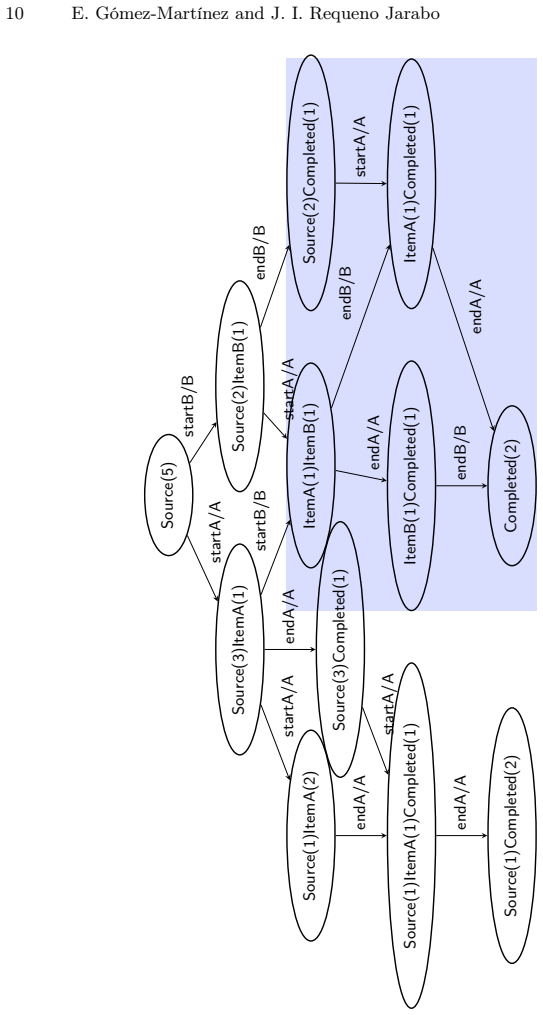

**Figure 2.** Figure 2: Feature-annotated reachability graph for PNPL representing a Simplistic Flexible Assembly Line [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗

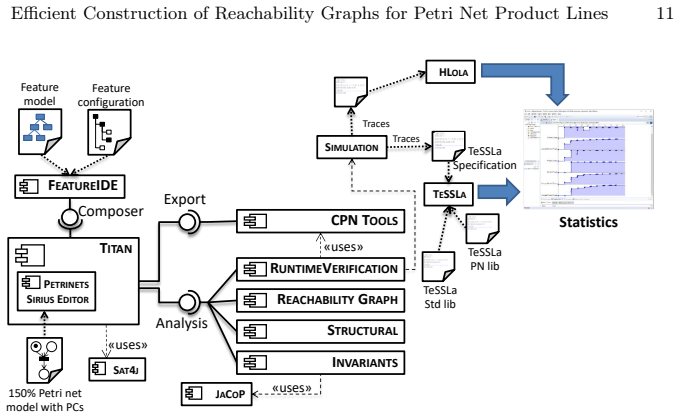

**Figure 3.** Figure 3: Architecture overview of Titan. time in Coloured Petri Nets [14, 15], i.e., tokens carry discrete time annotations and time evolves according to a central clock. Titan can perform runtime analysis of individual TPNPL products and compute user-specified quality metrics (e.g., performance, safety indicators) from execution events obtained by simulation traces. It relies on the TPNPL-to-CPN Tools transforma… view at source ↗
