arxiv: 2604.07155 · v1 · submitted 2026-04-08 · 💻 cs.CE

Recognition: unknown

Immersed boundary-conformal isogeometric methods for magnetostatics

Yusuf T. Elbadry , Giuliano Guarino , Pablo Antol\'in , Oliver Weeger
Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:17 UTC · model grok-4.3

classification 💻 cs.CE
keywords isogeometric analysisimmersed methodsmagnetostaticsNitsche couplingnon-conformal patchesboundary-conformal quadraturemulti-material domains
0
0 comments X

The pith

Union-based immersed isogeometric methods solve magnetostatic problems accurately while using substantially fewer patches than conformal multi-patch approaches.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops three non-conformal strategies for isogeometric analysis of magnetostatics to avoid the strict requirement that patch interfaces match exactly. These include a fully immersed method, a union of non-conformal patches, and a union with added conformal layers around critical interfaces, all paired with boundary-conformal quadrature for integration. The union variants couple independent material patches weakly via Nitsche's method inside a background domain. Numerical tests on benchmarks and an industrial electric-machine case show the union methods deliver high accuracy comparable to reference solutions, whereas the fully immersed version has difficulty capturing field-gradient jumps at material boundaries. The approaches cut geometric preprocessing time and patch counts compared with conventional conformal multi-patch modeling.

Core claim

We adopt, extend, and evaluate three non-conformal discretization strategies for magnetostatic problems: a fully immersed approach, the union with non-conformal patches, and the union with conformal layers. In all three methods, boundary-conformal high-order quadrature rules are employed for integration over trimmed boundary and interface elements. In the two union approaches, material regions are, as far as possible, represented by independent non-conformal spline patches that are embedded within a background patch and coupled weakly through Nitsche's method. In the latter framework, critical interfaces are additionally surrounded by conformal layers that enable the strong imposition of b

What carries the argument

Union of independent non-conformal spline patches embedded in a background patch and coupled by Nitsche's method, together with boundary-conformal high-order quadrature rules on trimmed elements.

Load-bearing premise

Weak coupling via Nitsche's method plus boundary-conformal quadrature can capture the required discontinuities in field gradients at material interfaces without conformal patch matching.

What would settle it

If the magnetic fields or potentials computed by the union methods differ from a refined conformal reference solution by more than the reported tolerances at material interfaces in the industrial application, the accuracy claim is falsified.

Figures

Figures reproduced from arXiv: 2604.07155 by Giuliano Guarino, Oliver Weeger, Pablo Antol\'in, Yusuf T. Elbadry.

Figure 1
Figure 1. Figure 1: Coupling of two domains Ω L and Ω R across their common interface ΓLR via Nitsche’s method 2.3. Weak imposition of Dirichlet boundary conditions In immersed boundary method settings, coincidence of the physical domain boundaries with the compu￾tational domain boundaries is not guaranteed. In such cases, strong imposition of the Dirichlet boundary conditions is not possible. There are different methods for … view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of the fully immersed concept. The physical domain Ω = Ω1 ∪Ω2 is immersed into an extended domain, the background patch Ω □, here consisting of 4 × 4 elements in its parameter domain Ωˆ □. B-reps of the subdomains Ωi consisting of loops of boundary curves ∂Ωi = S k γ k i are used to determine the immersed trimmed regions Ωˆ □ i . To determine the boundary-conformal quadrature points, the trimm… view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of the union with non-conformal patches concept. As in the fully immersed method, the subdomain Ω1 is immersed into the background patch Ω □. However, here Ω2 is parameterized by an individual patch with the mapping F p 2 . Thus, continuity at the interface Γ12 = ∂Ω1 ∩∂Ω2 is weakly enforced using Nitsche’s method It is important to note that the decomposition and re-parameterization of trimmed… view at source ↗
Figure 4
Figure 4. Figure 4: Illustration of the union with conformal layers concept. As in the union with non-conformal patches method, the subdomain Ω2 is parameterized by an individual patch with the mapping F p 2 . Beyond, here the subdomain Ω1 is partitioned into two parts: Along the interface with Ω2, the new subdomain ΩL forms a geometrically conformal layer, which is offset from the boundary Γ12 and also parameterized by an in… view at source ↗
Figure 5
Figure 5. Figure 5: Illustration of the coaxial cable problem setup [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Comparison of convergence behaviors of the [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of the scalar potential Az and the magnitude of the flux density Bθ between the analytical solution and the numerical results obtained using the fully immersed and union with non-conformal patches methods with p = 2 and 32 × 32 elements for each patch corresponding numerical results obtained using both methods [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Schematic drawing of the horseshoe magnet problem. The red rectangular regions denote permanent [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: These spurious oscillations can be mitigated by employing [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
Figure 9
Figure 9. Figure 9: Schematic drawings for the discretizations of the horseshoe magnet problem with standard multi-patch [PITH_FULL_IMAGE:figures/full_fig_p020_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Evaluation of the magnetic flux density magnitude along the line [PITH_FULL_IMAGE:figures/full_fig_p021_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Evaluation of the magnetic flux density magnitude along the line [PITH_FULL_IMAGE:figures/full_fig_p021_11.png] view at source ↗
Figure 12

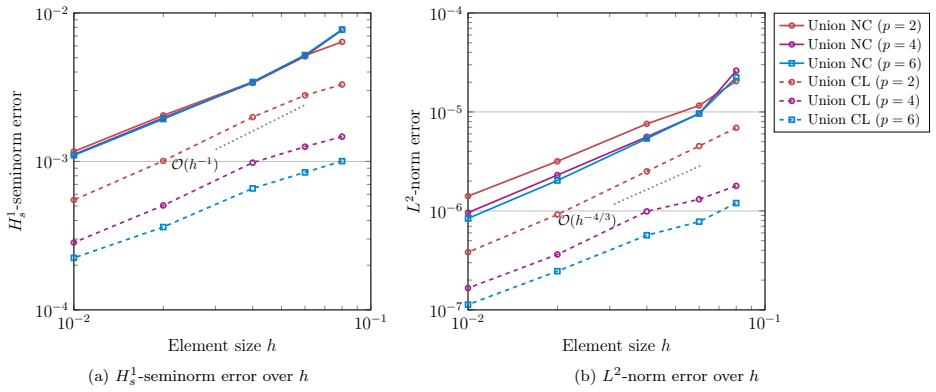

Figure 12. Figure 12: Comparison of convergence behaviors of the [PITH_FULL_IMAGE:figures/full_fig_p022_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Contours of scalar potential (left) and magnetic flux density (right) for horseshoe magnet problem [PITH_FULL_IMAGE:figures/full_fig_p023_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Schematic representation of the permanent magnet assembly. The permanent magnets are shown in red, [PITH_FULL_IMAGE:figures/full_fig_p024_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Illustration of the different geometric discretizations of the permanent magnet assembly [PITH_FULL_IMAGE:figures/full_fig_p025_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Evaluation of flux density magnitude in the air gap of the permanent magnet assembly at [PITH_FULL_IMAGE:figures/full_fig_p026_16.png] view at source ↗
Figure 17

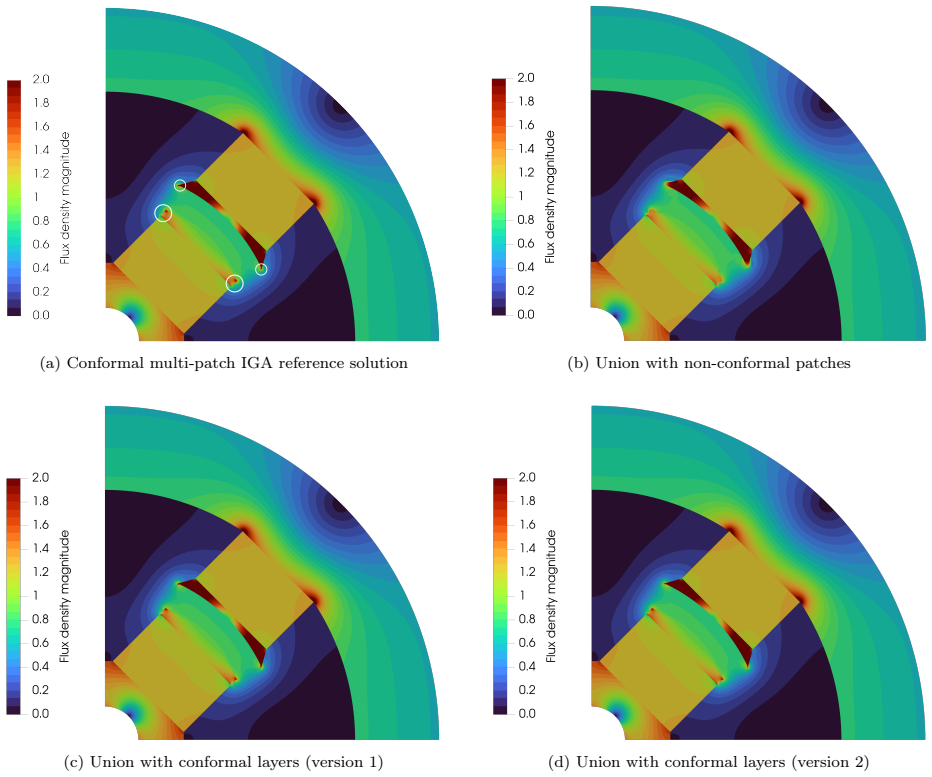

Figure 17. Figure 17: Contours of magnetic flux density of the permanent magnet assembly for different methods [PITH_FULL_IMAGE:figures/full_fig_p027_17.png] view at source ↗
read the original abstract

Isogeometric analysis was proposed to bridge the gap between computer-aided design and numerical discretization. However, standard multi-patch isogeometric analysis mandates conformal discretizations across patch interfaces, posing challenges for multi-material domain problems. In the context of electric machines, this requirement becomes evident in a large number of patches needed to represent machines consisting of several domains and materials. In this work, we adopt, extend, and evaluate three non-conformal discretization strategies for magnetostatic problems: a fully immersed approach, the union with non-conformal patches, and the union with conformal layers. In all three methods, boundary-conformal high-order quadrature rules are employed for integration over trimmed boundary and interface elements. In the two union approaches, material regions are, as far as possible, represented by independent non-conformal spline patches that are embedded within a background patch and coupled weakly through Nitsche's method. In the latter framework, critical interfaces are additionally surrounded by conformal layers that enable the strong imposition of boundary conditions and improved resolution of interface behavior. The proposed approaches are assessed through several magnetostatic benchmark problems and an industrial application. The numerical results show that the union methods achieve highly accurate solutions, while the fully immersed approach struggles with discontinuities in field gradients across material interfaces. Nevertheless, these methods significantly reduce the geometric preprocessing effort compared to conventional, conformal multi-patch analysis and require substantially fewer patches. Overall, this demonstrates that our immersed boundary-conformal isogeometric framework possesses great potential for efficient simulation of complex electromagnetic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper proposes three non-conformal isogeometric discretization strategies for magnetostatic problems in multi-material domains (e.g., electric machines): a fully immersed approach, a union approach with non-conformal patches, and a union approach with additional conformal layers. All employ boundary-conformal high-order quadrature; the union variants embed independent spline patches in a background domain and couple them weakly via Nitsche's method (with strong enforcement enabled by the conformal layers). The methods are evaluated on several magnetostatic benchmarks and one industrial application, with the claim that the union variants deliver high accuracy while substantially reducing patch count and geometric preprocessing relative to conventional conformal multi-patch IGA, whereas the fully immersed variant struggles at material interfaces.

Significance. If the reported numerical behavior holds, the work offers a practical route to lowering the geometric preprocessing burden that currently limits IGA adoption for complex multi-material electromagnetic devices. The hybrid use of non-conformal patches plus selective conformal layers, combined with boundary-conformal quadrature, addresses a recognized bottleneck without sacrificing interface accuracy. Evaluation on both academic benchmarks and an industrial case adds credibility to the efficiency claims.

major comments (2)
  1. §5 (Numerical results): The central claim that union methods 'achieve highly accurate solutions' while the fully immersed variant 'struggles with discontinuities in field gradients' is load-bearing, yet the manuscript provides no tabulated L2 or H1 error norms, convergence rates, or direct side-by-side comparison against a conformal multi-patch reference solution on the benchmark problems; without these quantitative anchors the accuracy advantage remains qualitative.
  2. §3.2 (Nitsche coupling): The stability and consistency of the Nitsche terms at material interfaces with discontinuous gradients are asserted via the benchmarks, but the paper does not report the sensitivity of results to the Nitsche penalty parameter or demonstrate that the chosen value remains robust across the industrial geometry; this parameter choice is therefore a potential hidden degree of freedom that should be quantified.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and positive overall assessment. We address the two major comments below and will incorporate the suggested quantitative analyses into a revised manuscript.

read point-by-point responses

  1. Referee: §5 (Numerical results): The central claim that union methods 'achieve highly accurate solutions' while the fully immersed variant 'struggles with discontinuities in field gradients' is load-bearing, yet the manuscript provides no tabulated L2 or H1 error norms, convergence rates, or direct side-by-side comparison against a conformal multi-patch reference solution on the benchmark problems; without these quantitative anchors the accuracy advantage remains qualitative.

    Authors: We agree that tabulated error norms and convergence rates would provide stronger quantitative support for the accuracy claims. In the revised manuscript we will add tables reporting L2 and H1 error norms (with respect to a reference solution) for the benchmark problems, together with observed convergence rates and direct comparisons against a conformal multi-patch IGA solution. These additions will make the accuracy advantage of the union approaches explicit and quantitative. revision: yes

  2. Referee: §3.2 (Nitsche coupling): The stability and consistency of the Nitsche terms at material interfaces with discontinuous gradients are asserted via the benchmarks, but the paper does not report the sensitivity of results to the Nitsche penalty parameter or demonstrate that the chosen value remains robust across the industrial geometry; this parameter choice is therefore a potential hidden degree of freedom that should be quantified.

    Authors: We acknowledge the importance of demonstrating robustness with respect to the Nitsche penalty parameter. In the revision we will include a sensitivity study on the benchmark problems showing the effect of varying the penalty parameter over a range of values, and we will verify that the same parameter choice yields stable and accurate results on the industrial geometry without retuning. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper introduces and numerically evaluates three non-conformal IGA discretization strategies (fully immersed, union non-conformal, union with conformal layers) for magnetostatics, using Nitsche coupling and boundary-conformal quadrature. These are presented as extensions of prior immersed/IGA techniques and validated directly against external benchmark problems and an industrial case, with claims of accuracy and reduced preprocessing supported by the reported results rather than by internal redefinitions or self-referential fits. No load-bearing derivation step reduces to a fitted parameter, self-citation chain, or ansatz smuggled via citation; the central claims remain independent of the paper's own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract does not introduce new free parameters, axioms, or invented entities beyond standard assumptions of isogeometric analysis and Nitsche's weak enforcement; any penalty parameters in Nitsche's method are not quantified here.
