arxiv: 2604.07409 · v1 · submitted 2026-04-08 · 💻 cs.LG · eess.IV

Recognition: 1 theorem link

· Lean Theorem

GAN-based Domain Adaptation for Image-aware Layout Generation in Advertising Poster Design

Chenchen Xu , Min Zhou , Tiezheng Ge , Weiwei Xu

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:52 UTC · model grok-4.3

classification 💻 cs.LG eess.IV

keywords layout generationGANdomain adaptationadvertising postersimage-aware layoutscontent-aware metricsposter designCGL-Dataset

0 comments

The pith

A GAN with pixel-level discriminator adapts to clean product images and generates image-aware layouts for advertising posters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper creates a dataset pairing inpainted advertising posters with clean product images to train models that place graphic elements around image content. It shows that standard training fails because inpainting leaves artifacts, so it builds PDA-GAN, an unsupervised domain-adaptation GAN whose discriminator judges each pixel in early feature maps. This lets the generator learn from the flawed posters yet produce layouts that respect the textures and shapes of untouched input photos. The work also defines three new metrics that score how well layouts interact with image content rather than just measuring box positions. A reader would care because the method turns an imperfect training source into usable output for real-world poster design without needing perfectly paired clean data.

Core claim

PDA-GAN introduces a pixel-level discriminator attached to shallow feature maps that computes per-pixel GAN loss, allowing the layout generator trained on inpainted posters to produce high-quality image-aware layouts when given clean product images; quantitative and qualitative results on the CGL-Dataset show this outperforms prior models.

What carries the argument

The pixel-level discriminator (PD) in PDA-GAN, which applies the adversarial loss to individual pixels of shallow feature maps to close the domain gap between inpainted training posters and clean input images.

If this is right

Layouts respect fine visual details such as product shape and texture instead of treating the image as a uniform background.
The three new content-aware metrics give a more relevant score for how graphic elements interact with image content than position-only measures.
The same unsupervised adaptation step can be added to other conditional layout generators that must train on imperfect or synthetic data.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The pixel discriminator may help any image-conditioned generative model when the training images contain localized artifacts.
The new metrics could be reused to benchmark layout quality in mobile UI or magazine design tasks.
If the inpainting method improves, the remaining domain gap shrinks and the adaptation network may become simpler or unnecessary.

Load-bearing premise

The visual artifacts left by inpainting create a domain gap that unsupervised pixel-level adaptation can close without any paired clean training examples.

What would settle it

Run PDA-GAN and the Gaussian-blur baseline on a held-out set of real clean product images never seen during training; if human raters or the new content-aware metrics show no improvement in layout quality or content alignment, the adaptation claim is false.

Figures

Figures reproduced from arXiv: 2604.07409 by Chenchen Xu, Min Zhou, Tiezheng Ge, Weiwei Xu.

**Figure 1.** Figure 1: Examples of image-aware graphic layout generation for advertising posters. Our model generates graphic layouts (middle) with multiple elements conditioned on product images (left). Designers or even automatic rendering programs can use these layouts to render advertising posters (right). The core challenge lies in modeling the relationship between the image content and the layout elements, enabling the ne… view at source ↗

**Figure 2.** Figure 2: Examples of CGL-Dataset. The left part represents the six components of information contained in each sample of the dataset. In the upper right corner are examples of different product types, and in the lower right corner are examples with different layout positions. siderable challenge. This is primarily because clean product images typically require manual design and post-processing by professional desig… view at source ↗

**Figure 3.** Figure 3: Domain gap visualization. To illustrate the domain gap, we manually design several posters based on clean product images (target data), and then inpaint the graphic elements to generate the corresponding source data. The visual content in the inpainted areas (highlighted with yellow boxes) appears distorted and blurred compared to the original content (highlighted with red boxes). updating the discriminato… view at source ↗

**Figure 4.** Figure 4: The architecture of our network. Annotated posters (source domain data) must be inpainted before input to the model. The model has both reconstruction and GAN loss when training with source domain data, while only a GAN loss is used when training with target domain data. Please refer to Sec. IV for the definition of each loss term: LPD, L G PD, and Lrec. During the discriminator or generator pass, both inp… view at source ↗

**Figure 5.** Figure 5: Qualitative evaluation for different models. Layouts in each column are conditioned on the same image, while those in each row are generated by the same model. This figure provides a qualitative comparison and analysis of different models from three perspectives: background complexity of text elements, subject overlap, and product overlap attention maps. TABLE V: Comprehensive comparison between CGL-GAN an… view at source ↗

**Figure 6.** Figure 6: More qualitative comparisons between CGL-GAN and PDA-GAN. [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗

**Figure 7.** Figure 7: Layouts generated by different models using source and target domain data. Inpainted images (source domain) and clean images (target domain) are both fed into PDA-GAN and CGL-GAN. The results produced by PDA-GAN are relatively consistent, indicating that our method achieves better feature alignment between the two domains. 0.1289, and 0.1263. The corresponding mean values calculated by PDA-GAN are 0.0293, … view at source ↗

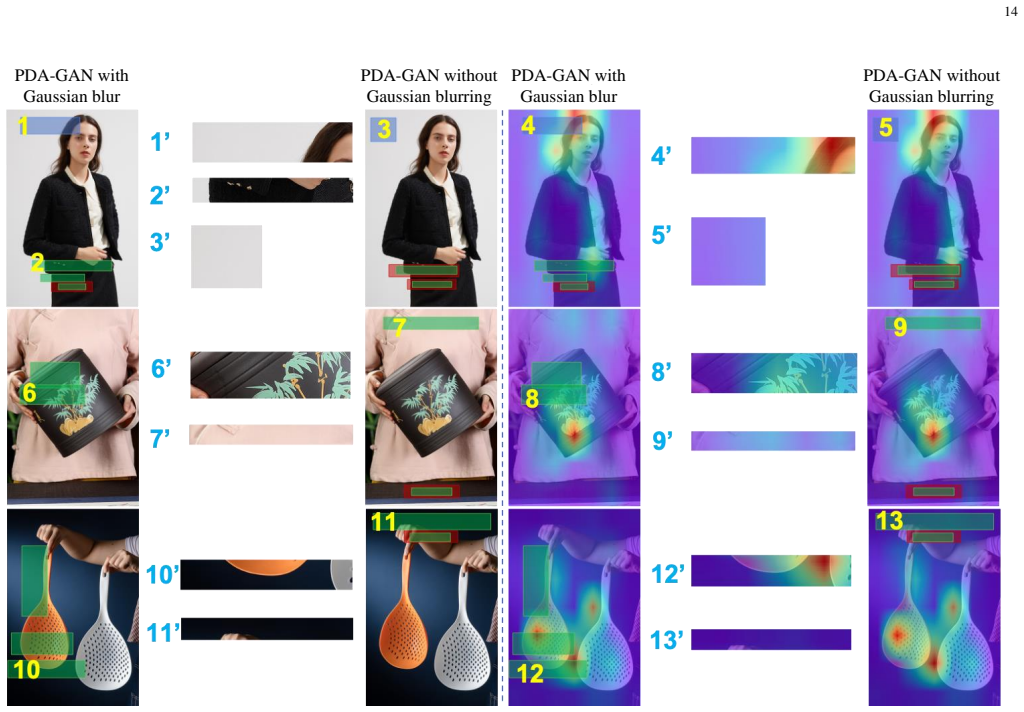

**Figure 8.** Figure 8: Impact of Gaussian blur. Layouts in each row are generated using the same input image, while those in each column correspond to different input samples. “PDA-GAN with Gaussian blur” indicates that the input data is preprocessed with Gaussian blurring. The blue-numbered boxes in the middle show enlarged views of the regions marked with yellow numbers. The left part of the vertical dotted line displays the i… view at source ↗

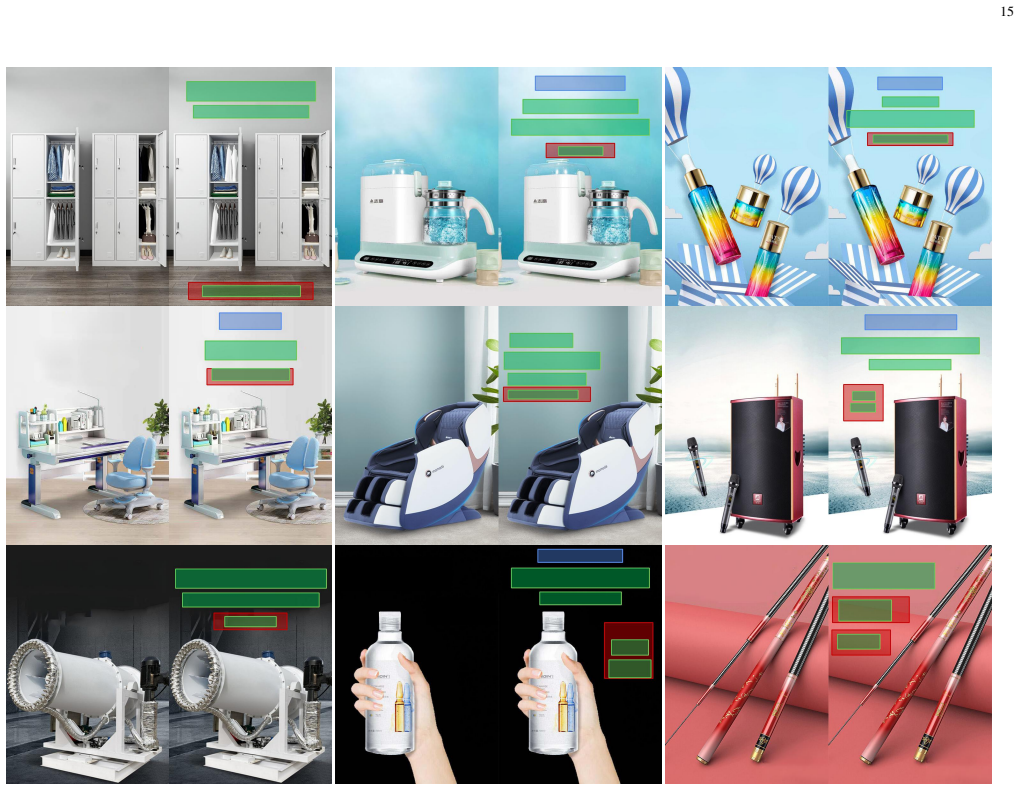

**Figure 9.** Figure 9: Generalization ability of PDA-GAN on PKU-Dataset [33]. Gaussian blur tends to generate layout bounding boxes that occlude subject or product regions. Such layouts diminish the visibility of subjects and the clarity of layout elements in advertising posters. These quantitative and qualitative results demonstrate that the loss of image details caused by Gaussian blur degrades the quality of the generated ima… view at source ↗

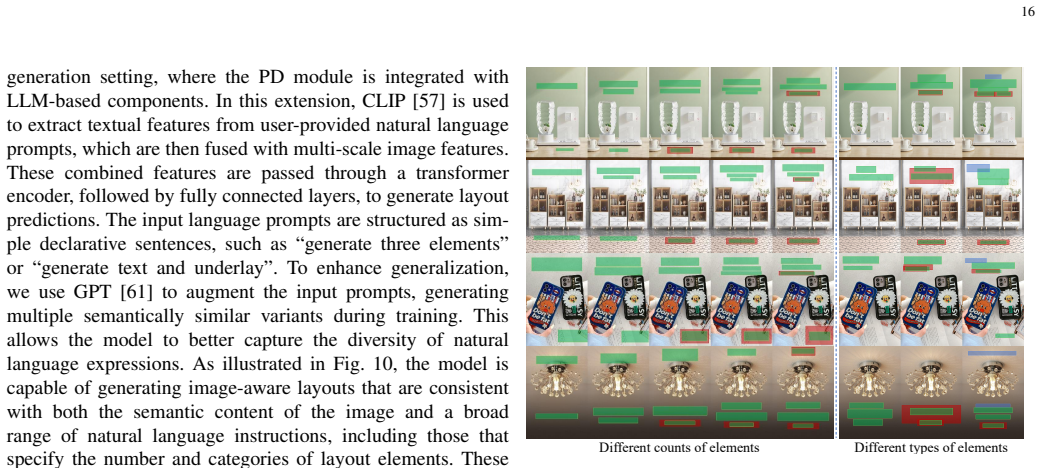

**Figure 10.** Figure 10: Language-guided layout generation with varying element counts and types. Each row corresponds to the same background image. The left part shows layouts generated from prompts specifying the number of elements (e.g., “generate three elements”, 2 to 6 from left to right), while the right part shows layouts guided by prompts specifying element types (e.g., “generate text and underlay”). G D P a t c h D P D … view at source ↗

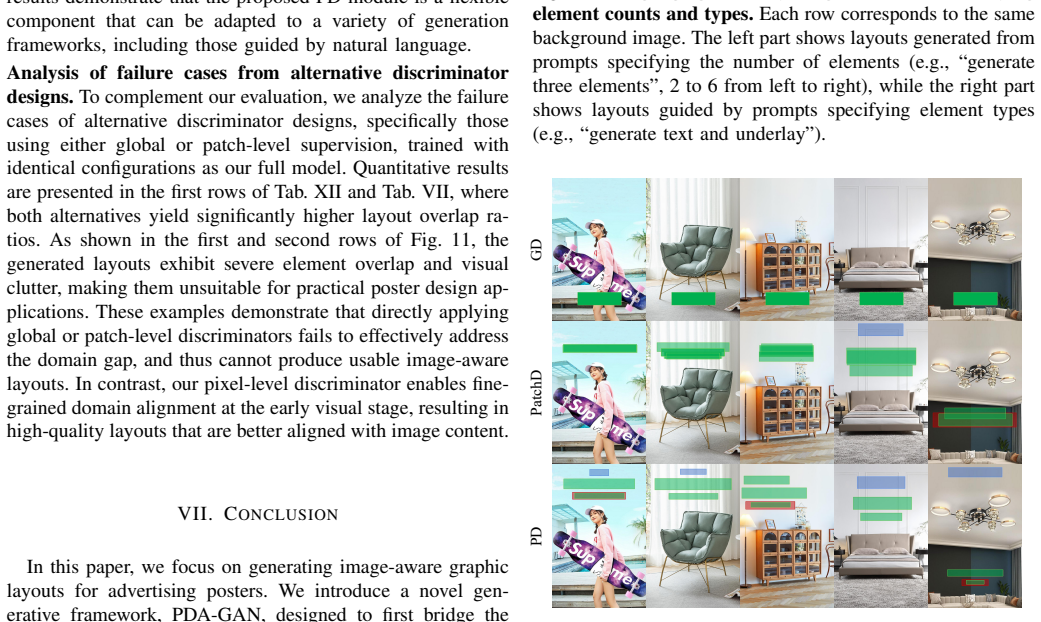

**Figure 11.** Figure 11: Failure cases. The first to third rows show layouts generated by models with the global discriminator (GD), patch discriminator (PatchD), and our PD module, respectively. ACKNOWLEDGMENTS We sincerely thank the anonymous reviewers for their professional and constructive comments, which have helped us improve the quality and clarity of this paper. Weiwei Xu is partially supported by “Pioneer” and “Leading G… view at source ↗

read the original abstract

Layout plays a crucial role in graphic design and poster generation. Recently, the application of deep learning models for layout generation has gained significant attention. This paper focuses on using a GAN-based model conditioned on images to generate advertising poster graphic layouts, requiring a dataset of paired product images and layouts. To address this task, we introduce the Content-aware Graphic Layout Dataset (CGL-Dataset), consisting of 60,548 paired inpainted posters with annotations and 121,000 clean product images. The inpainting artifacts introduce a domain gap between the inpainted posters and clean images. To bridge this gap, we design two GAN-based models. The first model, CGL-GAN, uses Gaussian blur on the inpainted regions to generate layouts. The second model combines unsupervised domain adaptation by introducing a GAN with a pixel-level discriminator (PD), abbreviated as PDA-GAN, to generate image-aware layouts based on the visual texture of input images. The PD is connected to shallow-level feature maps and computes the GAN loss for each input-image pixel. Additionally, we propose three novel content-aware metrics to assess the model's ability to capture the intricate relationships between graphic elements and image content. Quantitative and qualitative evaluations demonstrate that PDA-GAN achieves state-of-the-art performance and generates high-quality image-aware layouts.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper ships a new paired dataset for image-conditioned poster layouts and a PDA-GAN variant that adds a pixel-level discriminator to handle inpainting artifacts, but offers no direct checks that the adaptation actually aligns the domains.

read the letter

The core contribution here is the CGL-Dataset of 60k inpainted poster-layout pairs plus 121k clean product images, plus the PDA-GAN that attaches a pixel discriminator to shallow features to try to close the domain gap. That setup lets them train on the annotated inpainted examples and then run on clean images without retraining. The three new content-aware metrics are also a concrete addition for judging how well layouts respect image content rather than just box overlap or aesthetics. Those pieces are straightforward to understand and could be reused by others working on conditioned layout tasks. The architecture itself is a modest extension of standard conditional GANs, so the technical lift is limited but targeted. The main soft spot is that the domain-adaptation claim rests on the pixel discriminator doing its job, yet the abstract and available description give no intermediate diagnostics such as discriminator accuracy on held-out clean versus inpainted pairs or any distribution-distance numbers before and after adaptation. Without those, it is hard to tell whether the final layout metrics reflect genuine image awareness or just the model learning to ignore the artifacts. Training details, exact baseline implementations, and error breakdowns are also missing, which makes the SOTA statement difficult to assess. The work is aimed at people building automated tools for advertising or graphic design rather than at core layout-generation researchers. A reader who needs a starting dataset or a practical conditional model for this narrow setting will find usable pieces. The paper shows clear engagement with the practical problem and the literature on layout generation, so it is coherent on its own terms even if the adaptation evidence is thin. I would send it to peer review so the dataset can be vetted and the missing validation steps can be requested.

Referee Report

3 major / 2 minor

Summary. The paper introduces the Content-aware Graphic Layout Dataset (CGL-Dataset) with 60,548 paired inpainted posters and 121,000 clean product images to support image-conditioned layout generation for advertising posters. It proposes CGL-GAN (using Gaussian blur on inpainted regions) and PDA-GAN (an unsupervised domain-adaptation GAN with a pixel-level discriminator attached to shallow feature maps that computes per-pixel GAN loss). Three new content-aware metrics are defined to evaluate how well generated layouts respect image content, and the authors claim that PDA-GAN achieves state-of-the-art quantitative and qualitative results on clean product images.

Significance. If the domain adaptation demonstrably aligns the inpainted training distribution with clean test images and the new metrics are shown to be non-redundant with existing layout metrics, the work would provide a practical advance for automated poster design and a useful public dataset. The explicit handling of the inpainting artifact gap is a relevant engineering contribution in conditional layout generation.

major comments (3)

[Method / PDA-GAN architecture description] The central claim that PDA-GAN produces image-aware layouts on clean inputs rests on the pixel-level discriminator successfully bridging the inpainting domain gap. No domain-discrepancy metrics (e.g., MMD, Fréchet distance on feature distributions, or discriminator accuracy on held-out clean vs. inpainted pairs), t-SNE visualizations, or ablation removing the PD are reported. Without such evidence the performance gains on clean images could be attributable to the base conditional generator rather than adaptation.
[Evaluation / Metrics section] The three proposed content-aware metrics are introduced to quantify relationships between graphic elements and image content, yet the manuscript provides neither their exact mathematical definitions nor a correlation analysis showing they capture information orthogonal to standard layout metrics (e.g., IoU, overlap, or alignment scores). This weakens the assertion that PDA-GAN is superior specifically in content awareness.
[Experiments / Quantitative comparison] Table of quantitative results (presumably in §5) reports SOTA numbers for PDA-GAN, but the baselines listed do not include any other domain-adaptation or inpainting-robust layout models. Consequently it is impossible to isolate whether the reported improvement stems from the pixel discriminator or from other architectural choices.

minor comments (2)

[Abstract] The abstract introduces the abbreviation PDA-GAN without first spelling out “Pixel-level Discriminator Adaptation GAN.”
[Method] Notation for the per-pixel GAN loss (how the discriminator output is aggregated over pixels) is not defined in the provided description of the PD attachment to shallow feature maps.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major point below, providing clarifications and committing to revisions where appropriate to strengthen the evidence for our domain adaptation approach and metrics.

read point-by-point responses

Referee: The central claim that PDA-GAN produces image-aware layouts on clean inputs rests on the pixel-level discriminator successfully bridging the inpainting domain gap. No domain-discrepancy metrics (e.g., MMD, Fréchet distance on feature distributions, or discriminator accuracy on held-out clean vs. inpainted pairs), t-SNE visualizations, or ablation removing the PD are reported. Without such evidence the performance gains on clean images could be attributable to the base conditional generator rather than adaptation.

Authors: We appreciate this observation. The superior quantitative and qualitative results of PDA-GAN over CGL-GAN on clean images provide supporting evidence that the pixel discriminator contributes to bridging the domain gap. To directly address the concern and strengthen the claim, we will add an ablation study comparing PDA-GAN with and without the pixel discriminator, along with domain discrepancy metrics such as MMD on feature distributions and t-SNE visualizations of inpainted vs. clean image features in the revised manuscript. revision: yes
Referee: The three proposed content-aware metrics are introduced to quantify relationships between graphic elements and image content, yet the manuscript provides neither their exact mathematical definitions nor a correlation analysis showing they capture information orthogonal to standard layout metrics (e.g., IoU, overlap, or alignment scores). This weakens the assertion that PDA-GAN is superior specifically in content awareness.

Authors: The exact mathematical definitions of the three content-aware metrics are detailed in Section 4.3 of the manuscript. We agree that an explicit correlation analysis would better demonstrate their value. In the revised version, we will add a correlation study (including Pearson or Spearman coefficients) between our metrics and standard layout metrics such as IoU, overlap, and alignment scores to show they capture orthogonal information related to content awareness. revision: yes
Referee: Table of quantitative results (presumably in §5) reports SOTA numbers for PDA-GAN, but the baselines listed do not include any other domain-adaptation or inpainting-robust layout models. Consequently it is impossible to isolate whether the reported improvement stems from the pixel discriminator or from other architectural choices.

Authors: We note that, to the best of our knowledge at submission time, no prior domain-adaptation methods existed specifically for image-conditioned layout generation on inpainted advertising posters. The comparison between CGL-GAN and PDA-GAN is designed to isolate the effect of the pixel discriminator. We will expand the related work and discussion sections to cover relevant domain adaptation techniques from other vision tasks and clarify the rationale for our baseline selection in the revision. revision: partial

Circularity Check

0 steps flagged

No significant circularity in empirical GAN training and evaluation chain

full rationale

The paper presents a standard empirical pipeline: creation of a paired inpainted/clean image dataset, training of CGL-GAN and PDA-GAN variants (with pixel-level discriminator attached to shallow features for unsupervised domain adaptation), and evaluation via three proposed content-aware metrics plus quantitative/qualitative results. No derivation step reduces a claimed prediction or result to its inputs by construction, no fitted parameters are relabeled as independent predictions, and no load-bearing self-citations or uniqueness theorems are invoked to force the architecture or metrics. The central claims rest on experimental outcomes rather than tautological redefinitions.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Abstract-only view limits visibility; main unstated elements are standard GAN training assumptions and the effectiveness of pixel discriminator for domain shift in this domain.

free parameters (1)

GAN training hyperparameters
Learning rates, loss weights, and architecture details for CGL-GAN and PDA-GAN are not specified.

axioms (1)

domain assumption GANs with pixel-level discriminators can adapt layouts to image visual texture
Core modeling choice for bridging inpainting artifacts to clean images.

pith-pipeline@v0.9.0 · 5532 in / 1190 out tokens · 34813 ms · 2026-05-10T17:52:36.592166+00:00 · methodology
