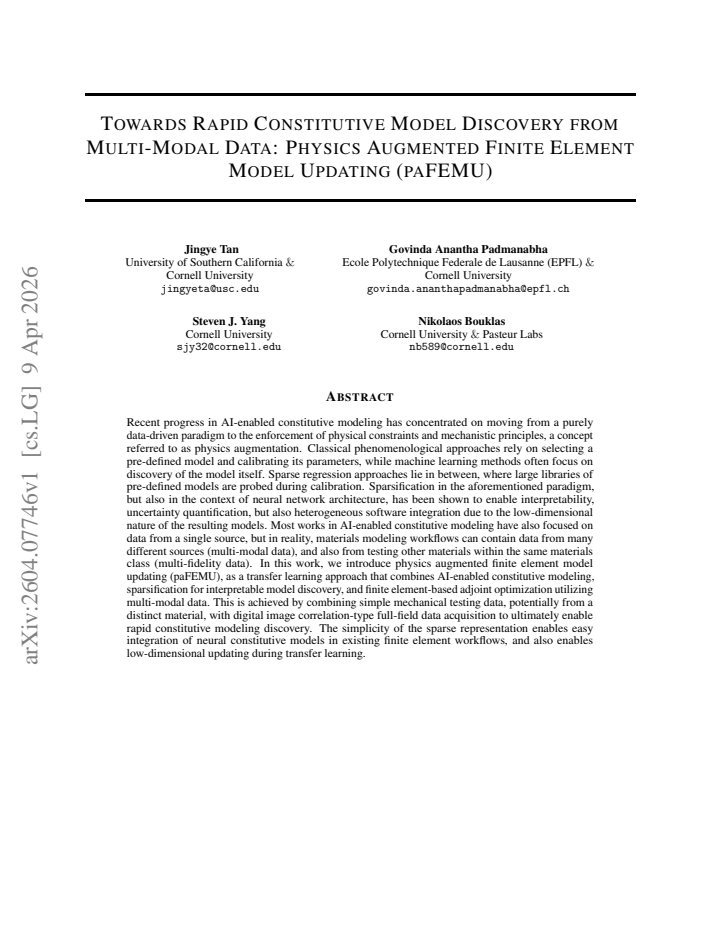

Towards Rapid Constitutive Model Discovery from Multi-Modal Data: Physics Augmented Finite Element Model Updating (paFEMU)

Govinda Anantha Padmanabha, Jingye Tan, Nikolaos Bouklas, Steven J. Yang

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:39 UTC · model grok-4.3

classification 💻 cs.LG cs.CEphysics.comp-ph
keywords constitutive modelingmodel discoveryfinite element methodtransfer learningsparse regressionmulti-modal dataphysics augmentationadjoint optimization
0
0 comments X

The pith

Physics augmented finite element model updating discovers interpretable constitutive models from multi-modal data across similar materials.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces paFEMU to accelerate the discovery of constitutive models for materials by integrating sparse regression techniques with finite element simulations and transfer learning. It combines data from simple mechanical tests, possibly on a different but related material, with full-field measurements like digital image correlation. This approach enforces physical constraints while producing sparse, interpretable models that can be easily integrated into existing simulation software. A sympathetic reader would care because traditional model calibration is time-consuming and data-intensive, and this method promises to speed up the process for classes of materials by reusing data efficiently.

Core claim

paFEMU is a transfer learning framework that augments physics-based finite element model updating with AI-enabled sparse constitutive model discovery, allowing the combination of multi-modal data sources to rapidly identify low-dimensional, interpretable material models.

What carries the argument

The paFEMU method, which uses adjoint optimization in finite element models to update sparse parameters in constitutive libraries during transfer learning from multi-modal data.

If this is right

  • Low-dimensional sparse models integrate seamlessly into standard finite element workflows.
  • Transfer learning reduces the need for extensive full-field data on every new material variant.
  • Sparsification enables better uncertainty quantification and interpretability in discovered models.
  • Multi-modal data fusion improves the robustness of constitutive model calibration.
  • Rapid updating supports iterative design and testing cycles in materials engineering.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar transfer learning could extend to other physics-based simulation domains like fluid dynamics or structural analysis.
  • The approach might allow real-time model adaptation during ongoing experiments.
  • Potential for hybrid human-AI workflows where initial simple tests guide more targeted full-field measurements.

Load-bearing premise

That combining data from potentially distinct materials in the same class through transfer learning does not introduce unacceptable bias or reduce the accuracy of the discovered constitutive model.

What would settle it

Applying the paFEMU method to discover a model for a new material and finding that its predictions deviate significantly from independent experimental tests compared to a traditionally calibrated model.

Figures

Figures reproduced from arXiv: 2604.07746 by Govinda Anantha Padmanabha, Jingye Tan, Nikolaos Bouklas, Steven J. Yang.

Figure 1
Figure 1. Figure 1: Outline of the paFEMU framework and corresponding multi-modal transfer learning scheme [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of the proposed physics-augmented neural network framework integrating an input convex neural [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The invariant space showing the convex hull and the selected invariant triplets used for synthetic data [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4

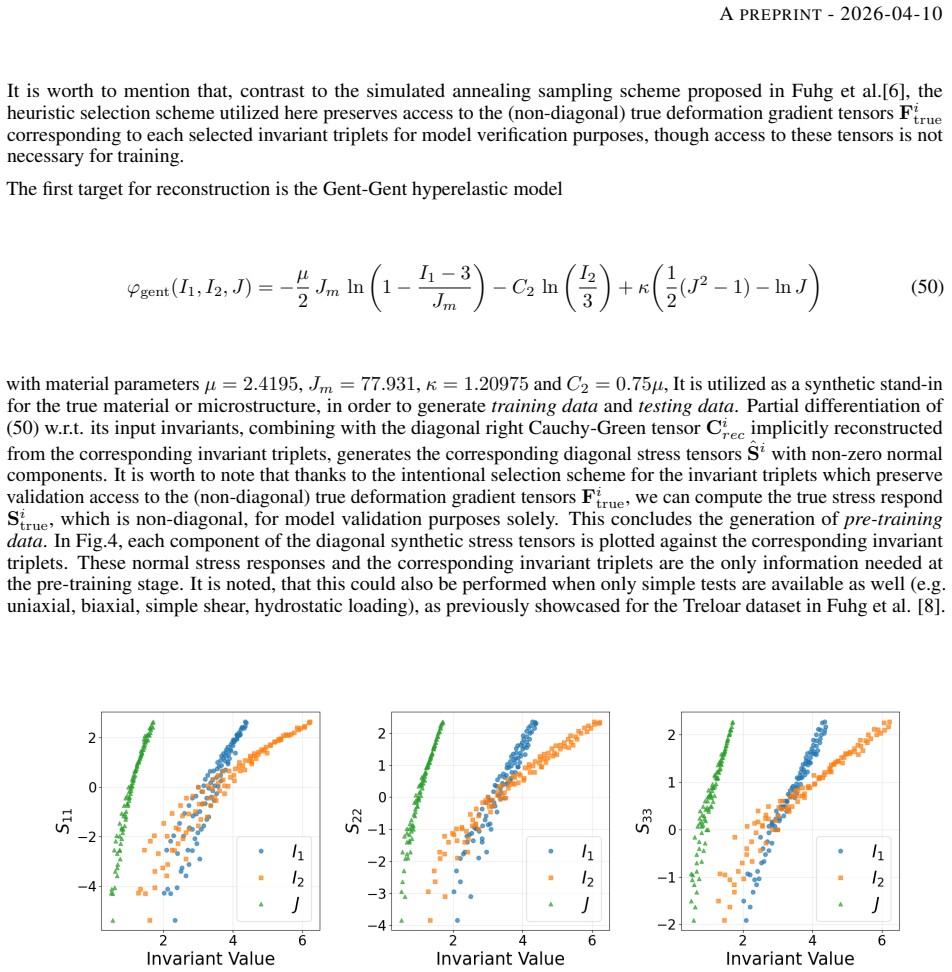

Figure 4. Figure 4: Sampled principal stress points as functions of invariants for synthetic data generated using the Gent model. [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5

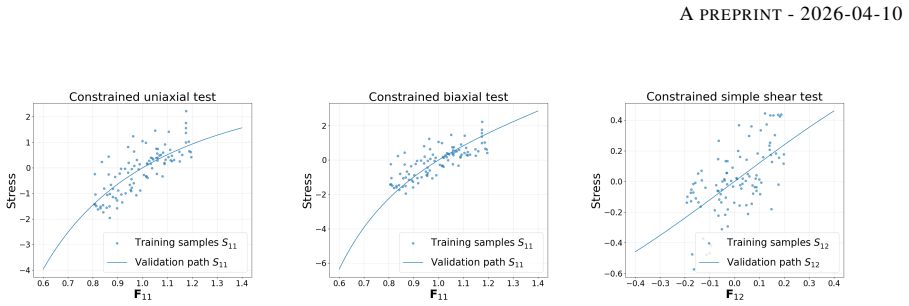

Figure 5. Figure 5: Sampled training data and validation paths in stress–deformation space for constrained uniaxial, biaxial, and [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6

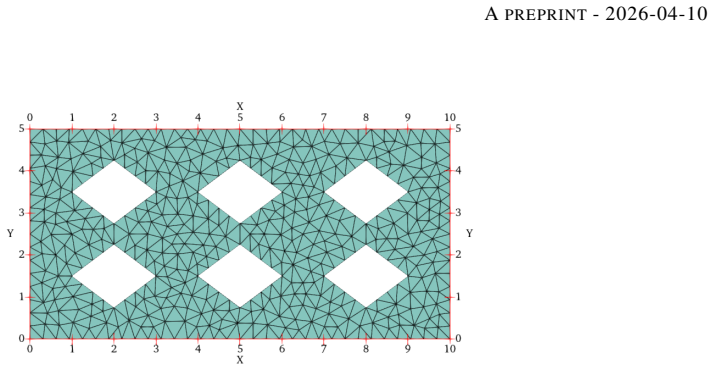

Figure 6. Figure 6: Discretized 2D domain of the digital image correlation speciment, displacement is fixed at [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Evaluation of the polyconvexity indicator inequalities over training data. Positive values indicate satisfaction [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Generalization performance under constrained uniaxial, equibiaxial, and simple shear tests. The top row [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Validation of the learned strain energy functions along canonical loading paths over an extended range. The [PITH_FULL_IMAGE:figures/full_fig_p021_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Uniaxial test for examining performance of the models in a nonlinear solution scheme. Top row: polyconvex; [PITH_FULL_IMAGE:figures/full_fig_p022_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Comparison of transfer learning targets to the pretrained models as well as the pretrain truth at the strain [PITH_FULL_IMAGE:figures/full_fig_p023_11.png] view at source ↗
Figure 12

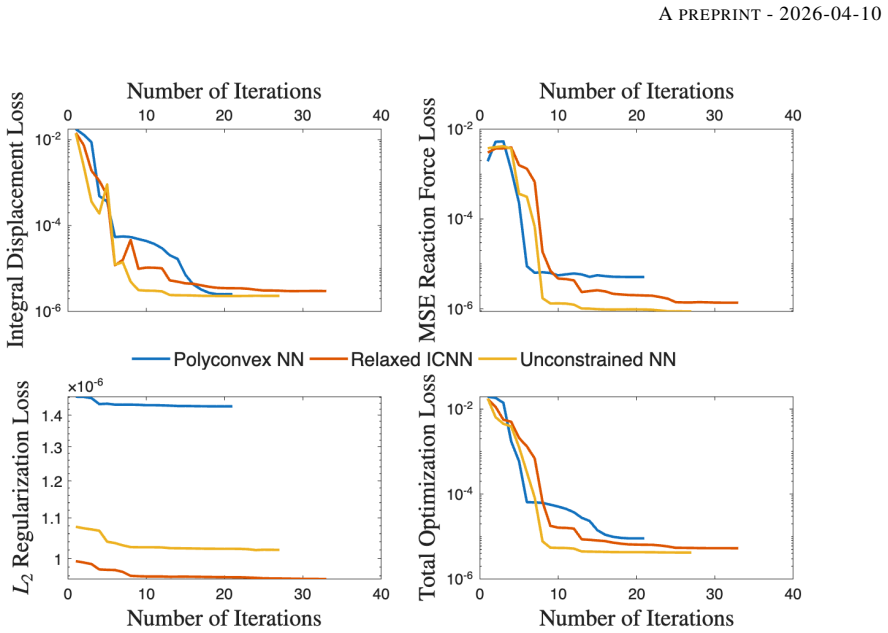

Figure 12. Figure 12: Loss components for transfer learning scheme, utilizing the Neo-Hookean synthetic DIC dataset [PITH_FULL_IMAGE:figures/full_fig_p024_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Transfer learning to Neo-Hookean DIC dataset: validation of learned models to the analytical Neo-Hookean [PITH_FULL_IMAGE:figures/full_fig_p024_13.png] view at source ↗
Figure 14

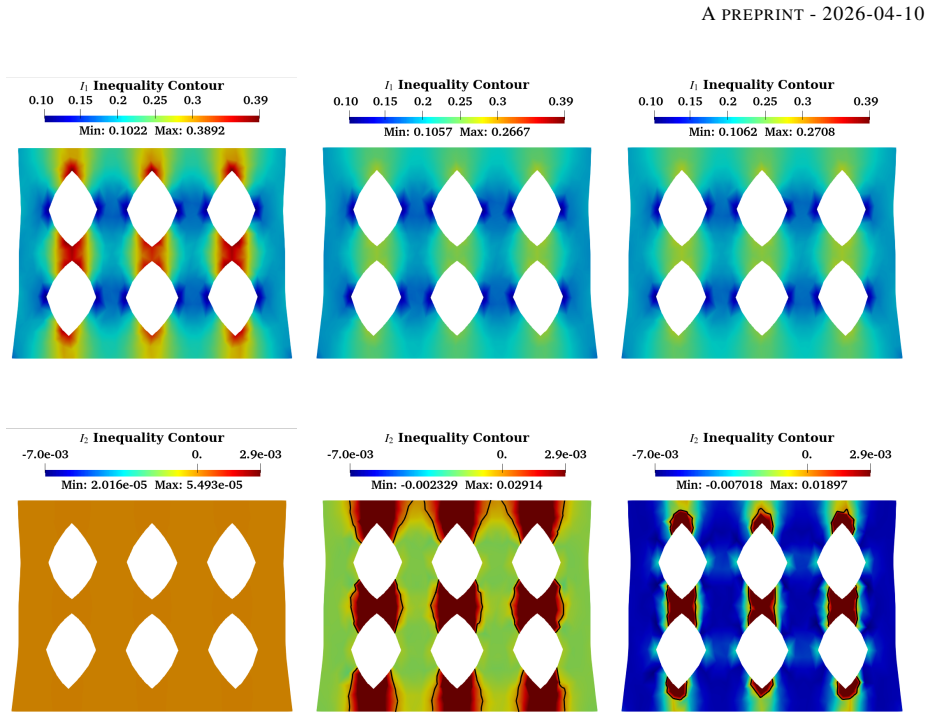

Figure 14. Figure 14: Polyconvexity indicator inequality evaluations, for polyconvex NN (left), reduced ICNN (middle) and [PITH_FULL_IMAGE:figures/full_fig_p025_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Transfer to Neo-Hookean Target, displacement error at [PITH_FULL_IMAGE:figures/full_fig_p025_15.png] view at source ↗
Figure 16

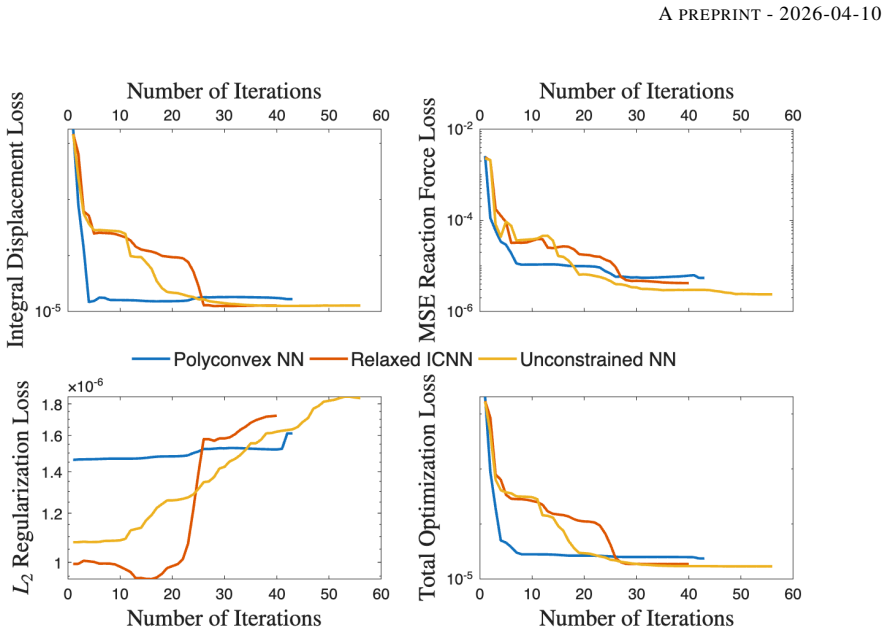

Figure 16. Figure 16: Loss components for transfer learning scheme, utilizing the Ogden synthetic DIC dataset [PITH_FULL_IMAGE:figures/full_fig_p026_16.png] view at source ↗
Figure 17

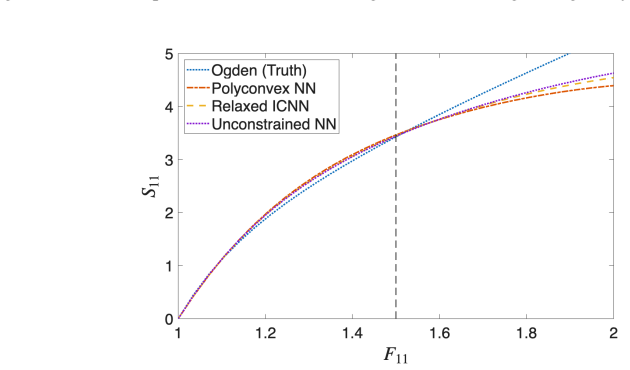

Figure 17. Figure 17: Transfer learning to Generalized Ogden DIC dataset: Validation of learned models to the analytical [PITH_FULL_IMAGE:figures/full_fig_p026_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Polyconvexity indicator inequality evaluations, for polyconvex NN (left), reduced ICNN (middle), and [PITH_FULL_IMAGE:figures/full_fig_p027_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Transfer to Generalized Ogden, displacement error at [PITH_FULL_IMAGE:figures/full_fig_p027_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Stress error in the deployment of the transferred model in 3D torsion simulation with a maximum twist angle [PITH_FULL_IMAGE:figures/full_fig_p028_20.png] view at source ↗
read the original abstract

Recent progress in AI-enabled constitutive modeling has concentrated on moving from a purely data-driven paradigm to the enforcement of physical constraints and mechanistic principles, a concept referred to as physics augmentation. Classical phenomenological approaches rely on selecting a pre-defined model and calibrating its parameters, while machine learning methods often focus on discovery of the model itself. Sparse regression approaches lie in between, where large libraries of pre-defined models are probed during calibration. Sparsification in the aforementioned paradigm, but also in the context of neural network architecture, has been shown to enable interpretability, uncertainty quantification, but also heterogeneous software integration due to the low-dimensional nature of the resulting models. Most works in AI-enabled constitutive modeling have also focused on data from a single source, but in reality, materials modeling workflows can contain data from many different sources (multi-modal data), and also from testing other materials within the same materials class (multi-fidelity data). In this work, we introduce physics augmented finite element model updating (paFEMU), as a transfer learning approach that combines AI-enabled constitutive modeling, sparsification for interpretable model discovery, and finite element-based adjoint optimization utilizing multi-modal data. This is achieved by combining simple mechanical testing data, potentially from a distinct material, with digital image correlation-type full-field data acquisition to ultimately enable rapid constitutive modeling discovery. The simplicity of the sparse representation enables easy integration of neural constitutive models in existing finite element workflows, and also enables low-dimensional updating during transfer learning.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces physics-augmented finite element model updating (paFEMU) as a transfer-learning framework that fuses AI-enabled constitutive modeling, library-based sparsification for interpretable discovery, and adjoint-based finite-element optimization. It claims that simple mechanical-test data (possibly from a related but distinct material) can be combined with full-field DIC data on the target material to enable rapid, low-dimensional constitutive-model discovery while preserving physical constraints and allowing seamless integration into existing FE workflows.

Significance. If the central transfer-learning step can be shown to remain stable and unbiased under realistic intra-class material variation, the method would offer a practical route to accelerate constitutive-model calibration by exploiting multi-modal and multi-fidelity data sources. The emphasis on sparse, interpretable representations that integrate directly into legacy FE codes is a concrete strength that could improve reproducibility and uncertainty quantification in engineering practice.

major comments (2)
  1. The transfer-learning claim rests on the assumption that auxiliary data from a distinct material within the same class can be used without introducing unacceptable bias into the discovered sparse coefficients or functional form. No derivation, stability bound, or cross-material sensitivity analysis is provided to quantify how modest changes in hardening exponent or yield-surface shape propagate through the adjoint update and sparsification step; this is load-bearing for the central claim of rapid discovery.
  2. The abstract states that the low-dimensional update during transfer learning is enabled by the sparse representation, yet no explicit statement of the library construction, regularization path, or convergence criterion for the adjoint optimization is given. Without these details it is impossible to assess whether the discovered model is uniquely determined or whether post-hoc choices in the library could affect the reported fidelity.
minor comments (1)
  1. Notation for the multi-modal data sources and the distinction between “multi-modal” and “multi-fidelity” should be defined once at the beginning of the method section to avoid later ambiguity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments on our manuscript. We provide point-by-point responses to the major comments below and indicate the revisions made to address them.

read point-by-point responses

  1. Referee: The transfer-learning claim rests on the assumption that auxiliary data from a distinct material within the same class can be used without introducing unacceptable bias into the discovered sparse coefficients or functional form. No derivation, stability bound, or cross-material sensitivity analysis is provided to quantify how modest changes in hardening exponent or yield-surface shape propagate through the adjoint update and sparsification step; this is load-bearing for the central claim of rapid discovery.

    Authors: We acknowledge the validity of this concern regarding the lack of formal analysis for the transfer-learning step. A full derivation of stability bounds is not provided in the original manuscript, as the focus was on the practical framework and numerical demonstrations. In the revised version, we have included a new subsection on cross-material sensitivity analysis. Using both synthetic and experimental data, we demonstrate the propagation of variations in material parameters (such as hardening exponent) through the paFEMU pipeline and show that the sparse coefficients exhibit bounded changes for intra-class variations. We also discuss the assumptions under which the transfer remains unbiased. This addition directly addresses the load-bearing aspect of the claim. revision: partial

  2. Referee: The abstract states that the low-dimensional update during transfer learning is enabled by the sparse representation, yet no explicit statement of the library construction, regularization path, or convergence criterion for the adjoint optimization is given. Without these details it is impossible to assess whether the discovered model is uniquely determined or whether post-hoc choices in the library could affect the reported fidelity.

    Authors: We agree that the manuscript would benefit from more explicit details on these aspects to ensure reproducibility and to allow assessment of uniqueness. We have revised the manuscript by adding explicit descriptions of the library construction (the set of candidate terms for the constitutive relations), the regularization path (including how the sparsity parameter is chosen), and the convergence criteria used in the adjoint optimization. Furthermore, we have added a note on the potential influence of library choices and how the sparse regression promotes uniqueness within a given library. These changes are incorporated in the Methods section and the supplementary material. revision: yes

Circularity Check

0 steps flagged

No circularity detected in derivation chain

full rationale

The paper proposes paFEMU as an integrative framework that combines sparse regression for model discovery, transfer learning across multi-modal/multi-fidelity data, and adjoint-based FE updating. No equations, parameter-fitting steps presented as predictions, or self-citations are shown in the abstract or description that would reduce the central claim to its own inputs by construction. The 'discovery' is explicitly the output of the sparsification process applied to data, not a renamed fit or self-referential derivation. The method description stands as a self-contained proposal without load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Ledger inferred from abstract claims only; paper relies on standard domain assumptions about sparse representability and transferability but introduces no new free parameters or entities visible at this level.

axioms (2)
  • domain assumption Constitutive behavior admits a sparse representation from a pre-defined library of basis functions.
    Invoked by the sparsification step for interpretability and integration.
  • ad hoc to paper Multi-modal data from distinct but related materials can be transferred without major fidelity loss.
    Central premise of the transfer learning approach described.
