The pith
A quantum device with two qubits and one qutrit modulates thermal currents like an electronic field-effect transistor.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The qtFET composed of left-qubit, middle-qutrit, and right-qubit subsystems exhibits functionality analogous to a conventional electronic field-effect transistor. The left, right, and middle subsystems correspond to the drain, source, and gate of an eFET in a common-gate configuration, respectively, and the middle subsystem serves as a modulator that enables precise control of thermal currents.
What carries the argument
The qtFET architecture in which a middle qutrit modulates thermal current between two qubits, each coupled to its own independent bath.
Where Pith is reading between the lines
- The same bath-independence premise could be used to construct multi-gate thermal logic elements.
- If the modulation works, qtFETs could be combined into networks that route heat at the scale of individual quantum systems.
- The device supplies a concrete testbed for checking whether quantum coherence survives in a thermal-control setting.
Load-bearing premise
The middle qutrit functions as a modulator that precisely controls thermal current flow while the three subsystems interact independently with separate baths.
What would settle it
A calculation or measurement of thermal current versus middle-subsystem state that either reproduces or fails to reproduce the current-voltage characteristics of a conventional FET would confirm or refute the claimed analogy.
Figures
read the original abstract

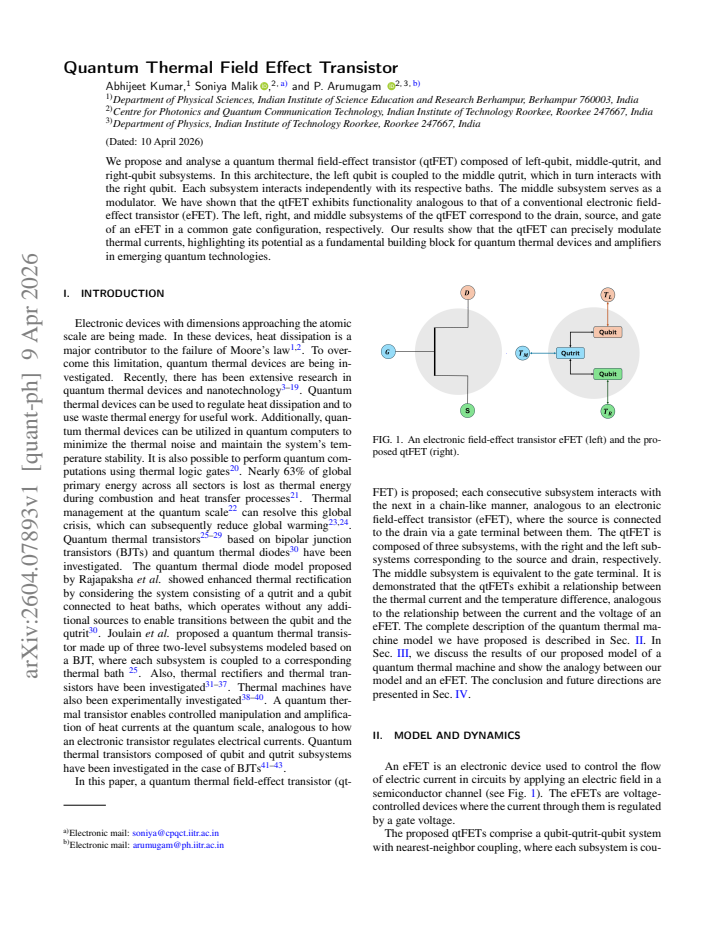

We propose and analyse a quantum thermal field-effect transistor (qtFET) composed of left-qubit, middle-qutrit, and right-qubit subsystems. In this architecture, the left qubit is coupled to the middle qutrit, which in turn interacts with the right qubit. Each subsystem interacts independently with its respective baths. The middle subsystem serves as a modulator. We have shown that the qtFET exhibits functionality analogous to that of a conventional electronic field-effect transistor (eFET). The left, right, and middle subsystems of the qtFET correspond to the drain, source, and gate of an eFET in a common gate configuration, respectively. Our results show that the qtFET can precisely modulate thermal currents, highlighting its potential as a fundamental building block for quantum thermal devices and amplifiers in emerging quantum technologies.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a quantum thermal field-effect transistor (qtFET) composed of a left qubit, middle qutrit, and right qubit. The middle qutrit is positioned to modulate the thermal current between the left and right subsystems, with each subsystem coupled independently to its own thermal bath. The authors claim that this setup realizes functionality analogous to a conventional electronic field-effect transistor (eFET) in common-gate configuration, with the left, right, and middle subsystems corresponding to drain, source, and gate, respectively, thereby enabling precise control of thermal currents for potential use in quantum thermal devices.
Significance. If the modulation claim and the eFET analogy are supported by explicit derivations, the weak-coupling analysis, and quantitative results, the qtFET could provide a useful primitive for controlling heat flow in open quantum systems and for building thermal amplifiers or logic elements. The proposal addresses a timely topic at the intersection of quantum thermodynamics and device physics.
major comments (1)
- [Model and bath-coupling description] The central claim that the middle qutrit precisely modulates the left-to-right thermal current rests on the assumption that each subsystem couples independently to its own bath. However, the architecture includes explicit inter-subsystem couplings (left qubit to middle qutrit, middle qutrit to right qubit), so the total Hamiltonian is not a direct sum of independent subsystem terms. In the weak-coupling Born-Markov limit the correct dissipator must be obtained from the joint system-bath interaction; tensoring three separate Lindblad operators is valid only when inter-subsystem couplings are weak compared with bath correlation times and the secular approximation holds. This approximation is load-bearing for the reported modulation functionality and requires explicit justification or numerical verification.
minor comments (1)
- [Abstract] The abstract asserts that 'we have shown' the analogous functionality but supplies no equations, figures, or quantitative measures of modulation (e.g., current vs. gate parameter curves or error bounds). Adding a brief reference to the key result or figure in the abstract would improve readability.
Simulated Author's Rebuttal
We thank the referee for their thorough review and the constructive comment on the model and bath-coupling description. We address the point below and have incorporated revisions to strengthen the justification of our approach.
read point-by-point responses
-
Referee: The central claim that the middle qutrit precisely modulates the left-to-right thermal current rests on the assumption that each subsystem couples independently to its own bath. However, the architecture includes explicit inter-subsystem couplings (left qubit to middle qutrit, middle qutrit to right qubit), so the total Hamiltonian is not a direct sum of independent subsystem terms. In the weak-coupling Born-Markov limit the correct dissipator must be obtained from the joint system-bath interaction; tensoring three separate Lindblad operators is valid only when inter-subsystem couplings are weak compared with bath correlation times and the secular approximation holds. This approximation is load-bearing for the reported modulation functionality and requires explicit justification or numerical verification.
Authors: We agree that the inter-subsystem couplings (left qubit–middle qutrit and middle qutrit–right qubit) mean the total system Hamiltonian is not a simple sum of independent terms, and that the dissipator in the weak-coupling limit must in principle be derived from the joint system-bath interaction. In the manuscript we employ local Lindblad operators for each subsystem, an approximation commonly adopted in quantum thermal transport literature when system-bath couplings are weak. To address the referee’s concern directly, the revised manuscript now includes an explicit discussion of the validity conditions (inter-subsystem couplings much weaker than the inverse bath correlation time, together with the secular approximation) and adds a numerical comparison between the local and global master equations in the parameter regime of interest. These results confirm that the modulation of the left-to-right thermal current by the middle qutrit remains qualitatively unchanged. The new material appears in Section III and Appendix C. revision: yes
Circularity Check
No significant circularity; modeling assumptions are explicit and non-tautological
full rationale
The paper proposes a three-subsystem qtFET architecture and asserts an eFET analogy based on independent subsystem-bath couplings plus middle-subsystem modulation. No equations, fitted parameters, or predictions appear in the provided text that reduce by construction to the inputs themselves. The independent-bath assumption is stated outright as a modeling choice rather than derived from or equivalent to the target result; any validity questions about the weak-coupling limit belong to correctness rather than circularity. No self-citations, ansatzes smuggled via prior work, or renamings of known results are present. The derivation chain therefore remains self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Each subsystem interacts independently with its respective baths
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Each subsystem interacts independently with its respective baths... dρ/dt = −i[H,ρ] + D_L[ρ] + D_R[ρ] + D_M1[ρ] + D_M2[ρ]
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The qtFET exhibits functionality analogous to that of a conventional electronic field-effect transistor
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
