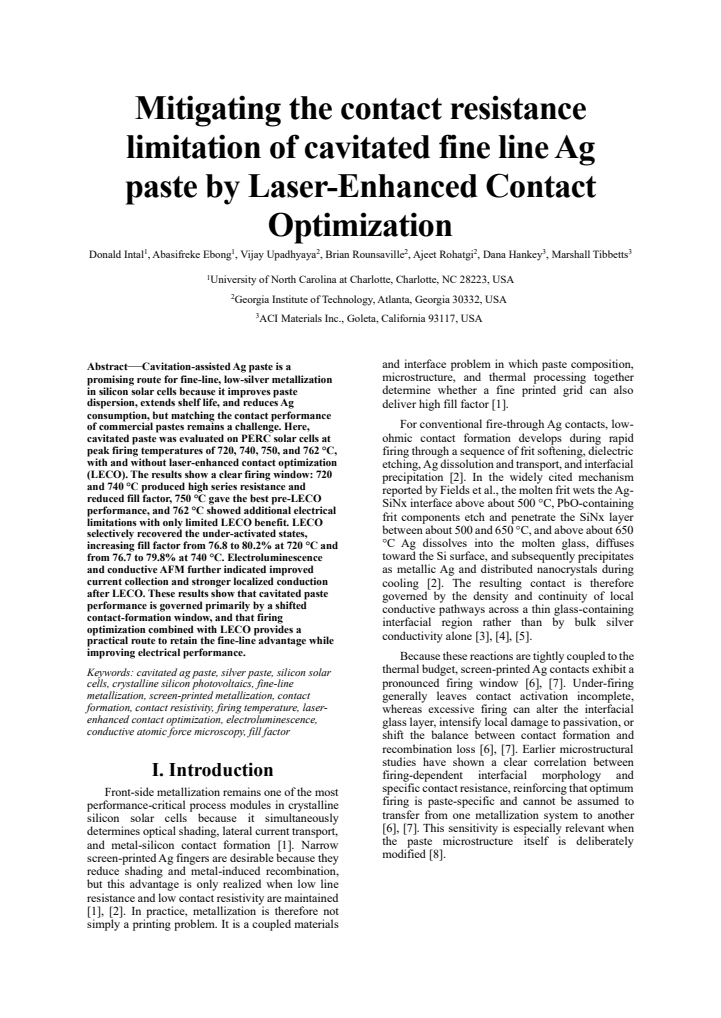

Mitigating the contact resistance limitation of cavitated fine line Ag paste by Laser-Enhanced Contact Optimization
Pith reviewed 2026-05-10 17:03 UTC · model grok-4.3
The pith
Laser-enhanced contact optimization recovers the performance of cavitated fine-line silver paste by addressing its shifted contact-formation window on PERC solar cells.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Cavitated Ag paste exhibits a shifted contact-formation window relative to standard pastes; cells fired at 720 or 740 degrees Celsius show high series resistance and fill factors near 76.7-76.8 percent, 750 degrees Celsius yields the best pre-LECO results, and 762 degrees Celsius introduces further limitations with modest LECO gains. LECO raises fill factor to 80.2 percent at 720 degrees Celsius and 79.8 percent at 740 degrees Celsius, accompanied by improved current collection visible in electroluminescence images and stronger localized conduction in conductive AFM scans. These outcomes indicate that the main limitation is the shifted firing window rather than an inherent barrier, so the 50
What carries the argument
The shifted contact-formation window of cavitated Ag paste, which LECO selectively recovers in under-fired states to lower series resistance and raise fill factor while preserving fine-line geometry.
If this is right
- Firing at 720-740 degrees Celsius plus LECO can match or approach the electrical performance of the 750 degrees Celsius baseline while retaining fine-line printing benefits.
- At 762 degrees Celsius LECO provides only limited recovery, indicating an upper temperature bound beyond which other mechanisms dominate.
- Electroluminescence images and conductive AFM maps confirm that LECO improves current collection and local conduction paths at the metal-silicon interface.
- The combination of adjusted peak firing temperature and LECO therefore offers a practical process route for low-silver, cavitated pastes on PERC cells.
Where Pith is reading between the lines
- Manufacturers could adopt lower silver loadings or narrower finger widths without efficiency penalties if LECO equipment is already available on the line.
- The same recovery approach might extend to other pastes whose contact formation is sensitive to thermal budget, such as those with different glass frit compositions.
- Testing on larger-area cells or different emitter profiles would show whether the recovered contact resistance scales to full-module power output.
Load-bearing premise
That the observed gains in fill factor and drops in series resistance after LECO result from better contact formation instead of unmeasured differences in cell processing or testing conditions.
What would settle it
Direct measurement of specific contact resistance on the same set of cells before and after LECO, or a side-by-side comparison where firing profiles are adjusted without LECO to match the post-LECO electrical metrics.
read the original abstract
Cavitation-assisted Ag paste is a promising route for fine-line, low-silver metallization in silicon solar cells because it improves paste dispersion, extends shelf life, and reduces Ag consumption, but matching the contact performance of commercial pastes remains a challenge. Here, cavitated paste was evaluated on PERC solar cells at peak firing temperatures of 720, 740, 750, and 762 C, with and without laser-enhanced contact optimization (LECO). The results show a clear firing window: 720 and 740 {\deg}C produced high series resistance and reduced fill factor, 750 C gave the best pre-LECO performance, and 762 C showed additional electrical limitations with only limited LECO benefit. LECO selectively recovered the under-activated states, increasing fill factor from 76.8 to 80.2% at 720 C and from 76.7 to 79.8% at 740 C. Electroluminescence and conductive AFM further indicated improved current collection and stronger localized conduction after LECO. These results show that cavitated paste performance is governed primarily by a shifted contact-formation window, and that firing optimization combined with LECO provides a practical route to retain the fine-line advantage while improving electrical performance.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper evaluates cavitated fine-line Ag paste on PERC solar cells fired at peak temperatures of 720, 740, 750, and 762 °C, with and without laser-enhanced contact optimization (LECO). It reports that under-fired cells exhibit high series resistance and low fill factor, while LECO selectively improves performance at lower temperatures (FF rising from 76.8% to 80.2% at 720 °C and 76.7% to 79.8% at 740 °C), with electroluminescence and conductive AFM indicating better current collection and local conduction. The central claim is that cavitated paste performance is governed by a shifted contact-formation window and that firing optimization plus LECO offers a practical route to retain fine-line advantages while boosting electrical output.
Significance. If the causal attribution holds, the work provides a concrete, practical method to address contact resistance limitations in low-silver cavitated pastes for silicon solar cells, potentially enabling reduced Ag consumption without sacrificing efficiency. The manuscript supplies specific numerical results (FF values and temperature windows) together with supporting EL and cAFM imaging, which are strengths for an applied experimental study.
major comments (2)
- [Abstract] Abstract and reported results: the fill-factor gains after LECO (76.8% to 80.2% at 720 °C; 76.7% to 79.8% at 740 °C) are presented without error bars, sample counts, or statistical controls. This omission is load-bearing because the central claim attributes the gains specifically to a shifted contact-formation window and selective LECO recovery; without these controls it is impossible to exclude batch-to-batch variation or measurement offsets as alternative explanations.
- [Results] Experimental description and results: the manuscript does not explicitly confirm that emitter doping, passivation quality, busbar geometry, and IV-measurement conditions were held identical across all firing temperatures and LECO conditions while varying only peak temperature and LECO application. This control is required to support the attribution of reduced series resistance and improved FF to enhanced local contact formation rather than uncontrolled process differences.
minor comments (1)
- [Abstract] The temperature values in the abstract are written inconsistently (720, 740, 750, and 762 C versus 720 °C); uniform use of the degree symbol would improve readability.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback, which helps clarify the robustness of our experimental claims. We address the two major comments point by point below and will revise the manuscript to improve statistical presentation and experimental controls.
read point-by-point responses
-
Referee: [Abstract] Abstract and reported results: the fill-factor gains after LECO (76.8% to 80.2% at 720 °C; 76.7% to 79.8% at 740 °C) are presented without error bars, sample counts, or statistical controls. This omission is load-bearing because the central claim attributes the gains specifically to a shifted contact-formation window and selective LECO recovery; without these controls it is impossible to exclude batch-to-batch variation or measurement offsets as alternative explanations.
Authors: We agree that the absence of error bars and sample statistics in the abstract and main results weakens the presentation. The reported fill-factor values derive from representative cells within batches of at least five identically processed devices per condition; we will add standard deviations as error bars and explicitly state the sample counts (n=5–10) in the revised abstract, results section, and figure captions. This addition directly addresses the concern about batch-to-batch variation and strengthens the attribution to the shifted contact-formation window. revision: yes
-
Referee: [Results] Experimental description and results: the manuscript does not explicitly confirm that emitter doping, passivation quality, busbar geometry, and IV-measurement conditions were held identical across all firing temperatures and LECO conditions while varying only peak temperature and LECO application. This control is required to support the attribution of reduced series resistance and improved FF to enhanced local contact formation rather than uncontrolled process differences.
Authors: All cells originated from the same wafer batch and shared identical emitter doping, passivation stacks, and busbar layouts; IV testing used the same tool and calibration. We acknowledge that these controls were not stated explicitly. In the revised manuscript we will insert a dedicated sentence in the experimental methods and results sections confirming that only peak firing temperature and LECO application were varied while all other parameters remained fixed. This clarification will support the causal link to local contact formation. revision: yes
Circularity Check
No significant circularity in purely experimental reporting
full rationale
The manuscript presents direct experimental measurements of PERC solar cell performance (FF, Rs, EL, cAFM) across firing temperatures with/without LECO. No equations, models, fitted parameters, or derivations appear; the central interpretation of a shifted contact-formation window is an empirical observation from the data, not a claim that reduces to its own inputs by construction. Self-citations, if present, are not load-bearing for any derivation chain. This is standard experimental reporting with no circularity patterns.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Standard assumptions in solar cell characterization such as uniform wafer properties and accurate fill-factor extraction from I-V curves.
Reference graph
Works this paper leans on
-
[1]
Printing technologies for silicon solar cell metallization: A comprehensive review,
S. Tepner and A. Lorenz, “Printing technologies for silicon solar cell metallization: A comprehensive review,” Progress in Photovoltaics, vol. 31, no. 6, pp. 557–590, Jun. 2023, doi: 10.1002/pip.3674
-
[2]
The formation mechanism for printed silver-contacts for silicon solar cells,
J. D. Fields et al., “The formation mechanism for printed silver-contacts for silicon solar cells,” Nat Commun, vol. 7, no. 1, p. 11143, Apr. 2016, doi: 10.1038/ncomms11143
-
[3]
C.-H. Lin, S.-Y . Tsai, S.-P. Hsu, and M.-H. Hsieh, “Investigation of Ag-bulk/glassy- phase/Si heterostructures of printed Ag contacts on crystalline Si solar cells,” Solar Energy Materials and Solar Cells, vol. 92, no. 9, pp. 1011–1015, Sep. 2008, doi: 10.1016/j.solmat.2008.02.032
-
[4]
E. Cabrera, S. Olibet, J. Glatz-Reichenbach, R. Kopecek, D. Reinke, and G. Schubert, “Experimental evidence of direct contact formation for the current transport in silver thick film metallized silicon emitters,” Journal of Applied Physics, vol. 110, no. 11, p. 114511, Dec. 2011, doi: 10.1063/1.3665718
-
[5]
Current transport in thick film Ag metallization: Direct contacts at Silicon pyramid tips?,
E. Cabrera, S. Olibet, J. Glatz-Reichenbach, R. Kopecek, D. Reinke, and G. Schubert, “Current transport in thick film Ag metallization: Direct contacts at Silicon pyramid tips?,” Energy Procedia, vol. 8, pp. 540–545, 2011, doi: 10.1016/j.egypro.2011.06.179
-
[6]
J. Qin, W. Zhang, S. Bai, and Z. Liu, “Study on the sintering and contact formation process of silver front side metallization pastes for crystalline silicon solar cells,” Applied Surface Science, vol. 376, pp. 52–61, Jul. 2016, doi: 10.1016/j.apsusc.2016.03.089
-
[7]
D. Herrmann et al., “Microstructure beneath screen-printed silver contacts and its correlation to metallization-induced recombination parameters,” Solar Energy Materials and Solar Cells, vol. 230, p. 111182, Sep. 2021, doi: 10.1016/j.solmat.2021.111182
-
[8]
X. Y u et al., “Effect of Silver Powder Microstructure on the Performance of Silver Powder and Front-Side Solar Silver Paste,” Materials, vol. 17, no. 2, p. 445, Jan. 2024, doi: 10.3390/ma17020445
-
[9]
Cavitated Ag Paste for Next Generation Solar Cells,
S. Huneycutt, D. Intal, A. Ebong, D. Hankey, and M. Tibbetts, “Cavitated Ag Paste for Next Generation Solar Cells,” in 2022 IEEE 19th International Conference on Smart Communities: Improving Quality of Life Using ICT, IoT and AI (HONET), Marietta, GA, USA: IEEE, Dec. 2022, pp. 231–234. doi: 10.1109/HONET56683.2022.10018966
-
[10]
Cavitated Ag paste for cost- effective solar cells,
D. Intal, A. Ebong, D. Hankey, and M. Tibbetts, “Cavitated Ag paste for cost- effective solar cells,” AIP Advances, vol. 14, no. 8, p. 085318, Aug. 2024, doi: 10.1063/5.0223202
-
[11]
Laser-enhanced contact optimization on iTOPCon solar cells,
T. Fellmeth et al., “Laser-enhanced contact optimization on iTOPCon solar cells,” Progress in Photovoltaics: Research and Applications, vol. 30, no. 12, pp. 1393–1399, 2022, doi: 10.1002/pip.3598
-
[12]
Zhang, Sebas- tian Baltes, and Christoph Treude
D. Intal and A. U. Ebong, “Physics-Informed AI for Laser-Enhanced Contact Optimization in Silicon PV: Electrothermal Activation, Degradation Regimes, and Process Control,” 2026, arXiv. doi: 10.48550/ARXIV .2603.23351
work page internal anchor Pith review doi:10.48550/arxiv 2026
-
[14]
Fast series resistance imaging for silicon solar cells using electroluminescence,
J. Haunschild, M. Glatthaar, M. Kasemann, S. Rein, and E. R. Weber, “Fast series resistance imaging for silicon solar cells using electroluminescence,” Physica Rapid Research Ltrs, vol. 3, no. 7–8, pp. 227–229, Oct. 2009, doi: 10.1002/pssr.200903175
-
[15]
C.-S. Jiang et al., “Nanometer-Scale Measurement of Grid Finger Electrical Conduction Pathways to Detect Series Resistance Degradation of Utility-Scale Silicon Solar Cells,” IEEE J. Photovoltaics, vol. 12, no. 6, pp. 1289–1295, Nov. 2022, doi: 10.1109/JPHOTOV .2022.3206546
