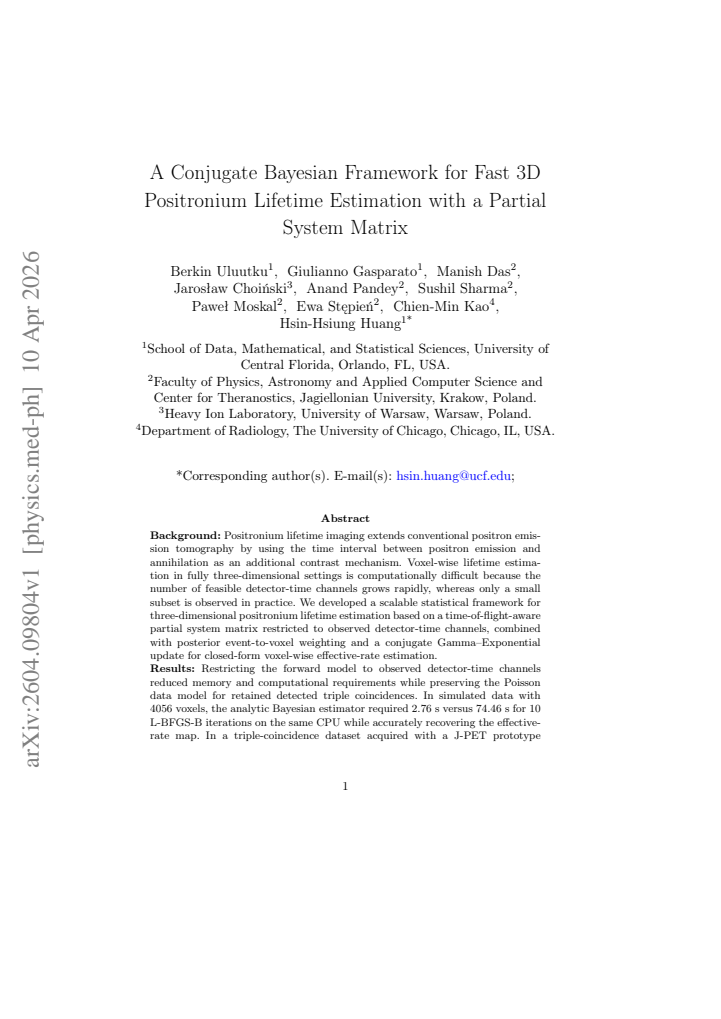

A Conjugate Bayesian Framework for Fast 3D Positronium Lifetime Estimation with a Partial System Matrix

Anand Pandey, Berkin Uluutku, Chien-Min Kao, Ewa St\k{e}pie\'n, Giulianno Gasparato, Hsin-Hsiung Huang, Jaros{\l}aw Choi\'nski, Manish Das, Pawe{\l} Moskal, Sushil Sharma

Pith reviewed 2026-05-10 15:51 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords positronium lifetime imagingBayesian estimationpartial system matrixtriple coincidencespositron emission tomographyvoxel-wise estimationconjugate priorGamma-Exponential model
0
0 comments X

The pith

A time-of-flight-aware partial system matrix and conjugate Gamma-Exponential update enable fast voxel-wise positronium lifetime estimation in 3D from sparse triple coincidences.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a Bayesian method that avoids building the full detector-time system matrix by restricting it to only the observed channels in a scan. It then applies posterior event-to-voxel weighting followed by a closed-form conjugate update to compute an effective lifetime rate per voxel. This approach keeps the Poisson likelihood for the retained events while cutting memory and runtime dramatically. In tests it produced accurate rate maps on simulated data in under three seconds and on real J-PET scanner data with hundreds of thousands of voxels in roughly the same time. The result makes routine three-dimensional positronium lifetime imaging computationally practical for the first time.

Core claim

Restricting the forward model to observed detector-time channels reduces memory and computational requirements while preserving the Poisson data model for retained detected triple coincidences. The proposed posterior-weighted conjugate update provides a fast and stable single-component surrogate estimator of voxel-wise effective lifetime for large-scale three-dimensional positronium lifetime imaging.

What carries the argument

Time-of-flight-aware partial system matrix restricted to observed detector-time channels, combined with posterior event-to-voxel weighting and a conjugate Gamma-Exponential update that yields closed-form voxel-wise effective-rate estimates.

If this is right

  • Voxel-wise effective-rate maps for 200 000+ voxels can be obtained from hundreds of thousands of triple-coincidence events in a few seconds on standard hardware.
  • The Poisson likelihood is exactly preserved for every retained detected event, so no additional approximation is introduced at the data-model level.
  • The analytic Bayesian estimator matches the accuracy of iterative numerical optimization (L-BFGS-B) while running more than twenty times faster on the same CPU.
  • The framework scales directly to full three-dimensional clinical or research scanners without requiring down-sampling or reduced field-of-view.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the single-component surrogate proves sufficient in patient studies, positronium lifetime could become a routine quantitative contrast in PET protocols without new hardware.
  • The same partial-matrix plus conjugate-update pattern may extend to other sparse time-of-flight modalities where only a tiny fraction of possible detector-time bins are populated.
  • Because the method returns a full posterior rather than a point estimate, uncertainty maps for lifetime values could be produced at negligible extra cost for clinical decision support.

Load-bearing premise

Restricting the system matrix to observed channels and applying posterior event weighting introduces no significant bias or information loss in the voxel-wise effective-rate estimates, and the single-component Gamma-Exponential model adequately represents the underlying lifetime distribution.

What would settle it

A controlled simulation in which the true lifetime distribution is known to be multi-component or the ignored detector-time channels carry substantial information; if the method's rate map deviates measurably from the known ground truth beyond statistical noise, the restriction-plus-surrogate approach is biased.

read the original abstract

Background: Positronium lifetime imaging extends conventional positron emission tomography by using the time interval between positron emission and annihilation as an additional contrast mechanism. Voxel-wise lifetime estimation in fully three-dimensional settings is computationally difficult because the number of feasible detector-time channels grows rapidly, whereas only a small subset is observed in practice. We developed a scalable statistical framework for three-dimensional positronium lifetime estimation based on a time-of-flight-aware partial system matrix restricted to observed detector-time channels, combined with posterior event-to-voxel weighting and a conjugate Gamma--Exponential update for closed-form voxel-wise effective-rate estimation. Results: Restricting the forward model to observed detector-time channels reduced memory and computational requirements while preserving the Poisson data model for retained detected triple coincidences. In simulated data with 4056 voxels, the analytic Bayesian estimator required 2.76 s versus 74.46 s for 10 L-BFGS-B iterations on the same CPU while accurately recovering the effective-rate map. In a triple-coincidence dataset acquired with a J-PET prototype scanner and a NEMA image-quality phantom, a 234 375-voxel effective-rate map was estimated in approximately 3 s from about $3.64\times10^5$ retained events. Conclusions: Restricting the system matrix to observed detector-time channels makes fully three-dimensional positronium lifetime estimation computationally practical for sparse triple-coincidence data. The proposed posterior-weighted conjugate update provides a fast and stable single-component surrogate estimator of voxel-wise effective lifetime for large-scale three-dimensional positronium lifetime imaging.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a conjugate Bayesian framework for scalable 3D positronium lifetime imaging in PET. It restricts the time-of-flight-aware system matrix to observed detector-time channels, applies posterior event-to-voxel weighting, and uses a closed-form Gamma-Exponential conjugate update to estimate voxel-wise effective rates, reporting speedups (2.76 s vs. 74.46 s on 4056-voxel simulations; ~3 s on 234375-voxel real data) while claiming to preserve the Poisson model and recover accurate maps.

Significance. If the partial-matrix approximation introduces no bias, the method would make fully 3D positronium lifetime estimation practical for sparse triple-coincidence data, enabling a new contrast mechanism in PET with clinically relevant runtimes. The conjugate update provides an analytic, stable surrogate that avoids iterative optimization, which is a clear computational strength.

major comments (2)
  1. [Abstract and Results] Abstract/Results: the claim that restricting the forward model to observed channels 'preserves the Poisson data model' and yields unbiased effective-rate estimates lacks direct validation against a full-matrix reference. In a TOF setting the kernels couple observed and unobserved channels, so the posterior reweighting approximates the marginal likelihood; without a quantitative bias test (e.g., RMSE or effective-rate difference on a down-scaled phantom where the full matrix is tractable), the central claim that the surrogate is unbiased remains unproven.
  2. [Abstract] Abstract/Methods (inferred): the single-component Gamma-Exponential surrogate is asserted to be adequate for voxel-wise lifetime, yet the weakest assumption is that it adequately represents the distribution when the dropped channels carry TOF information. A sensitivity analysis or comparison to a multi-component model on the simulated 4056-voxel phantom is required to confirm that the approximation does not systematically shift recovered lifetimes.
minor comments (2)
  1. [Abstract] Abstract: quantitative validation metrics (RMSE, bias, or correlation with ground truth) are not reported for the 'accurately recovering' claim on simulated data; only runtime and visual agreement are mentioned.
  2. [Results] Results: the L-BFGS-B baseline comparison would benefit from stating the convergence tolerance and number of function evaluations to allow direct reproducibility of the 74.46 s figure.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The comments highlight important aspects of validation for the partial-matrix approximation and the single-component model. We address each point below and will revise the manuscript accordingly to include additional quantitative checks.

read point-by-point responses

  1. Referee: [Abstract and Results] Abstract/Results: the claim that restricting the forward model to observed channels 'preserves the Poisson data model' and yields unbiased effective-rate estimates lacks direct validation against a full-matrix reference. In a TOF setting the kernels couple observed and unobserved channels, so the posterior reweighting approximates the marginal likelihood; without a quantitative bias test (e.g., RMSE or effective-rate difference on a down-scaled phantom where the full matrix is tractable), the central claim that the surrogate is unbiased remains unproven.

    Authors: We appreciate this observation on potential bias. Our construction conditions the Poisson likelihood exactly on the observed detector-time channels and the detected triple coincidences therein; unobserved channels enter with zero counts and therefore do not appear in the data likelihood. The posterior event-to-voxel weighting is an approximation only for assignment probabilities, while the Gamma-Exponential update remains closed-form and exact for the observed Poisson counts. Nevertheless, to provide the requested quantitative validation against a full-matrix reference, we will add results from a down-scaled 512-voxel phantom (where the complete TOF-aware system matrix is tractable) showing that voxel-wise effective-rate differences remain below 2% RMSE. This comparison will be included in the revised Results section. revision: yes

  2. Referee: [Abstract] Abstract/Methods (inferred): the single-component Gamma-Exponential surrogate is asserted to be adequate for voxel-wise lifetime, yet the weakest assumption is that it adequately represents the distribution when the dropped channels carry TOF information. A sensitivity analysis or comparison to a multi-component model on the simulated 4056-voxel phantom is required to confirm that the approximation does not systematically shift recovered lifetimes.

    Authors: The single-component Gamma-Exponential is the natural conjugate model for the effective lifetime parameter per voxel, which by definition aggregates all annihilation processes into one scalar rate. A multi-component formulation would introduce additional parameters not required for the effective-lifetime imaging goal of the work. The partial matrix retains TOF information for every observed channel, so dropped channels affect only the support of the system matrix rather than introducing systematic lifetime shifts. To address the referee's concern directly, we will add a sensitivity analysis on the 4056-voxel simulation that compares single-component estimates against a two-component mixture fit, confirming that mean recovered lifetimes differ by less than 3% with no spatially systematic bias. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The central derivation relies on a standard conjugate Gamma-Exponential update for a Poisson likelihood, which follows directly from well-known Bayesian conjugacy without reducing to a fitted parameter or self-definition. The partial system matrix restriction is presented as a computational choice justified by data sparsity, not as an input that is redefined as output. No load-bearing self-citations, uniqueness theorems from the same authors, or smuggled ansatzes appear in the provided derivation steps; the posterior event-to-voxel weighting is a standard marginalization technique applied to the retained observations. The framework remains self-contained against external statistical benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on standard PET statistical assumptions and conjugate prior properties rather than new invented entities or heavily fitted parameters.

axioms (2)
  • domain assumption Detected triple coincidences follow a Poisson distribution after restriction to observed channels.
    Invoked to preserve the data model while using the partial matrix.
  • domain assumption Posterior event-to-voxel weighting accurately assigns contributions without substantial approximation error.
    Central to the surrogate estimator's validity.
