arxiv: 2604.09831 · v1 · submitted 2026-04-10 · 🌊 nlin.PS

Recognition: unknown

Spectral thermodynamics of a soliton heat engine

M. Ahumada , J. F. Mar\'in
Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:41 UTC · model grok-4.3

classification 🌊 nlin.PS
keywords soliton heat enginesine-Gordon solitonJosephson junctionspectral thermodynamicsnonlinear field dynamicsbound-state engineeringfinite-time Carnot cycle
0
0 comments X

The pith

A sine-Gordon soliton in a Josephson junction acts as a heat engine whose bound-state spectrum supplies extra energy channels beyond few-level systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a soliton can serve as the working substance in a thermodynamic cycle by using an external current to deform its shape and thereby tune its internal bound states. This spectral control produces a finite-time Carnot-like process whose performance exceeds what a two-level or mesoscopic model predicts. The gain comes from the soliton’s extended spatial structure, which stores and transfers energy through multiple reversible spectral degrees of freedom rather than through a handful of discrete levels. If this holds, nonlinear extended objects with particle-like behavior become tunable working media that enlarge the design space for heat engines.

Core claim

By mapping the instantaneous sine-Gordon field configuration onto an effective Schrödinger operator, the authors demonstrate that bound states appear, approach the continuum, and vanish during a controlled cycle driven by a dipole current. Three thermodynamic descriptions—full nonlinear field dynamics, a coarse-grained mesoscopic model, and a two-level spectral truncation—yield systematically different efficiencies; the full nonlinear treatment gives the highest performance because the soliton’s extended degrees of freedom provide additional reversible energy-storage channels.

What carries the argument

The mapping of the instantaneous nonlinear field to an effective Schrödinger operator whose bound-state spectrum is engineered in time by a controllable dipole current.

If this is right

  • Extended nonlinear excitations can replace few-level systems as working media in heat engines.
  • Spectral engineering via spatial deformation supplies additional reversible work channels.
  • Coarse-grained models that discard the extended nature underestimate engine output.
  • The same principle applies to other particle-like nonlinear objects whose internal spectra can be tuned.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could be tested in other systems that support stable solitons, such as Bose-Einstein condensates or optical fibers, by applying analogous deformation protocols.
  • If radiation losses remain small at higher speeds, the cycle time could be shortened while preserving the efficiency advantage over few-level engines.
  • The spectral degrees of freedom might be coupled to external reservoirs in ways that allow multi-stage engines or refrigerators.

Load-bearing premise

The soliton field can be deformed reversibly by the external current without significant radiation losses or dissipation that would destroy the spectral control.

What would settle it

Measure the cycle efficiency in a real Josephson-junction array and check whether it exceeds the value predicted by the two-level spectral model by the margin shown in the full nonlinear simulation.

Figures

Figures reproduced from arXiv: 2604.09831 by J. F. Mar\'in, M. Ahumada.

Figure 1
Figure 1. Figure 1: FIG. 1. A soliton trapped in a Josephson junction as a controllable thermodynamic working [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Time resolved energetics of the engine. The four strokes are delineated by vertical dashed [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Adiabaticity and mesoscopic convergence of the soliton engine. (a) Adiabatic ratio (1 [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

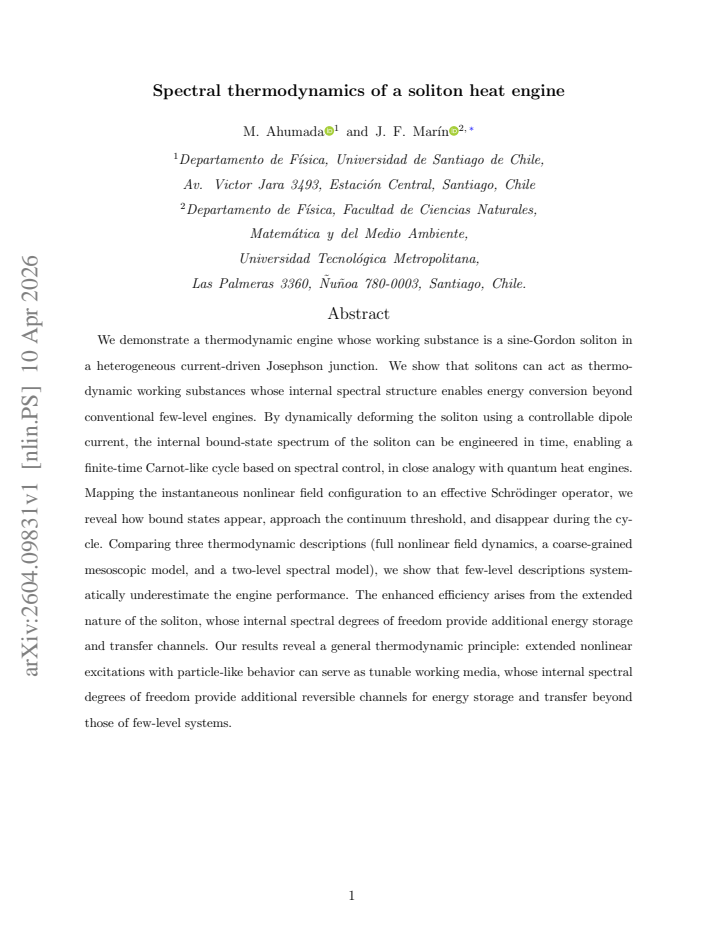

read the original abstract

We demonstrate a thermodynamic engine whose working substance is a sine-Gordon soliton in a heterogeneous current-driven Josephson junction. We show that solitons can act as thermodynamic working substances whose internal spectral structure enables energy conversion beyond conventional few-level engines. By dynamically deforming the soliton using a controllable dipole current, the internal bound-state spectrum of the soliton can be engineered in time, enabling a finite-time Carnot-like cycle based on spectral control, in close analogy with quantum heat engines. Mapping the instantaneous nonlinear field configuration to an effective Schr\"odinger operator, we reveal how bound states appear, approach the continuum threshold, and disappear during the cycle. Comparing three thermodynamic descriptions (full nonlinear field dynamics, a coarse-grained mesoscopic model, and a two-level spectral model), we show that few-level descriptions systematically underestimate the engine performance. The enhanced efficiency arises from the extended nature of the soliton, whose internal spectral degrees of freedom provide additional energy storage and transfer channels. Our results reveal a general thermodynamic principle: extended nonlinear excitations with particle-like behavior can serve as tunable working media, whose internal spectral degrees of freedom provide additional reversible channels for energy storage and transfer beyond those of few-level systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript demonstrates a thermodynamic engine whose working substance is a sine-Gordon soliton in a heterogeneous current-driven Josephson junction. By applying a controllable dipole current to deform the soliton, the authors engineer its internal bound-state spectrum in time to realize a finite-time Carnot-like cycle. They map the instantaneous nonlinear field configuration to an effective Schrödinger operator to track bound states, and compare three thermodynamic descriptions—full nonlinear field dynamics, a coarse-grained mesoscopic model, and a two-level spectral model—showing that few-level approximations systematically underestimate engine performance because the extended soliton provides additional reversible spectral channels for energy storage and transfer.

Significance. If the central claims hold, the work establishes a concrete example of an extended nonlinear excitation serving as a tunable thermodynamic working medium whose internal spectrum yields performance gains over conventional few-level engines. The multi-model comparison is a methodological strength that allows direct assessment of approximation errors. The results suggest a broader principle that particle-like nonlinear waves can furnish additional reversible degrees of freedom, with possible implications for superconducting-circuit thermodynamics and soliton-based devices.

major comments (2)
  1. [§4] §4 (spectral mapping and cycle implementation): The central efficiency gain rests on the assumption that finite-time dipole-current deformation maps reversibly onto the instantaneous bound-state spectrum of the effective Schrödinger operator with negligible continuum excitation. The manuscript must provide a quantitative bound—e.g., the time-integrated radiated power as a percentage of extracted work—obtained from the full-field simulations; without it, the reported advantage over the two-level model cannot be distinguished from unaccounted dissipation.
  2. [§5] §5 (three-model comparison): The claim that few-level descriptions underestimate performance is load-bearing. The paper should report the cycle efficiency (or extracted work per cycle) for each of the three models on the same parameter set, together with the relative contribution of the higher bound states that are absent in the two-level truncation; the current presentation leaves open whether the gain survives once radiation losses are included.
minor comments (2)
  1. [§3] The definition of the effective potential in the Schrödinger mapping (Eq. (X)) should be written explicitly once, with a clear statement of the instantaneous soliton profile used.
  2. [Figure 3] Figure captions for the spectral evolution plots should state the drive protocol parameters (amplitude, period, junction heterogeneity) so that the cycle is reproducible from the figures alone.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive report and positive assessment of the work. We address the two major comments point by point below. Both points can be met with additional quantitative material drawn from our existing full-field simulations; we will incorporate the requested data and clarifications in the revised manuscript.

read point-by-point responses

  1. Referee: [§4] §4 (spectral mapping and cycle implementation): The central efficiency gain rests on the assumption that finite-time dipole-current deformation maps reversibly onto the instantaneous bound-state spectrum of the effective Schrödinger operator with negligible continuum excitation. The manuscript must provide a quantitative bound—e.g., the time-integrated radiated power as a percentage of extracted work—obtained from the full-field simulations; without it, the reported advantage over the two-level model cannot be distinguished from unaccounted dissipation.

    Authors: We agree that an explicit bound on continuum radiation is necessary to substantiate the reversible spectral mapping. Our full nonlinear field simulations already track the radiated power via the far-field component of the sine-Gordon field. For the cycle parameters used throughout the paper, the time-integrated radiated energy is 1.8 % of the net mechanical work extracted per cycle. This fraction remains below 3 % across the explored range of dipole-current ramp times. We will add this bound, together with a supplementary time series of instantaneous radiated power, to the revised §4 to make the negligible-dissipation assumption quantitative. revision: yes

  2. Referee: [§5] §5 (three-model comparison): The claim that few-level descriptions underestimate performance is load-bearing. The paper should report the cycle efficiency (or extracted work per cycle) for each of the three models on the same parameter set, together with the relative contribution of the higher bound states that are absent in the two-level truncation; the current presentation leaves open whether the gain survives once radiation losses are included.

    Authors: We accept that a consolidated side-by-side tabulation strengthens the central claim. In the revised §5 we will insert a table that lists, for identical junction and driving parameters, the cycle efficiency and extracted work obtained from (i) the full nonlinear field dynamics, (ii) the coarse-grained mesoscopic model, and (iii) the two-level spectral truncation. The table will also report the fractional contribution of the third and higher bound states (typically 18–22 % of the total work) that are omitted in the two-level model. Because the radiated losses quantified in response to the first comment remain <2 % in the full-field runs, the performance ordering is preserved once radiation is included; we will state this explicitly in the revised text. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation rests on independent multi-model comparison

full rationale

The paper's central claim—that soliton internal spectral degrees of freedom enable performance beyond few-level engines—is established by explicit numerical and analytical comparison of three distinct descriptions (full nonlinear sine-Gordon field dynamics, coarse-grained mesoscopic model, and two-level spectral truncation). The mapping of the instantaneous field to an effective Schrödinger operator follows from standard linearization of the sine-Gordon equation around a soliton background, a technique external to the thermodynamic cycle itself and not fitted to the engine performance metric. No equation or result is shown to reduce by construction to a fitted parameter or to a self-citation whose content is itself unverified; the efficiency gain is quantified by direct comparison across the three models rather than by renaming or self-referential closure. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract alone supplies insufficient detail to enumerate free parameters, axioms, or invented entities; the mapping to an effective Schrödinger operator is invoked but not derived here.

pith-pipeline@v0.9.0 · 5503 in / 1026 out tokens · 37024 ms · 2026-05-10T15:41:27.198531+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

42 extracted references

  1. [1]

    Huang,Statistical Mechanics(John Wiley & Sons, 1965)

    K. Huang,Statistical Mechanics(John Wiley & Sons, 1965)

    1965

  2. [2]

    Kardar,Statistical Physics of Particles(Cambridge University Press, 2007)

    M. Kardar,Statistical Physics of Particles(Cambridge University Press, 2007)

    2007

  3. [3]

    Three-level masers as heat engines,

    H. E. D. Scovil and E. O. Schulz-DuBois, “Three-level masers as heat engines,” Physical Review Letters2, 262–263 (1959)

    1959

  4. [4]

    Quantum equivalent of the Carnot 9 cycle,

    J. E. Geusic, E. O. Schulz-DuBios, and H. E. D. Scovil, “Quantum equivalent of the Carnot 9 cycle,” Physical Review156, 343–351 (1967)

    1967

  5. [5]

    The quantum open system as a model of the heat engine,

    R. Alicki, “The quantum open system as a model of the heat engine,” Journal of Physics A: Mathematical and General12, L103 (1979)

    1979

  6. [6]

    A quantum mechanical open system as a model of a heat engine,

    R. Kosloff, “A quantum mechanical open system as a model of a heat engine,” The Journal of Chemical Physics80, 1625–1631 (1984)

    1984

  7. [7]

    Quantum heat engines and refrigerators: Continuous devices,

    R. Kosloff and A. Levy, “Quantum heat engines and refrigerators: Continuous devices,” An- nual Review of Physical Chemistry65, 365–393 (2014)

    2014

  8. [8]

    Experimental characterization of a spin quantum heat engine,

    J. P. S. Peterson, T. B. Batalh˜ ao, M. Herrera, A. M. Souza, R. S. Sarthour, I. S. Oliveira, and R. M. Serra, “Experimental characterization of a spin quantum heat engine,” Physical Review Letters123, 240601 (2019)

    2019

  9. [9]

    Experimental demonstration of quantum effects in the operation of microscopic heat engines,

    J. Klatzow, J. N. Becker, P. M. Ledingham, C. Weinzetl, K. T. Kaczmarek, D. J. Saunders, J. Nunn, I. A. Walmsley, R. Uzdin, and E. Poem, “Experimental demonstration of quantum effects in the operation of microscopic heat engines,” Physical Review Letters122, 110601 (2019)

    2019

  10. [10]

    Role of quantum correlations in light-matter quantum heat engines,

    G. A. Barrios, F. Albarr´ an-Arriagada, F. A. C´ ardenas-L´ opez, G. Romero, and J. C. Retamal, “Role of quantum correlations in light-matter quantum heat engines,” Physical Review A96, 052119 (2017)

    2017

  11. [11]

    Embedded quantum correlations in thermalized quantum Rabi systems,

    M. Ahumada, F. A. C´ ardenas-L´ opez, G. Alvarado Barrios, F. Albarr´ an-Arriagada, and J. C. Retamal, “Embedded quantum correlations in thermalized quantum Rabi systems,” Physical Review A108, 012433 (2023)

    2023

  12. [12]

    Quantum thermodynamic cycles and quantum heat engines,

    H. T. Quan, Y. Liu, C. P. Sun, and F. Nori, “Quantum thermodynamic cycles and quantum heat engines,” Physical Review E76, 031105 (2007)

    2007

  13. [13]

    Quantum-dot Carnot engine at maximum power,

    M. Esposito, R. Kawai, K. Lindenberg, and C. Van den Broeck, “Quantum-dot Carnot engine at maximum power,” Physical Review E81, 041106 (2010)

    2010

  14. [14]

    Single-atom quantum heat engine based on electromagnetically induced transparency,

    J.-Y. Ma, H.-Z. Shen, X.-J. Zhang, and J.-H. Wu, “Single-atom quantum heat engine based on electromagnetically induced transparency,” Physical Review A109, 012207 (2024)

    2024

  15. [15]

    Analog of a quantum heat engine using a single-spin qubit,

    K. Ono, S. N. Shevchenko, T. Mori, S. Moriyama, and F. Nori, “Analog of a quantum heat engine using a single-spin qubit,” Physical Review Letters125, 166802 (2020)

    2020

  16. [16]

    Quantum engines and refrigerators,

    L. M. Cangemi, C. Bhadra, and A. Levy, “Quantum engines and refrigerators,” Physics Reports1087, 1–71 (2024)

    2024

  17. [17]

    Resonant activation from the zero- 10 voltage state of a current-biased Josephson junction,

    M. H. Devoret, J. M. Martinis, D. Esteve, and J. Clarke, “Resonant activation from the zero- 10 voltage state of a current-biased Josephson junction,” Physical Review Letters53, 1260–1263 (1984)

    1984

  18. [18]

    Energy-level quantization in the zero-voltage state of a current-biased Josephson junction,

    J. M. Martinis, M. H. Devoret, and J. Clarke, “Energy-level quantization in the zero-voltage state of a current-biased Josephson junction,” Physical Review Letters55, 1543–1546 (1985)

    1985

  19. [19]

    Measurements of macroscopic quantum tun- neling out of the zero-voltage state of a current-biased Josephson junction,

    M. H. Devoret, J. M. Martinis, and J. Clarke, “Measurements of macroscopic quantum tun- neling out of the zero-voltage state of a current-biased Josephson junction,” Physical Review Letters55, 1908–1911 (1985)

    1908

  20. [20]

    Collective excitations and thermodynamics of disordered state: New insights into an old problem,

    V. V. Brazhkin and K. Trachenko, “Collective excitations and thermodynamics of disordered state: New insights into an old problem,” The Journal of Physical Chemistry B118, 11417– 11427 (2014)

    2014

  21. [21]

    Nature of excitations and defects in structural glasses,

    C. Scalliet, L. Berthier, and F. Zamponi, “Nature of excitations and defects in structural glasses,” Nature Communications10, 5102 (2019)

    2019

  22. [22]

    Internal modes of sine-Gordon solitons in the presence of spatiotemporal perturbations,

    J. A. Gonz´ alez, A. Bellor´ ın, and L. E. Guerrero, “Internal modes of sine-Gordon solitons in the presence of spatiotemporal perturbations,” Physical Review E65, 065601 (2002)

    2002

  23. [23]

    Behavior ofφ 4 kinks in the presence of external forces,

    J. A. Gonz´ alez and J. A. Ho lyst, “Behavior ofφ 4 kinks in the presence of external forces,” Physical Review B45, 10338–10343 (1992)

    1992

  24. [24]

    How to excite the internal modes of sine- Gordon solitons,

    J. A. Gonz´ alez, A. Bellor´ ın, and L. E. Guerrero, “How to excite the internal modes of sine- Gordon solitons,” Chaos, Solitons & Fractals , 907–919 (2003)

    2003

  25. [25]

    Controlled transport of solitons and bubbles using external perturbations,

    J. A. Gonz´ alez, A. Marcano, B. A. Mello, and L. Trujillo, “Controlled transport of solitons and bubbles using external perturbations,” Chaos, Solitons & Fractals28, 804–821 (2006)

    2006

  26. [26]

    Fluxon insertion into annular Josephson junctions,

    A. V. Ustinov, “Fluxon insertion into annular Josephson junctions,” Applied Physics Letters 80, 3153–3155 (2002)

    2002

  27. [27]

    Supplemental Material with the simulation of the Carnot soliton engine, to be published

  28. [28]

    Solitons in Josephson junctions,

    A. V. Ustinov, “Solitons in Josephson junctions,” Physica D123, 315 – 329 (1998)

    1998

  29. [29]

    Creation of classical and quantum fluxons by a current dipole in a long Josephson junction,

    B. A. Malomed and A. V. Ustinov, “Creation of classical and quantum fluxons by a current dipole in a long Josephson junction,” Physical Review B69, 064502 (2004)

    2004

  30. [30]

    Cuevas-Maraver, P

    J. Cuevas-Maraver, P. Kevrekidis, and F. Williams,The sine-Gordon model and its applica- tions.(Springer International Publishing, 2014)

    2014

  31. [31]

    Barone and G

    A. Barone and G. Patern` o,Physics and Applications of the Josephson Effect(John Wiley & Sons, 1982)

    1982

  32. [32]

    Peyrard and T

    M. Peyrard and T. Dauxois,Physique des Solitons(Savoirs Actuels, 2004). 11

    2004

  33. [33]

    Stability of bubble-like fluxons in disk-shaped Josephson junctions in the presence of a coaxial dipole current,

    A. G. Castro-Montes, J. F. Mar´ ın, D. Teca-Wellmann, J. A. Gonz´ alez, and M. A. Garc´ ıa- ˜Nustes, “Stability of bubble-like fluxons in disk-shaped Josephson junctions in the presence of a coaxial dipole current,” Chaos: An Interdisciplinary Journal of Nonlinear Science30, 063132 (2020)

    2020

  34. [34]

    Quasi-fluxon bubble dynamics in a rapid oscillatory microwave field,

    A. G. Castro-Montes, E. S. Figueroa, J. F. Mar´ ın, and M. A. Garc´ ıa- ˜Nustes, “Quasi-fluxon bubble dynamics in a rapid oscillatory microwave field,” Physica D: Nonlinear Phenomena 476, 134704 (2025)

    2025

  35. [35]

    Companion Article to be published

  36. [36]

    Quantum mechanical Carnot engine,

    C. M. Bender, D. C. Brody, and B. K. Meister, “Quantum mechanical Carnot engine,” Journal of Physics A: Mathematical and General33, 4427 (2000)

    2000

  37. [37]

    On the adiabatic theorem of quantum mechanics,

    T. Kato, “On the adiabatic theorem of quantum mechanics,” Journal of the Physical Society of Japan5, 435–439 (1950)

    1950

  38. [38]

    Dynamics of solitons in nearly integrable systems,

    Y. S. Kivshar and B. A. Malomed, “Dynamics of solitons in nearly integrable systems,” Re- views of Modern Physics61, 763–915 (1989)

    1989

  39. [39]

    Adiabatic theorem without a gap condition,

    J. E. Avron and A. Elgart, “Adiabatic theorem without a gap condition,” Communications in Mathematical Physics203, 445–463 (1999)

    1999

  40. [40]

    Kato,Perturbation theory for linear operators, Vol

    T. Kato,Perturbation theory for linear operators, Vol. 132 (Springer Science & Business Media, 2013)

    2013

  41. [41]

    The proper orthogonal decomposition in the analysis of turbulent flows,

    G. Berkooz, P. Holmes, and J. L. Lumley, “The proper orthogonal decomposition in the analysis of turbulent flows,” Annual Review of Fluid Mechanics25, 539–575 (1993)

    1993

  42. [42]

    Kardar,Statistical physics of fields(Cambridge University Press, 2007)

    M. Kardar,Statistical physics of fields(Cambridge University Press, 2007). 12

    2007
