EncFormer: Secure and Efficient Transformer Inference over Encrypted Data

Chao Jin, Khin Mi Mi Aung, Xiaokui Xiao, Yufan Zhu

Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:50 UTC · model grok-4.3

classification 💻 cs.CR
keywords secure inferencetransformer modelshomomorphic encryptionmultiparty computationprivacy-preserving MLBERTGPTencrypted data
0
0 comments X

The pith

EncFormer reduces communication and latency for private transformer inference by aligning FHE kernels with stage compatible patterns and efficient MPC conversions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces EncFormer as a two-party framework for running transformer models on encrypted user inputs without exposing data. It tackles bottlenecks in prior FHE-MPC hybrids by defining Stage Compatible Patterns that let FHE operations flow across model stages with less repacking and fewer switches. A cost model helps pick the right boundaries between encryption methods, while a new secure conversion handles complex numbers and lighter MPC protocols manage nonlinear steps. Evaluations on BERT and GPT models show large drops in communication and runtime compared to earlier systems, with accuracy staying close to normal on GLUE tasks. Readers would care because this makes privacy-preserving machine learning services more usable for real models.

Core claim

EncFormer is a two-party private Transformer inference framework that introduces Stage Compatible Patterns so that FHE kernels compose efficiently, reducing repacking and conversions. It also provides a cost analysis model built around a minimal-conversion baseline, enabling principled selection of FHE-MPC boundaries. To further reduce communication, EncFormer proposes a secure complex CKKS-MPC conversion protocol and designs communication-efficient MPC protocols for nonlinearities, achieving 1.4x-30.4x lower online MPC communication and 1.3x-9.8x lower end-to-end latency against prior hybrid FHE-MPC systems on GPT- and BERT-style models while maintaining near-plaintext accuracy on selected

What carries the argument

Stage Compatible Patterns, which align FHE operations across transformer stages to minimize repacking and costly switches to MPC.

Load-bearing premise

The Stage Compatible Patterns and secure complex CKKS-MPC conversion protocol preserve both security and numerical correctness when composed across the full transformer pipeline without introducing new side-channel or approximation vulnerabilities.

What would settle it

Running the full EncFormer pipeline on a GLUE task and measuring either a clear accuracy drop below near-plaintext levels or a detectable security leak in the composed FHE-MPC steps would show the claims do not hold.

Figures

Figures reproduced from arXiv: 2604.09975 by Chao Jin, Khin Mi Mi Aung, Xiaokui Xiao, Yufan Zhu.

Figure 1
Figure 1. Figure 1: EncFormer encoder block showing FHE kernels, MPC nonlinear [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

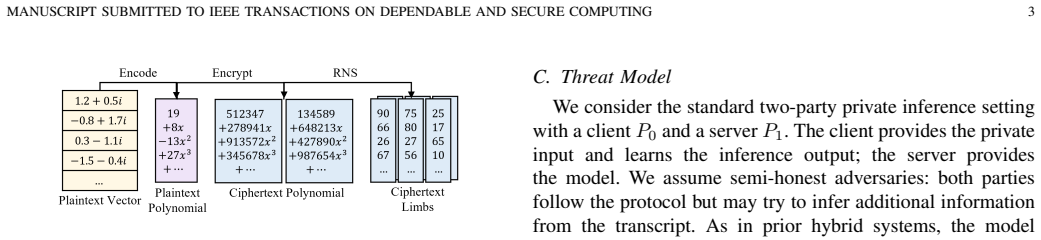

Figure 2. Figure 2: Illustration of RNS–CKKS, showing the residue representation and [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Reference Transformer architecture used in this work, highlighting [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

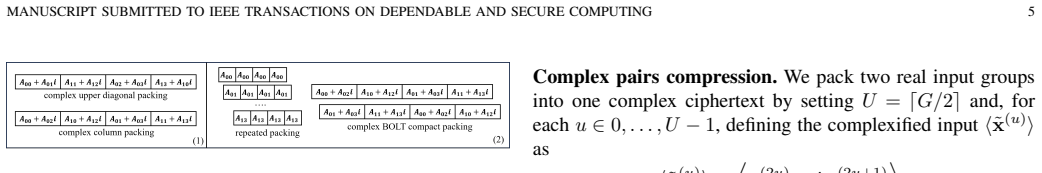

Figure 4. Figure 4: Packing comparison for a 2×4 matrix with n = 4 slots per ciphertext. Minimal packing uses Kmin = 1 ciphertext, whereas expanded packing uses more than Kmin ciphertexts. conversion communication. Stage Compatible Patterns address both problems through three rules applied to a canonical packing family F = {segment-column, folded-diagonal, head-major}. Each FHE kernel declares which format it accepts and whic… view at source ↗
Figure 5

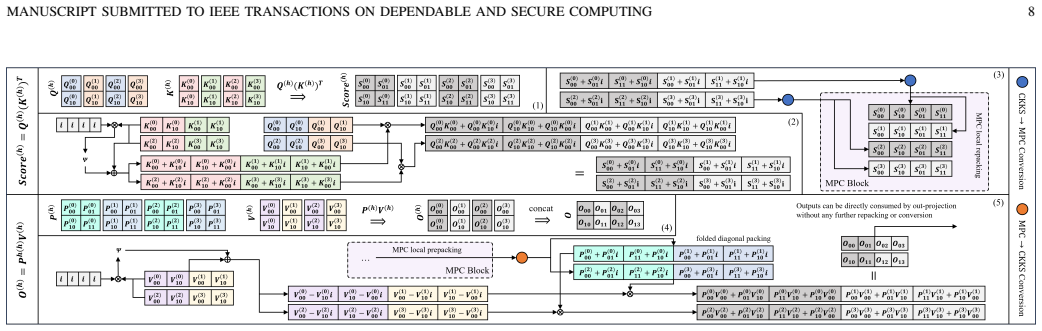

Figure 5. Figure 5: Toy example of the attention kernels with [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

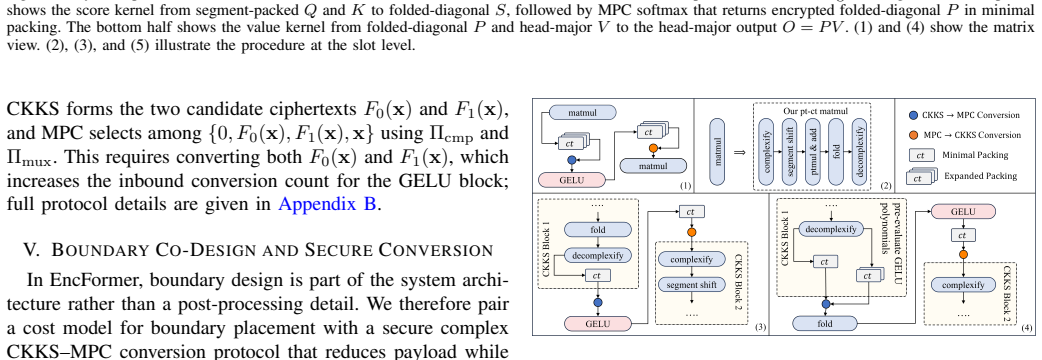

Figure 6. Figure 6: Architecture comparison for hybrid inference. (1) Prior layerwise [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: CKKS primitive latency vs. multiplicative depth for PhantomFHE and [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8

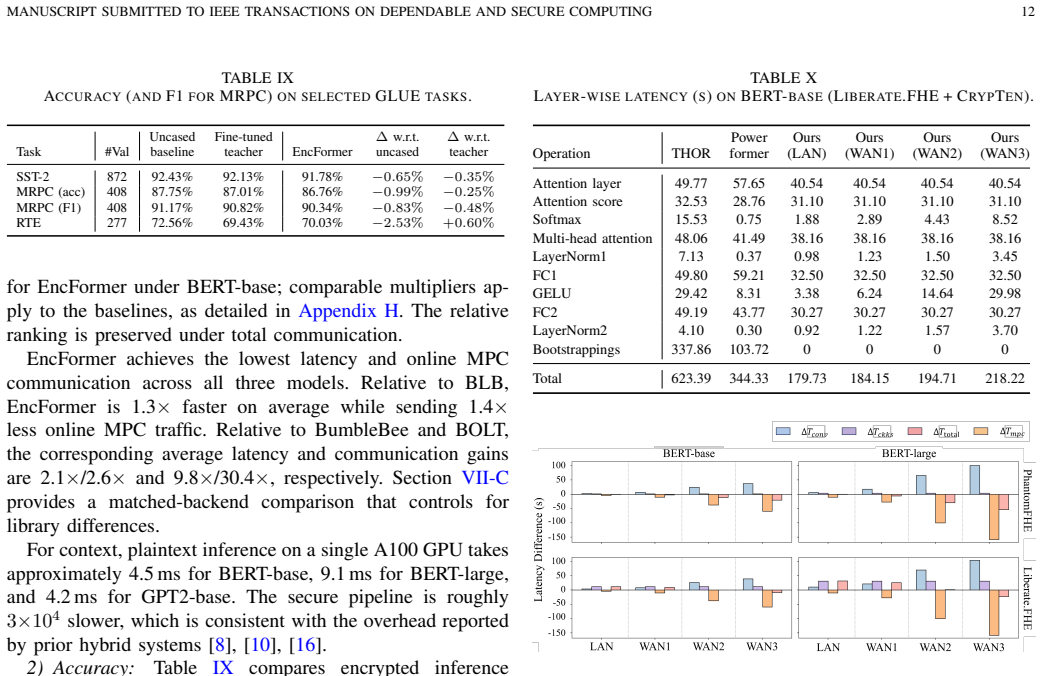

Figure 8. Figure 8: GELU latency deltas between EncFormer and the minimal baseline, [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9

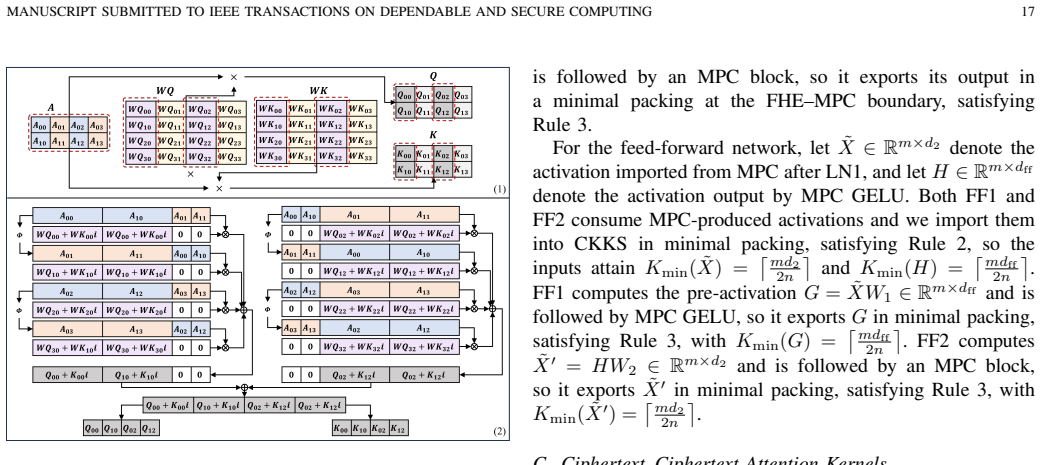

Figure 9. Figure 9: (1) Plain matrix multiplication for Q = AWQ and K = AWK with A ∈ R2×4 and WQ, WK ∈ R4×4 . (2) Packed CKKS procedure with n = 4 slots using fused plaintext weights pre-permuted WQ + iWK, producing Q and K in one projection. 2) Key-Switching Complexity: Assuming a precomputed bank of Φ ∆ C with cost #rotbank = O(UC) where U = ⌈G/2⌉ as in Section 3.2, each Φ ∆ C is implemented by RotFirstCm and costs two rota… view at source ↗
read the original abstract

Transformer inference in machine-learning-as-a-service (MLaaS) raises privacy concerns for sensitive user inputs. Prior secure solutions that combine fully homomorphic encryption (FHE) and secure multiparty computation (MPC) are bottlenecked by inefficient FHE kernels, communication-heavy MPC protocols, and expensive FHE-MPC conversions. We present EncFormer, a two-party private Transformer inference framework that introduces Stage Compatible Patterns so that FHE kernels compose efficiently, reducing repacking and conversions. EncFormer also provides a cost analysis model built around a minimal-conversion baseline, enabling principled selection of FHE-MPC boundaries. To further reduce communication, EncFormer proposes a secure complex CKKS-MPC conversion protocol and designs communication-efficient MPC protocols for nonlinearities. With GPU optimizations, evaluations on GPT- and BERT-style models show that EncFormer achieves 1.4x-30.4x lower online MPC communication and 1.3x-9.8x lower end-to-end latency against prior hybrid FHE-MPC systems, and 1.9x-3.5x lower end-to-end latency on BERT-base than FHE-only pipelines under a matched backend, while maintaining near-plaintext accuracy on selected GLUE tasks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript introduces EncFormer, a two-party secure inference framework for Transformers that combines fully homomorphic encryption (FHE) with secure multiparty computation (MPC). It proposes Stage Compatible Patterns to minimize FHE kernel repacking and conversions, a cost analysis model based on a minimal-conversion baseline for choosing FHE-MPC boundaries, a secure complex CKKS-MPC conversion protocol, and optimized MPC protocols for nonlinear operations. GPU-accelerated evaluations on GPT- and BERT-style models report 1.4x–30.4x reductions in online MPC communication and 1.3x–9.8x lower end-to-end latency versus prior hybrid FHE-MPC systems, plus 1.9x–3.5x latency improvement over FHE-only pipelines on BERT-base, with near-plaintext accuracy on selected GLUE tasks.

Significance. If the reported performance gains and accuracy preservation hold under rigorous verification, EncFormer would mark a meaningful step toward practical private inference for large language models. The Stage Compatible Patterns and minimal-conversion cost model offer reusable design principles that could reduce the overhead of hybrid secure computation pipelines in deep learning. The work addresses real bottlenecks in FHE-MPC conversions and nonlinearities, potentially enabling more efficient MLaaS deployments while preserving privacy.

major comments (3)
  1. [§4.3] §4.3 (secure complex CKKS-MPC conversion protocol): the security and correctness arguments do not supply per-stage or end-to-end approximation-error bounds for the composition of Stage Compatible Patterns across attention, FFN, and layer-norm stages; without these bounds it is impossible to confirm that cumulative CKKS noise remains below the threshold that would alter the reported GLUE accuracy.
  2. [Table 3 / §5.2] Table 3 / §5.2 (evaluation results): the latency and communication speedups (1.3x–9.8x and 1.4x–30.4x) are presented as point estimates without error bars, run counts, or a per-component breakdown that isolates the contribution of the new patterns versus GPU optimizations and the minimal-conversion baseline.
  3. [§5.1] §5.1 (cost analysis model): the claim that the minimal-conversion baseline enables principled FHE-MPC boundary selection is not accompanied by a sensitivity analysis showing how small changes in the assumed noise growth or repacking cost alter the recommended boundaries for GPT- and BERT-scale models.
minor comments (2)
  1. Notation for the Stage Compatible Patterns is introduced without a compact summary table relating pattern names to the FHE kernels they enable; a single table would improve readability.
  2. The abstract states “near-plaintext accuracy on selected GLUE tasks” but the main text does not list the exact tasks or the numerical accuracy deltas; adding this information would strengthen the accuracy claim.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment point by point below, indicating the revisions we will make to improve the manuscript's rigor and clarity.

read point-by-point responses

  1. Referee: [§4.3] §4.3 (secure complex CKKS-MPC conversion protocol): the security and correctness arguments do not supply per-stage or end-to-end approximation-error bounds for the composition of Stage Compatible Patterns across attention, FFN, and layer-norm stages; without these bounds it is impossible to confirm that cumulative CKKS noise remains below the threshold that would alter the reported GLUE accuracy.

    Authors: We acknowledge that explicit per-stage and end-to-end approximation-error bounds would strengthen the security and correctness arguments. The manuscript currently relies on empirical evidence of near-plaintext GLUE accuracy to indicate that cumulative noise does not affect results. In the revised version, we will add analytical noise-growth bounds for each Stage Compatible Pattern and their composition across attention, FFN, and layer-norm stages to §4.3, along with a supporting appendix deriving the end-to-end bounds from the chosen CKKS parameters. This will explicitly confirm that noise remains below the accuracy-altering threshold. revision: yes

  2. Referee: [Table 3 / §5.2] Table 3 / §5.2 (evaluation results): the latency and communication speedups (1.3x–9.8x and 1.4x–30.4x) are presented as point estimates without error bars, run counts, or a per-component breakdown that isolates the contribution of the new patterns versus GPU optimizations and the minimal-conversion baseline.

    Authors: We agree that variability measures and component breakdowns would improve reproducibility and interpretability. The reported numbers reflect measurements from our primary GPU-based experimental runs. We will revise §5.2 and Table 3 to report averages over multiple runs (with standard deviations as error bars) and add a per-component breakdown (via an additional table or figure) that isolates the contributions of Stage Compatible Patterns, the secure CKKS-MPC conversion protocol, GPU optimizations, and the minimal-conversion baseline. revision: yes

  3. Referee: [§5.1] §5.1 (cost analysis model): the claim that the minimal-conversion baseline enables principled FHE-MPC boundary selection is not accompanied by a sensitivity analysis showing how small changes in the assumed noise growth or repacking cost alter the recommended boundaries for GPT- and BERT-scale models.

    Authors: The cost model in §5.1 uses the minimal-conversion baseline to guide boundary selection based on measured costs. To address the request for sensitivity analysis, we will revise §5.1 to include a brief sensitivity study examining how the recommended FHE-MPC boundaries for BERT-base and GPT-style models change under small variations (±20% in noise growth and ±30% in repacking cost). This will demonstrate the stability of the chosen boundaries within realistic parameter ranges. revision: yes

Circularity Check

0 steps flagged

No circularity: performance claims rest on empirical evaluation of new protocols

full rationale

The paper's central results derive from the introduction of Stage Compatible Patterns, a minimal-conversion cost model, a secure complex CKKS-MPC conversion protocol, and GPU-optimized MPC protocols for nonlinearities. These are then evaluated directly on GPT- and BERT-style models for communication volume, latency, and GLUE accuracy. No step reduces a claimed prediction or uniqueness result to a fitted parameter, self-citation chain, or definitional tautology; the reported speedups (1.4x-30.4x, 1.3x-9.8x, 1.9x-3.5x) and accuracy preservation are measured outcomes, not algebraic consequences of the input assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework relies on standard cryptographic primitives and two-party security assumptions rather than new free parameters or invented entities.

axioms (2)
  • domain assumption Security of the CKKS fully homomorphic encryption scheme under standard hardness assumptions
    Invoked for all encrypted linear operations and conversions.
  • domain assumption Honest-but-curious two-party threat model for the MPC protocols
    Standard assumption for secure inference frameworks.

pith-pipeline@v0.9.0 · 5522 in / 1302 out tokens · 62403 ms · 2026-05-10T16:50:47.991674+00:00 · methodology
