arxiv: 2604.11029 · v1 · submitted 2026-04-13 · 💻 cs.PL

Recognition: unknown

A Categorical Basis for Robust Program Analysis

Shaowei Zhu, Zachary Kincaid

Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:03 UTC · model grok-4.3

classification 💻 cs.PL

keywords program analysisrobustnesscategory theoryfunctorslifting constructionalgebraic analysisrefactoring

0 comments

The pith

Modeling programs and properties in a category allows robustness to be defined as structure-preserving functors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to give a unified way to describe and ensure that program analyses produce predictable results even when programs are changed in various ways. It does this by representing programs and their properties as objects in a category, so that robustness becomes a matter of mappings that preserve the category's structure. A key contribution is a general construction for taking a robust analysis that works only on limited program models and extending it to handle arbitrary programs while keeping the robustness. This also accounts for the robustness of some known analyses and shows that analyses built from certain algebraic building blocks stay robust under edits like renaming variables or unrolling loops.

Core claim

By modeling programs and their properties as objects in a category, diverse notions of robustness can be characterized as structure-preserving functors. The paper provides a general recipe for lifting a sound and robust analysis from a restricted model of computation to general programs. It further shows that an algebraic program analysis is robust if it is comprised of robust operators, ensuring predictable behavior under refactorings such as variable renaming and loop unrolling.

What carries the argument

The category of programs and properties, where robustness notions act as functors that preserve the morphisms representing program changes.

If this is right

Existing analyses for loop summarization and termination are revealed as special cases of the general lifting recipe.
Algebraic analyses built from robust operators exhibit robustness under common refactoring patterns.
The framework unifies various robustness properties under a single categorical language.
Sound robust analyses on sub-Turing models can be extended to sound robust analyses for full programs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Future analyses could be designed directly in this framework to inherit robustness guarantees automatically.
This approach may connect to categorical semantics in programming languages to yield new robustness results.
Practical tools might implement the lifting recipe to automatically generate robust versions of analyses.

Load-bearing premise

The particular category chosen to model programs and properties must correctly encode the robustness properties so that the functors and lifting work as intended for practical analyses.

What would settle it

A concrete counterexample where an analysis sound and robust on a restricted model fails to remain robust after being lifted to general programs, or where an algebraic analysis built from robust operators changes unpredictably under variable renaming.

Figures

Figures reproduced from arXiv: 2604.11029 by Shaowei Zhu, Zachary Kincaid.

**Figure 2.** Figure 2: An example illustrating that constant propagation is not robust under linear transformations: The [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗

**Figure 3.** Figure 3: Over-approximation of a loop by a deterministic affine transition systems. [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗

**Figure 4.** Figure 4: Two flow graphs, corresponding to the programs [PITH_FULL_IMAGE:figures/full_fig_p018_4.png] view at source ↗

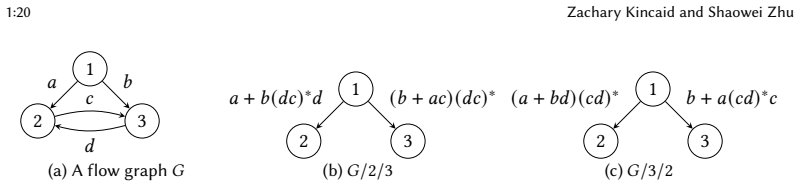

**Figure 5.** Figure 5: An irreducible flow graph 𝐺 along with the result of eliminating vertices 2 and 3 in both possible orders. If 𝐴 happens to be a Kleene algebra, then the elimination order is irrelevant. But if 𝐴 is a Pre-Kleene algebra, different elimination orders can produce different results (i.e., different sound over-approximations of program behavior). From this abstract perspective, the crucial difference between di… view at source ↗

**Figure 6.** Figure 6: An example illustrating that stuttering simulations are not preserved by vertex elimination. [PITH_FULL_IMAGE:figures/full_fig_p034_6.png] view at source ↗

read the original abstract

Users of program analyses expect that results change predictably in response to changes in their programs, but many analyses fail to provide such robustness. This paper introduces a theoretical framework that provides a unified language to articulate robustness properties. By modeling programs and their properties as objects in a category, diverse notions of robustness-from variable renaming to semantic refinement and structural transformation-can be characterized as structure-preserving functors. Beyond formulating the meaning of robustness, this paper provides methods for achieving it. The first is a general recipe for designing robust analyses, by lifting a sound and robust analysis from a restricted (sub-Turing) model of computation to a sound and robust analysis for general programs. This recipe demystifies the design of several existing loop summarization and termination analyses by showing they are instantiations of this general recipe, and furthermore elucidates their robustness properties. The second is a characterization of a sense in which an algebraic program analysis is robust, provided that it is comprised of robust operators. In particular, we show that such analyses behave predictably under common refactoring patterns, such as variable renaming and loop unrolling.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper frames robustness in program analysis as structure-preserving functors in a category and supplies a lifting recipe from sub-Turing models, but the conditions that make the lift preserve functoriality are not fully pinned down.

read the letter

The core contribution is a categorical setup where programs and their properties are objects, and various robustness notions (renaming, semantic refinement, structural changes) become functors. They also give an explicit recipe that takes a sound robust analysis on a restricted model and lifts it to general programs, plus a characterization showing that algebraic analyses built from robust operators stay predictable under refactorings like variable renaming or loop unrolling. The examples tie this back to existing loop summarization and termination work, which is helpful for seeing the framework in action rather than just abstract definitions. That unification and the constructive recipe are the parts that feel genuinely new and worth having on record. The lifting approach in particular could save time when someone wants to extend an analysis without re-proving robustness from scratch each time. The main soft spot is that the lift is claimed to preserve the relevant functoriality, yet the paper does not list the precise categorical requirements on the embedding functor (such as commuting with the robustness functors or preserving the needed limits) or verify them in the general case. Without those conditions stated and checked, it is hard to know how far the recipe travels beyond the examples. The algebraic-operator part is cleaner but still depends on the operators satisfying the robustness property in the first place, which is more of a design guideline than a free lunch. Readers who already work in static analysis or verification and have some tolerance for category theory will get the most out of it; the framework gives a shared language and a few reusable constructions. It is worth sending to referees because the ideas are coherent on their own terms and the lifting recipe, once the conditions are clarified, could influence how people build new analyses. I would recommend review with a request to make the embedding requirements explicit.

Referee Report

1 major / 1 minor

Summary. The paper introduces a categorical framework for robust program analysis. Programs and their properties are modeled as objects in a category, with diverse robustness notions (variable renaming, semantic refinement, structural transformation) characterized as structure-preserving functors. It provides a general recipe for lifting a sound and robust analysis from a restricted sub-Turing model to general programs, showing this demystifies existing loop summarization and termination analyses, and characterizes algebraic analyses as robust when built from robust operators, ensuring predictable behavior under refactorings.

Significance. If the lifting construction is made rigorous with explicit conditions, the work offers a unified language and constructive methods for designing robust program analyses, with the potential to explain and improve existing techniques. The constructive recipe and demystification of concrete analyses are notable strengths.

major comments (1)

[Abstract] Abstract (lifting recipe): The central claim is that the general recipe lifts a sound and robust analysis from a sub-Turing model to Turing-complete programs while preserving functoriality for robustness notions. This holds only under specific categorical conditions on the embedding functor (e.g., preserving relevant limits/colimits or forming an adjunction that commutes with the robustness functors). The manuscript does not identify or verify these conditions, which is load-bearing for the applicability of the recipe to general programs.

minor comments (1)

[Abstract] The abstract is dense; expanding the description of the category or providing one concrete instantiation of the lifting recipe would improve readability without altering the technical content.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and for highlighting the importance of making the lifting construction rigorous. We address the single major comment below and have prepared a revised manuscript that incorporates the requested clarifications.

read point-by-point responses

Referee: [Abstract] Abstract (lifting recipe): The central claim is that the general recipe lifts a sound and robust analysis from a sub-Turing model to Turing-complete programs while preserving functoriality for robustness notions. This holds only under specific categorical conditions on the embedding functor (e.g., preserving relevant limits/colimits or forming an adjunction that commutes with the robustness functors). The manuscript does not identify or verify these conditions, which is load-bearing for the applicability of the recipe to general programs.

Authors: We agree that the lifting recipe's preservation of functoriality (and thus robustness) when moving from a sub-Turing model to general programs requires explicit conditions on the embedding functor. The original manuscript presented the recipe at a high level without fully enumerating these conditions. In the revised version we have added a precise statement of the lifting theorem that requires the embedding functor to (i) preserve the relevant colimits corresponding to program composition operators and (ii) commute with the robustness functors up to natural isomorphism. We verify that these conditions hold for the concrete embeddings used in the loop-summarization and termination-analysis examples, thereby making the applicability of the recipe conditional on clearly stated categorical assumptions rather than holding unconditionally. revision: yes

Circularity Check

0 steps flagged

No significant circularity; categorical framework and lifting recipe are definitional and self-contained

full rationale

The paper introduces a new categorical modeling where programs and properties are objects and robustness notions are functors, then gives a general lifting recipe from sub-Turing models to general programs. No equations or claims reduce by construction to fitted parameters, self-definitions, or unverified self-citations; the demystification of existing analyses is presented as showing they instantiate the recipe rather than deriving the recipe from those analyses. The derivation chain relies on standard categorical constructions and is independent of the target robustness results.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on standard category theory (objects, morphisms, functors) and on the modeling choice that programs and properties can be represented as such objects; no free parameters, ad-hoc axioms, or new postulated entities with independent evidence are introduced in the abstract.

axioms (1)

standard math Basic axioms of category theory (composition, identities, associativity)
Invoked when defining functors that preserve structure between categories of programs and properties.
