Space-Clock Elevator: Multi-Stage Orbital Transport via Rotating Tethers and Elliptical Nodes

Maksim A Kazanskii

Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:52 UTC · model grok-4.3

classification 🌌 astro-ph.EP astro-ph.IMphysics.class-phphysics.comp-ph

keywords rotating tethersorbital transportmomentum exchangespace elevatorelliptical nodessynchronized tetherspropellant-free transfer

0 comments

The pith

Multiple rotating tethers synchronized via elliptical nodes can ferry payloads outward in stable orbits without propellant.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates networks of rotating tethers stationed at separate orbital radii and linked by intermediate elliptical platforms that follow Keplerian paths. These tethers rotate to exchange momentum with payloads, enabling handoffs that shift material from lower to higher orbits. The central requirement is near-phase synchronization between adjacent tethers so exchanges occur smoothly without sudden thrusts. Numerical runs confirm that suitable configurations keep tether forces bounded and orbital paths dynamically stable during repeated transfers. If viable, the approach supplies a modular alternative to rockets for moving payloads across orbital regimes.

Core claim

Families of dynamically consistent configurations exist in which neighboring rotating tethers at different radii reach near-phase synchronization through intermediate elliptical nodes. Coordinated payload exchanges then occur without impulsive maneuvers. Numerical experiments establish that such synchronized tether networks sustain outward payload transport while preserving bounded tether tension and dynamically stable orbital motion.

What carries the argument

The Space-Clock Elevator, a modular system of synchronized rotating tethers coupled by elliptical transfer nodes that move along Keplerian trajectories.

If this is right

Payloads move sequentially between orbital regimes using only momentum exchange.
Tether tensions remain bounded throughout the transport sequence.
Orbital motions stay dynamically stable for repeated transfers.
The architecture supports modular extension by adding more synchronized tether stages.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same synchronization principle could in principle support inward payload movement if the rotation directions are reversed.
Scaling to three or more tether stages would require verifying phase locking across wider radius differences.
Atmospheric drag on lower tethers might introduce slow phase drifts not captured in the ideal Keplerian model.

Load-bearing premise

Neighboring tethers at different orbital radii can maintain near-phase synchronization long enough for repeated coordinated payload exchanges without external control or unmodeled perturbations.

What would settle it

A numerical integration that includes realistic orbital perturbations and shows accumulating phase drift that prevents successful payload handoffs would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.11221 by Maksim A Kazanskii.

**Figure 2.** Figure 2: Tether geometry. The kinetic energy of the cable is obtained by integrating the kinetic energy density over the tether length, Tc = 1 2 Z ℓ −ℓ ρ r˙ 2 (σ, t) dσ. (9) After performing the integration, the total kinetic energy of the system can be written in compact form as T = 1 2 Jθ ˙θ 2 + 1 2 Jϕ (ϕ˙ + ˙θ) 2 , (10) where the effective inertia coefficients are defined as Jθ = 2 M + ρℓ R 2 , Jϕ = 2 M ℓ2 + … view at source ↗

**Figure 3.** Figure 3: Feasibility maps for the tether system in the ( [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

**Figure 4.** Figure 4: Numerical convergence diagnostics for the tether-orbit dynamics. Top left: mean endpoint radial [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

**Figure 5.** Figure 5: Multitether scheme. 3.2 Elliptical nodes We consider a multi-tether configuration in which a set of tethers is dynamically coupled through intermediate transfer platforms, hereafter referred to as elliptical nodes. A schematic illustration of the multi-tether system is shown in [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

**Figure 6.** Figure 6: Resonant multi-stage orbital elevator architecture obtained from the discrete resonance search algo [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗

**Figure 7.** Figure 7: However, we observe that the number of tethers required is significantly smaller, while the terminal [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗

**Figure 7.** Figure 7: Resonant multi-stage orbital elevator architecture obtained from the discrete resonance search algo [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗

**Figure 8.** Figure 8: Sensitivity analysis of the discrete synchronization search. The plots show how the number of detected [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗

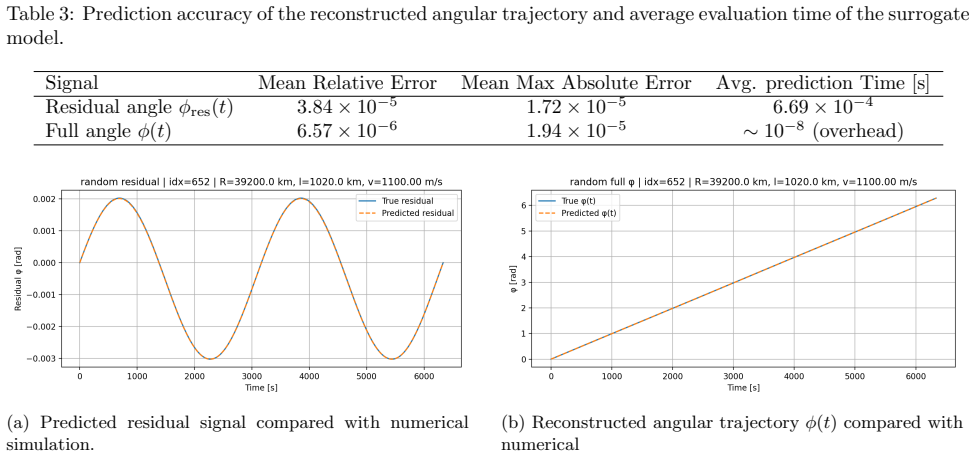

**Figure 9.** Figure 9: Comparison between surrogate model predictions and numerical simulations. [PITH_FULL_IMAGE:figures/full_fig_p034_9.png] view at source ↗

read the original abstract

Rotating space tethers have long been proposed as momentum-exchange devices capable of transporting payloads between orbital regimes without continuous propellant expenditure, offering a potential alternative to conventional propulsion for transfers from low Earth orbit to higher orbits. In this work, we numerically investigate a system of multiple rotating tethers distributed across different orbital radii and coupled through intermediate transfer platforms (elliptical nodes) moving along Keplerian trajectories. We identify families of dynamically consistent configurations in which neighboring tethers achieve near-phase synchronization, enabling coordinated payload exchange without impulsive maneuvers. Based on these results, we introduce the concept of a Space-Clock Elevator: a modular orbital transport architecture in which payloads are transferred sequentially between synchronized rotating tethers via intermediate elliptical nodes. Numerical experiments demonstrate that such synchronized tether networks can support outward payload transport while maintaining bounded tether tension and dynamically stable orbital motion.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper sketches a multi-stage tether network for orbital transport but its numerical support stays too idealized to carry the main claim.

read the letter

The core idea is a chain of rotating tethers at different radii linked by elliptical nodes that let payloads hop outward while the tethers stay roughly in phase. The authors report finding families of configurations where tension stays bounded and motion looks stable in their runs. That modular layout with explicit synchronization steps is the new piece; single-tether momentum exchange has been around, but this tries to scale it across altitudes with intermediate platforms. The numerical search for consistent setups is a reasonable first step for mapping the parameter space of rotation rates and node orbits. Credit for laying out the architecture plainly and showing that some handoff timings can close without impulses in the model they used. The soft spot is exactly where the stress test points: the experiments appear to run under pure Keplerian gravity with no J2, drag, solar pressure, or tether flexibility. Phase lock between tethers at different semi-major axes is delicate, and nothing in the description shows it surviving multiple cycles or external torques. No error bars, no convergence checks, and no long-term integration metrics are mentioned, so the bounded-tension result could be an artifact of the idealization. The free parameters (tether rates, lengths, node elements) are tuned to the chosen cases rather than derived from first principles. This is for readers already following tether concepts who want to see one possible multi-stage extension. It is not yet solid enough for engineering estimates or mission design. I would send it to peer review so the authors can supply the simulation details and test whether the synchronization holds once perturbations are added; the conceptual framing is clear enough that referees could usefully push on the dynamics.

Referee Report

2 major / 2 minor

Summary. The manuscript numerically investigates a network of rotating tethers at distinct orbital radii coupled by Keplerian elliptical nodes. It identifies families of configurations achieving near-phase synchronization that permit sequential, propellant-free payload exchanges, and introduces the 'Space-Clock Elevator' as a modular architecture supporting outward transport while maintaining bounded tether tension and dynamically stable motion.

Significance. If the reported synchronization persists under realistic conditions, the work would extend momentum-exchange tether concepts to a multi-stage, modular system with potential advantages for orbital logistics. Credit is due for the systematic numerical search for consistent configurations and the emphasis on coordination without impulsive maneuvers.

major comments (2)

[§3] §3 (Numerical Experiments): the phase-synchronization results are shown only for short forward integrations; no long-term stability metrics, cycle counts for repeated payload exchanges, or convergence checks with respect to integration timestep or initial-condition tolerances are reported, leaving the claim of sustained coordination without external control only partially supported.
[§2.2] §2.2 (Dynamical Model): the orbital equations are strictly Keplerian; the absence of J2, drag, solar-radiation pressure, or tether-flexibility terms means the bounded-tension and stable-motion conclusions rest on an idealized assumption that the stress-test note correctly flags as potentially disruptive to phase lock over multiple cycles.

minor comments (2)

[Abstract] Abstract: the phrase 'families of dynamically consistent configurations' is used without indicating the explored parameter ranges or the number of solutions found.
[Figures] Figure captions: several panels lack explicit labels for tether rotation rates or node eccentricities, reducing clarity for readers attempting to reproduce the configurations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and constructive feedback. The comments highlight important aspects for strengthening the numerical validation and acknowledging model limitations. We address each major comment below and indicate the revisions we will make to the manuscript.

read point-by-point responses

Referee: [§3] §3 (Numerical Experiments): the phase-synchronization results are shown only for short forward integrations; no long-term stability metrics, cycle counts for repeated payload exchanges, or convergence checks with respect to integration timestep or initial-condition tolerances are reported, leaving the claim of sustained coordination without external control only partially supported.

Authors: We agree that the current short forward integrations provide only partial support for sustained coordination. In the revised version, we will perform extended numerical simulations covering multiple orbital periods and repeated payload exchange cycles. We will introduce quantitative long-term stability metrics, such as maximum phase drift and tension variation over time, and report the number of successful exchange cycles achieved. Additionally, we will include convergence tests by varying the integration timestep and initial condition tolerances to confirm the robustness of the synchronization results. These additions will be incorporated into §3. revision: yes
Referee: [§2.2] §2.2 (Dynamical Model): the orbital equations are strictly Keplerian; the absence of J2, drag, solar-radiation pressure, or tether-flexibility terms means the bounded-tension and stable-motion conclusions rest on an idealized assumption that the stress-test note correctly flags as potentially disruptive to phase lock over multiple cycles.

Authors: We concur that the strictly Keplerian model represents an idealization, and perturbations like J2, drag, solar radiation pressure, and tether flexibility could affect long-term phase lock. The manuscript already includes a stress-test note acknowledging potential disruptions. In the revision, we will expand §2.2 with a more detailed discussion of these omitted effects and their possible impact on the reported bounded tensions and stability. We will also add preliminary numerical sensitivity analyses for small perturbations to assess the resilience of the synchronization. This will qualify the conclusions appropriately while preserving the focus on the idealized multi-stage concept. revision: partial

Circularity Check

0 steps flagged

No circularity: results from forward numerical simulations of chosen configurations

full rationale

The paper's central claims rest on numerical experiments that identify families of dynamically consistent tether configurations under idealized Keplerian assumptions. These are forward simulations of selected initial conditions rather than any derivation that reduces to fitted parameters, self-definitions, or load-bearing self-citations. No equations are presented that equate a 'prediction' to an input by construction, and the introduction of the Space-Clock Elevator concept is explicitly framed as a conceptual synthesis of the simulation outcomes. The derivation chain is therefore self-contained and does not exhibit any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The work rests on standard orbital-mechanics assumptions plus choices of tether parameters that enable synchronization in simulation; no new physical entities are postulated.

free parameters (2)

tether rotation rates and lengths
Selected in simulations to produce near-phase synchronization between neighboring tethers at different radii.
elliptical-node orbital elements
Chosen to enable payload handoff timing between tethers.

axioms (2)

domain assumption Payloads and nodes follow ideal Keplerian trajectories between tether encounters
Invoked when describing intermediate transfer platforms moving along Keplerian trajectories.
domain assumption Tether tension remains within material limits under the modeled centrifugal and gravitational loads
Required for the claim of bounded tether tension.

invented entities (1)

Space-Clock Elevator no independent evidence
purpose: Name for the overall modular transport architecture
Conceptual label introduced for the synchronized multi-tether system; no independent physical evidence supplied.
