A Forward, Analytic, Differentiable, Geometric (But Inflexible) Lens Model

Paul L. Schechter

Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:12 UTC · model grok-4.3

classification 🌌 astro-ph.GA

keywords gravitational lensinglens modelinganalytic forward modelsingular isothermal elliptical potentialexternal shearimage positionsmagnificationsWitt-Wynne representation

0 comments

The pith

The singular isothermal elliptical potential with parallel shear admits an analytic forward model that computes image positions and magnifications directly from the source position.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper evaluates the Singular Isothermal Elliptical Potential with parallel external shear as a lens model suited to the large numbers of strongly lensed sources expected from Euclid and Rubin Observatory. Its central feature is an analytic forward mapping that expresses image locations and magnifications as direct functions of source position, eliminating the iterative backward mapping required by most current codes. Preliminary timing tests indicate this approach runs more than ten thousand times faster than conventional methods. The Witt-Wynne geometric construction supplies an immediate visual check on whether the model fits a given system. The model remains inflexible because its equipotentials are strictly elliptical, a choice that conflicts with strictly elliptical mass density contours but may still serve as a useful starting approximation.

Core claim

The Singular Isothermal Elliptical Potential with parallel external shear permits an analytic forward model that gives image positions and magnifications as explicit functions of the source position and shape. This stands in contrast to standard lens models that map from the image plane back to the source plane and must iterate to locate a unique source. The Witt-Wynne geometric representation of the same potential further allows quick visual verification of the model's adequacy for any particular lensed system. Preliminary experiments show speed gains exceeding a factor of 10,000 relative to iterative backward models.

What carries the argument

The analytic forward mapping from source position to image positions and magnifications, realized through the Witt-Wynne geometric representation of the SIEP plus parallel external shear.

If this is right

Hundreds of thousands of lensed sources can be modeled without iterative solvers.
The model is differentiable, permitting gradient-based optimization of source and lens parameters.
Geometric inspection can reject obviously poor fits before any numerical work begins.
The same construction supplies a rapid initial guess that can accelerate convergence of more flexible models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The speed gain could make it practical to explore large ensembles of lens models for each system rather than a single best fit.
Similar analytic forward constructions might be derivable for other simple potential families, extending the approach beyond the elliptical case.
The model could be embedded in automated pipelines that first apply this fast check and then refine only the systems that pass.

Load-bearing premise

That a strictly elliptical equipotential remains a sufficiently accurate first approximation to the lensing effect even though it is inconsistent with a strictly elliptical surface mass density.

What would settle it

A direct numerical comparison of predicted versus observed image positions and magnifications on a sample of well-measured lens systems whose mass distributions are independently known to be non-elliptical.

Figures

Figures reproduced from arXiv: 2604.11908 by Paul L. Schechter.

**Figure 1.** Figure 1: shows the application of the Witt–Wynne construction to a sample of twelve quadruply lensed QSOs selected for observation during HST cycle 25. The position of the lensing galaxy was not used in determining either Witt’s hyperbola or Wynne’s ellipse [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

read the original abstract

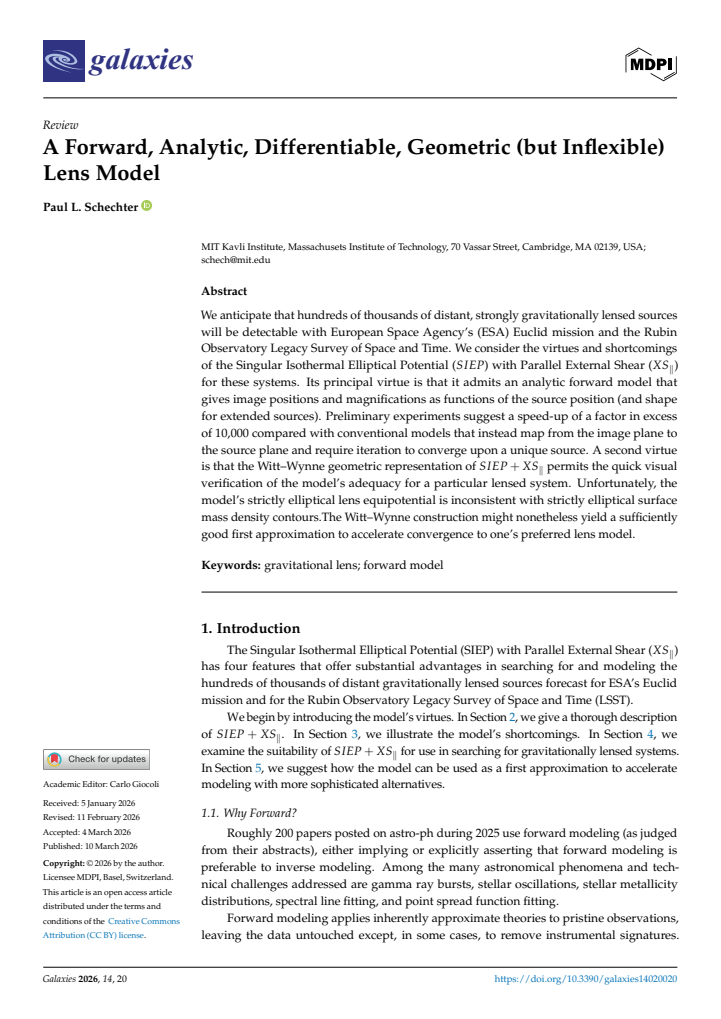

We anticipate that hundreds of thousands of distant, strongly gravitationally lensed sources will be detectable with the European Space Agency's (ESA) Euclid mission and the Rubin Observatory Legacy Survey of Space and Time. We consider the virtues and shortcomings of the Singular Isothermal Elliptical Potential (SIEP) with Parallel External Shear (XS_||) for these systems. Its principal virtue is that it admits an analytic forward model that gives image positions and magnifications as functions of the source position (and shape for extended sources). Preliminary experiments suggest a speed-up of a factor in excess of 10,000 compared with conventional models that instead map from the image plane to the source plane and require iteration to converge upon a unique source. A second virtue is that the Witt--Wynne geometric representation of SIEP+XS_|| permits the quick visual verification of the model's adequacy for a particular lensed system. Unfortunately, the model's strictly elliptical lens equipotential is inconsistent with strictly elliptical surface mass density contours. The Witt--Wynne construction might nonetheless yield a sufficiently good first approximation to accelerate convergence to one's preferred lens model.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Schechter is pitching the SIEP plus parallel shear as a fast analytic starter model for the coming flood of lenses, but the paper is mostly a clear discussion of an existing tool's trade-offs rather than new math or data.

read the letter

The key point is that this model lets you map straight from source position to image positions and magnifications without iteration, which the paper says can give speed-ups over 10,000 times in early modeling. That matters for Euclid and Rubin samples where you will need quick first passes on hundreds of thousands of systems before refining with slower codes. The Witt-Wynne geometric picture is presented as a practical way to eyeball whether the model is even worth keeping for a given lens, which is a concrete workflow advantage. The paper also states the main drawback up front: the elliptical equipotentials do not match elliptical mass contours, so it is positioned only as a first approximation that might speed convergence to a better model later. That honesty keeps the claims grounded. The speed numbers come from preliminary experiments whose setup is not detailed here, so the factor of 10,000 remains unverified in the text itself. Because the work reframes known properties rather than deriving new results or fitting fresh data, its novelty is limited and it will mainly interest people already doing strong-lens modeling at scale. The argument is internally consistent once you accept the stated limitations, and the citation pattern is appropriate for an existing model. This is worth sending to peer review so that modelers can see the speed and verification claims checked and decide whether the inflexibility is acceptable for their pipelines.

Referee Report

0 major / 3 minor

Summary. The manuscript evaluates the Singular Isothermal Elliptical Potential with Parallel External Shear (SIEP+XS_||) as a lens model for the large numbers of strongly lensed sources expected from Euclid and Rubin LSST. It claims that the model admits a closed-form analytic forward mapping from source position (and shape) to image positions and magnifications, yielding a potential computational speed-up exceeding 10,000 relative to iterative image-to-source solvers; it further notes that the Witt–Wynne geometric construction permits rapid visual checks of model adequacy, while acknowledging that strictly elliptical equipotentials are inconsistent with strictly elliptical surface-mass-density contours and therefore positions the construction as an inflexible but useful first approximation.

Significance. If the analytic forward mapping and associated speed-up are confirmed, the approach could materially accelerate initial modeling for the anticipated hundreds of thousands of lenses, serving as a fast, differentiable starting point that can be refined with more flexible models. The geometric visualization tool adds immediate practical utility for observers. The explicit framing of the model’s limitations is a strength.

minor comments (3)

[Abstract] Abstract and §2: the speed-up claim rests on 'preliminary experiments' whose setup, comparison baselines, source/image counts, and hardware are not described; a short methods paragraph or table quantifying the timing tests is needed to make the factor-of-10,000 statement reproducible.
[Title and Abstract] The title advertises a 'differentiable' model, yet the abstract and main text do not explicitly demonstrate or cite the differentiability (e.g., analytic derivatives of the forward map with respect to source parameters); a brief derivation or reference would align the title with the body.
[Section 3] Figure captions and §3: the Witt–Wynne construction is said to 'permit quick visual verification,' but no example figure or quantitative metric (e.g., residual maps) is shown; adding one illustrative case would strengthen the geometric-utility claim.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript and for recommending minor revision. The report accurately captures the core claims regarding the analytic forward mapping, potential speed-up, geometric checks via the Witt–Wynne construction, and the model's acknowledged inflexibility due to elliptical equipotentials. No specific major comments or requested changes were enumerated in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper advocates use of the pre-existing SIEP+XS_|| model whose analytic forward-mapping properties are attributed to the cited Witt-Wynne geometric construction. No new derivation is offered that defines any quantity in terms of itself or renames a fitted parameter as a prediction. The speed-up claim follows directly from the absence of iterative root-finding in the closed-form mapping, and the equipotential-versus-density mismatch is stated explicitly as a limitation rather than smuggled in. All load-bearing steps rest on externally established model properties rather than internal self-reference.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The model inherits the standard isothermal sphere assumptions and the Witt-Wynne geometric construction; no new free parameters or invented entities are introduced beyond the usual lens parameters.

axioms (2)

domain assumption The lens potential is strictly elliptical (SIEP form).
Invoked when stating the principal virtue and the inconsistency with mass density contours.
domain assumption Parallel external shear can be added without destroying analyticity.
Used to define the XS_|| component.
