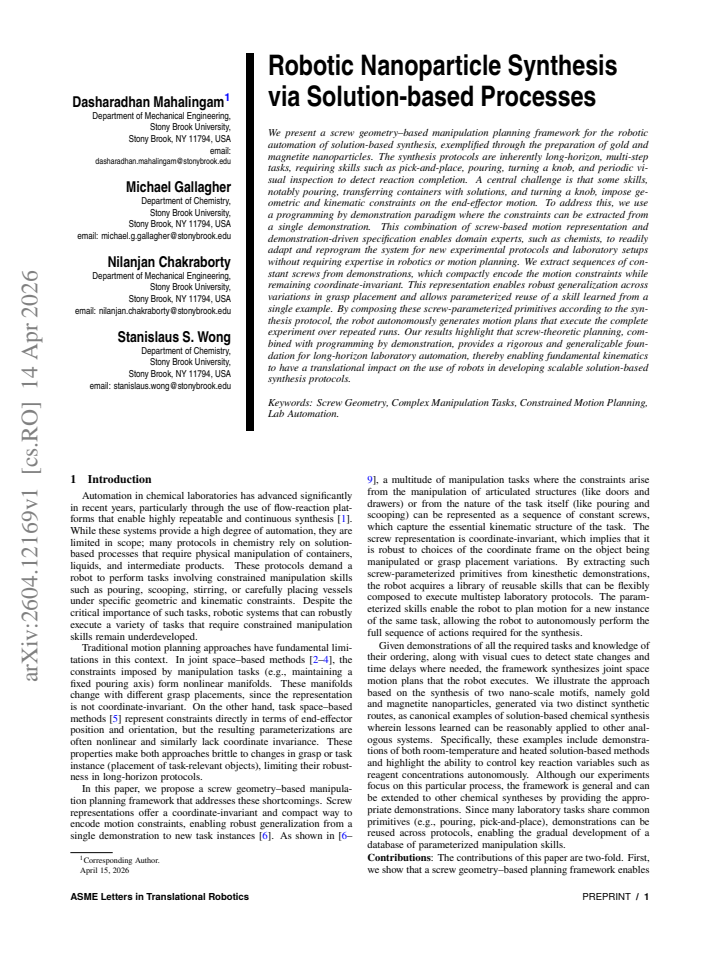

· Lean TheoremRobotic Nanoparticle Synthesis via Solution-based Processes
Pith reviewed 2026-05-10 16:25 UTC · model grok-4.3
The pith
Screw motions extracted from one demonstration let robots automate multi-step nanoparticle synthesis protocols.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Sequences of constant screws extracted from a single demonstration compactly encode motion constraints for constrained skills, remain coordinate-invariant, support robust generalization across grasp variations, and allow parameterized reuse when the robot composes them according to a full synthesis protocol.
What carries the argument
Sequences of constant screws extracted from a single demonstration, which represent rigid-body motions as twists that stay invariant under coordinate changes and support parameterization for reuse across grasp and task variations.
If this is right
- The robot can autonomously execute repeated full synthesis protocols once the individual skills are demonstrated.
- Skills learned from one example can be reused with different grasp placements without retraining.
- Domain experts can reprogram the system for new experimental protocols by providing fresh single demonstrations.
- Motion plans for complete experiments are generated by composing the screw-parameterized primitives rather than planning from scratch each time.
Where Pith is reading between the lines
- The same screw-extraction method could be applied to other constrained manipulation tasks common in chemistry labs, such as pipetting or stirring.
- Integration with real-time visual feedback for reaction completion could close the loop and allow the robot to decide when to move to the next step.
- If the representation proves stable across different robot arms, it could lower the barrier for smaller labs to adopt automation without custom engineering.
Load-bearing premise
That constant screw sequences from one demonstration capture all necessary geometric and kinematic constraints and generalize reliably to new grasp placements and lab coordinates.
What would settle it
A controlled test in which the robot is given a new grasp position or bench coordinate for a pouring or knob-turning skill and either succeeds or fails to complete the action without additional demonstrations or manual tuning.
read the original abstract
We present a screw geometry-based manipulation planning framework for the robotic automation of solution-based synthesis, exemplified through the preparation of gold and magnetite nanoparticles. The synthesis protocols are inherently long-horizon, multi-step tasks, requiring skills such as pick-and-place, pouring, turning a knob, and periodic visual inspection to detect reaction completion. A central challenge is that some skills, notably pouring, transferring containers with solutions, and turning a knob, impose geometric and kinematic constraints on the end-effector motion. To address this, we use a programming by demonstration paradigm where the constraints can be extracted from a single demonstration. This combination of screw-based motion representation and demonstration-driven specification enables domain experts, such as chemists, to readily adapt and reprogram the system for new experimental protocols and laboratory setups without requiring expertise in robotics or motion planning. We extract sequences of constant screws from demonstrations, which compactly encode the motion constraints while remaining coordinate-invariant. This representation enables robust generalization across variations in grasp placement and allows parameterized reuse of a skill learned from a single example. By composing these screw-parameterized primitives according to the synthesis protocol, the robot autonomously generates motion plans that execute the complete experiment over repeated runs. Our results highlight that screw-theoretic planning, combined with programming by demonstration, provides a rigorous and generalizable foundation for long-horizon laboratory automation, thereby enabling fundamental kinematics to have a translational impact on the use of robots in developing scalable solution-based synthesis protocols.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to introduce a screw geometry-based manipulation planning framework for robotic automation of solution-based nanoparticle synthesis (gold and magnetite). Using programming by demonstration, sequences of constant screws are extracted from a single demonstration to encode geometric and kinematic constraints for long-horizon skills such as pouring, transferring containers, and knob-turning. The representation is asserted to be coordinate-invariant, compactly encode constraints, and support robust generalization across grasp variations and parameterized reuse when composing full protocols, thereby enabling domain experts like chemists to reprogram the system for new experimental setups without robotics expertise. The robot is said to autonomously generate and execute motion plans for complete experiments over repeated runs.
Significance. If the generalization and invariance properties of the constant-screw sequences are rigorously validated, the work could meaningfully advance laboratory automation by lowering the barrier for chemists to deploy robots on complex, multi-step synthesis tasks. The integration of screw theory with demonstration-driven specification offers a principled kinematic approach that may translate to other constrained manipulation domains in chemistry and materials science.
major comments (2)
- [Abstract] Abstract: The central claim that 'the robot autonomously generates motion plans that execute the complete experiment over repeated runs' and that the screw representation 'enables robust generalization across variations in grasp placement' is stated without any quantitative support, such as success rates, error metrics, trajectory deviation data, or failure-mode analysis under changed grasp poses or container geometries.
- [Framework description] Framework description (screw extraction and generalization): No extraction algorithm for sequences of constant screws is specified, no invariance proof or derivation is given, and no experimental results quantify robustness to grasp variation or composition into long-horizon protocols; these omissions directly undermine the claim that domain experts can adapt the system without robotics expertise.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback. We address each major comment below with clarifications and indicate revisions to strengthen the manuscript.
read point-by-point responses
-
Referee: [Abstract] Abstract: The central claim that 'the robot autonomously generates motion plans that execute the complete experiment over repeated runs' and that the screw representation 'enables robust generalization across variations in grasp placement' is stated without any quantitative support, such as success rates, error metrics, trajectory deviation data, or failure-mode analysis under changed grasp poses or container geometries.
Authors: We agree that the abstract would benefit from explicit quantitative references to support these claims. The experimental results section demonstrates repeated successful executions of full synthesis protocols and generalization across grasp variations through multiple trials, but these are not summarized in the abstract. In revision, we will update the abstract to reference specific outcomes from the results (including success rates over repeated runs and observed robustness to grasp changes) and add a dedicated paragraph with error metrics, trajectory deviation statistics, and failure-mode analysis under varied grasp poses and container geometries. revision: yes
-
Referee: [Framework description] Framework description (screw extraction and generalization): No extraction algorithm for sequences of constant screws is specified, no invariance proof or derivation is given, and no experimental results quantify robustness to grasp variation or composition into long-horizon protocols; these omissions directly undermine the claim that domain experts can adapt the system without robotics expertise.
Authors: We acknowledge that the framework description in the current manuscript is high-level and lacks the requested details. The paper explains that sequences of constant screws are extracted from a single demonstration to encode geometric and kinematic constraints in a coordinate-invariant way, enabling generalization and parameterized reuse. However, the specific extraction procedure, a derivation of invariance, and quantitative metrics on robustness and long-horizon composition are not provided. We will revise by adding a new subsection that specifies the screw extraction algorithm, includes a derivation for coordinate invariance, and reports additional experimental results quantifying success rates under grasp variations and when composing primitives into complete protocols. This will better substantiate the accessibility claim for domain experts. revision: yes
Circularity Check
No circularity: framework applies standard screw theory to PbD without self-referential reduction
full rationale
The paper's central derivation asserts that extracting constant-screw sequences from a single demonstration yields coordinate-invariant constraints that support generalization and reuse. This follows directly from the intrinsic properties of screw coordinates in SE(3) (Chasles' theorem) rather than any equation or definition internal to the paper that equates the output to the input by construction. No fitted parameters are relabeled as predictions, no self-citations are invoked to justify uniqueness or load-bearing premises, and no ansatz is smuggled via prior author work. The text simply applies an established kinematic representation to laboratory tasks; the claimed benefits are presented as consequences of that representation, not as tautological restatements of the extraction step itself.
Axiom & Free-Parameter Ledger
axioms (2)
- standard math Rigid body motions can be represented as constant screws that are coordinate-invariant
- domain assumption A single demonstration suffices to specify all geometric and kinematic constraints for the task
Reference graph
Works this paper leans on
-
[1]
Towards a modular architecture for science factories,
Vescovi, R., Ginsburg, T., Hippe, K., Ozgulbas, D., Stone, C., Stroka, A., Butler, R., Blaiszik, B., Brettin, T., Chard, K., et al., 2023, “Towards a modular architecture for science factories,” Digital Discovery,2(6)
2023
-
[2]
Task Space Regions: A Framework for Pose-Constrained Manipulation Planning,
Berenson, D., Srinivasa, S. S., and Kuffner, J. J., 2011, “Task Space Regions: A Framework for Pose-Constrained Manipulation Planning,” The International Journal of Robotics Research,30(12). 8 /PREPRINT Transactions of the ASME
2011
-
[3]
Path Planning Under Kinematic Constraints by Rapidly Exploring Manifolds,
Jaillet, L. and Porta, J. M., 2013, “Path Planning Under Kinematic Constraints by Rapidly Exploring Manifolds,” IEEE Transactions on Robotics,29(1)
2013
-
[4]
Sampling-Based Methods for Motion Planning with Constraints,
Kingston, Z., Moll, M., and Kavraki, L. E., 2018, “Sampling-Based Methods for Motion Planning with Constraints,” Annual Review of Control, Robotics, and Autonomous Systems,1
2018
-
[5]
Singularity-Robust Task-Priority Redundancy Resolution for Real-Time Kinematic Control of Robot Manipulators,
Chiaverini, S., 1997, “Singularity-Robust Task-Priority Redundancy Resolution for Real-Time Kinematic Control of Robot Manipulators,” IEEE Transactions on Robotics,13(3)
1997
-
[6]
2023 IEEE International Conference on Robotics and Automation (ICRA) , volume =
Mahalingam, D.andChakraborty, N., 2023, “Human-GuidedPlanningforCom- plex Manipulation Tasks Using the Screw Geometry of Motion,”2023 IEEE International Conference on Robotics and Automation (ICRA), pp. 7851–7857, doi: 10.1109/ICRA48891.2023.10161130
-
[7]
Mahalingam, D., Patankar, A., Phi, K., Chakraborty, N., McGann, R., and Ramakrishnan, I., 2024, “Containerized Vertical Farming Using Cobots,”2024 IEEEInternationalConferenceonRoboticsandAutomation(ICRA),pp.17897– 17903, doi: 10.1109/ICRA57147.2024.10609985
-
[8]
Point-to-Point Path Planning Based on User Guid- ance and Screw Linear Interpolation,
Laha, R., Rao, A., Figueredo, L. F. C., Chang, Q., Haddadin, S., and Chakraborty, N., 2021, “Point-to-Point Path Planning Based on User Guid- ance and Screw Linear Interpolation,”International Design Engineering Tech- nical Conferences and Computers and Information in Engineering Conference, Vol. Volume 8B: 45th Mechanisms and Robotics Conference (MR), Am...
-
[9]
Laha, R., Sun, R., Wu, W., Mahalingam, D., Chakraborty, N., Figueredo, L. F., and Haddadin, S., 2022, “Coordinate Invariant User-Guided Constrained Path Planning with Reactive Rapidly Expanding Plane-Oriented Escaping Trees,” 2022 International Conference on Robotics and Automation (ICRA), pp. 977– 984, doi: 10.1109/ICRA46639.2022.9812014
-
[10]
A mobile robotic chemist,
Burger, B., Maffettone, P. M., Gusev, V. V., Aitchison, C. M., Bai, Y., Wang, X., Li, X., Alston, B. M., Li, B., Clowes, R., et al., 2020, “A mobile robotic chemist,” Nature,583(7815)
2020
-
[11]
Development of a RoboticSystemforAutomaticOrganicChemistrySynthesis,
Lim, J. X.-Y., Leow, D., Pham, Q.-C., and Tan, C.-H., 2021, “Development of a RoboticSystemforAutomaticOrganicChemistrySynthesis,”IEEETransactions on Automation Science and Engineering,18(4)
2021
-
[12]
ORGANA: A robotic assistant for automated chemistry experimentation and characterization,
Darvish, K., Skreta, M., Zhao, Y., Yoshikawa, N., Som, S., Bogdanovic, M., Cao, Y., Hao, H., Xu, H., Aspuru-Guzik, A., Garg, A., and Shkurti, F., 2025, “ORGANA: A robotic assistant for automated chemistry experimentation and characterization,” Matter,8(2)
2025
-
[13]
Self-Driving Laboratories for Chemistry and Materials Science,
Tom, G., Schmid, S. P., Baird, S. G., Cao, Y., Darvish, K., Hao, H., Lo, S., Pablo-García, S., Rajaonson, E. M., Skreta, M., Yoshikawa, N., Corapi, S., Akkoc, G. D., Strieth-Kalthoff, F., Seifrid, M., and Aspuru-Guzik, A., 2024, “Self-Driving Laboratories for Chemistry and Materials Science,” Chemical Reviews,124(16), PMID: 39137296
2024
-
[14]
Automated solubility screening platform using computer vision,
Shiri, P., Lai, V., Zepel, T., Griffin, D., Reifman, J., Clark, S., Grunert, S., Yunker, L. P., Steiner, S., Situ, H., Yang, F., Prieto, P. L., and Hein, J. E., 2021, “Automated solubility screening platform using computer vision,” iScience, 24(3)
2021
-
[15]
Fakhruldeen, H., Pizzuto, G., Glowacki, J., and Cooper, A. I., 2022, “AR- Chemist: Autonomous Robotic Chemistry System Architecture,”2022 In- ternational Conference on Robotics and Automation (ICRA), pp. 6013–6019, doi: 10.1109/ICRA46639.2022.9811996
-
[16]
Accelerating Laboratory Automation Through Robot Skill Learning For Sample Scraping*,
Pizzuto, G., Wang, H., Fakhruldeen, H., Peng, B., Luck, K. S., and Cooper, A. I., 2024, “Accelerating Laboratory Automation Through Robot Skill Learning For Sample Scraping*,”2024 IEEE 20th International Con- ference on Automation Science and Engineering (CASE), pp. 2103–2110, doi: 10.1109/CASE59546.2024.10711291
-
[17]
Fakhruldeen, H., Nambiar, A. R., Veeramani, S., Tailor, B. V., Juneghani, H. B., Pizzuto, G., and Cooper, A. I., 2025, “Multimodal Behaviour Trees for Robotic Laboratory Task Automation,”2025 IEEE Interna- tional Conference on Robotics and Automation (ICRA), pp. 15872–15878, doi: 10.1109/ICRA55743.2025.11128408
-
[18]
Terry Suh, Naveen Kuppuswamy, Tao Pang, Paul Mitiguy, Alex Alspach, and Russ Tedrake
Knobbe, D., Zwirnmann, H., Eckhoff, M., and Haddadin, S., 2022, “Core Pro- cesses in Intelligent Robotic Lab Assistants: Flexible Liquid Handling,”2022 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 2335–2342, doi: 10.1109/IROS47612.2022.9981636
-
[19]
Large language models for chemistry robotics,
Yoshikawa, N., Skreta, M., Darvish, K., Arellano-Rubach, S., Ji, Z., Bjørn Kris- tensen, L., Li, A. Z., Zhao, Y., Xu, H., Kuramshin, A., et al., 2023, “Large language models for chemistry robotics,” Autonomous Robots,47(8)
2023
-
[20]
Learning from humans,
Billard, A. G., Calinon, S., and Dillmann, R., 2016, “Learning from humans,” Springer Handbook of Robotics
2016
-
[21]
Movement primitives in robotics: A comprehensive survey,
Gutierrez, N. B. and Beksi, W. J., 2025, “Movement Primitives in Robotics: A Comprehensive Survey,” arXiv preprint arXiv:2601.02379
-
[22]
On Learning, Representing, and Generalizing a Task in a Humanoid Robot,
Calinon, S., Guenter, F., and Billard, A., 2007, “On Learning, Representing, and Generalizing a Task in a Humanoid Robot,” IEEE Transactions on Systems, Man, and Cybernetics, Part B (Cybernetics),37(2)
2007
-
[23]
A task-parameterized probabilistic model with minimal intervention control,
Calinon, S., Bruno, D., and Caldwell, D. G., 2014, “A task-parameterized probabilistic model with minimal intervention control,”2014 IEEE Inter- national Conference on Robotics and Automation (ICRA), pp. 3339–3344, doi: 10.1109/ICRA.2014.6907339
-
[24]
Learning and Reproduction of Gestures by Imitation,
Calinon, S., D’halluin, F., Sauser, E. L., Caldwell, D. G., and Billard, A. G., 2010, “Learning and Reproduction of Gestures by Imitation,” IEEE Robotics & Automation Magazine,17(2)
2010
-
[25]
Encoding the time and space constraints of a task in explicit-duration Hidden Markov Model,
Calinon, S., Pistillo, A., and Caldwell, D. G., 2011, “Encoding the time and space constraints of a task in explicit-duration Hidden Markov Model,”2011 IEEE/RSJ International Conference on Intelligent Robots and Systems, pp. 3413–3418, doi: 10.1109/IROS.2011.6094418
-
[26]
Incremental Semantically Grounded Learning from Demonstration
Niekum, S., Chitta, S., Barto, A. G., Marthi, B., and Osentoski, S., 2013, “Incremental Semantically Grounded Learning from Demonstration.”Robotics: Science and Systems, Vol. 9, Berlin, Germany, pp. 10–15607
2013
-
[27]
Dynamical Movement Primitives: Learning Attractor Models for Motor Be- haviors,
Ijspeert, A. J., Nakanishi, J., Hoffmann, H., Pastor, P., and Schaal, S., 2013, “Dynamical Movement Primitives: Learning Attractor Models for Motor Be- haviors,” Neural Comput.,25(2)
2013
-
[28]
Diffusion policy: Visuomotor policy learning via action diffusion,
Bekris, K., Hauser, K., Herbert, S., Yu, J., Chi, C., Xu, Z., Feng, S., Cousineau, E., Du, Y., Burchfiel, B., Tedrake, R., and Song, S., 2025, “Diffusion policy: Visuomotor policy learning via action diffusion,” Int. J. Rob. Res.,44(10–11)
2025
-
[29]
Learning Fine-Grained Bimanual Manipulation with Low-Cost Hardware
Zhao, T. Z., Kumar, V., Levine, S., and Finn, C., 2023, “Learning fine-grained bimanual manipulation with low-cost hardware,” arXiv preprint arXiv:2304.13705
work page internal anchor Pith review arXiv 2023
-
[30]
Open x-embodiment: Robotic learning datasets and rt-x models: Open x-embodiment collaboration 0,
O’Neill, A., Rehman, A., Maddukuri, A., Gupta, A., Padalkar, A., Lee, A., Poo- ley, A., Gupta, A., Mandlekar, A., Jain, A., et al., 2024, “Open x-embodiment: Robotic learning datasets and rt-x models: Open x-embodiment collaboration 0,”2024 IEEE International Conference on Robotics and Automation (ICRA), IEEE, pp. 6892–6903
2024
-
[31]
Lynch, K. M. and Park, F. C., 2017,Modern robotics, Cambridge University Press
2017
-
[32]
M., Li, Z., and Sastry, S
Murray, R. M., Li, Z., and Sastry, S. S., 2017,A mathematical introduction to robotic manipulation, CRC press
2017
-
[33]
LaNoising: A data-driven approach for 903nm ToF LiDAR performance modeling under fog,
Sarker, A., Sinha, A., and Chakraborty, N., 2020, “On Screw Linear Interpolation for Point-to-Point Path Planning,”2020 IEEE/RSJ Interna- tional Conference on Intelligent Robots and Systems (IROS), pp. 9480–9487, doi: 10.1109/IROS45743.2020.9341651
-
[34]
Resolved Motion Rate Control of Manipulators and Human Prostheses,
Whitney, D. E., 1969, “Resolved Motion Rate Control of Manipulators and Human Prostheses,” IEEE Transactions on Man-Machine Systems,10(2)
1969
-
[35]
A facile and efficient “one-step
Premkumar, T., Kim, D., Lee, K., and Geckeler, K. E., 2007, “A facile and efficient “one-step” synthesis of Auo with tunable size,” Gold Bulletin,40(4)
2007
-
[36]
Kirillov, A., Mintun, E., Ravi, N., Mao, H., Rolland, C., Gustafson, L., Xiao, T., Whitehead, S., Berg, A. C., Lo, W.-Y., Dollár, P., and Girshick, R., 2023, “Segment Anything,” arXiv:2304.02643
work page internal anchor Pith review arXiv 2023
-
[37]
One step facile synthesis of ferromagnetic magnetite nanoparticles,
Suppiah, D. D. and Abd Hamid, S. B., 2016, “One step facile synthesis of ferromagnetic magnetite nanoparticles,” Journal of Magnetism and Magnetic Materials,414. ASME Letters in Translational Robotics PREPRINT/ 9 List of Figures 1 Robot performing constrained manipulation tasks as part of Magnetite Nano-Particle synthesis experiment. . . . . . . . . 2 (a)...
2016
