Position-Dependent Calibration and Frequency Stability in On-Axis Optical Transduction of Vertical InP Nanowire Resonators

Kostas Kanellopulos, Lukas Hrachowina, Magnus Borgstr\"om, Robert G. West, Silvan Schmid

Pith reviewed 2026-05-10 13:56 UTC · model grok-4.3

classification ⚛️ physics.app-ph

keywords InP nanowireoptical transductionresonator calibrationfrequency stabilityphotothermal detuningAllan deviationnanowire sensorson-axis detection

0 comments

The pith

Optimal laser detection for InP nanowire resonators occurs near the steepest intensity gradient and is not improved by higher laser power.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a framework to link the position of the laser beam to the performance of optical readout in vertical InP nanowire resonators. It uses photothermal resonance detuning to map the intensity profile and calibrate the signal against thermomechanical noise. A model with shot noise and substrate reflectance changes explains how stability varies with position. The results show the best position is where intensity changes fastest, and more laser power brings no stability benefit as heat increases noise to cancel the gain. These guidelines help design better on-axis optical sensors for nanowires.

Core claim

The central claim is that in on-axis optical transduction of vertical InP nanowire resonators, photothermal resonance detuning reconstructs the local beam intensity profile for calibration, and a noise model with shot noise and substrate reflectance variation predicts the position-dependent Allan deviation, with the optimal position at the steepest gradient and no significant stability improvement from higher laser power due to offsetting thermomechanical noise.

What carries the argument

Photothermal resonance detuning for intensity profile reconstruction and calibration, together with the position-dependent noise model predicting Allan deviation.

If this is right

Signal amplitude and calibration accuracy depend on laser position relative to the nanowire and substrate.
Frequency stability reaches its best value near the steepest intensity gradient.
Increasing laser power raises both signal and thermomechanical noise, leaving stability largely unchanged.
Design of nanowire-based sensors should prioritize precise positioning over simply increasing optical power.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The framework may guide similar optimizations in other nanoresonator systems using optical readout.
Thermal effects could be mitigated in future designs to allow power increases to improve stability.
Substrate material choice might influence the optimal position through its reflectance properties.

Load-bearing premise

That the photothermal resonance detuning accurately captures the local beam intensity profile without other confounding factors, and that the shot noise plus reflectance variation model fully explains the measured position-dependent frequency stability.

What would settle it

An experiment that varies the laser position across the nanowire and measures the Allan deviation to verify if the minimum occurs at the steepest gradient location, and tests higher powers to confirm no stability gain.

Figures

Figures reproduced from arXiv: 2604.12681 by Kostas Kanellopulos, Lukas Hrachowina, Magnus Borgstr\"om, Robert G. West, Silvan Schmid.

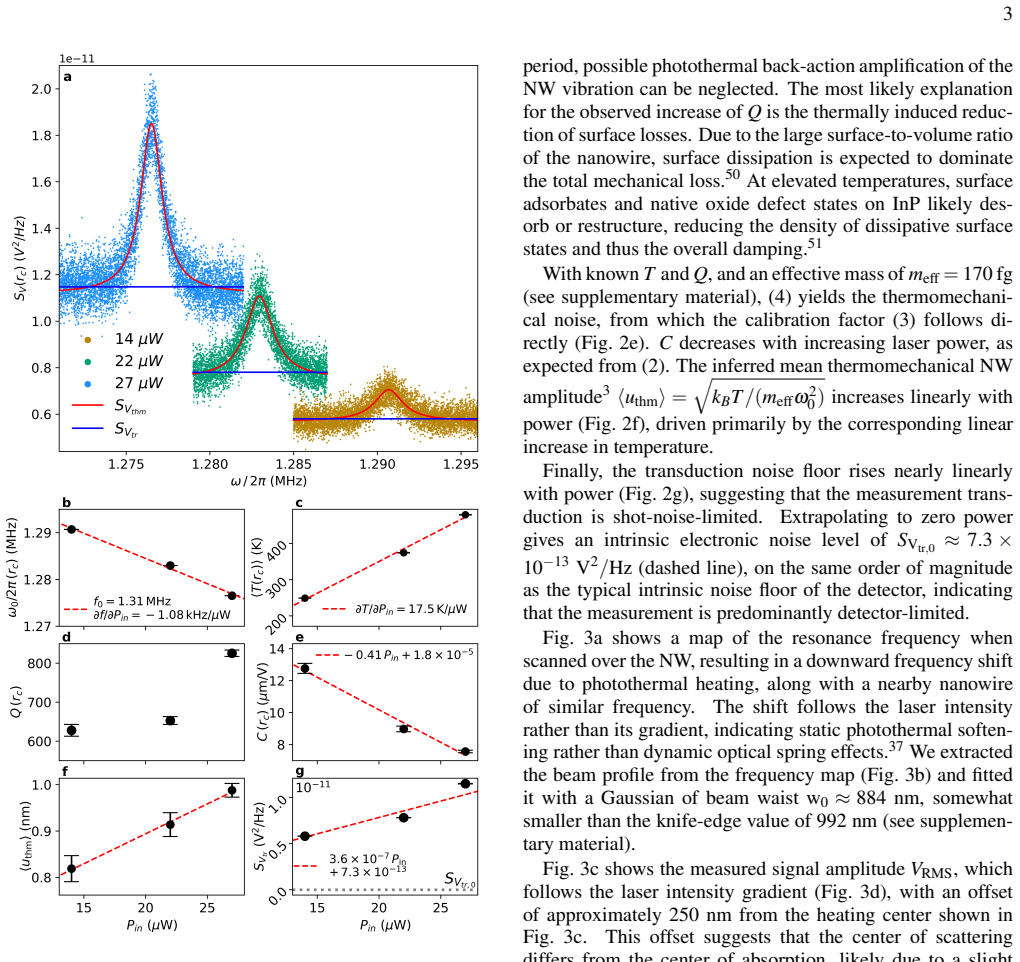

**Figure 2.** Figure 2: FIG. 2. (a) Power spectral densities (PSDs) of the thermomechanical [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3. 2D maps and line profiles from a 7-hour raster scan at an average beam power of 12 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. Frequency stability study. Results from line scans along the nanowire axis [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

read the original abstract

We present a quantitative framework for on-axis optical transduction of vertical InP nanowire resonators, correlating laser position to signal amplitude, calibration, and frequency stability. Photothermal resonance detuning is used to reconstruct the local beam intensity profile and to calibrate the photodetector signal using the thermomechanical noise. A noise model incorporating shot noise and spatial variation in substrate reflectance predicts the position-dependent Allan deviation. We find that the optimal detection position lies near the steepest intensity gradient, and that increasing laser power does not significantly improve frequency stability, because the accompanying temperature rise enhances thermomechanical noise and offsets the signal gain. These results establish design guidelines for optimizing nanowire-based sensors in on-axis optical detection schemes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives practical rules for where to place the laser and how much power to use in on-axis readout of vertical InP nanowire resonators, but the noise model may miss some position-dependent heating or damping terms.

read the letter

The main takeaway is that the best detection position sits near the steepest intensity gradient, and raising laser power does not improve frequency stability because the extra heat increases thermomechanical noise and cancels the signal gain. They reach this by using photothermal detuning to map the local beam intensity profile and calibrate the photodetector output against the thermomechanical noise floor. A noise model built from shot noise plus spatial substrate reflectance variation then predicts the measured position-dependent Allan deviation. This framework is new for vertical InP nanowires in an on-axis geometry and turns prior transduction ideas into concrete design guidelines that experimentalists can apply directly. The work is clear on the calibration step and shows how the model lines up with data, which is useful for anyone optimizing similar nanowire sensors. The soft spot is in the noise model completeness. It assumes shot noise and reflectance changes dominate the position dependence, yet unmodeled effects such as local damping variations or extra heating gradients could still matter. The abstract states the model predicts the observations, but without residual plots or an independent temperature check the fit could hide small systematic offsets. This is not a load-bearing flaw if the agreement holds in the figures, just a point that needs checking. The paper targets researchers building nanomechanical sensors with optical readout, especially those working with nanowires. A reader who needs quick advice on laser positioning and power settings will get value from it. It is incremental but grounded enough to warrant peer review rather than a desk reject.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a quantitative framework for on-axis optical transduction of vertical InP nanowire resonators. Photothermal resonance detuning is employed to reconstruct the local beam intensity profile and to calibrate the photodetector response against thermomechanical noise. An analytic noise model that includes shot noise and spatial substrate reflectance variation is used to predict the position-dependent Allan deviation. The central results are that the optimal detection position occurs near the steepest intensity gradient and that increasing laser power does not improve frequency stability because the associated temperature rise increases thermomechanical noise, offsetting any signal gain.

Significance. If the supporting measurements and model validation hold, the work supplies concrete design guidelines for optimizing frequency stability in nanowire-based nanomechanical sensors under on-axis optical readout. The emphasis on the signal-noise trade-off with laser power and position could inform practical sensor engineering in applied physics and nanotechnology.

major comments (2)

[Noise model and results sections] The abstract states that the noise model 'predicts' the measured position-dependent Allan deviation, yet the provided description does not include an explicit residual analysis, independent temperature measurement, or quantitative assessment of unmodeled contributions such as position-dependent viscous damping or thermoelastic loss. Without these, it is unclear whether the model fully accounts for the observed stability behavior or whether the conclusion that higher power fails to improve stability follows directly.
[Calibration and photothermal detuning framework] The claim that photothermal resonance detuning faithfully reconstructs the local intensity profile without confounding effects rests on the assumption that heating and nanowire properties are uniform; however, no independent verification (e.g., via direct thermometry or spatially resolved absorption measurements) is described to rule out position-dependent gradients that could bias the calibration.

minor comments (2)

[Figures and experimental methods] The manuscript would benefit from explicit error bars on all Allan deviation and intensity data points, together with a clear statement of the number of independent devices or measurements used to generate each curve.
[Throughout] Notation for the photodetector signal, thermomechanical noise floor, and Allan deviation should be defined consistently in the text and equations to avoid ambiguity when comparing model predictions to data.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below, providing clarifications based on the existing analysis and manuscript content. Revisions have been made where they strengthen the presentation without altering the core results.

read point-by-point responses

Referee: [Noise model and results sections] The abstract states that the noise model 'predicts' the measured position-dependent Allan deviation, yet the provided description does not include an explicit residual analysis, independent temperature measurement, or quantitative assessment of unmodeled contributions such as position-dependent viscous damping or thermoelastic loss. Without these, it is unclear whether the model fully accounts for the observed stability behavior or whether the conclusion that higher power fails to improve stability follows directly.

Authors: The analytic noise model incorporates shot noise together with the measured spatial variation in substrate reflectance and uses the position-dependent thermomechanical noise amplitude (calibrated via the same photothermal detuning data) to compute the Allan deviation. Direct comparison of these predictions to the experimental position-dependent Allan deviations is shown in the results; the model reproduces both the location of the stability optimum and the absence of improvement at higher laser power. We agree that an explicit residual plot and independent temperature measurements are not presented. In the revised manuscript we have added a quantitative residual analysis between model and data, together with a discussion of why position-dependent viscous damping and thermoelastic loss are expected to be negligible or uniform under the experimental conditions (room-temperature air, short nanowires, modest temperature rises). The conclusion that higher power does not improve stability follows directly from the model because the thermomechanical noise spectral density scales with temperature while the signal scales only with intensity; this trade-off is independent of the absolute temperature scale. revision: partial
Referee: [Calibration and photothermal detuning framework] The claim that photothermal resonance detuning faithfully reconstructs the local intensity profile without confounding effects rests on the assumption that heating and nanowire properties are uniform; however, no independent verification (e.g., via direct thermometry or spatially resolved absorption measurements) is described to rule out position-dependent gradients that could bias the calibration.

Authors: The photothermal detuning method extracts the local intensity by measuring the resonance-frequency shift induced by laser heating at each position; the shift is proportional to the absorbed power and the thermal responsivity of the nanowire. We assume uniform material properties and heating along the nanowire length, consistent with the short nanowire aspect ratio and the on-axis geometry. The reconstructed profile matches the expected Gaussian beam shape, and the resulting position-dependent calibration factor agrees quantitatively with the independently measured thermomechanical noise amplitude. While direct thermometry or spatially resolved absorption data are not provided, the internal consistency between the intensity reconstruction, the thermomechanical calibration, and the noise-model predictions supplies indirect validation. The revised manuscript now states the uniformity assumptions explicitly and discusses the expected magnitude of any position-dependent thermal gradients for InP nanowires under the reported conditions. revision: yes

standing simulated objections not resolved

Independent temperature measurements or spatially resolved absorption data to directly verify uniformity of heating and material properties

Circularity Check

0 steps flagged

Derivation chain self-contained against external benchmarks

full rationale

The paper reconstructs local intensity via photothermal resonance detuning and calibrates the photodetector signal against thermomechanical noise as an independent physical benchmark. The analytic noise model (shot noise plus spatial substrate reflectance variation) is then compared to measured position-dependent Allan deviation. No equations or steps reduce a claimed prediction to a fitted parameter by construction, nor does any load-bearing premise collapse to a self-citation or self-definition. The optimal-position and power-stability conclusions rest on this external calibration and model-experiment comparison rather than internal re-labeling of inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Central claim rests on domain assumptions about photothermal effects and noise sources; no explicit free parameters, axioms, or invented entities are detailed in the abstract, though the noise model implicitly requires parameters for reflectance spatial variation.

axioms (1)

domain assumption Thermomechanical noise floor provides an absolute calibration reference for photodetector signal amplitude
Invoked to calibrate the signal using thermomechanical noise as stated in the abstract.
