Automated Design of Tubular Origami with Anisotropic Stiffness

Mingkai Zhang , Davood Farhadi

Authors on Pith no claims yet

Pith reviewed 2026-05-10 13:51 UTC · model grok-4.3

classification ⚛️ physics.app-ph cond-mat.mtrl-sci

keywords tubular origamianisotropic stiffnessautomated designbar-and-hinge modelvertex topologypolygonal cross-sectiondeployable structuresrotational stiffness

0 comments

The pith

Polygonal cross-sectional topology primarily governs anisotropic stiffness in tubular origami, enabling optimized designs with over 50 times higher constrained rotational stiffness.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces an automated design framework that systematically varies local vertex topologies through generalized degree-n vertices and global tube shapes through polygonal cross-sections to optimize the anisotropic stiffness of tubular origami. A sympathetic reader would care because these foldable tubes combine easy deployment from flat sheets with direction-dependent stiffness, opening uses in robotics and deployable systems where standard designs fall short. The exploration shows that cross-section shape dominates the balance between compliant and stiff modes, while higher vertex degrees can improve overall performance rather than weaken it. Validation with a bar-and-hinge model and experiments confirms that the optimized tubes greatly outperform a benchmark in constrained rotation.

Core claim

The automated design framework jointly explores generalized degree-n vertex topologies and polygonal cross-sections, using a calibrated bar-and-hinge model to quantify large-deformation stiffness in axial translation, in-plane translation, torsion, and in-plane rotation. Design-space exploration establishes that polygonal cross-sectional topology is the primary factor controlling anisotropic stiffness. Increasing local vertex degree improves global performance especially for tubes with few cross-sectional vertices, and optimized architectures achieve more than 50 times higher constrained rotational stiffness than the benchmark.

What carries the argument

Automated design framework that jointly varies generalized degree-n local vertex topologies and polygonal global cross-sections, optimized through a calibrated bar-and-hinge model to predict stiffness across axial, translational, torsional, and rotational modes.

If this is right

Polygonal cross-sectional topology is the dominant design variable for tailoring anisotropic stiffness across multiple loading modes.
Higher local vertex degrees improve rather than reduce global structural stiffness, particularly when the tube has few sides.
Optimized tubular origami can reach more than 50 times the constrained rotational stiffness of conventional benchmark designs.
The framework enables systematic balancing of compliant and stiff responses in deployable tubes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Robotics engineers could apply the same cross-section focus to create tubes that resist unwanted twisting while allowing easy folding in chosen directions.
The finding that local kinematic freedom need not reduce structural stiffness may extend to other classes of folded or deployable mechanisms.
Adding material selection or dynamic loading to the optimization loop would likely produce even more application-specific tubular designs.

Load-bearing premise

The calibrated bar-and-hinge model accurately predicts the large-deformation anisotropic stiffness responses of physical tubular origami across axial, translational, torsional, and rotational modes.

What would settle it

Physical testing of the optimized tubular origami prototypes that shows constrained rotational stiffness gains well below 50 times the benchmark value would undermine the central claims.

Figures

Figures reproduced from arXiv: 2604.12711 by Davood Farhadi, Mingkai Zhang.

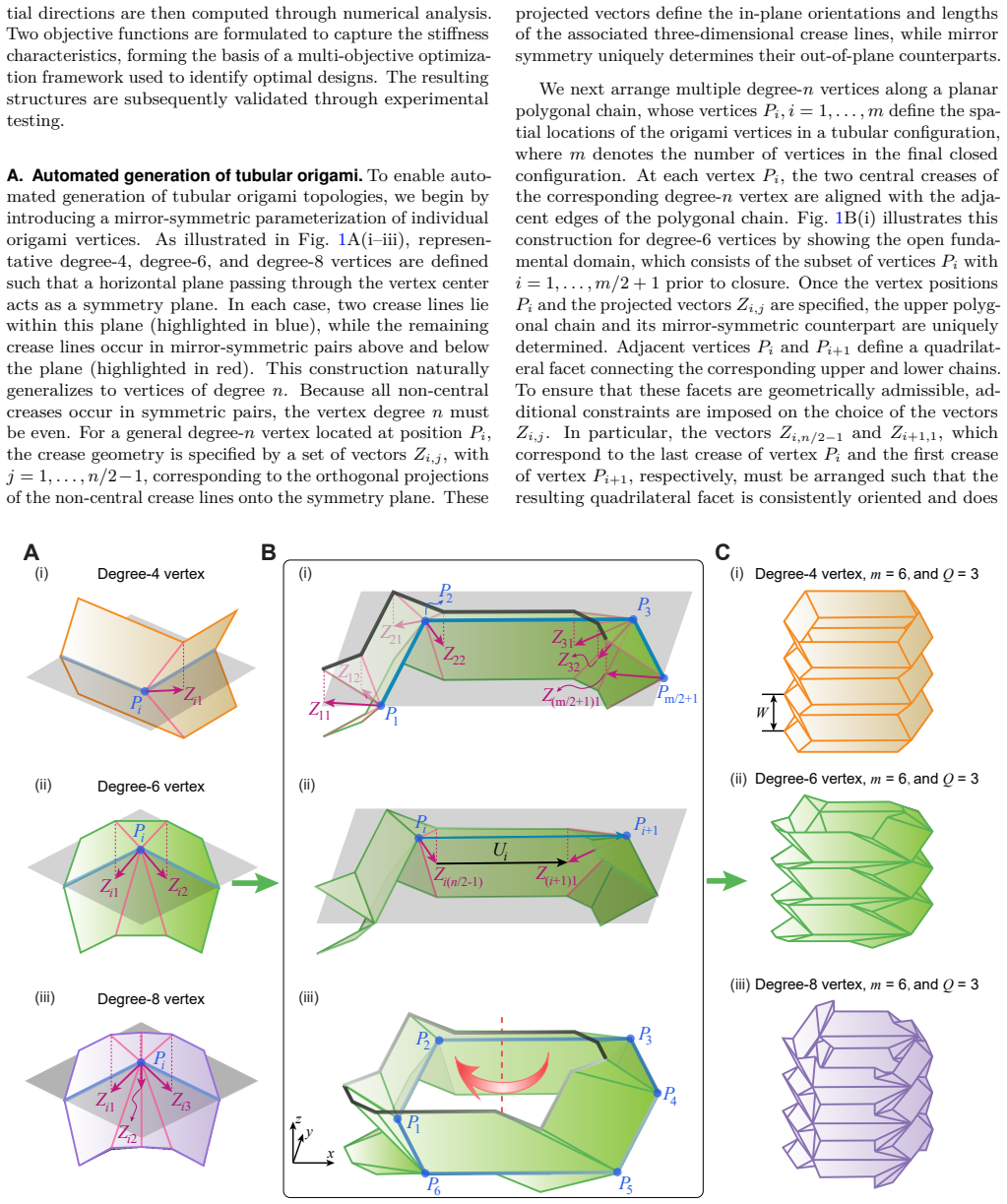

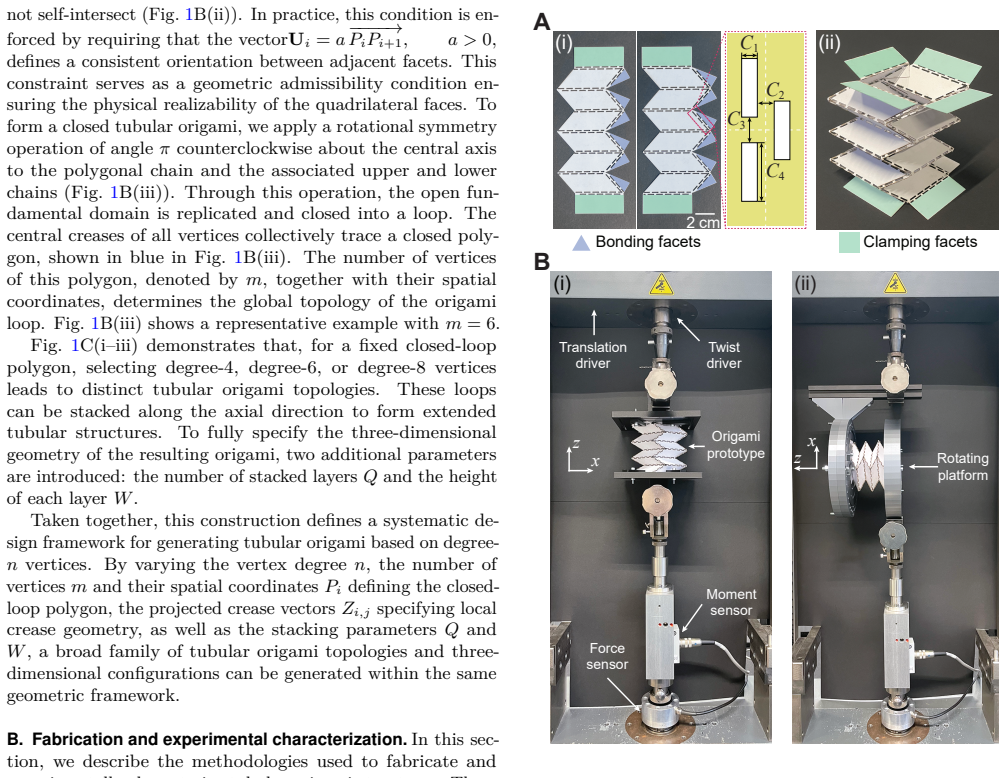

**Figure 2.** Figure 2: Fabrication and Experimental characterization. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: Numerical stiffness analysis under large deformation. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Pareto fronts illustrating the influence of loop topology and geometric parameters on stiffness anisotropy. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

**Figure 5.** Figure 5: Pareto fronts showing the influence of vertex degree on stiffness anisotropy. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

**Figure 6.** Figure 6: Sensitivity of optimized designs to geometric imperfections. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

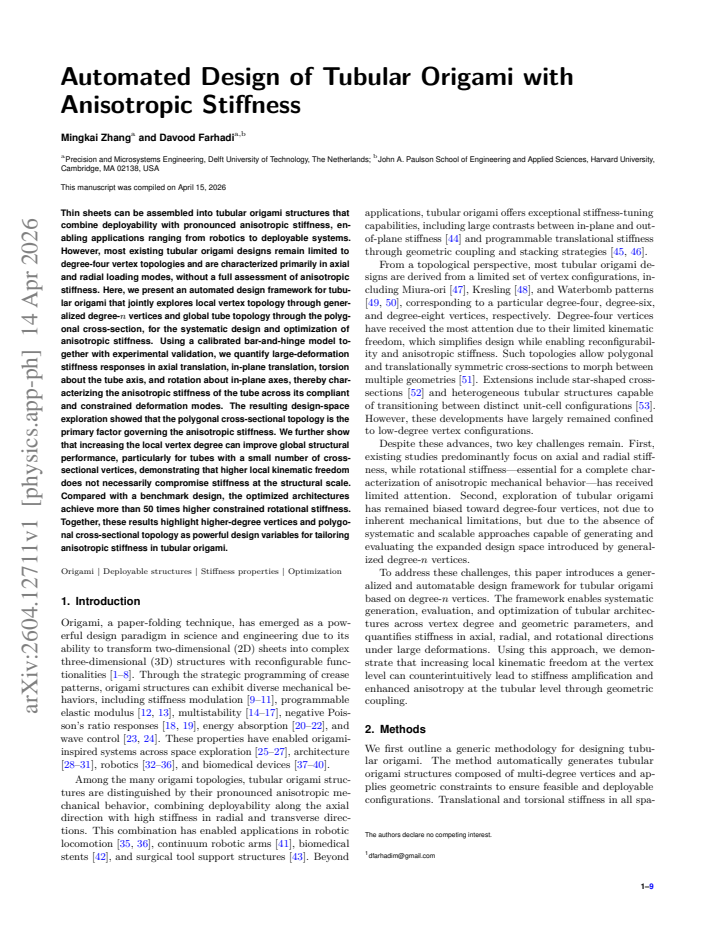

read the original abstract

Thin sheets can be assembled into tubular origami structures that combine deployability with pronounced anisotropic stiffness, enabling applications ranging from robotics to deployable systems. However, most existing tubular origami designs remain limited to degree-four vertex topologies and are characterized primarily in axial and radial loading modes, without a full assessment of anisotropic stiffness. Here, we present an automated design framework for tubular origami that jointly explores local vertex topology through generalized degree-$n$ vertices and global tube topology through the polygonal cross-section, for the systematic design and optimization of anisotropic stiffness. Using a calibrated bar-and-hinge model together with experimental validation, we quantify large-deformation stiffness responses in axial translation, in-plane translation, torsion about the tube axis, and rotation about in-plane axes, thereby characterizing the anisotropic stiffness of the tube across its compliant and constrained deformation modes. The resulting design-space exploration showed that the polygonal cross-sectional topology is the primary factor governing the anisotropic stiffness. We further show that increasing the local vertex degree can improve global structural performance, particularly for tubes with a small number of cross-sectional vertices, demonstrating that higher local kinematic freedom does not necessarily compromise stiffness at the structural scale. Compared with a benchmark design, the optimized architectures achieve more than 50 times higher constrained rotational stiffness. Together, these results highlight higher-degree vertices and polygonal cross-sectional topology as powerful design variables for tailoring anisotropic stiffness in tubular origami.
