Hyper Separation Logic (extended version)

Peter M\"uller, Thibault Dardinier, Trayan Gospodinov

Authors on Pith no claims yet

Pith reviewed 2026-05-10 13:39 UTC · model grok-4.3

classification 💻 cs.PL
keywords hyper separation logichyperpropertiesseparation logicquantifier alternationheap manipulationprogram verificationmodular reasoninggeneralized non-interference
0
0 comments X

The pith

Hyper Separation Logic is the first to support modular reasoning about hyperproperties with arbitrary quantifier alternation for heap-manipulating programs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Hyper Separation Logic to let programmers prove properties that relate several executions of a program, including cases where quantifiers alternate such as generalized non-interference. Prior separation logics could handle uniform quantifiers like non-interference or non-determinism but not mixed ones, while the one logic that supported alternation did not apply to programs that use heaps. The new logic adds a hyper separating conjunction that works on sets of states rather than single states, which produces a generalized frame rule that stays sound even when executions allocate and access memory. This matters for verifying security and correctness in ordinary imperative code that combines mutable state with multi-execution requirements.

Core claim

Hyper Separation Logic (HSL) generalizes Hyper Hoare Logic by introducing a hyper separating conjunction that lifts the standard separating conjunction to sets of states. This lifting yields a generalized frame rule that preserves soundness for hyperproperties with arbitrary quantifier alternation over programs that manipulate the heap. The paper proves HSL sound in Isabelle/HOL and shows that it can express hyperproperties beyond the reach of earlier separation logics.

What carries the argument

The hyper separating conjunction, which lifts the standard separating conjunction from single states to sets of states and thereby supports a sound generalized frame rule for hyperproperties.

If this is right

  • Allows modular proofs of generalized non-interference for imperative programs that allocate and access the heap.
  • Supports hyperproperties using any combination of universal and existential quantifiers over multiple executions.
  • Preserves the frame rule when reasoning about resources shared or separated across those executions.
  • Applies directly to common imperative languages with mutable memory.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same lifting technique could be tried on other resource logics that currently lack hyperproperty support.
  • It may enable embedding HSL rules into existing automated verifiers for languages with pointers.
  • Similar set-based extensions might help connect separation logic to model checkers that already handle hyperproperties.

Load-bearing premise

The hyper separating conjunction must be defined so that it correctly extends the standard one to sets of states without breaking the soundness of the generalized frame rule when programs modify the heap.

What would settle it

A concrete heap-manipulating program together with a hyperproperty that uses quantifier alternation for which HSL derives an incorrect judgment would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.12870 by Peter M\"uller, Thibault Dardinier, Trayan Gospodinov.

Figure 1
Figure 1. Figure 1: Local reasoning with hyper-triples. The proof contains two applications of our generalized frame rule, [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Illustrations of two applications of the hyper separating conjunction. Circular sectors denote the heap [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of the problem of non-local errors. [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Selected Rules of Hyper Separation Logic. [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Proof outline showing that the program in black violates GNI, where the high input is stored at location [PITH_FULL_IMAGE:figures/full_fig_p020_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Proof that the program in black satisfies GNI, with the (unaltered) [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Small-step semantics of program commands, where [PITH_FULL_IMAGE:figures/full_fig_p025_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Definition of modified variables (md) for program commands. [PITH_FULL_IMAGE:figures/full_fig_p026_8.png] view at source ↗

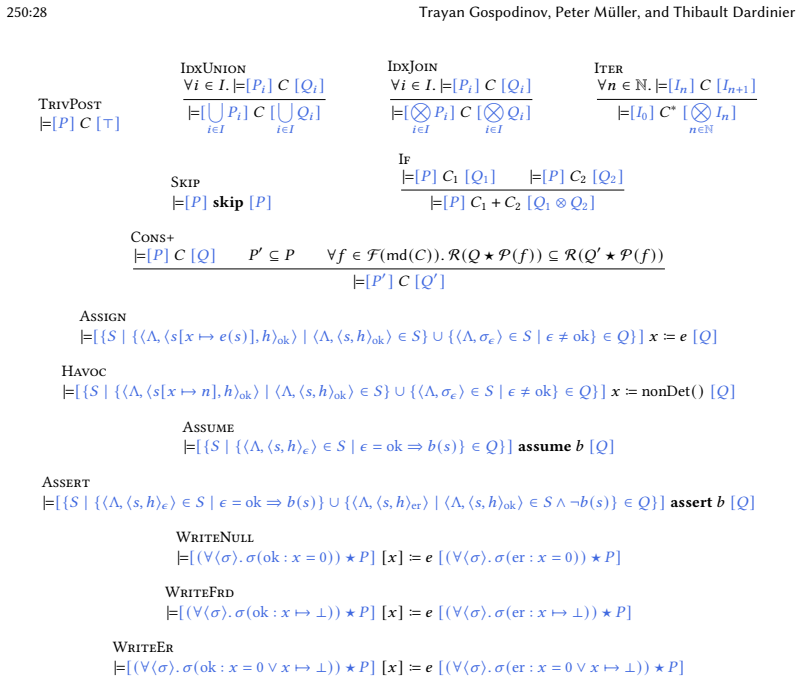

Figure 9
Figure 9. Figure 9: Additional rules of Hyper Separation Logic. [PITH_FULL_IMAGE:figures/full_fig_p028_9.png] view at source ↗

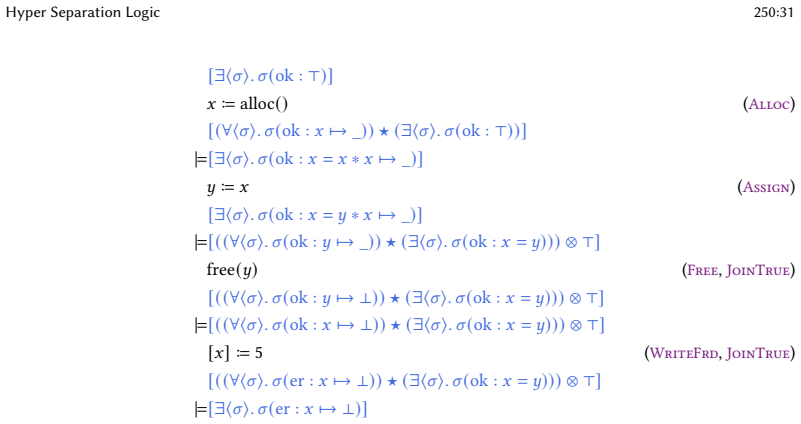

Figure 10
Figure 10. Figure 10: Proof that the program in black encounters an error caused by freeing aliased memory. [PITH_FULL_IMAGE:figures/full_fig_p031_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Proof that the program in black satisfies monotonicity. [PITH_FULL_IMAGE:figures/full_fig_p031_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Proof that the program in black satisfies non-interference. [PITH_FULL_IMAGE:figures/full_fig_p032_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Proof that the program in black exhibits non-determinism. [PITH_FULL_IMAGE:figures/full_fig_p032_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Proof that, when the program in black is executed from a non-empty [PITH_FULL_IMAGE:figures/full_fig_p033_14.png] view at source ↗
read the original abstract

Many important functional and security properties--including non-interference, determinism, and generalized non-interference (GNI)--are hyperproperties, i.e., properties relating multiple executions of a program. Existing separation logics allow one to reason about specific classes of hyperproperties, e.g., $\forall\forall$-hyperproperties such as non-interference and $\exists\exists$-properties such as non-determinism. However, they do not support quantifier alternation, which is for instance needed to express GNI. The only existing logic that can reason about such properties is Hyper Hoare Logic, but it does not support heap-manipulating programs and, thus, is not applicable to common imperative programs. This paper introduces Hyper Separation Logic (HSL), the first program logic that supports modular reasoning about hyperproperties with arbitrary quantifier alternation over programs that manipulate the heap. HSL generalizes Hyper Hoare Logic with a novel hyper separating conjunction that lifts the standard separating conjunction to sets of states, enabling a generalized frame rule for hyperproperties. We prove HSL sound in Isabelle/HOL and demonstrate its expressiveness for hyperproperties that lie beyond the reach of existing separation logics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper introduces Hyper Separation Logic (HSL), the first program logic supporting modular reasoning about hyperproperties with arbitrary quantifier alternation (e.g., generalized non-interference) over heap-manipulating programs. It generalizes Hyper Hoare Logic via a novel hyper separating conjunction that lifts the standard separating conjunction to sets of states, yielding a generalized frame rule. Soundness is established via a machine-checked proof in Isabelle/HOL, and expressiveness is demonstrated for hyperproperties beyond the reach of prior separation logics limited to ∀∀ or ∃∃ cases.

Significance. If the soundness result holds, the work is significant: it closes the gap between separation logics (which handle heaps but only specific hyperproperties) and Hyper Hoare Logic (which handles quantifier alternation but not heaps). The machine-checked Isabelle/HOL proof for the hyper separating conjunction and generalized frame rule is a clear strength, providing direct verification of the central lifting construction rather than an unverified claim. This enables modular verification of important security and functional hyperproperties in realistic imperative code with dynamic memory.

minor comments (3)
  1. [§3.1] §3.1, Definition 3.3: the inductive definition of the hyper separating conjunction would benefit from an immediate concrete example (e.g., two singleton state sets) to illustrate how heap disjointness is lifted to sets of states.
  2. [§4.2] §4.2, Theorem 4.1 (generalized frame rule): the proof sketch references the Isabelle lemma but does not list the exact lemma name or theory file; adding this would aid reproducibility.
  3. [Figure 2] Figure 2 (expressiveness example for GNI): the diagram omits explicit quantifier labels on the execution traces, making it harder to see the alternation at a glance.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary and significance assessment of Hyper Separation Logic, as well as the recommendation for minor revision. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity; machine-checked proof supplies independent support

full rationale

The paper defines a novel hyper separating conjunction that lifts standard separation to sets of states and proves a generalized frame rule sound for arbitrary quantifier alternation over heap programs. Soundness is established via a machine-checked Isabelle/HOL development supplied in the paper itself, satisfying the criterion for independent evidence. No step reduces by construction to a fitted parameter, self-definition, or load-bearing self-citation chain; the central claims remain externally falsifiable through the formalization rather than being renamed or presupposed inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The logic extends standard separation logic and Hyper Hoare Logic; the main addition is one new connective whose semantics and rules are defined and proven within the paper.

axioms (2)
  • domain assumption Standard separation logic axioms and rules for heap-manipulating programs
    HSL is presented as a generalization of existing separation logic.
  • domain assumption Semantics of hyperproperties and quantifier alternation over program executions
    Drawn from prior literature on hyperproperties and Hyper Hoare Logic.
invented entities (1)
  • hyper separating conjunction no independent evidence
    purpose: Lifts the standard separating conjunction to sets of states to enable modular reasoning about hyperproperties
    Newly introduced operator whose properties are defined and proven in the paper.
