arxiv: 2604.13340 · v1 · submitted 2026-04-14 · 💻 cs.CV · cs.GR

Recognition: unknown

MSGS: Multispectral 3D Gaussian Splatting

Alexander Doronin, Fang-Lue Zhang, Guojun Tang, Iris Zheng, Paul Teal

Authors on Pith no claims yet

Pith reviewed 2026-05-10 14:49 UTC · model grok-4.3

classification 💻 cs.CV cs.GR

keywords 3D Gaussian Splattingmultispectral renderingview synthesisspherical harmonicsspectral consistencytranslucent materialsreal-time rendering

0 comments

The pith

Multispectral 3D Gaussian Splatting augments each Gaussian with per-band spherical harmonics for wavelength-aware view synthesis that improves quality over RGB-only baselines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends 3D Gaussian Splatting to multispectral data by representing spectral radiance in each Gaussian through per-band spherical harmonics. Optimization uses a dual-loss scheme that combines RGB and multispectral signals, with spectral-to-RGB conversion applied at the pixel level to preserve richer cues. This produces higher image quality and spectral consistency than standard RGB 3DGS, especially on translucent materials and anisotropic reflections, while retaining the original method's compactness and real-time speed. A sympathetic reader would care because the work adds wavelength awareness to fast neural rendering without extra computational cost, creating a practical base for more accurate light and material modeling in view synthesis.

Core claim

We present MSGS, a multispectral extension to 3D Gaussian Splatting for wavelength-aware view synthesis. Each Gaussian is augmented with spectral radiance represented via per-band spherical harmonics and optimized under a dual-loss supervision scheme combining RGB and multispectral signals. To improve rendering fidelity, spectral-to-RGB conversion is performed at the pixel level, allowing richer spectral cues to be retained during optimization. The method is evaluated on both public and self-captured real-world datasets, demonstrating consistent improvements over the RGB-only 3DGS baseline in terms of image quality and spectral consistency. Notably, it excels in challenging scenes involving

What carries the argument

Per-band spherical harmonics for spectral radiance per Gaussian, combined with pixel-level spectral-to-RGB conversion and dual RGB-multispectral loss supervision.

If this is right

Consistent gains in image quality over RGB-only 3DGS on real-world datasets.
Better spectral consistency across rendered views.
Stronger performance on scenes with translucent materials and anisotropic reflections.
No loss of real-time efficiency or model compactness.
A starting point for later integration with physically based shading models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The method could support direct multispectral output instead of conversion, enabling applications like material classification from novel views.
Pairing it with multispectral capture hardware might improve 3D reconstruction accuracy in fields such as remote sensing or cultural heritage.
It opens a path to fewer color bleeding artifacts in view synthesis under spectrally complex lighting.
Extending the per-band harmonics to time-varying spectra could address dynamic lighting without retraining the full model.

Load-bearing premise

That performing spectral-to-RGB conversion at the pixel level during optimization will reliably retain richer spectral cues without introducing artifacts or requiring scene-specific tuning of the number of bands or harmonic degrees.

What would settle it

Rendering a scene with translucent materials where the multispectral method yields equal or higher spectral error metrics and visible artifacts compared to the RGB-only 3DGS baseline would disprove the claimed improvements.

Figures

Figures reproduced from arXiv: 2604.13340 by Alexander Doronin, Fang-Lue Zhang, Guojun Tang, Iris Zheng, Paul Teal.

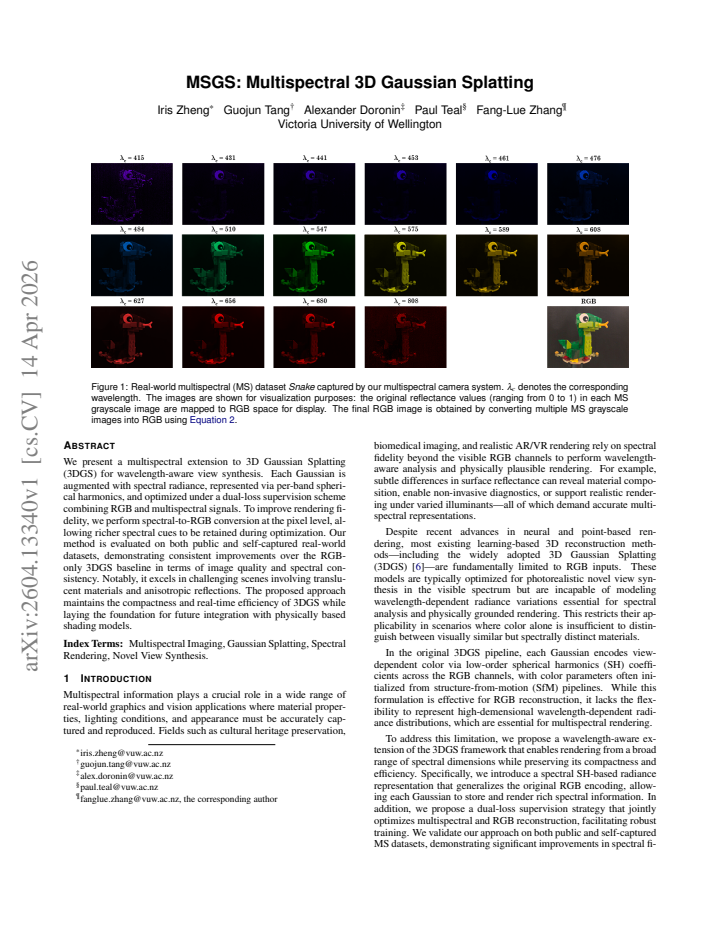

**Figure 1.** Figure 1: Real-world multispectral (MS) dataset Snake captured by our multispectral camera system. λc denotes the corresponding wavelength. The images are shown for visualization purposes: the original reflectance values (ranging from 0 to 1) in each MS grayscale image are mapped to RGB space for display. The final RGB image is obtained by converting multiple MS grayscale images into RGB using Equation 2. ABSTRACT W… view at source ↗

**Figure 2.** Figure 2: Overview of the proposed Multispectral Gaussian Splatting pipeline. Dual supervision from RGB and multispectral images guides SH [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: Qualitative Comparison. In the first row, our method better preserves high-frequency reflections compared to 3DGS. In the second row, [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

read the original abstract

We present a multispectral extension to 3D Gaussian Splatting (3DGS) for wavelength-aware view synthesis. Each Gaussian is augmented with spectral radiance, represented via per-band spherical harmonics, and optimized under a dual-loss supervision scheme combining RGB and multispectral signals. To improve rendering fidelity, we perform spectral-to-RGB conversion at the pixel level, allowing richer spectral cues to be retained during optimization. Our method is evaluated on both public and self-captured real-world datasets, demonstrating consistent improvements over the RGB-only 3DGS baseline in terms of image quality and spectral consistency. Notably, it excels in challenging scenes involving translucent materials and anisotropic reflections. The proposed approach maintains the compactness and real-time efficiency of 3DGS while laying the foundation for future integration with physically based shading models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

MSGS adds per-band spherical harmonics to 3D Gaussians with pixel-level spectral-to-RGB conversion, but the claimed spectral gains over RGB baseline rest on thin evidence and may not hold if the conversion collapses information.

read the letter

The main point on this paper is that it extends 3D Gaussian Splatting to multispectral data by attaching per-band spherical harmonics to each Gaussian and training under a dual loss that mixes RGB and spectral supervision, with the spectrum-to-RGB step done at the pixel level rather than earlier in the pipeline. This keeps the original real-time speed and compactness, which is a practical strength. They test on both public datasets and their own captures, reporting better image quality and spectral consistency than plain RGB 3DGS, especially in scenes with translucent materials and anisotropic reflections. The specific combination of per-band harmonics inside the Gaussians plus pixel-level conversion under dual supervision looks like the concrete new piece here, not just a rehash of prior multispectral rendering work. That setup is straightforward and honest about building directly on 3DGS. The paper does well at staying focused on efficiency and real data rather than chasing theoretical novelty. The soft spots are in the evaluation and the conversion step. The abstract gives no numbers, error bars, or ablation breakdowns, so the size of the improvement and whether baselines were matched fairly stay unclear. The stress-test concern is worth taking seriously: if the spectral-to-RGB conversion is a fixed linear map applied after the per-band harmonics, the extra spectral channels can get collapsed into a weighted RGB signal before the loss sees them, which would weaken any real advantage over the RGB-only baseline and might still need per-scene tuning for band count or harmonic degree. If the full paper shows solid quantitative gains with ablations that rule this out, the contribution strengthens. This is for people already using 3DGS who need to handle spectral information for better material rendering. A reader in real-time graphics would get usable implementation ideas and dataset results even if the gains turn out modest. It deserves peer review because the core method is clear and the claims are checkable with the right experiments.

Referee Report

3 major / 2 minor

Summary. The paper introduces MSGS, a multispectral extension of 3D Gaussian Splatting. Each Gaussian is augmented with per-band spherical harmonics to represent spectral radiance and is optimized using a dual-loss scheme that combines RGB and multispectral supervision. Spectral-to-RGB conversion is performed at the pixel level during optimization to retain richer spectral cues. The method is evaluated on public and self-captured real-world datasets, claiming consistent improvements over the RGB-only 3DGS baseline in image quality and spectral consistency, with particular advantages in scenes involving translucent materials and anisotropic reflections, while preserving the original method's compactness and real-time rendering speed.

Significance. If the empirical claims are substantiated with detailed quantitative results, this work could meaningfully extend efficient 3D scene representation techniques into the multispectral domain, supporting applications that require wavelength-aware rendering such as material analysis or remote sensing. The retention of 3DGS's real-time efficiency is a practical strength. However, the absence of a mathematical derivation means significance rests entirely on the robustness of the experimental validation.

major comments (3)

[Method (spectral-to-RGB conversion paragraph)] The central mechanism—pixel-level spectral-to-RGB conversion inside the dual-loss—is load-bearing for the claim of retaining richer spectral cues without collapse. The manuscript does not specify whether this conversion uses a fixed camera response matrix, a learned projection, or another form, nor does it demonstrate (via gradient analysis or ablation) that band-specific interactions survive to the loss rather than being reduced to a weighted RGB signal before supervision is applied.
[Experiments and Results] The evaluation section asserts 'consistent improvements' and 'excels in challenging scenes' but supplies no quantitative metrics (PSNR, SSIM, spectral error), error bars, ablation tables on the number of bands or harmonic degrees, or explicit description of how the RGB-only 3DGS baseline was matched in implementation and hyperparameters. This prevents verification that gains are not due to post-hoc tuning or unequal optimization budgets.
[Evaluation on challenging scenes] The claim that the approach handles translucent materials and anisotropic reflections better than RGB-only 3DGS lacks supporting analysis showing how per-band SH coefficients and the pixel-level conversion interact with these phenomena differently from standard view-dependent RGB modeling.

minor comments (2)

[Abstract] The abstract would be strengthened by including at least one key quantitative result (e.g., average PSNR gain) to ground the 'consistent improvements' statement.
[Method] Notation for the per-band spherical harmonics and the dual-loss weighting should be introduced with explicit equations for clarity.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough review and constructive suggestions. We have carefully considered each comment and will revise the manuscript accordingly to strengthen the presentation of our method and results.

read point-by-point responses

Referee: The central mechanism—pixel-level spectral-to-RGB conversion inside the dual-loss—is load-bearing for the claim of retaining richer spectral cues without collapse. The manuscript does not specify whether this conversion uses a fixed camera response matrix, a learned projection, or another form, nor does it demonstrate (via gradient analysis or ablation) that band-specific interactions survive to the loss rather than being reduced to a weighted RGB signal before supervision is applied.

Authors: We agree that further details on the spectral-to-RGB conversion are necessary to support our claims. In the revised manuscript, we will specify that the conversion employs a fixed camera response matrix derived from the CIE 1931 standard color matching functions, applied after per-pixel spectral rendering. To show that band-specific interactions are preserved, we will incorporate an ablation experiment contrasting the pixel-level conversion with a Gaussian-level RGB conversion, along with a discussion of how the conversion matrix allows gradients from the multispectral loss to influence individual band coefficients. This will clarify the mechanism by which richer spectral information is retained during optimization. revision: yes
Referee: The evaluation section asserts 'consistent improvements' and 'excels in challenging scenes' but supplies no quantitative metrics (PSNR, SSIM, spectral error), error bars, ablation tables on the number of bands or harmonic degrees, or explicit description of how the RGB-only 3DGS baseline was matched in implementation and hyperparameters. This prevents verification that gains are not due to post-hoc tuning or unequal optimization budgets.

Authors: We recognize the importance of comprehensive quantitative validation. We will update the experiments section to include detailed metrics such as PSNR, SSIM, and spectral-specific errors (e.g., root mean square error across bands and spectral angle mapper). Error bars from repeated experiments with different initializations will be added. Additionally, we will provide ablation studies on the number of spectral bands and the degree of spherical harmonics used, as well as a clear description of the baseline setup, ensuring the RGB-only 3DGS uses the same code base, hyperparameters, and training protocol for equitable comparison. These revisions will enable independent verification of the improvements. revision: yes
Referee: The claim that the approach handles translucent materials and anisotropic reflections better than RGB-only 3DGS lacks supporting analysis showing how per-band SH coefficients and the pixel-level conversion interact with these phenomena differently from standard view-dependent RGB modeling.

Authors: We concur that additional analysis is warranted for the claims regarding challenging scenes. In the revised paper, we will introduce a dedicated analysis section that examines the behavior on translucent materials and anisotropic reflections. This will feature per-band SH visualizations, pixel-wise spectral comparisons, and explanations of how the independent per-wavelength modeling combined with pixel-level conversion enables better capture of wavelength-dependent effects, such as varying transmittance in translucency or directionally varying reflectance spectra, which are averaged out in standard RGB SH. Quantitative spectral consistency metrics for these scenes will also be reported to differentiate from the baseline. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical extension with independent evaluation

full rationale

The paper describes an empirical augmentation of 3DGS with per-band spherical harmonics and a dual RGB+multispectral loss that includes pixel-level spectral-to-RGB conversion. No derivation chain, first-principles result, or uniqueness theorem is presented that reduces by construction to fitted inputs or prior self-citations. Performance claims rest on dataset comparisons against the RGB-only baseline rather than on any quantity that is statistically forced by the optimization setup itself. The method is therefore self-contained against external benchmarks and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the unstated assumption that multispectral signals can be represented compactly by independent per-band spherical harmonics and that dual-loss supervision plus post-hoc RGB conversion will not degrade optimization stability. No explicit free parameters, axioms, or invented entities are declared in the abstract.

pith-pipeline@v0.9.0 · 5440 in / 1163 out tokens · 33633 ms · 2026-05-10T14:49:50.704636+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

18 extracted references · 13 canonical work pages

[1]

S1-EVK2b Evaluation Kit. 4
[2]

Deering, S

M. Deering, S. Winner, B. Schediwy, C. Duffy, and N. Hunt. The tri- angle processor and normal vector shader: a VLSI system for high per- formance graphics.ACM SIGGRAPH Computer Graphics, 22(4):21– 30, Aug. 1988. Publisher: Association for Computing Machinery (ACM). doi: 10.1145/378456.378468 3

work page doi:10.1145/378456.378468 1988
[3]

Devlin, A

K. Devlin, A. Chalmers, A. Wilkie, and W. Purgathofer. Tone Repro- duction and Physically Based Spectral Rendering. 2002. Publisher: Eurographics Association. 3

2002
[4]

H. Guo, H. Liu, J. Wen, and J. Li. Cross-Spectral Gaussian Splatting with Spatial Occupancy Consistency. 2, 4
[5]

In: 2024 IEEE/CVF Conference on Computer Vision and Pat- tern Recognition (CVPR)

Y . Jiang, J. Tu, Y . Liu, X. Gao, X. Long, W. Wang, and Y . Ma. Gaus- sianShader: 3D Gaussian Splatting with Shading Functions for Re- flective Surfaces. In2024 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), pp. 5322–5332, Nov. 2023. ISSN: 2575-7075. doi: 10.1109/CVPR52733.2024.00509 2, 3, 4

work page doi:10.1109/cvpr52733.2024.00509 2023
[6]

Kerbl, G

B. Kerbl, G. Kopanas, T. Leimkuehler, and G. Drettakis. 3D Gaussian Splatting for Real-Time Radiance Field Rendering.ACM transactions on graphics, 42(4):1–14, 2023. Place: New York, NY , USA Publisher: ACM. doi: 10.1145/3592433 1, 2, 3, 4

work page doi:10.1145/3592433 2023
[7]

R. Li, J. Liu, G. Liu, S. Zhang, B. Zeng, and S. Liu. Spectral- NeRF: Physically Based Spectral Rendering with Neural Radiance Field.Proceedings of the AAAI Conference on Artificial Intelligence, 38(4):3154–3162, Mar. 2024. Number: 4. doi: 10.1609/aaai.v38i4. 28099 2, 4

work page doi:10.1609/aaai.v38i4 2024
[8]

Mildenhall, P

B. Mildenhall, P. P. Srinivasan, M. Tancik, J. T. Barron, R. Ramamoor- thi, and R. Ng. NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis. In A. Vedaldi, H. Bischof, T. Brox, and J.-M. Frahm, eds.,Computer Vision – ECCV 2020, pp. 405–421. Springer International Publishing, Cham, 2020. doi: 10.1007/978-3-030-58452 -8 24 2

work page doi:10.1007/978-3-030-58452 2020
[9]

Poggi, P

M. Poggi, P. Z. Ramirez, F. Tosi, S. Salti, S. Mattoccia, and L. D. Stefano. Cross-Spectral Neural Radiance Fields. pp. 606–616. IEEE Computer Society, Sept. 2022. doi: 10.1109/3DV57658.2022.00071 2, 4

work page doi:10.1109/3dv57658.2022.00071 2022
[10]

Ramamoorthi and P

R. Ramamoorthi and P. Hanrahan. An Efficient Representation for Ir- radiance Environment Maps. InProceedings of the 28th annual con- ference on Computer graphics and interactive techniques, pp. 497–
[11]

ACM, Aug. 2001. doi: 10.1145/383259.383317 2, 4

work page doi:10.1145/383259.383317 2001
[12]

J. L. Sch ¨onberger and J.-M. Frahm. Structure-from-Motion Revisited. pp. 4104–4113. IEEE, 2016. Book Title: 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR) ISSN: 1063-6919. doi: 10.1109/CVPR.2016.445 2

work page doi:10.1109/cvpr.2016.445 2016
[13]

S. N. Sinha, H. Graf, and M. Weinmann. SpectralGaussians: Seman- tic, spectral 3D Gaussian splatting for multi-spectral scene represen- tation, visualization and analysis, Aug. 2024. arXiv:2408.06975. doi: 10.48550/arXiv.2408.06975 2, 4

work page doi:10.48550/arxiv.2408.06975 2024
[14]

Sloan, J

P.-P. Sloan, J. Kautz, and J. Snyder. Precomputed Radiance Transfer for Real-Time Rendering in Dynamic, Low-Frequency Lighting En- vironments.ACM Trans. Graph., 21(3):527–536, July 2002. doi: 10. 1145/566654.566612 2, 4

work page arXiv 2002
[15]

Wyszecki and W

G. Wyszecki and W. S. Stiles.Color Science: Concepts and Methods, Quantitative Data and Formulae. John Wiley & Sons, Aug. 2000. Google-Books-ID: dOKdEAAAQBAJ. 2, 3

2000
[16]

URLhttps://dl.acm.org/doi/10.1145/ 2508363.2508386

K. Xu, W.-L. Sun, Z. Dong, D.-Y . Zhao, R.-D. Wu, and S.-M. Hu. Anisotropic Spherical Gaussians.ACM Trans. Graph., 32(6):209:1– 209:11, Nov. 2013. doi: 10.1145/2508363.2508386 4

work page doi:10.1145/2508363.2508386 2013
[17]

K. Ye, Q. Hou, and K. Zhou. 3D Gaussian Splatting with Deferred Re- flection. InSpecial Interest Group on Computer Graphics and Interac- tive Techniques Conference Conference Papers ’24, pp. 1–10. ACM, Denver CO USA, July 2024. doi: 10.1145/3641519.3657456 3

work page doi:10.1145/3641519.3657456 2024
[18]

M. Ye, M. Danelljan, F. Yu, and L. Ke. Gaussian Grouping: Segment and Edit Anything in 3D Scenes. InComputer Vision – ECCV 2024: 18th European Conference, Milan, Italy, September 29–October 4, 2024, Proceedings, Part XXIX, pp. 162–179. Springer-Verlag, Berlin, Heidelberg, Dec. 2023. doi: 10.1007/978-3-031-73397-0 10 2

work page doi:10.1007/978-3-031-73397-0 2024
