arxiv: 2604.13497 · v1 · submitted 2026-04-15 · ⚛️ physics.app-ph · cond-mat.mtrl-sci

Recognition: unknown

Confinement-controlled pathways to complex skyrmionic textures in Co/W/Pt multilayers

Y. Al Sadi , R. Sbiaa , W. Al Saidi , M. Souier , G. Lezier , O. Marbouh , M.T.Z. Myint , Y. Dusch

show 4 more authors

S. Al Harthi A. Talbi N. Tiercelin S. N. Piramanayagam

Authors on Pith no claims yet

Pith reviewed 2026-05-10 12:25 UTC · model grok-4.3

classification ⚛️ physics.app-ph cond-mat.mtrl-sci

keywords skyrmionsgeometric confinementmultilayer filmsspin texturesroom temperature magnetismskyrmion bagsmicromagnetic simulationstopological spin textures

0 comments

The pith

Geometric confinement in Pt/Co/W micro-tracks drives skyrmions into skyrmioniums then skyrmion bags as the dominant state.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that narrowing the width of multilayer tracks causes magnetic spin textures to follow a fixed sequence: labyrinth domains break into isolated skyrmions, skyrmion pairs disappear, skyrmioniums form by recombination, and skyrmion bags take over in the narrowest tracks. This pathway occurs at room temperature and is controlled solely by the track geometry rather than material changes or external fields. A reader would care because the result points to a simple fabrication knob for creating multi-state spin textures that could store more information per device than single skyrmions alone. Experiments combined with simulations map how topological charge populations shift with confinement strength.

Core claim

In Pt/Co/W multilayer micro-tracks, increasing geometric confinement fragments extended labyrinth domains into isolated skyrmions, suppresses skyrmion pairs, enhances skyrmionium formation via recombination, and drives evolution into uniform skyrmion bags, which become the dominant state in the narrowest tracks. This establishes geometric confinement as a deterministic selector of complex topological textures at room temperature and supplies a scalable route to higher-order skyrmionic states.

What carries the argument

Geometric confinement in micro-tracks, which progressively fragments domains, suppresses pairs, and favors recombination into skyrmioniums and bags.

If this is right

Skyrmion bags become the preferred state once track width drops below a threshold set by the material parameters.
Skyrmionium formation is promoted specifically by the recombination process under stronger confinement.
Topological population statistics shift systematically with track width, enabling multistate encoding.
The same geometric control works across different track lengths and supports room-temperature operation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Varying track width along a single device could create adjacent regions hosting different texture types without additional lithography steps.
The observed hierarchy suggests that further reduction in track width might stabilize even higher-order textures beyond bags.
This geometric route could complement field or current control methods in future spintronic circuits.

Load-bearing premise

The imaged spin configurations are correctly identified as skyrmioniums and skyrmion bags rather than other possible textures, and the micromagnetic simulations reproduce the experiments without hidden parameter adjustments.

What would settle it

High-resolution imaging or simulations of the narrowest tracks showing no dominance of skyrmion bags or misidentified textures would disprove the claimed transformation pathway.

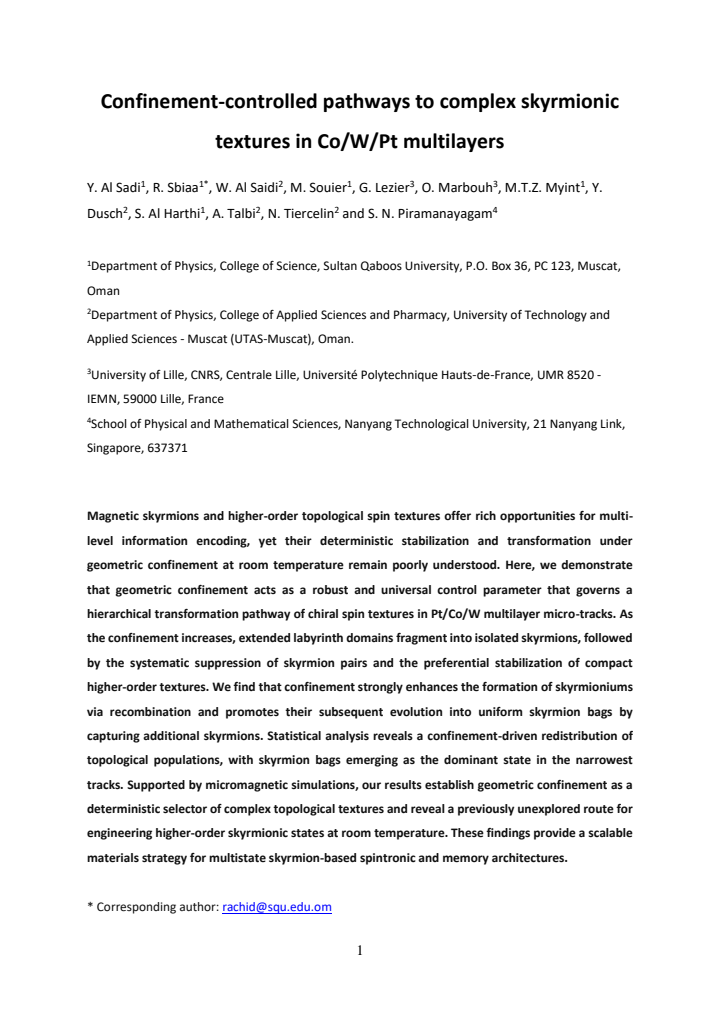

read the original abstract

Magnetic skyrmions and higher-order topological spin textures offer rich opportunities for multi-level information encoding, yet their deterministic stabilization and transformation under geometric confinement at room temperature remain poorly understood. Here, we demonstrate that geometric confinement acts as a robust and universal control parameter that governs a hierarchical transformation pathway of chiral spin textures in Pt/Co/W multilayer micro-tracks. As the confinement increases, extended labyrinth domains fragment into isolated skyrmions, followed by the systematic suppression of skyrmion pairs and the preferential stabilization of compact higher-order textures. We find that confinement strongly enhances the formation of skyrmioniums via recombination and promotes their subsequent evolution into uniform skyrmion bags by capturing additional skyrmions. Statistical analysis reveals a confinement-driven redistribution of topological populations, with skyrmion bags emerging as the dominant state in the narrowest tracks. Supported by micromagnetic simulations, our results establish geometric confinement as a deterministic selector of complex topological textures and reveal a previously unexplored route for engineering higher-order skyrmionic states at room temperature. These findings provide a scalable materials strategy for multistate skyrmion-based spintronic and memory architectures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Confinement in Co/W/Pt micro-tracks drives a reproducible sequence from labyrinths to skyrmion bags, backed by imaging and simulations.

read the letter

The main takeaway is that narrowing the tracks in these Pt/Co/W multilayers reliably shifts the spin textures: labyrinth domains fragment into isolated skyrmions, pairs are suppressed, skyrmioniums appear through recombination, and skyrmion bags become dominant in the narrowest structures at room temperature. The authors document this with population statistics from imaging and micromagnetic simulations that track the same trend. This gives a simple geometric way to select higher-order textures without altering temperature or material stack. What the paper does well is lay out the experimental progression clearly and use simulations to suggest the underlying capture and recombination steps. The claim that confinement acts as a deterministic selector holds up in the reported observations. The soft spots are limited. Texture identification for skyrmioniums and bags depends on the imaging resolution and simulation match, so explicit classification rules and any uncertainty in the counts would help. Simulation parameters also need checking to confirm they were not tuned after seeing the data. No circularity or internal contradiction appears in the central argument. This work is for spintronics groups focused on room-temperature skyrmion devices and multi-state encoding. Readers looking for practical control knobs will get value from the geometric approach. It deserves peer review so the methods, statistics, and simulation details can be examined closely.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that geometric confinement in Pt/Co/W multilayer micro-tracks acts as a universal control parameter driving a hierarchical pathway of chiral spin textures: labyrinth domains fragment into isolated skyrmions, skyrmion pairs are suppressed, skyrmioniums form via recombination, and skyrmion bags become the dominant state in the narrowest tracks. This is supported by room-temperature experimental imaging, statistical analysis of topological populations, and micromagnetic simulations.

Significance. If the texture identifications prove unambiguous and the simulations are shown to be predictive rather than post-hoc fitted, the work would establish confinement as a deterministic, scalable route to stabilize higher-order skyrmionic states at room temperature. This could enable multi-level encoding schemes in spintronic devices and offers a materials strategy beyond conventional field or current control.

major comments (2)

[Results (statistical analysis subsection)] The statistical analysis of population redistribution (central to the claim that skyrmion bags dominate in narrow tracks) provides no error bars, no sample size (number of tracks or images), and no explicit identification criteria or markers used to distinguish skyrmion bags from other compact textures or artifacts. This directly affects the robustness of the hierarchical pathway conclusion.
[Methods and Simulations] Micromagnetic simulations are invoked to support the observed evolution, yet no information is given on whether parameters (e.g., DMI strength, anisotropy, or exchange) were independently measured or fitted to the same datasets used for the population statistics. Without this, the risk of circularity in reproducing the confinement-driven dominance of bags cannot be assessed.

minor comments (2)

[Abstract] The abstract states 'statistical analysis reveals...' but does not quantify the confinement widths or the number of observed textures; adding these numbers would strengthen the presentation.
[Figure captions] Figure captions and main text should explicitly state the imaging technique (e.g., MFM, STXM) and any post-processing applied to the spin textures.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments that help strengthen the robustness of our claims. We address each major point below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [Results (statistical analysis subsection)] The statistical analysis of population redistribution (central to the claim that skyrmion bags dominate in narrow tracks) provides no error bars, no sample size (number of tracks or images), and no explicit identification criteria or markers used to distinguish skyrmion bags from other compact textures or artifacts. This directly affects the robustness of the hierarchical pathway conclusion.

Authors: We agree that these details are necessary to substantiate the statistical claims. In the revised manuscript we will add error bars to all population histograms, report the total number of tracks and images analyzed (typically >40 tracks per width, acquired over multiple samples), and provide explicit identification criteria: skyrmion bags are distinguished by their larger effective diameter, composite contrast in MFM images, and topological charge Q = -2 or lower, cross-validated against simulated stray-field maps. These additions will directly support the reported dominance of bags under strong confinement. revision: yes
Referee: [Methods and Simulations] Micromagnetic simulations are invoked to support the observed evolution, yet no information is given on whether parameters (e.g., DMI strength, anisotropy, or exchange) were independently measured or fitted to the same datasets used for the population statistics. Without this, the risk of circularity in reproducing the confinement-driven dominance of bags cannot be assessed.

Authors: We appreciate this concern about potential circularity. The micromagnetic parameters (Ms, Ku, Aex, D) were taken from independent literature values for Pt/Co/W multilayers and calibrated against separate experimental measurements of domain periodicity and skyrmion size in unpatterned films, not from the confined-track population data. In the revision we will explicitly document the parameter sources, the calibration procedure on wide-track data, and confirm that the narrow-track simulations are predictive rather than fitted to the statistics in question. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's argument rests on experimental imaging of spin textures in Co/W/Pt micro-tracks under varying geometric confinement, combined with micromagnetic simulations to interpret the observed hierarchical pathway from labyrinth domains to skyrmions, skyrmioniums, and skyrmion bags. No equations, parameter-fitting procedures, or self-citations are shown in the provided text that would reduce any claimed prediction or result to an input by construction. The central claim of confinement as a control parameter emerges from direct observation and simulation comparison rather than from any self-definitional loop, fitted-input renaming, or imported uniqueness theorem. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. The claim implicitly assumes standard micromagnetic energy terms (exchange, Dzyaloshinskii-Moriya, anisotropy, demagnetization) and that the observed contrast in magnetic imaging corresponds to the claimed topological charges.

pith-pipeline@v0.9.0 · 5562 in / 1289 out tokens · 28738 ms · 2026-05-10T12:25:15.112897+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

38 extracted references · 2 canonical work pages

[1]

Yu, X. Z. et al. Real-space observation of a two-dimensional skyrmion crystal. Nature 465, 901–904 (2010)

2010
[2]

Legrand, W. et al. Room-Temperature Current-Induced Generation and Motion of sub- 100 nm Skyrmions. Nano Lett. 17, 2703–2712 (2017)

2017
[3]

P., Ma, F

Chui, C. P., Ma, F. & Zhou, Y. Geometrical and physical conditions for skyrmion stability in a nanowire. AIP Adv. 5, 047141 (2015)

2015
[4]

Zhang, X. et al. Skyrmion-skyrmion and skyrmion-edge repulsions in skyrmion-based racetrack memory. Sci. Rep. 5, 7643 (2015)

2015
[5]

& You, L

Luo, S. & You, L. Skyrmion devices for memory and logic applications. APL Mater. 9, 050901 (2021)

2021
[6]

Song, K. M. et al. Skyrmion-based artificial synapses for neuromorphic computing. Nat. Electron. 148–155 (2020) doi:10.1038/s41928-020-0385-0

work page doi:10.1038/s41928-020-0385-0 2020
[7]

Mühlbauer, S. et al. Skyrmion Lattice in a Chiral Magnet. Science (80-. ). 323, 915– 919 (2009)

2009
[8]

Tejo, F., Riveros, A., Escrig, J., Guslienko, K. Y. & Chubykalo-Fesenko, O. Distinct magnetic field dependence of Néel skyrmion sizes in ultrathin nanodots. Sci. Rep. 8, 10 1–10 (2018)

2018
[9]

Je, S. G. et al. Creation of Magnetic Skyrmion Bubble Lattices by Ultrafast Laser in Ultrathin Films. Nano Lett. 18, 7362–7371 (2018)

2018
[10]

Zhang, X. et al. Control and manipulation of a magnetic skyrmionium in nanostructures. Phys. Rev. B 94, 094420 (2016)

2016
[11]

Foster, D. et al. Two-dimensional skyrmion bags in liquid crystals and ferromagnets. Nat. Phys. 15, 655–659 (2019)

2019
[12]

Tang, J. et al. Magnetic skyrmion bundles and their current-driven dynamics. Nat. Nanotechnol. 16, 1086–1091 (2021)

2021
[13]

Seng, B. et al. Direct Imaging of Chiral Domain Walls and Néel‐Type Skyrmionium in Ferrimagnetic Alloys. Adv. Funct. Mater. 31, 2102307 (2021)

2021
[14]

& Leonov, A

Nakamura, K. & Leonov, A. O. Communicating skyrmions as the main mechanism underlying skyrmionium (meta)stability in quasi-two-dimensional chiral magnets. 1– 11 (2024)

2024
[15]

& Mochizuki, M

Jiang, A., Zhou, Y., Zhang, X. & Mochizuki, M. Transformation of a skyrmionium to a skyrmion through the thermal annihilation of the inner skyrmion. Phys. Rev. Res. 6, 013229 (2024)

2024
[16]

Kern, L. M. et al. Controlled Formation of Skyrmion Bags. Adv. Mater. 37, 1–12 (2025)

2025
[17]

Finazzi, M. et al. Laser-induced magnetic nanostructures with tunable topological properties. Phys. Rev. Lett. 110, 177205 (2013)

2013
[18]

& Kondo, K

Ishida, Y. & Kondo, K. Theoretical comparison between skyrmion and skyrmionium motions for spintronics applications. Jpn. J. Appl. Phys. 59, SGGI04 (2020)

2020
[19]

Zheng, F. et al. Skyrmion–antiskyrmion pair creation and annihilation in a cubic chiral magnet. Nat. Phys. 18, 863–868 (2022)

2022
[20]

Powalla, L. et al. Skyrmion and skyrmionium formation in the two-dimensional magnet Cr2Ge2Te6. Phys. Rev. B 108, 214417 (2023)

2023
[21]

Bo, L. et al. Controllable creation of skyrmion bags in a ferromagnetic nanodisk. Phys. Rev. B 107, 224431 (2023)

2023
[22]

Braun, H. B. Topological effects in nanomagnetism: From superparamagnetism to chiral quantum solitons. Adv. Phys. 61, 1–116 (2012)

2012
[23]

& Wiesendanger, R

Romming, N., Kubetzka, A., Hanneken, C., von Bergmann, K. & Wiesendanger, R. Field-Dependent Size and Shape of Single Magnetic Skyrmions. Phys. Rev. Lett. 114, 177203 (2015). 11

2015
[24]

Yang, S. et al. Magnetic Field Magnitudes Needed for Skyrmion Generation in a General Perpendicularly Magnetized Film. Nano Lett. 22, 8430–8436 (2022)

2022
[25]

Jiang, W. et al. Blowing magnetic skyrmion bubbles. Science (80-. ). 349, 283–286 (2015)

2015
[26]

Jin, C. et al. Control of morphology and formation of highly geometrically confined magnetic skyrmions. Nat. Commun. 8, 1–9 (2017)

2017
[27]

Hou, Z. et al. Manipulating the Topology of Nanoscale Skyrmion Bubbles by Spatially Geometric Confinement. ACS Nano 13, 922–929 (2019)

2019
[28]

Twitchett-Harrison, A. C. et al. Confinement of Skyrmions in Nanoscale FeGe Device-like Structures. ACS Appl. Electron. Mater. 4, 4427–4437 (2022)

2022
[29]

R., Hu, X

Wang, X. R., Hu, X. C. & Sun, Z. Z. Topological Equivalence of Stripy States and Skyrmion Crystals. Nano Lett. 23, 3954–3962 (2023)

2023
[30]

Casiraghi, A. et al. Individual skyrmion manipulation by local magnetic field gradients. Commun. Phys. 2, 145 (2019)

2019
[31]

Díaz, S. A. & Arovas, D. P. Quantum Nucleation of Skyrmions in Magnetic Films by Inhomogeneous Fields. in Memorial Volume for Shoucheng Zhang 19–33 (WORLD SCIENTIFIC, 2021). doi:10.1142/9789811231711_0004

work page doi:10.1142/9789811231711_0004 2021
[32]

Zelent, M. et al. Skyrmion Formation in Nanodisks Using Magnetic Force Microscopy Tip. Nanomaterials 11, 2627 (2021)

2021
[33]

Ognev, A. V. et al. Magnetic direct-write skyrmion nanolithography. ACS Nano 14, 14960–14970 (2020)

2020
[34]

Giessibl, F. J. Advances in atomic force microscopy. Rev. Mod. Phys. 75, 949–983 (2003)

2003
[35]

Jiang, W. et al. Skyrmions in magnetic multilayers. Phys. Rep. 704, 1–49 (2017)

2017
[36]

Jena, S. K. et al. Interfacial Dzyaloshinskii–Moriya interaction in the epitaxial W/Co/Pt multilayers. Nanoscale 13, 7685–7693 (2021)

2021
[37]

Lone, A. H. et al. Multilayer ferromagnetic spintronic devices for neuromorphic computing applications. Nanoscale 16, 12431–12444 (2024)

2024
[38]

Vansteenkiste, A. et al. The design and verification of MuMax3. AIP Adv. 4, 107133 (2014). 12 FIG. 1  Device structure and magnetic characterization of the (Pt/Co/W) multilayer system. (a) Schematic of the (Pt/Co/W)×10 multilayer deposited on a SiO₂ substrate. The asymmetric stacking and multilayer repetitions enhance the Dzyaloshinskii –Moriya interacti...

2014
