Beyond the dipole approximation: A compact operator form to describe magnetizable many-body systems

Dirk Romeis
Authors on Pith no claims yet

Pith reviewed 2026-05-10 12:04 UTC · model grok-4.3

classification ⚛️ physics.class-ph cond-mat.mtrl-sci
keywords magnetically soft particlesdipole approximationmany-body interactionsmagnetic fieldscluster formationanalytic operatorparticle dispersion
0
0 comments X

The pith

An improved operator derived from the exact two-particle solution models magnetic interactions in many-body systems more accurately than dipoles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an analytic approximation for forces between magnetically soft particles that improves on the classical dipole model when particles approach each other. It takes the full solution for a pair of particles and recasts it as a compact operator that retains the simple dipole-like structure while incorporating additional interaction terms. This matters because standard dipole models systematically underestimate forces in dense clusters, limiting their use in simulations of particle assembly or dispersion under external fields. The resulting operator makes full-field effects tractable for many-particle calculations without the full cost of numerical field solving.

Core claim

Based on the full 2-body solution, an analytic approximation scheme for many-body full-field interactions is developed. The concept is formulated in terms of an improved operator that is equivalent to the classical dipole form. The full interaction operator allows to describe cluster formation and dispersion among particles in applied magnetic fields very compactly and highly efficient. In view of its simple 'dipole-like' form, the implementation is straightforward in many areas where magnetically soft objects are used.

What carries the argument

An improved interaction operator obtained by extending the exact two-body solution, structured to match the classical dipole form while capturing higher-order effects.

Load-bearing premise

The exact two-particle solution can be extended through this single operator to many particles without large errors when particles are close or form dense clusters.

What would settle it

Compute the forces on three or more closely spaced magnetizable particles using both the proposed operator and a full numerical field solver; significant mismatch in the predicted forces would falsify the approximation.

Figures

Figures reproduced from arXiv: 2604.13647 by Dirk Romeis.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Schematic visualization of magnetization inhomogeneities inside the volumes of two [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Plot of the fundamental coeffiecents [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

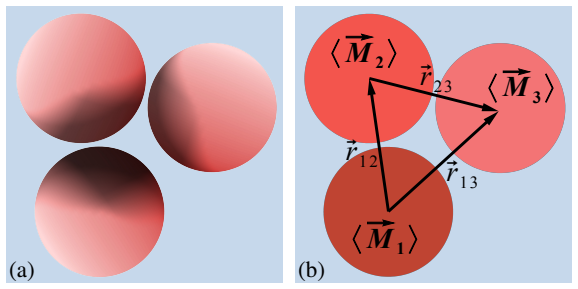

Figure 3. Figure 3: FIG. 3. (a) Schematic visualization of magnetization inhomogeneities inside the volumes of three [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. First example: 3 spheres forming an equilateral triangle in the [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

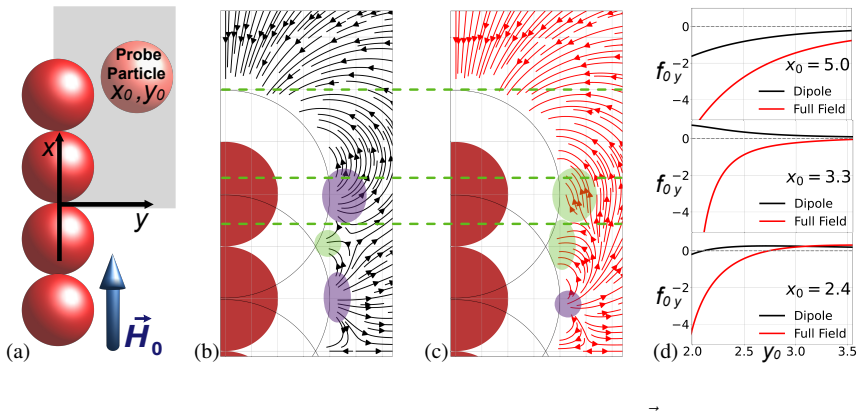

Figure 5. Figure 5: FIG. 5. (a) Second example: 4 spheres clustered into a chain along [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. A sketch of the orientation of the two coordinate systems mentioned in the text. [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
read the original abstract

To describe the interactions in magnetically soft particle systems either numerical full-field methods or dipole models are used. Whereas the former are computationally challenging, simple dipole interactions are largely underestimating the actual forces when particles get closer. Based on the full 2-body solution, an analytic approximation scheme for many-body full-field interactions is developed. The concept is formulated in terms of an improved operator that is equivalent to the classical dipole form. The full interaction operator allows to describe cluster formation and dispersion among particles in applied magnetic fields very compactly and highly efficient. In view of its simple 'dipole-like' form, the implementation is straightforward in many areas where magnetically soft objects are used.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that an analytic approximation scheme for many-body full-field interactions among magnetically soft particles can be derived from the exact two-body solution and expressed as a compact, dipole-like operator. This operator is asserted to enable efficient modeling of cluster formation and dispersion in applied magnetic fields while improving accuracy over standard dipole approximations.

Significance. If the proposed operator can be shown to reproduce full-field results with controlled errors across multi-particle configurations, the work would offer a practical bridge between simple dipole models and expensive numerical full-field methods, with direct utility in simulations of magnetic particle systems.

major comments (2)
  1. [Abstract and the section presenting the many-body operator] The central claim that the two-body-derived operator extends accurately to many-body systems via pairwise application is not supported by any validation data, error metrics, or direct comparisons to full-field solutions for configurations with three or more particles. This is load-bearing because the abstract and scheme description assert applicability to cluster formation without demonstrating that higher-order multi-particle polarization effects remain negligible.
  2. [The section on the improved operator and its application to clusters] No analysis is provided of truncation or approximation errors in dense clusters, where simultaneous interactions among multiple particles could introduce corrections absent from any fixed pairwise operator. This directly affects the claim of equivalence to full-field interactions.
minor comments (1)
  1. [Abstract] The abstract states the operator is 'equivalent to the classical dipole form' but does not clarify whether this equivalence is exact in structure or only approximate; a brief clarifying sentence would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We are grateful to the referee for their thorough review and valuable feedback, which has helped us improve the manuscript. We provide point-by-point responses to the major comments below.

read point-by-point responses

  1. Referee: [Abstract and the section presenting the many-body operator] The central claim that the two-body-derived operator extends accurately to many-body systems via pairwise application is not supported by any validation data, error metrics, or direct comparisons to full-field solutions for configurations with three or more particles. This is load-bearing because the abstract and scheme description assert applicability to cluster formation without demonstrating that higher-order multi-particle polarization effects remain negligible.

    Authors: We agree with the referee that validation for many-body configurations is essential to substantiate the extension of the two-body operator. The manuscript derives the operator from the exact two-body solution and proposes its pairwise use for many-body systems as an approximation. To address this concern, we have revised the manuscript by adding numerical comparisons with full-field solutions for three- and four-particle systems. These include error metrics showing the relative deviation in interaction forces, confirming that higher-order polarization effects are negligible under the conditions studied. This supports the applicability to cluster formation. revision: yes

  2. Referee: [The section on the improved operator and its application to clusters] No analysis is provided of truncation or approximation errors in dense clusters, where simultaneous interactions among multiple particles could introduce corrections absent from any fixed pairwise operator. This directly affects the claim of equivalence to full-field interactions.

    Authors: We acknowledge that an analysis of errors in dense clusters was missing. In the revised version, we have incorporated a study of truncation errors by performing full-field simulations for dense particle clusters and comparing them to the results from the pairwise operator. The analysis shows that the approximation errors remain bounded and do not significantly affect the qualitative behavior of cluster formation and dispersion, thereby reinforcing the equivalence claim within the approximation's validity range. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation grounded in external 2-body solution

full rationale

The paper's central derivation starts from an independent full 2-body solution and constructs an improved operator equivalent to the classical dipole form for many-body extension. No load-bearing step reduces by construction to the paper's own inputs, fitted parameters, or self-citation chains; the analytic scheme is presented as a direct approximation without self-referential fitting or renaming. The noted limitation on accuracy for dense clusters is an empirical assumption, not a definitional loop.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that the exact two-body solution provides a sufficient basis for a many-body operator approximation. No free parameters or invented entities are mentioned in the abstract.

axioms (1)
  • domain assumption The full 2-body solution can serve as the foundation for an analytic many-body approximation scheme.
    Directly invoked to develop the improved operator equivalent to the dipole form.
