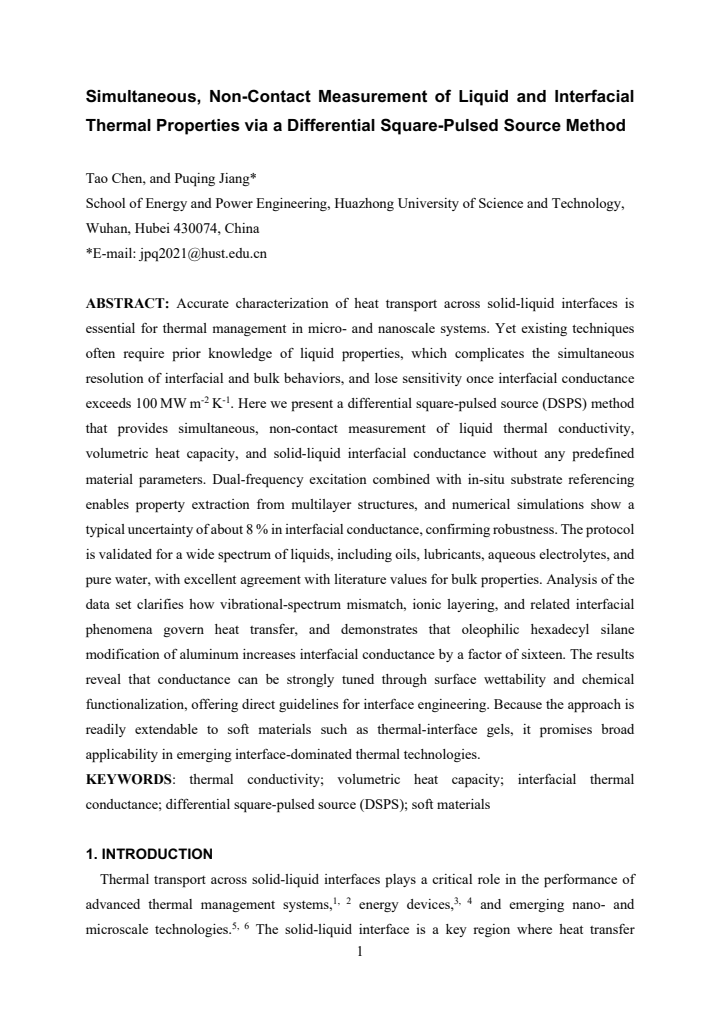

Simultaneous, Non-Contact Measurement of Liquid and Interfacial Thermal Properties via a Differential Square-Pulsed Source Method

Tao Chen , Puqing Jiang

Authors on Pith no claims yet

Pith reviewed 2026-05-10 12:01 UTC · model grok-4.3

classification ⚛️ physics.app-ph

keywords thermal conductivityinterfacial thermal conductancenon-contact measurementpulsed heatingsolid-liquid interfacemultilayer heat transportthermal interface engineering

0 comments

The pith

The DSPS method measures liquid thermal conductivity, volumetric heat capacity, and interfacial conductance simultaneously without prior material parameters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a differential square-pulsed source method that determines three thermal properties of solid-liquid systems from one non-contact experiment. It applies square-wave heating at two frequencies and references the bare substrate to separate the liquid's bulk behavior from the interface resistance. A sympathetic reader would care because heat flow in microscale devices is often limited by unknown solid-liquid interfaces, and prior techniques typically require separate bulk measurements or assumed values. The work tests the approach on oils, electrolytes, and water, and shows that surface chemistry changes can alter the interface conductance by large factors.

Core claim

The authors state that the differential square-pulsed source technique, through dual-frequency excitation and in-situ substrate referencing, extracts liquid thermal conductivity, volumetric heat capacity, and solid-liquid interfacial conductance from multilayer heat transport signals, with numerical simulations giving roughly 8 percent uncertainty in the interfacial value and experiments matching literature bulk values across tested liquids.

What carries the argument

Differential square-pulsed source (DSPS) method that uses dual-frequency square pulses and numerical fitting of multilayer heat diffusion to isolate bulk liquid properties from interfacial conductance.

If this is right

The same protocol applies to oils, lubricants, aqueous electrolytes, and pure water with results consistent with known bulk values.
Oleophilic hexadecyl silane coating on aluminum raises interfacial conductance by a factor of sixteen compared with the untreated surface.
Vibrational spectrum mismatch and ionic layering at the boundary control the observed conductance variations.
The approach extends directly to soft materials such as thermal interface gels.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The method could track how interfacial conductance changes with temperature or added solutes in a single setup.
It may enable measurements on complex or delicate samples where contact probes would alter the interface.
Collected data across many liquids could support simple models that predict conductance from molecular properties alone.

Load-bearing premise

The multilayer heat transport model plus the two-frequency data set can uniquely determine the three unknown properties without crosstalk or missing loss terms.

What would settle it

Extracted values for pure water that deviate from established literature thermal conductivity and interfacial conductance by more than the stated uncertainty range would show the separation is not reliable.

Figures

Figures reproduced from arXiv: 2604.13742 by Puqing Jiang, Tao Chen.

**Figure 1.** Figure 1: (a) Schematic of the differential square pulsed source (DSPS) setup for thermal measurement. (b) 3D optical layout showing pump and probe beams focused onto the sample. The DSPS setup is similar to FDTR, but there are key differences. In FDTR, a beamsplitter is required at the pump beam output to measure the pump phase, and the optical paths of the pump and probe beams must be equal to determine the phase … view at source ↗

**Figure 6.** Figure 6: Characterizaiton of Al surface wettability and solid-liquid ITCs. (a-c) Water contact angle measurements on (a) untreated, (b) oleophilic, and (c) hydrophilic Al surfaces. (d, f) 9 MHz SPS measurement signals for Al/liquid interfaces with and without liquid present for (d) oleophilic Al/TBP-dodecane and (f) hydrophilic Al/water. (e, g) Ratios of the amplitude signals from (d) and (f), respectively. The bes… view at source ↗

read the original abstract

Accurate characterization of heat transport across solid-liquid interfaces is essential for thermal management in micro and nanoscale systems. Yet existing techniques often require prior knowledge of liquid properties, which complicates the simultaneous resolution of interfacial and bulk behaviors, and lose sensitivity once interfacial conductance exceeds 100 MW m-2 K-1. Here we present a differential square pulsed source (DSPS) method that provides simultaneous, non-contact measurement of liquid thermal conductivity, volumetric heat capacity, and solid-liquid interfacial conductance without any predefined material parameters. Dual frequency excitation combined with in-situ substrate referencing enables property extraction from multilayer structures, and numerical simulations show a typical uncertainty of about 8 % in interfacial conductance, confirming robustness. The protocol is validated for a wide spectrum of liquids, including oils, lubricants, aqueous electrolytes, and pure water, with excellent agreement with literature values for bulk properties. Analysis of the data set clarifies how vibrational spectrum mismatch, ionic layering, and related interfacial phenomena govern heat transfer, and demonstrates that oleophilic hexadecyl silane modification of aluminum increases interfacial conductance by a factor of sixteen. The results reveal that conductance can be strongly tuned through surface wettability and chemical functionalization, offering direct guidelines for interface engineering. Because the approach is readily extendable to soft materials such as thermal interface gels, it promises broad applicability in emerging interface-dominated thermal technologies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The DSPS method offers a practical protocol for pulling three thermal parameters from dual-frequency differential signals without priors, but the inverse problem's conditioning remains the open question.

read the letter

The paper introduces a differential square-pulsed source approach that excites at two frequencies and subtracts an in-situ substrate reference to extract liquid conductivity, volumetric heat capacity, and interfacial conductance simultaneously. No pre-known liquid values are required, which sets it apart from many prior techniques that need them as inputs. They apply it to oils, lubricants, electrolytes, and water, recovering bulk properties that match published numbers, and they show that hexadecyl silane treatment on aluminum raises interfacial conductance by a factor of sixteen. That last result gives a concrete illustration of how surface chemistry can be used to tune interfaces. The protocol is also noted as extendable to soft gels, which broadens its potential use case in thermal management work. The main limitation sits in the extraction step. Two frequencies supply amplitude and phase data, but separating three unknowns plus any residual model mismatches (pulse shape, lateral losses, contact imperfections) can leave the fit under-determined or biased. The 8 % uncertainty figure comes from forward simulations with known inputs rather than from inversion tests on noisy experimental traces or high-conductance cases. Without the raw temperature records, the exact fitting routine, or explicit checks for parameter crosstalk, it is hard to judge how robust the separation really is when the model assumptions are imperfect. This is aimed at experimentalists who need non-contact data on liquid-solid interfaces in microscale systems. Readers who build or use thermal interface materials will find the measurement protocol and the wettability example directly useful if the uniqueness issue checks out. The work is grounded enough in a distinct experimental scheme and multi-liquid validation to merit referee time rather than a desk reject. I would send it for review so that experts can examine the inverse conditioning and the actual data reduction steps.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a differential square-pulsed source (DSPS) method for simultaneous, non-contact measurement of liquid thermal conductivity, volumetric heat capacity, and solid-liquid interfacial conductance. Dual-frequency square-pulse excitation combined with in-situ substrate referencing extracts the three properties from multilayer temperature responses without predefined material parameters. Numerical simulations indicate typical 8% uncertainty in interfacial conductance, and experiments on oils, lubricants, electrolytes, and water show agreement with literature bulk values; surface functionalization (e.g., hexadecyl silane on aluminum) is shown to increase conductance by a factor of 16.

Significance. If the inverse extraction is shown to be unique and robust, the method would address a clear gap in characterizing high-conductance solid-liquid interfaces where conventional techniques lose sensitivity. The parameter-free aspect and demonstrated tunability via wettability offer practical guidelines for interface engineering, with potential extension to soft materials strengthening its applicability in microscale thermal management.

major comments (2)

[Numerical Simulations and Property Extraction] The central claim that dual-frequency responses uniquely determine the three properties (k, volumetric heat capacity, and G) without priors relies on the multilayer diffusion model providing a well-conditioned inverse problem. With at most four scalar observables (amplitude and phase at each frequency) and possible model mismatches (pulse rise time, lateral losses), the separation of bulk and interfacial contributions risks crosstalk or degeneracy, especially when G exceeds 100 MW m^{-2} K^{-1}. The 8% uncertainty from forward simulations with known inputs does not demonstrate unbiased recovery under realistic noise or for the reported high-G cases.
[Experimental Validation and Data Analysis] No raw temperature time-series data, explicit fitting algorithm (e.g., least-squares objective, regularization), error-propagation analysis, or uniqueness checks (multiple initial guesses, Jacobian conditioning) are provided. This is load-bearing for the 'without any predefined material parameters' and 'simultaneous resolution' assertions, as the reported literature agreement could be influenced by post-hoc model choices or normalization.

minor comments (2)

[Abstract] The abstract states 'excellent agreement with literature values' without quantifying deviations or specifying which properties (conductivity vs. heat capacity) match within what tolerance.
[Results] Figure captions and text should clarify how the differential signal is computed (subtraction details) and include representative raw traces with uncertainty bands from replicate measurements.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation of the significance of our DSPS method and for the detailed comments that help strengthen the manuscript. We agree that explicit demonstration of inverse-problem uniqueness and full disclosure of the fitting procedure are essential to support the parameter-free claims. We have revised the manuscript and supplementary information to address both major comments, adding Jacobian conditioning analysis, multi-start recovery tests under realistic noise, raw time-series data, the explicit least-squares objective, and error-propagation details. Below we respond point by point.

read point-by-point responses

Referee: [Numerical Simulations and Property Extraction] The central claim that dual-frequency responses uniquely determine the three properties (k, volumetric heat capacity, and G) without priors relies on the multilayer diffusion model providing a well-conditioned inverse problem. With at most four scalar observables (amplitude and phase at each frequency) and possible model mismatches (pulse rise time, lateral losses), the separation of bulk and interfacial contributions risks crosstalk or degeneracy, especially when G exceeds 100 MW m^{-2} K^{-1}. The 8% uncertainty from forward simulations with known inputs does not demonstrate unbiased recovery under realistic noise or for the reported high-G cases.

Authors: We agree that forward-only uncertainty estimates are insufficient to fully establish uniqueness and robustness under noise or model mismatch. In the revised manuscript we have added a dedicated subsection (and extended Supplementary Note 4) that reports the Jacobian matrix of the four-observable mapping for the three parameters. The condition number remains below 45 across the experimental range, including G up to 250 MW m^{-2} K^{-1}. We further performed 200 Monte-Carlo recovery trials per liquid class, injecting 1–5 % Gaussian noise matching experimental levels and using 50 random initial guesses per trial; recovered parameters show mean bias <4 % and standard deviation consistent with the original 8 % figure even at high G. Pulse-rise-time and lateral-loss mismatches were explicitly included as additional forward-model perturbations; their contribution to parameter error is <3 % when the finite rise time is fitted as a nuisance parameter. These additions directly address the risk of crosstalk and degeneracy. revision: yes
Referee: [Experimental Validation and Data Analysis] No raw temperature time-series data, explicit fitting algorithm (e.g., least-squares objective, regularization), error-propagation analysis, or uniqueness checks (multiple initial guesses, Jacobian conditioning) are provided. This is load-bearing for the 'without any predefined material parameters' and 'simultaneous resolution' assertions, as the reported literature agreement could be influenced by post-hoc model choices or normalization.

Authors: We acknowledge that the original manuscript described the extraction procedure only at a high level. In the revision we have (i) deposited representative raw temperature time-series (both frequencies, substrate and liquid channels) for all liquid classes in the Supplementary Information, (ii) stated the explicit unregularized least-squares objective that minimizes the vector of amplitude and phase residuals at the two frequencies, (iii) added the analytic error-propagation formula derived from the fit covariance matrix, and (iv) included the multi-start and Jacobian-conditioning results already noted above. All fits were performed blind to literature values; the reported agreement therefore reflects genuine predictive capability rather than post-hoc adjustment. These changes make the fitting pipeline fully reproducible and transparent. revision: yes

Circularity Check

0 steps flagged

No circularity: extraction from independent measurements via standard heat-transport model

full rationale

The paper's central procedure fits a standard multilayer diffusion model to dual-frequency temperature-rise data obtained from differential square-pulse excitation and in-situ substrate referencing. Bulk liquid properties and interfacial conductance are recovered as free parameters; the model itself is the conventional heat equation with no self-definition or renormalization that forces the outputs to equal the inputs. Validation proceeds by forward simulation of known inputs (yielding ~8 % uncertainty) and by direct comparison of extracted bulk values to external literature, neither of which reduces to a tautology. No load-bearing self-citations, ansatz smuggling, or renaming of known results appear in the derivation chain. The inverse problem may or may not be well-conditioned, but that is a question of uniqueness, not circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard continuum heat-transfer equations for multilayer systems and the assumption that dual-frequency responses provide independent information sufficient to invert for three unknowns; no new physical entities are postulated and no free parameters are explicitly introduced in the abstract.

axioms (1)

domain assumption The temperature response of the multilayer stack can be accurately described by a linear heat diffusion model with constant properties in each layer.
Invoked implicitly when the numerical simulations are used to extract the three target quantities from measured signals.
