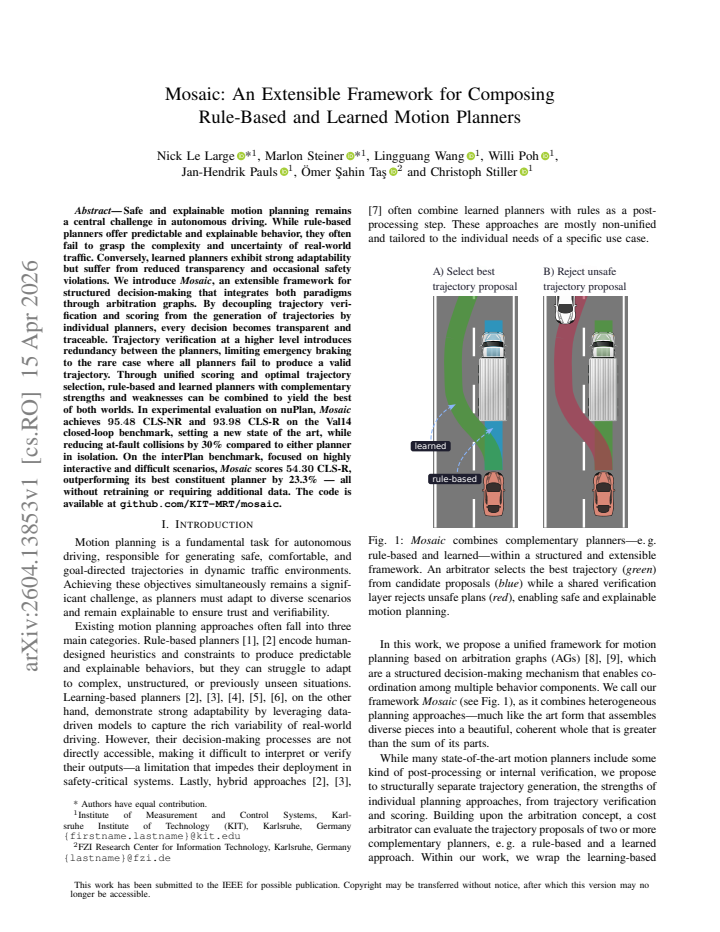

Mosaic: An Extensible Framework for Composing Rule-Based and Learned Motion Planners

Christoph Stiller, Jan-Hendrik Pauls, Lingguang Wang, Marlon Steiner, Nick Le Large, \"Omer \c{S}ahin Ta\c{s}, Willi Poh

Authors on Pith no claims yet

Pith reviewed 2026-05-10 13:26 UTC · model grok-4.3

classification 💻 cs.RO

keywords plannersmosaictrajectorylearnedrule-basedbenchmarkbestcls-r

0 comments

The pith

Mosaic uses arbitration graphs to combine rule-based and learned motion planners for safer autonomous driving.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Mosaic as a framework that integrates rule-based planners, which are predictable but limited, with learned planners, which adapt well but can be opaque. It does this by using arbitration graphs that separate the creation of possible trajectories from their checking and selection. This setup allows the system to pick the best trajectory from either type while keeping every choice traceable. If correct, it means autonomous vehicles can achieve higher reliability in complex traffic without needing to retrain models or add data, and with fewer safety incidents.

Core claim

Mosaic decouples trajectory generation from verification and scoring through arbitration graphs, enabling the transparent combination of rule-based and learned planners. This yields superior closed-loop performance on benchmarks, with reduced at-fault collisions and better handling of interactive scenarios, all without additional training.

What carries the argument

Arbitration graphs, which structure decision-making by verifying and scoring trajectories from multiple planners at a higher level.

Load-bearing premise

The arbitration graphs and unified scoring reliably pick trajectories that combine strengths without creating new safety problems or reducing explainability.

What would settle it

Finding a driving scenario where the Mosaic planner causes a collision or unsafe behavior not seen in the individual rule-based or learned planners.

Figures

Figures reproduced from arXiv: 2604.13853 by Christoph Stiller, Jan-Hendrik Pauls, Lingguang Wang, Marlon Steiner, Nick Le Large, \"Omer \c{S}ahin Ta\c{s}, Willi Poh.

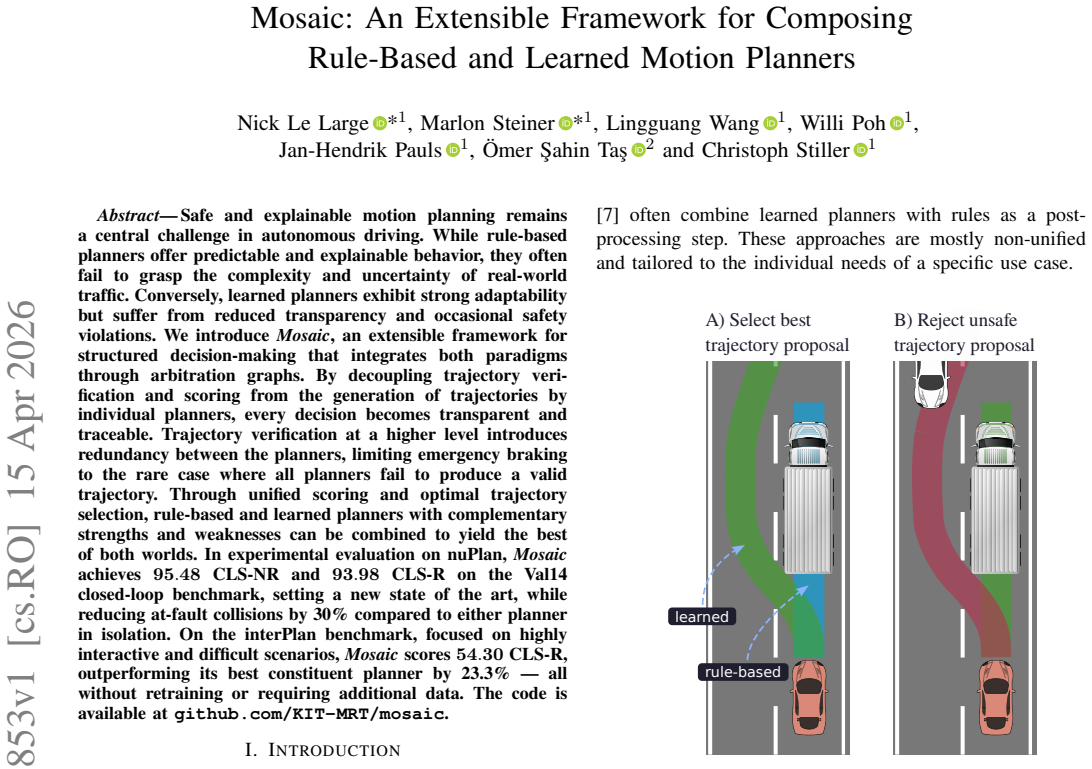

**Figure 1.** Figure 1: Mosaic combines complementary planners—e. g. rule-based and learned—within a structured and extensible framework. An arbitrator selects the best trajectory (green) from candidate proposals (blue) while a shared verification layer rejects unsafe plans (red), enabling safe and explainable motion planning. In this work, we propose a unified framework for motion planning based on arbitration graphs (AGs) [8], … view at source ↗

**Figure 2.** Figure 2: The proposed AG structure with 3 behavior components ( [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

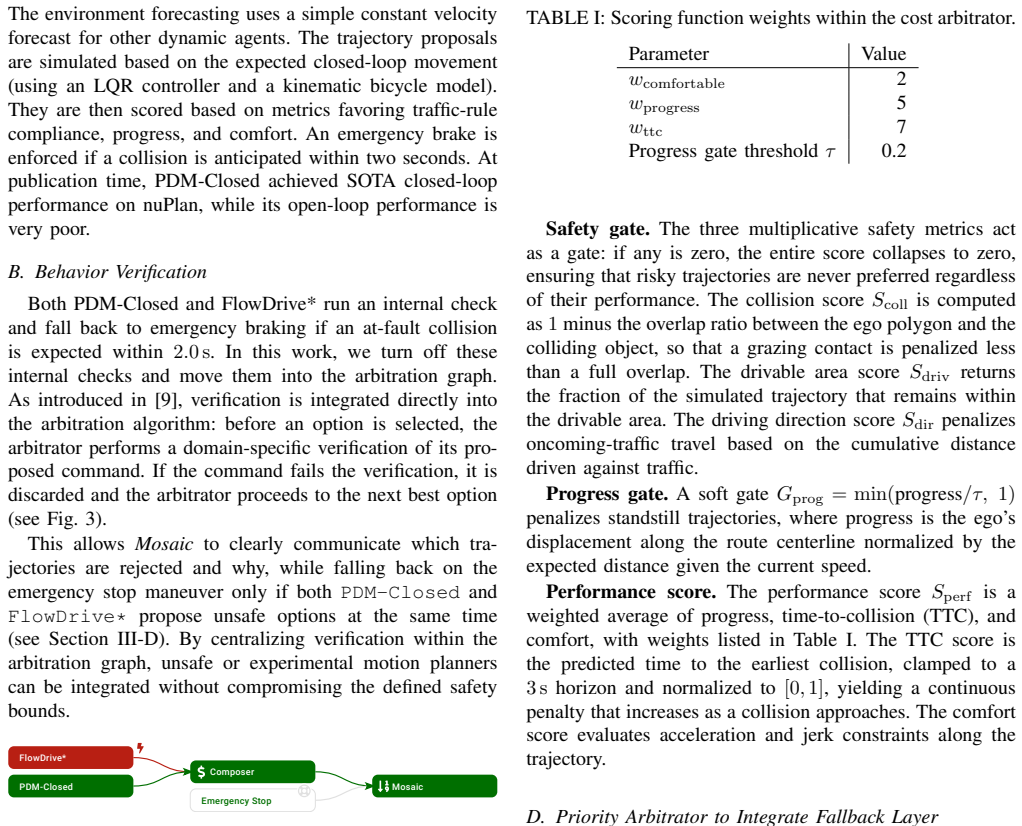

**Figure 3.** Figure 3: Behavior verification: One behavior component fails [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

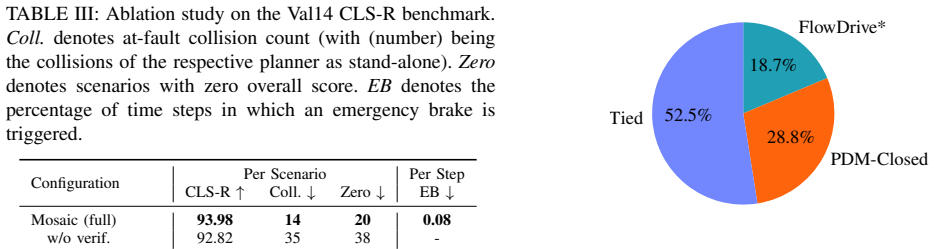

**Figure 5.** Figure 5: Behavior selection distribution of the cost arbitrator [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

read the original abstract

Safe and explainable motion planning remains a central challenge in autonomous driving. While rule-based planners offer predictable and explainable behavior, they often fail to grasp the complexity and uncertainty of real-world traffic. Conversely, learned planners exhibit strong adaptability but suffer from reduced transparency and occasional safety violations. We introduce Mosaic, an extensible framework for structured decision-making that integrates both paradigms through arbitration graphs. By decoupling trajectory verification and scoring from the generation of trajectories by individual planners, every decision becomes transparent and traceable. Trajectory verification at a higher level introduces redundancy between the planners, limiting emergency braking to the rare case where all planners fail to produce a valid trajectory. Through unified scoring and optimal trajectory selection, rule-based and learned planners with complementary strengths and weaknesses can be combined to yield the best of both worlds. In experimental evaluation on nuPlan, Mosaic achieves 95.48 CLS-NR and 93.98 CLS-R on the Val14 closed-loop benchmark, setting a new state of the art, while reducing at-fault collisions by 30% compared to either planner in isolation. On the interPlan benchmark, focused on highly interactive and difficult scenarios, Mosaic scores 54.30 CLS-R, outperforming its best constituent planner by 23.3% - all without retraining or requiring additional data. The code is available at github.com/KIT-MRT/mosaic.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Mosaic's arbitration graphs give a workable way to run rule-based and learned planners together and post solid benchmark gains, but the safety story hinges on whether the unified scorer actually catches the cases the individuals miss.

read the letter

The arbitration graph is the real piece here. It runs several planners in parallel, verifies their outputs at a higher level, and then picks one trajectory with a single scoring function. That separation keeps the rule-based parts explainable while letting the learned planner handle messy situations, and it cuts down on emergency braking to only the cases where nothing works. They show this on existing planners without any retraining, which is practical.

Referee Report

2 major / 2 minor

Summary. The paper introduces Mosaic, an extensible framework for autonomous driving motion planning that composes rule-based and learned planners via arbitration graphs. It decouples trajectory generation from higher-level verification and unified scoring to improve safety, explainability, and performance. The central empirical claims are state-of-the-art results on nuPlan: 95.48 CLS-NR and 93.98 CLS-R on Val14 (30% fewer at-fault collisions than either planner alone) and 54.30 CLS-R on interPlan (23.3% better than the best constituent planner), achieved without retraining or new data.

Significance. If the arbitration mechanism proves robust, the work offers a practical, modular path to combine the predictability of rule-based planners with the adaptability of learned ones, addressing a key tension in the field. The open-source release and use of public benchmarks (nuPlan Val14, interPlan) are strengths that support reproducibility and allow direct comparison.

major comments (2)

[§3] §3 (Arbitration graphs and unified scoring): The 30% collision reduction and SOTA claims on Val14/interPlan rest on the assumption that higher-level verification and scoring will reliably detect interactions and uncertainties missed by individual planners. The manuscript provides no formal coverage argument, exhaustive edge-case analysis, or closed-loop failure-mode enumeration showing the combined trajectory pool is closed under the failure modes of either planner alone; this is load-bearing for the safety claims in interactive scenarios.
[§5] §5 (Experimental evaluation): The reported metrics (e.g., 95.48 CLS-NR, 93.98 CLS-R, 54.30 CLS-R) and collision reductions lack accompanying ablation studies isolating the contribution of verification versus scoring, statistical significance tests, or error analysis across scenario types. Without these, it is difficult to attribute gains specifically to the framework rather than benchmark variance or planner selection.

minor comments (2)

[Abstract / §3] The abstract states that 'every decision becomes transparent and traceable,' but the main text should include a concrete example (with a figure or table) tracing a single decision through the arbitration graph to illustrate this property.
[§3] Notation for the unified scoring function and arbitration graph edges is introduced without a compact summary table; adding one would improve readability for readers comparing to prior hybrid planners.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the constructive review of our manuscript on Mosaic. We appreciate the emphasis on strengthening the safety claims and experimental analysis. We address each major comment below, indicating planned revisions where appropriate.

read point-by-point responses

Referee: [§3] §3 (Arbitration graphs and unified scoring): The 30% collision reduction and SOTA claims on Val14/interPlan rest on the assumption that higher-level verification and scoring will reliably detect interactions and uncertainties missed by individual planners. The manuscript provides no formal coverage argument, exhaustive edge-case analysis, or closed-loop failure-mode enumeration showing the combined trajectory pool is closed under the failure modes of either planner alone; this is load-bearing for the safety claims in interactive scenarios.

Authors: We agree that a formal coverage argument or exhaustive failure-mode enumeration would strengthen the safety claims. The current work presents Mosaic as an extensible empirical framework for composing planners rather than a formally verified system; the arbitration graph provides practical redundancy by requiring higher-level verification before selection, which empirically yields the reported collision reductions. We cannot supply a formal proof of closure under all failure modes without shifting the paper's scope to theoretical analysis. In revision we will add a dedicated limitations subsection to §3 explicitly discussing these assumptions and the reliance on empirical validation, plus expanded appendix material with additional closed-loop failure analysis drawn from the nuPlan Val14 and interPlan scenarios. revision: partial
Referee: [§5] §5 (Experimental evaluation): The reported metrics (e.g., 95.48 CLS-NR, 93.98 CLS-R, 54.30 CLS-R) and collision reductions lack accompanying ablation studies isolating the contribution of verification versus scoring, statistical significance tests, or error analysis across scenario types. Without these, it is difficult to attribute gains specifically to the framework rather than benchmark variance or planner selection.

Authors: We thank the referee for this observation. The manuscript already compares the full Mosaic system against each constituent planner, but we accept that explicit ablations and statistical analysis would improve attribution. We will revise §5 to add: (i) targeted ablations separating the verification module from the unified scoring function, (ii) statistical significance testing via bootstrap confidence intervals on the key CLS scores and at-fault collision rates, and (iii) a breakdown of results by scenario category (interactive, non-interactive, and edge cases) from both benchmarks. These changes will clarify that the 30% collision reduction and SOTA scores arise from the composition framework rather than variance or planner choice alone. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical framework evaluation on public benchmarks

full rationale

The paper describes an extensible arbitration framework that combines existing rule-based and learned planners through verification, scoring, and selection steps. All performance claims (SOTA scores on Val14 and interPlan, collision reductions) are presented as direct outcomes of closed-loop simulation on public nuPlan-derived benchmarks using unmodified constituent planners, with no equations, fitted parameters, or self-citations invoked as load-bearing derivations. The central results are therefore falsifiable by re-running the same public benchmarks and do not reduce to any input by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

The framework introduces arbitration graphs as the core integration mechanism but does not rely on new mathematical axioms or fitted parameters beyond standard benchmark protocols.

invented entities (1)

Arbitration graphs no independent evidence
purpose: To structure decision-making by decoupling trajectory verification and scoring from individual planner generation
Presented as the extensible core of Mosaic for combining rule-based and learned planners.
