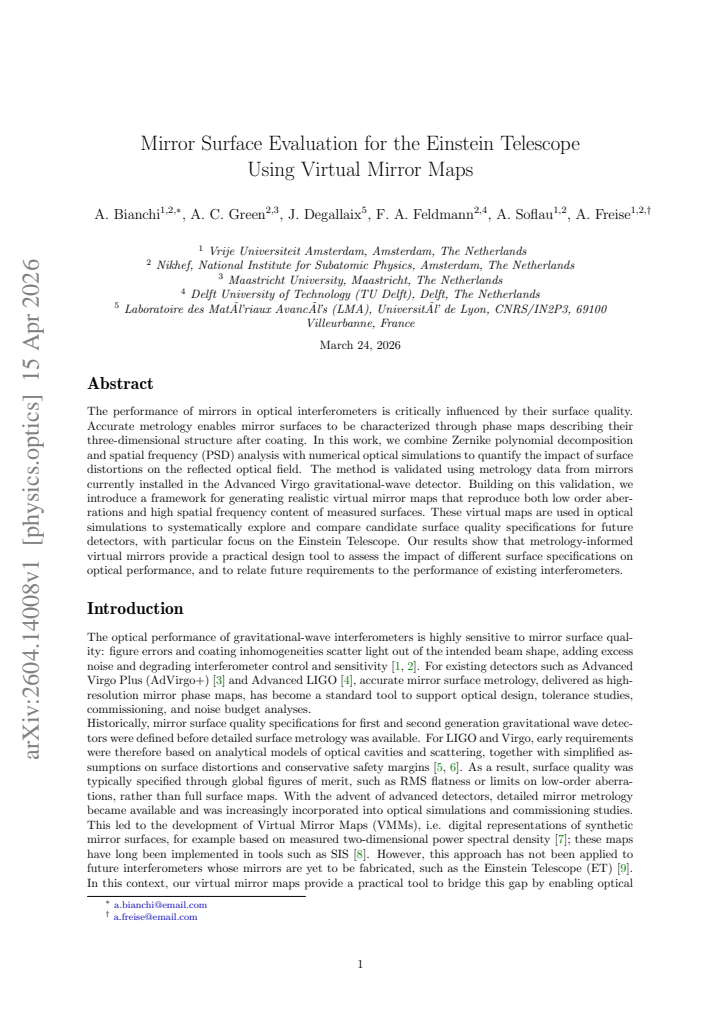

Mirror Surface Evaluation for the Einstein Telescope Using Virtual Mirror Maps

A. Bianchi, A. C. Green, A. Freise, A.Soflau, F. A. Feldmann, J. Degallaix

Authors on Pith no claims yet

Pith reviewed 2026-05-10 12:21 UTC · model grok-4.3

classification ⚛️ physics.optics gr-qcphysics.ins-det
keywords mirror metrologyZernike polynomialspower spectral densityvirtual mirror mapsEinstein Telescopeoptical simulationsgravitational wave detectorsAdvanced Virgo
0
0 comments X

The pith

Virtual mirror maps built from real metrology data let designers test how surface imperfections would limit the Einstein Telescope.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a method that turns measured mirror surfaces from the Advanced Virgo detector into virtual maps by fitting Zernike polynomials to low-order shape errors and using power spectral density to capture high-frequency roughness. These maps are placed into numerical simulations of the reflected optical field to compare the effects of different surface quality levels on future instruments such as the Einstein Telescope. Validation against existing Virgo data shows that the maps reproduce both the smooth aberrations and the fine-scale features that matter for interferometer performance. A sympathetic reader cares because mirror surface quality sets a hard limit on detector sensitivity, and this approach gives a concrete way to decide what polishing precision is actually needed before any new mirrors are made.

Core claim

We combine Zernike polynomial decomposition and spatial frequency (PSD) analysis with numerical optical simulations to quantify the impact of surface distortions on the reflected optical field. The method is validated using metrology data from mirrors currently installed in the Advanced Virgo gravitational-wave detector. Building on this validation, we introduce a framework for generating realistic virtual mirror maps that reproduce both low order aberrations and high spatial frequency content of measured surfaces. These virtual maps are used in optical simulations to systematically explore and compare candidate surface quality specifications for future detectors, with particular focus on t

What carries the argument

Virtual mirror maps generated by Zernike-plus-PSD decomposition of metrology data, inserted into optical simulations to predict effects on the reflected field for Einstein Telescope geometries.

Load-bearing premise

The Zernike and PSD virtual maps, when run through the simulations, capture every surface feature that materially changes the reflected light in the Einstein Telescope setup.

What would settle it

If the optical-field distortions predicted by virtual maps of the Advanced Virgo mirrors fail to match the actual measured beam shapes or power losses observed in that detector, the framework cannot be trusted for Einstein Telescope predictions.

Figures

Figures reproduced from arXiv: 2604.14008 by A. Bianchi, A. C. Green, A. Freise, A.Soflau, F. A. Feldmann, J. Degallaix.

Figure 1
Figure 1. Figure 1: Side by side comparison between a phase map (left), its Zernike reconstruction up to [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

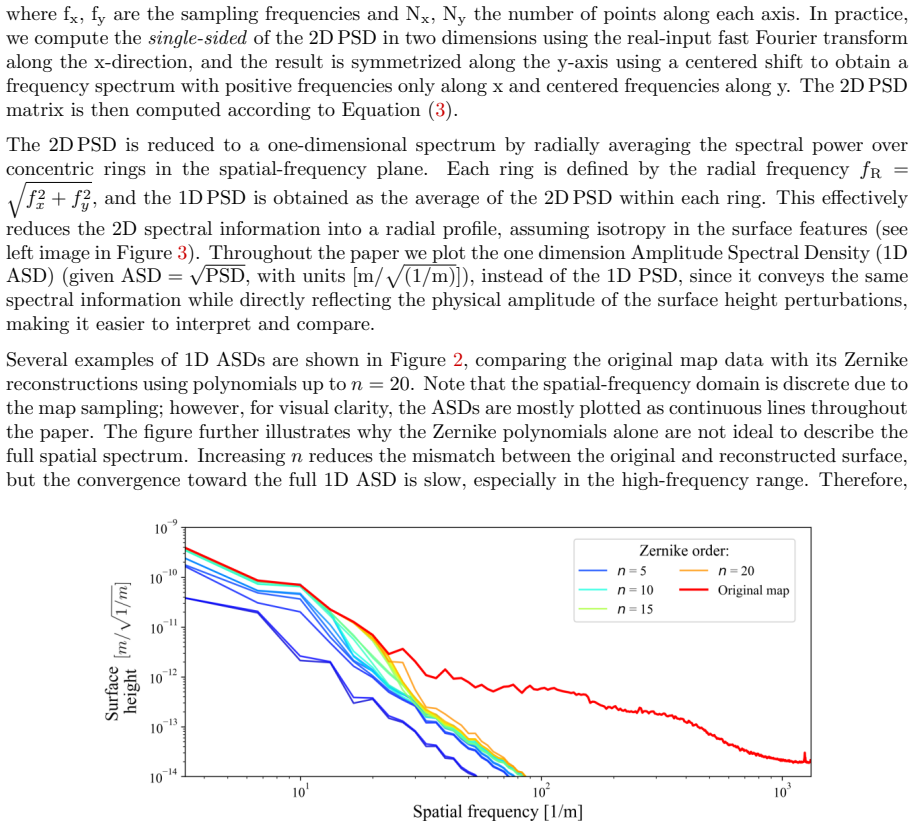

Figure 2. Figure 2: Amplitude Spectral Density of the original mirror map compared with its Zernike reconstruc [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Left: Half 2D PSD of the original data, displayed on a logarithmic color scale. The orange [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

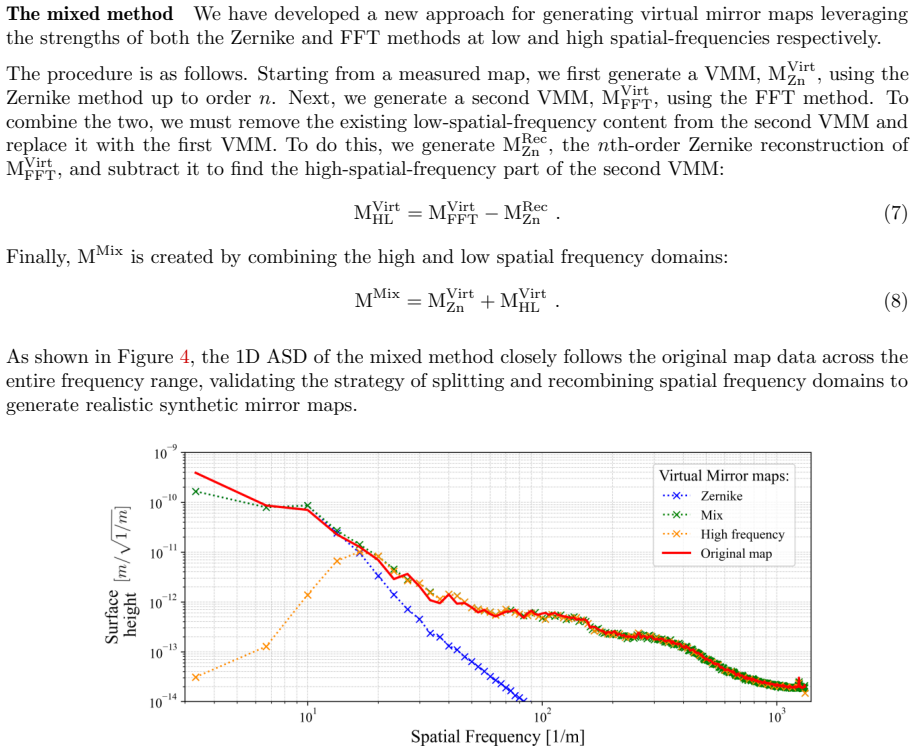

Figure 4. Figure 4: Comparison of the 1D ASDs for the original surface map, the virtual mirror map generated [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

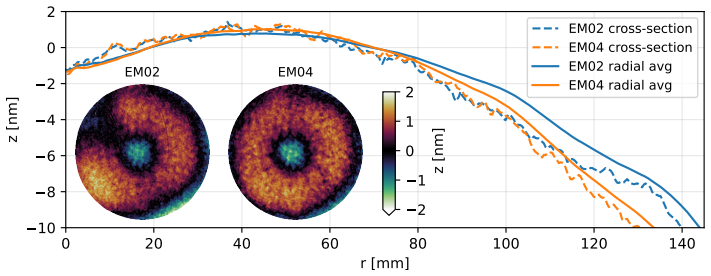

Figure 5. Figure 5: Surface maps of mirrors EM02 and EM04 and their half cross sections after removal of curvature [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Comparison of the central surface profiles extracted from the original map (orange) and a [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Top panel: comparison between the original map ASD and the two ET cases obtained with [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

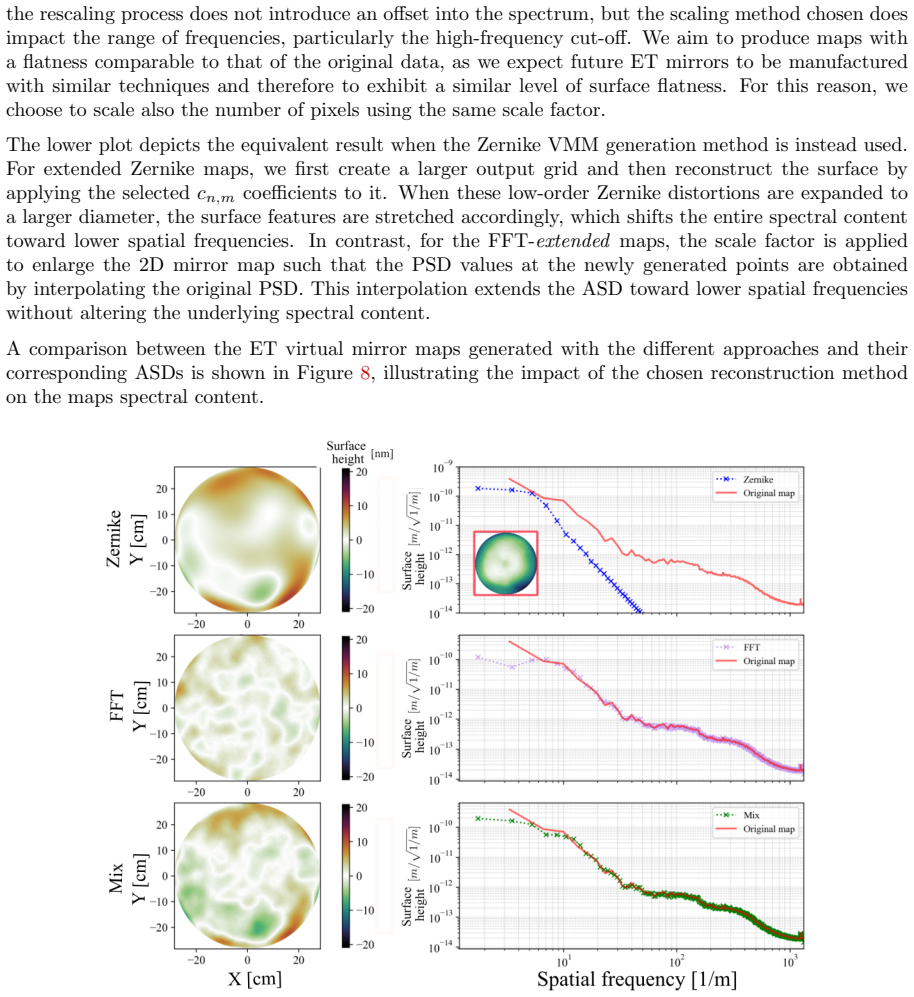

Figure 8. Figure 8: Comparison between the ET virtual mirror maps (left panels) and their corresponding ASDs [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
