Iron spin crossover in ferropericlase and its effect on lower-mantle thermal conductivity

Alexander F. Goncharov, Axel Phelipeau, Carmen Sanchez-Valle, Carsten Baehtz, Christoph Otzen, Clemens Prescher, Cornelius Strohm, Efim Kolesnikov, Emma S. Bullock, Eric Edmund, Guillaume Morard, Hanns-Peter Liermann, Irina Chuvashova, James McHardy, Jolanta Sztuk-Dambietz, JungFu Lin, Karen Appel, Malcolm McMahon, Mark Robertson, Michal Andrzejewski, Minxue Tang, Nico Giordano, Nicolas Jaisle, Rachel Husband, Ryan Stewart McWilliams, Sebastien Merkel, Silvia Boccato, S. V. Rahul, Thomas Michelat, Torsten Laurus, Zena Younes, Zuzana Konopkova

Pith reviewed 2026-05-13 23:27 UTC · model grok-4.3

classification ⚛️ physics.geo-ph cond-mat.mtrl-sci

keywords ferropericlasethermal conductivitylower mantleiron spin crossoverdiamond-anvil cellmantle heat fluxbridgmanitecore-mantle boundary

0 comments

The pith

Ferropericlase thermal conductivity drops between 60 and 100 GPa at 1700 K due to iron spin crossover.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports direct measurements of thermal conductivity in single-crystal ferropericlase at pressures and temperatures matching Earth's lower mantle. It identifies a clear reduction in conductivity between 60 and 100 GPa at around 1700 K that aligns with the iron spin crossover transition. When these results are combined with prior bridgmanite measurements, they produce a lower-mantle conductivity profile that increases with pressure and reaches about 10 watts per meter per kelvin near the core-mantle boundary. This profile controls how heat flows from the core into the mantle and thereby shapes convection and the planet's long-term cooling.

Core claim

Direct measurements of ferropericlase thermal conductivity up to 130 GPa and 2200 K reveal a marked reduction between 60 and 100 GPa at ~1700 K that is consistent with the iron spin crossover. Combined with previous bridgmanite results, these data establish a lower-mantle conductivity profile that increases with pressure to ~10 W m^{-1} K^{-1} near the CMB.

What carries the argument

The iron spin crossover in ferropericlase (Mg1-xFexO with x around 0.1), which produces a measurable drop in thermal conductivity at high pressure.

If this is right

The lower-mantle conductivity profile increases steadily with pressure to ~10 W m^{-1} K^{-1} near the CMB.
Mantle heat flux across the core-mantle boundary is constrained by this depth-dependent conductivity.
Plume buoyancy and mantle convection patterns depend on the resulting temperature gradients.
Long-term geodynamic evolution calculations must incorporate the pressure-driven rise in conductivity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Mantle convection simulations that assume constant conductivity would overestimate temperatures in the shallow lower mantle.
The conductivity increase near the CMB may thin the thermal boundary layer relative to earlier constant-conductivity models.
Extending the same measurement approach to other iron-bearing mantle phases could complete a mineral-by-mineral conductivity map.

Load-bearing premise

The observed drop in conductivity is caused by the iron spin crossover rather than by experimental artifacts or unaccounted phase changes in the sample.

What would settle it

Repeating the laser-flash measurements on a ferropericlase sample in which the spin crossover has been suppressed by chemical substitution and finding no conductivity reduction between 60 and 100 GPa at 1700 K would falsify the link.

Figures

Figures reproduced from arXiv: 2604.14183 by Alexander F. Goncharov, Axel Phelipeau, Carmen Sanchez-Valle, Carsten Baehtz, Christoph Otzen, Clemens Prescher, Cornelius Strohm, Efim Kolesnikov, Emma S. Bullock, Eric Edmund, Guillaume Morard, Hanns-Peter Liermann, Irina Chuvashova, James McHardy, Jolanta Sztuk-Dambietz, JungFu Lin, Karen Appel, Malcolm McMahon, Mark Robertson, Michal Andrzejewski, Minxue Tang, Nico Giordano, Nicolas Jaisle, Rachel Husband, Ryan Stewart McWilliams, Sebastien Merkel, Silvia Boccato, S. V. Rahul, Thomas Michelat, Torsten Laurus, Zena Younes, Zuzana Konopkova.

**Figure 1.** Figure 1: Heating history of FP in the DAC during EuXFEL proposal 8025, run 323, experiment CC278. Crosses represent experimental data corresponding to a heating run at a nominal pressure of 50 GPa. Inset (a) shows an expanded view of the initial stage of XFEL heating. Temperatures during XFEL heating were determined from the thermal expansion measured in XRD experiments, using the experimental thermal equation of s… view at source ↗

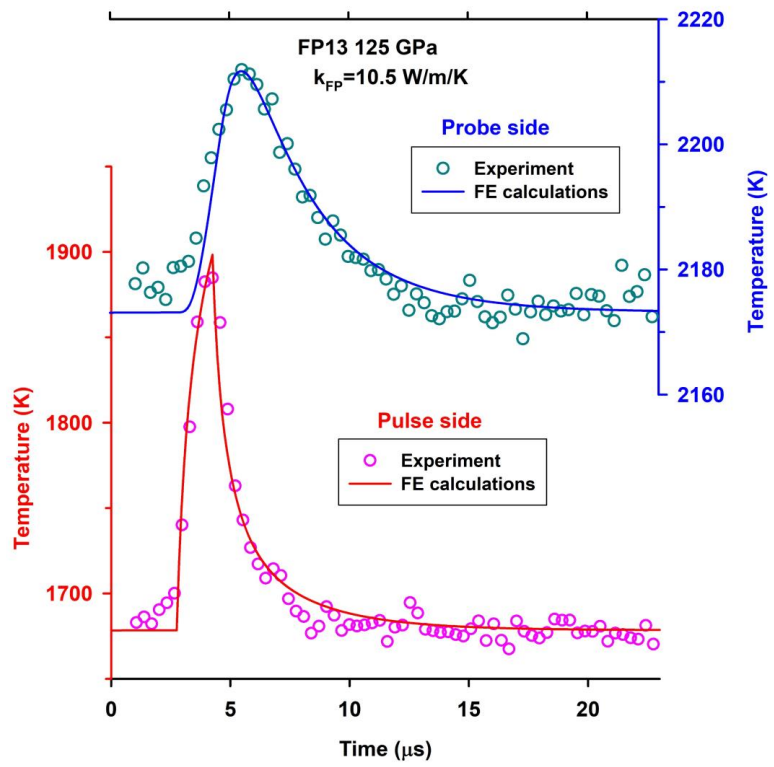

**Figure 2.** Figure 2: Heating histories in an in-house laser flash heating experiment on FP13 at 125 GPa. Open circles show experimentally measured radiative temperatures, with pink and cyan corresponding to the pulsed-heated and probe sides of the sample, respectively. Solid lines represent the best fits obtained from FE calculations 38,39. The parameters used in the fit are listed in Table S2 in the Supplementary Materials. P… view at source ↗

**Figure 4.** Figure 4: Thermal conductivity models of the lower mantle computed from our results using Hashin–Shtrikman averaging 44 for aggregates of 20% FP + 80% Bgm at P–T conditions along the geotherm. FP data correspond to Mg(1-x)FeₓO (x = 0.09–0.13) from this work; Bgm data for Fe- and Fe,Al-bearing compositions are from experiments using the same techniques 31 . For a smoothened version of this dependence please see Figur… view at source ↗

read the original abstract

Thermal conductivity of Earths lower mantle controls heat transfer across the core-mantle boundary (CMB) and strongly influences mantle convection. We report direct measurements of the thermal conductivity of single-crystal ferropericlase (Mg$_{1-x}$Fe$_x$O, $x = 0.09$-0.13), the second most abundant lower-mantle mineral, using optical laser flash and X-ray free-electron laser heating in diamond-anvil cells up to $\sim2200$~K and 130~GPa. These experiments provide the first conductivity data for ferropericlase at simultaneous lower-mantle pressures and temperatures. A marked reduction in conductivity between 60 and 100~GPa at $\sim1700$~K is consistent with the iron spin crossover. Combined with our previous results for Fe- and Fe,Al-bearing bridgmanite, the data define a lower-mantle conductivity profile that increases with pressure to $\sim10$~W\,m$^{-1}$\,K$^{-1}$ near the CMB, constraining mantle heat flux, plume buoyancy, and long-term geodynamic evolution.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

First direct ferropericlase conductivity data at lower-mantle P-T conditions, with a drop at 60-100 GPa that lines up with spin crossover but lacks in-situ confirmation.

read the letter

The paper reports the first thermal conductivity measurements on ferropericlase at simultaneous lower-mantle pressures and temperatures, up to 130 GPa and 2200 K, using laser flash and XFEL heating in diamond-anvil cells. They observe a clear reduction between 60 and 100 GPa at around 1700 K and combine it with their prior bridgmanite results to sketch a mantle profile that rises toward 10 W m^{-1} K^{-1} near the CMB. That profile would matter for core-mantle heat flux and convection models if it holds. The experimental reach is the real advance; earlier studies missed either the pressure or the temperature range for this mineral. The measurements themselves look straightforward and use established high-pressure techniques. The main limitation is that the drop is attributed to the iron spin crossover only by the pressure interval matching known crossover ranges. The abstract gives no sign of simultaneous X-ray emission or diffraction to track spin state or rule out gradients, heating artifacts, or undetected phase changes at those exact points. Without those checks the causal link stays inferential rather than demonstrated. Full data tables and error analysis would help, but the central experimental result stands on its own. This is useful for geodynamic modelers who need better lower-mantle conductivity constraints. It deserves a serious referee who can check the raw traces and ask for the missing spin-state diagnostics.

Referee Report

2 major / 1 minor

Summary. The paper reports the first direct measurements of thermal conductivity of single-crystal ferropericlase (Mg1-xFexO, x=0.09-0.13) at simultaneous lower-mantle pressures (up to 130 GPa) and temperatures (up to ~2200 K) using optical laser flash and X-ray free-electron laser heating in diamond-anvil cells. It identifies a marked reduction in conductivity between 60 and 100 GPa at ~1700 K that is stated to be consistent with the iron spin crossover, and combines these data with prior bridgmanite results to define a lower-mantle conductivity profile that increases with pressure to ~10 W m^{-1} K^{-1} near the CMB.

Significance. If the observed conductivity reduction is confirmed to result from the spin crossover rather than experimental artifacts, the work supplies the first conductivity values for ferropericlase under relevant lower-mantle P-T conditions. This constrains mantle heat flux, plume buoyancy, and long-term geodynamic evolution, extending the authors' earlier bridgmanite measurements into a coherent lower-mantle profile.

major comments (2)

[Results (conductivity vs. pressure data)] The central interpretation—that the conductivity drop between 60 and 100 GPa is caused by the iron spin crossover—rests on pressure-range coincidence alone. No simultaneous in-situ X-ray emission spectroscopy or diffraction is described to track spin state and sample integrity at the exact P-T points of the measurements, leaving open the possibility of DAC artifacts (pressure gradients, laser-heating temperature gradients, or undetected phase changes).
[Methods and supplementary information] Full data tables, quantitative error analysis, and raw measurement traces are not provided. Without these, the magnitude and statistical significance of the reported reduction cannot be independently assessed, weakening the claim that the data define a robust lower-mantle conductivity profile.

minor comments (1)

[Abstract] Abstract: 'Earths lower mantle' should read 'Earth's lower mantle'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough and constructive review. We address each major comment point by point below, providing our strongest honest defense of the manuscript while acknowledging where revisions are needed to improve clarity and transparency.

read point-by-point responses

Referee: The central interpretation—that the conductivity drop between 60 and 100 GPa is caused by the iron spin crossover—rests on pressure-range coincidence alone. No simultaneous in-situ X-ray emission spectroscopy or diffraction is described to track spin state and sample integrity at the exact P-T points of the measurements, leaving open the possibility of DAC artifacts (pressure gradients, laser-heating temperature gradients, or undetected phase changes).

Authors: We agree that simultaneous in-situ X-ray emission spectroscopy would offer the strongest direct confirmation of spin state at the measurement conditions. Our experiments focused on direct thermal conductivity determination via optical laser flash and XFEL heating, setups that are technically challenging to combine with XES under these extreme P-T conditions. The observed conductivity reduction occurs reproducibly across multiple single-crystal samples precisely within the 60-100 GPa interval at ~1700 K, matching the well-established spin-crossover pressure range for ferropericlase at these temperatures from extensive prior literature. Post-experiment sample recovery and characterization showed no evidence of phase changes or degradation, and heating protocols were designed to minimize gradients. In revision we will expand the discussion to explicitly address potential artifacts, quantify why alternative explanations are less likely, and clarify that our attribution rests on the precise pressure coincidence with known spin transitions while noting the lack of simultaneous spin diagnostics as a limitation. This is a partial revision. revision: partial
Referee: Full data tables, quantitative error analysis, and raw measurement traces are not provided. Without these, the magnitude and statistical significance of the reported reduction cannot be independently assessed, weakening the claim that the data define a robust lower-mantle conductivity profile.

Authors: We acknowledge this omission and will correct it. The revised supplementary information will include complete tables listing every conductivity measurement with corresponding pressure, temperature, and estimated uncertainties; a full quantitative error analysis describing propagation from temperature fitting, time-domain signals, and other sources; and representative raw laser-flash traces. These additions will allow independent evaluation of the reduction's magnitude and statistical significance, thereby strengthening the presentation of the lower-mantle conductivity profile. revision: yes

Circularity Check

0 steps flagged

No significant circularity; core results are new experimental measurements

full rationale

The paper reports direct experimental measurements of thermal conductivity in ferropericlase using laser flash and X-ray heating techniques in diamond-anvil cells up to 130 GPa and 2200 K. The central observation of a conductivity reduction between 60-100 GPa is presented as data-driven and 'consistent with' spin crossover, without any derivation chain, equations, or fitted parameters that reduce to the inputs by construction. The synthesis with prior bridgmanite results is a straightforward combination of independent experimental datasets from separate studies and does not rely on self-citation for the primary claim or introduce load-bearing circularity. No self-definitional, fitted-prediction, uniqueness-theorem, or ansatz-smuggling patterns are present.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

This is an experimental measurement study; the central claim rests on the validity of the laser-flash and X-ray heating techniques under extreme conditions and on the interpretation that the conductivity drop arises from spin crossover. No new free parameters or invented entities are introduced.

axioms (1)

domain assumption Laser-flash method accurately measures thermal diffusivity in opaque samples inside diamond-anvil cells at high pressure and temperature
Invoked to convert measured signals into conductivity values.

pith-pipeline@v0.9.0 · 5644 in / 1311 out tokens · 36321 ms · 2026-05-13T23:27:44.330866+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith.Cost.FunctionalEquation washburn_uniqueness_aczel unclear
The pressure dependence of thermal conductivity is nonmonotonic... sharp drop above 50 GPa, broad plateau... rapid increase at higher pressures... associated with the iron spin transition.

Reference graph

Works this paper leans on

2 extracted references · 2 canonical work pages

[1]

In the lower mantle, extending from ~660 to 2900 km depth, heat is transferred both by thermal conduction and by convection of silicate and oxide materials

Introduction Heat transport in the Earth’s interior governs the planet’s long-term thermal and dynamical evolution. In the lower mantle, extending from ~660 to 2900 km depth, heat is transferred both by thermal conduction and by convection of silicate and oxide materials. The efficiency of conductive heat transport controls the heat flux across the core–m...

work page 2000
[2]

This approximation was also employed in our previous work 31, where it yielded internally consistent results. In a recent XFEL laser-heating study 57 an independent attempt was made to directly determine the thermal pressure, resulting in somewhat different pressure - dependent values of 𝑃th. The temperatures obtained from these calculations were in quali...

work page doi:10.22003/xfel.eu-data-008025-00 2029
