Nonlinear chiral response governed by meta-atom rotation

Brijesh Kumar, Dhruv Hariharan, Felix Ulrich Brikh, Hatice Altug, Ivan Sinev, Ivan Toftul, Pavel Tonkaev, Yuri Kivshar

Authors on Pith no claims yet

Pith reviewed 2026-05-10 10:56 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords nonlinear chiralitymetasurfacesthird-harmonic generationcircular dichroismmeta-atom rotationsymmetry breakingplanar metasurfaces

0 comments

The pith

Rotating meta-atoms in planar metasurfaces creates strong tunable nonlinear chirality with channel swapping for complementary angles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that strong nonlinear chirality emerges in flat metasurfaces made from periodic tilted elliptic holes when the holes are rotated in plane. This rotation breaks all in-plane mirror symmetries while preserving out-of-plane mirror symmetry, allowing optical resonances to control the nonlinear selection rules and produce pronounced circular dichroism in third-harmonic generation. Experiments confirm a striking swap of the dominant nonlinear chiral channels when the rotation angle is complemented. A reader would care because this shows that simple planar patterning can achieve chiral nonlinear effects previously linked to complex three-dimensional designs, pointing toward compact tunable devices for controlling light handedness at higher harmonics.

Core claim

We demonstrate that strong nonlinear chirality can emerge and be precisely tuned in planar metasurfaces. We study free-standing membrane metasurfaces composed of periodic lattices of tilted elliptic holes, which preserve out-of-plane mirror symmetry while breaking all in-plane mirror symmetries through the in-plane rotation of the meta-atoms. Optical resonances play a decisive role in governing the nonlinear chiral response, enabling pronounced circular dichroism in third-harmonic generation even when symmetry is broken only in plane. We experimentally reveal strong nonlinear chiral response from the metasurfaces and a striking swapping of nonlinear chiral channels for complementary meta-atm

What carries the argument

Meta-atom rotation in lattices of tilted elliptic holes, which breaks in-plane mirror symmetries while preserving out-of-plane symmetry and thereby controls the symmetry of resonant modes and the resulting nonlinear selection rules.

If this is right

Pronounced circular dichroism appears in third-harmonic generation from purely planar structures.
Complementary meta-atom rotation angles swap the nonlinear chiral channels.
Optical resonances decide the strength and character of the nonlinear chiral response.
Meta-atom rotation provides a direct mechanism to engineer nonlinear chiral responses without three-dimensional chirality.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same rotation-based symmetry control could be applied to other nonlinear processes such as second-harmonic generation or four-wave mixing if similar resonant modes are excited.
Because the effect relies only on in-plane patterning, it may integrate directly into existing flat-optics fabrication flows for polarization-sensitive nonlinear elements.
Mechanical or electrostatic rotation of meta-atoms could enable dynamically tunable nonlinear chiral devices.
The approach suggests that many chiral nonlinear phenomena previously requiring volumetric designs can be realized with 2D symmetry breaking once resonances are properly aligned.

Load-bearing premise

The observed nonlinear circular dichroism and channel swapping arise specifically from the interplay between lattice symmetry and meta-atom orientation controlling resonant mode symmetry, rather than from fabrication imperfections or other unaccounted effects.

What would settle it

Fabricating complementary pairs of metasurfaces with rotation angles +theta and -theta, measuring their third-harmonic generation under left- and right-circularly polarized excitation, and finding that the dominant chiral channels do not swap or that the dichroism disappears when resonances are detuned would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.14589 by Brijesh Kumar, Dhruv Hariharan, Felix Ulrich Brikh, Hatice Altug, Ivan Sinev, Ivan Toftul, Pavel Tonkaev, Yuri Kivshar.

**Figure 2.** Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

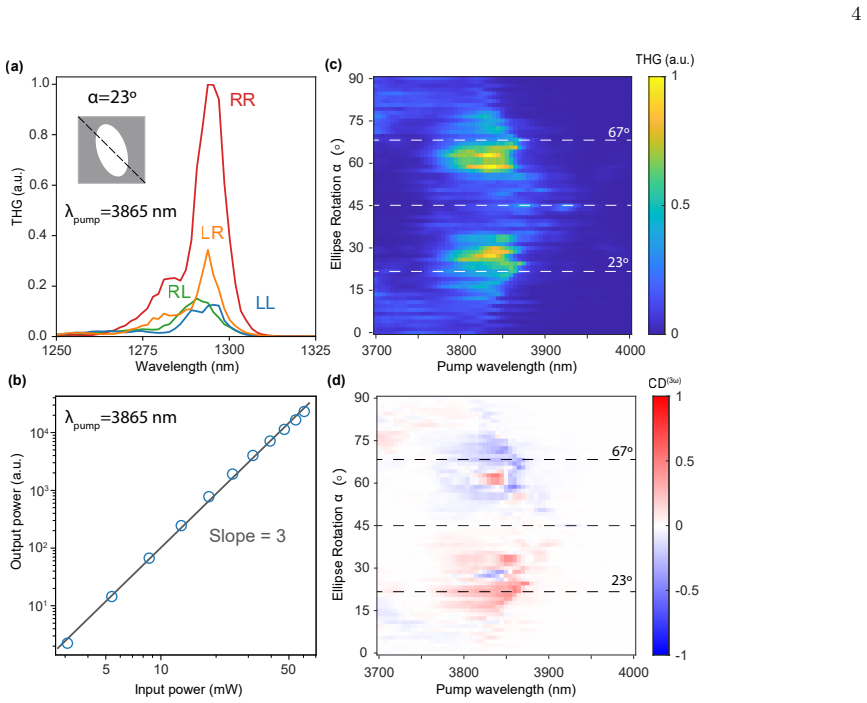

**Figure 3.** Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

read the original abstract

Chiral photonics provides powerful routes for controlling the light handedness, yet nonlinear chiral responses are typically associated with intricate three-dimensional systems. Here, we demonstrate that strong nonlinear chirality can emerge and be precisely tuned in planar metasurfaces. We study free-standing membrane metasurfaces composed of periodic lattices of tilted elliptic holes, which preserve out-of-plane mirror symmetry while breaking all in-plane mirror symmetries through the in-plane rotation of the meta-atoms. We demonstrate that optical resonances play a decisive role in governing the nonlinear chiral response, enabling pronounced circular dichroism in third-harmonic generation even when symmetry is broken only in plane. We experimentally reveal strong nonlinear chiral response from the metasurfaces and a striking swapping of nonlinear chiral channels for complementary meta-atom rotation angles. This behaviour arises from the interplay between lattice symmetry and meta-atom orientation, which controls the symmetry of the resonant modes and the resulting nonlinear selection rules. Our results establish meta-atom rotation as a powerful mechanism for engineering nonlinear chiral responses in planar metasurfaces, opening new opportunities for tunable chiral nonlinear metaphotonics devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Rotating tilted elliptic holes in planar membrane metasurfaces tunes nonlinear chirality in THG and swaps the chiral channels for complementary angles via symmetry control of resonant modes.

read the letter

The main thing here is that rotating the meta-atoms in these free-standing membrane metasurfaces gives you tunable nonlinear chirality in third-harmonic generation, with a clear swapping of the chiral channels when you use complementary rotation angles. The structure stays planar and keeps out-of-plane mirror symmetry, so the effect comes from breaking in-plane symmetries through the rotation itself. That part lines up with the symmetry analysis they lay out for how lattice plus orientation sets the resonant mode symmetries and the nonlinear selection rules. The experiments back the swapping and show strong circular dichroism in the THG signal, which is the practical payoff. They avoid the usual 3D fabrication hassle, which matters for making compact devices. The paper does a solid job connecting the observed resonances to the nonlinear response without obvious contradictions or hidden assumptions. The data tracks the predicted behavior for the different rotation angles. On the softer side, more quantitative simulation comparisons or explicit checks against possible fabrication variations would help pin down how robust the effect is, though the symmetry argument makes fabrication artifacts less likely to explain the swapping. The work sticks to THG, so it leaves open whether the same rotation trick applies cleanly to other nonlinear processes. This is worth attention from people building chiral metasurfaces for sensing or nonlinear optics who want planar, rotation-tunable options. A reader who cares about symmetry-driven design in photonics will get something concrete from the mechanism and the matching experiments. The thinking is straightforward and the evidence supports the central claim, so it deserves a serious referee rather than a quick pass.

Referee Report

0 major / 2 minor

Summary. The manuscript claims that strong nonlinear chirality in third-harmonic generation (THG) emerges and can be tuned in planar metasurfaces composed of periodic lattices of tilted elliptic holes. These structures preserve out-of-plane mirror symmetry while breaking all in-plane mirror symmetries via in-plane meta-atom rotation. Optical resonances govern the response by controlling resonant mode symmetries and nonlinear selection rules, leading to pronounced circular dichroism; experiments show strong nonlinear chiral response and a striking swapping of nonlinear chiral channels for complementary rotation angles, arising from the lattice symmetry plus meta-atom orientation interplay.

Significance. If the central claim holds, the work is significant because it establishes that intricate 3D chiral structures are unnecessary for strong, tunable nonlinear chirality; planar metasurfaces suffice when meta-atom rotation is used to break in-plane symmetries while resonances enforce selection rules. The experimental demonstration of channel swapping directly follows from the symmetry analysis and provides a falsifiable, parameter-free route to engineering nonlinear chiral responses, opening clear paths to tunable chiral nonlinear metaphotonics devices.

minor comments (2)

[Symmetry analysis section] The symmetry derivations in the main text would benefit from an explicit enumeration (perhaps as a table) of the allowed THG tensor components for the two complementary rotation angles to make the selection-rule origin of the channel swap fully transparent to readers.
[Experimental results figures] Figure captions for the experimental spectra should state the number of independent samples measured and whether the reported swapping is reproduced across devices to strengthen the claim that the effect is mechanism-driven rather than fabrication-dependent.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our work on nonlinear chiral responses in planar metasurfaces. We appreciate the recommendation for minor revision and the recognition that our approach demonstrates strong tunable nonlinear chirality without requiring intricate 3D structures. Since the report contains no specific major comments or requested changes, we have no individual points to address point-by-point. We are happy to incorporate any minor editorial suggestions during the revision process.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The manuscript is an experimental demonstration of tunable nonlinear chirality in planar metasurfaces via meta-atom rotation. Central claims rest on symmetry analysis of lattice and meta-atom orientation controlling resonant-mode symmetries and nonlinear selection rules, directly validated by measured third-harmonic circular dichroism and channel swapping for complementary angles. No equations appear that reduce any prediction to a fitted parameter, self-definition, or prior self-citation; the symmetry arguments are first-principles and independent of the reported data. The derivation chain is therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on experimental observation of symmetry-controlled nonlinear selection rules; no free parameters, invented entities, or non-standard axioms are stated in the abstract.
