Watching Trade from Space: Nowcasting and Spatial Extrapolation of Port-Level Maritime Trade Using Satellite Imagery

Yonggeun Jung

Authors on Pith no claims yet

Pith reviewed 2026-05-10 08:31 UTC · model grok-4.3

classification 💰 econ.GN q-fin.EC

keywords tradeport-levelsatellitedataimagerymaritimemeasureport

0 comments

The pith

Satellite imagery and port data enable nowcasting of port-level maritime trade with reliable recovery of percentage changes, applied to detect post-sanction trade reorientation in Russian ports.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors combine two types of satellite data with basic port information. Synthetic aperture radar sees ship movements and port activity through clouds and at night. Nighttime lights measure local economic brightness. These signals plus port size and location are fed into a predictive model trained on known U.S. port trade statistics. The model produces monthly estimates. When tested by holding out entire U.S. regions, it recovers the direction and size of trade changes accurately even though exact volumes are harder to pin down. A Monte Carlo simulation further checks robustness. The same model is then run on Russian ports after 2022 Western sanctions. It shows rising activity at Far Eastern ports, consistent with trade shifting toward Asia. The method stays useful even if ships disable tracking systems because it relies on passive satellite observations rather than self-reported positions.

Core claim

The model achieves strong out-of-sample accuracy for U.S. ports, with satellite signals and port attributes playing complementary roles. While absolute levels are difficult to extrapolate beyond the training domain, percentage changes are reliably recovered, as we confirm through a leave-one-region-out exercise and Monte Carlo simulation. Applying the framework to Russian ports after the 2022 sanctions, we detect shifts consistent with trade reorientation toward the Far East.

Load-bearing premise

The learned mapping from satellite features to trade volumes, calibrated on U.S. ports, generalizes sufficiently to recover percentage changes in other regions such as Russia despite the acknowledged difficulty of extrapolating absolute levels.

Figures

Figures reproduced from arXiv: 2604.15444 by Yonggeun Jung.

**Figure 2.** Figure 2: Schematic Overview of the Framework 9 [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗

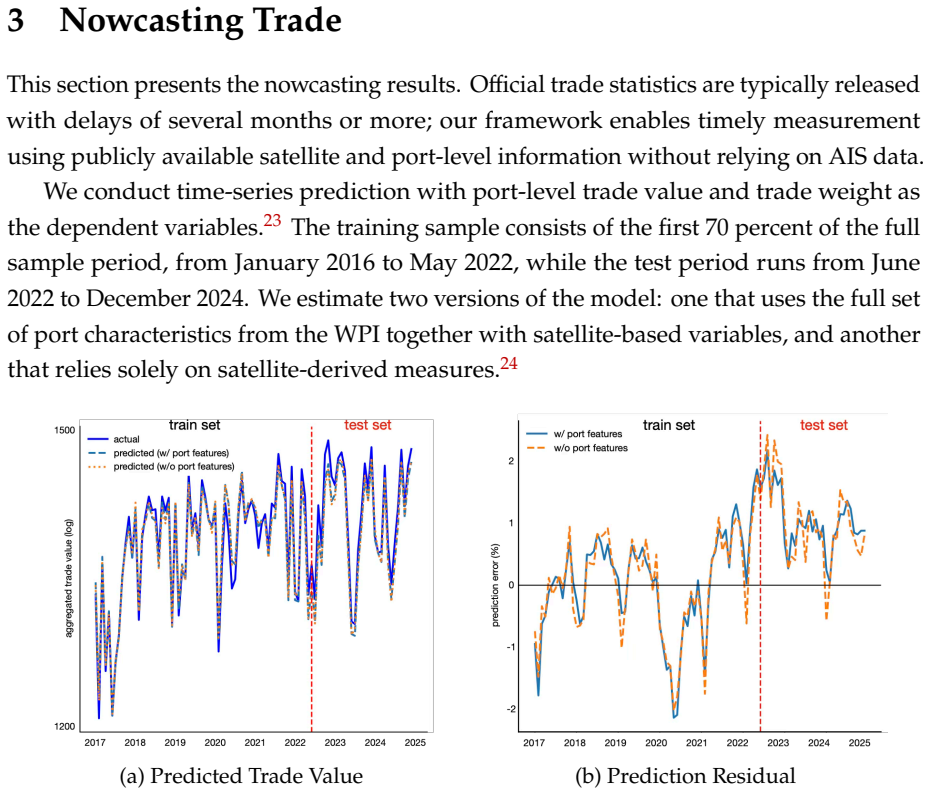

**Figure 3.** Figure 3: Predicted Trade Values and Errors Notes: Panel (a) plots the aggregate monthly trade value obtained by summing port-level predictions across all ports for each month. Model predictions are generated at the port-month level and aggregated solely for visualization purposes. The test sample begins in June 2022, indicated by the vertical dashed line. Although the estimation sample starts in 2016, observations … view at source ↗

**Figure 4.** Figure 4: Change in Prediction of Trade after Sanction [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗

read the original abstract

Satellite data are increasingly used to measure economic activity, yet port-level trade remains largely unmeasured from space. This paper combines synthetic aperture radar imagery, nighttime lights, and port characteristics to measure monthly port-level maritime trade using only publicly available data. The model achieves strong out-of-sample accuracy for U.S. ports, with satellite signals and port attributes playing complementary roles. While absolute levels are difficult to extrapolate beyond the training domain, percentage changes are reliably recovered, as we confirm through a leave-one-region-out exercise and Monte Carlo simulation. Applying the framework to Russian ports after the 2022 sanctions, we detect shifts consistent with trade reorientation toward the Far East. The approach complements AIS-based methods by remaining robust to strategic signal manipulation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Circularity Check

0 steps flagged

No circularity: model trained on independent US data, validated via hold-outs, applied as extrapolation

full rationale

The paper trains a predictive mapping from public satellite imagery (SAR, nighttime lights) and port attributes to maritime trade volumes using U.S. port data as ground truth. Out-of-sample performance for percentage changes is assessed through leave-one-region-out cross-validation (U.S.-internal) and Monte Carlo simulation, both independent of the Russian application. The Russia exercise is framed explicitly as extrapolation with acknowledged limits on absolute levels, not as a fitted or self-referential result. No equations reduce a claimed prediction to its own inputs by construction, no self-citations bear the central load, and no ansatz or uniqueness theorem is smuggled in. The derivation chain remains self-contained against external satellite sources and U.S. trade statistics.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on fitted machine-learning parameters trained on U.S. data and on domain assumptions that satellite proxies correlate with trade volumes and that percentage changes transfer across regions.

free parameters (1)

model coefficients and hyperparameters
Weights and tuning parameters in the predictive model fitted to U.S. port data.

axioms (2)

domain assumption SAR backscatter and nighttime light intensity are correlated with port trade volumes
Core modeling assumption invoked to justify using these signals as predictors.
domain assumption Percentage changes in trade can be extrapolated across geographic domains even when absolute levels cannot
Explicitly stated to support the Russia application after U.S. training.

pith-pipeline@v0.9.0 · 5420 in / 1483 out tokens · 35986 ms · 2026-05-10T08:31:21.041077+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

4 extracted references

[1]

Nowcasting Global Trade from Space,

Arslanalp , S., S. Mo Choi, P . Kamali, R. Koepke, M. McKetty , M. Ruta, M. Saraiva, A. Sozzi, and J. Verschuur(2025): “Nowcasting Global Trade from Space,” Tech. rep., IMF Working Paper. Bruzzone, L. and D. F. Prieto(2002): “Automatic Analysis of the Difference Image for Unsupervised Change Detection,”IEEE T ransactions on Geoscience and Remote Sensing, ...

2025
[2]

NASA’s Black Marble Nighttime Lights Product Suite,

Román, M. O., Z. W ang, Q. Sun, V . Kalb, S. D. Miller, A. Molthan, L. Schultz, J. Bell, E. C. Stokes, B. P andey , et al.(2018): “NASA’s Black Marble Nighttime Lights Product Suite,”Remote Sensing of Environment, 210, 113–143. Taipliadis, S.(2025): “Identifying Terms-of-Trade Shocks with Foreign Weather: Implica- tions for Monetary Policy,”Available at S...

2018
[3]

is publicly available for download athttps://msi.nga.mil/Pu blications/WPI and is updated monthly. We use the December 2025 release, which contains over 3,800 ports worldwide with more than 100 attributes per port, including coordinates, harbor characteristics, facilities, and services. Foreachport,wedefineanareaofinterest(AOI)asasquarebufferwitha3kmradiu...

2025
[4]

In the empirical analysis, we use signal-based features derived directly from the underlying SAR measurements

These are for illustrative purposes only. In the empirical analysis, we use signal-based features derived directly from the underlying SAR measurements. Online Appendix: For Online Publication Only 26 Figure B2: Trade Value and Satellite-based Variables 8 10 12 14 16 18 20 22 24 actual trade value (log) 8 10 12 14 16 18 20 22 24predicted trade value (log)...

2017
