arxiv: 2604.15677 · v1 · submitted 2026-04-17 · 💻 cs.CR

Recognition: unknown

DEMUX: Boundary-Aware Multi-Scale Traffic Demixing for Multi-Tab Website Fingerprinting

Yali Yuan , Yaosheng Liu , Qianqi Niu , Guang Cheng
Authors on Pith no claims yet

Pith reviewed 2026-05-10 08:56 UTC · model grok-4.3

classification 💻 cs.CR
keywords website fingerprintingmulti-tab traffictraffic demixingTorencrypted trafficdeep learningtraffic analysis
0
0 comments X

The pith

DEMUX demixes interleaved multi-tab traffic by preserving boundaries and associating dispersed fragments across scales.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Website fingerprinting attacks try to identify visited sites from encrypted Tor traffic, but they lose accuracy once users open several tabs at the same time because the packet streams become interleaved. The authors identify three requirements that prior methods fail to meet together: keeping signal integrity at the edges of traffic segments, modeling patterns at multiple time scales, and linking related fragments that are spread out in time. DEMUX supplies three coupled modules to satisfy those requirements and reports substantially higher accuracy than earlier techniques when five tabs are open simultaneously. A reader would care because everyday browsing involves multiple tabs, so single-tab assumptions no longer match real usage.

Core claim

No existing method meets all three structural requirements for multi-tab demixing at once. DEMUX satisfies them with a Boundary Preserving Aggregation Module that uses overlapping windows and joint packet-burst features, a Multi-Scale Parallel CNN with parallel branches for heterogeneous patterns, and a two-stage Transformer encoder equipped with Rotary Positional Embedding for cross-window fragment association. The same aggregation module works as a plug-and-play preprocessor. In closed-world experiments with five concurrent tabs, the method reaches a P@5 of 0.943 and MAP@5 of 0.961, exceeding the strongest baseline by 9.2 and 6.2 percentage points.

What carries the argument

Boundary Preserving Aggregation Module that performs overlapping window partitioning together with joint packet-level and burst-level feature extraction, paired with a Multi-Scale Parallel CNN and a two-stage Transformer encoder using Rotary Positional Embedding.

Load-bearing premise

The three structural requirements for multi-tab demixing are both necessary and jointly sufficient, and the proposed modules meet them without creating new failure modes or overfitting to particular datasets.

What would settle it

Collect a new set of five-tab closed-world traces under different network conditions or tab-opening orders and rerun the evaluation; if DEMUX no longer exceeds the strongest baseline by several points, the claim that the modules jointly solve the demixing problem would be undermined.

Figures

Figures reproduced from arXiv: 2604.15677 by Guang Cheng, Qianqi Niu, Yali Yuan, Yaosheng Liu.

Figure 1
Figure 1. Figure 1: Website fingerprinting attackers monitor the encrypted traffic between [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The DEMUX framework diagram includes the Boundary Preserving Aggregation Module, Multi-Granularity Local Analysis, and Global Association [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

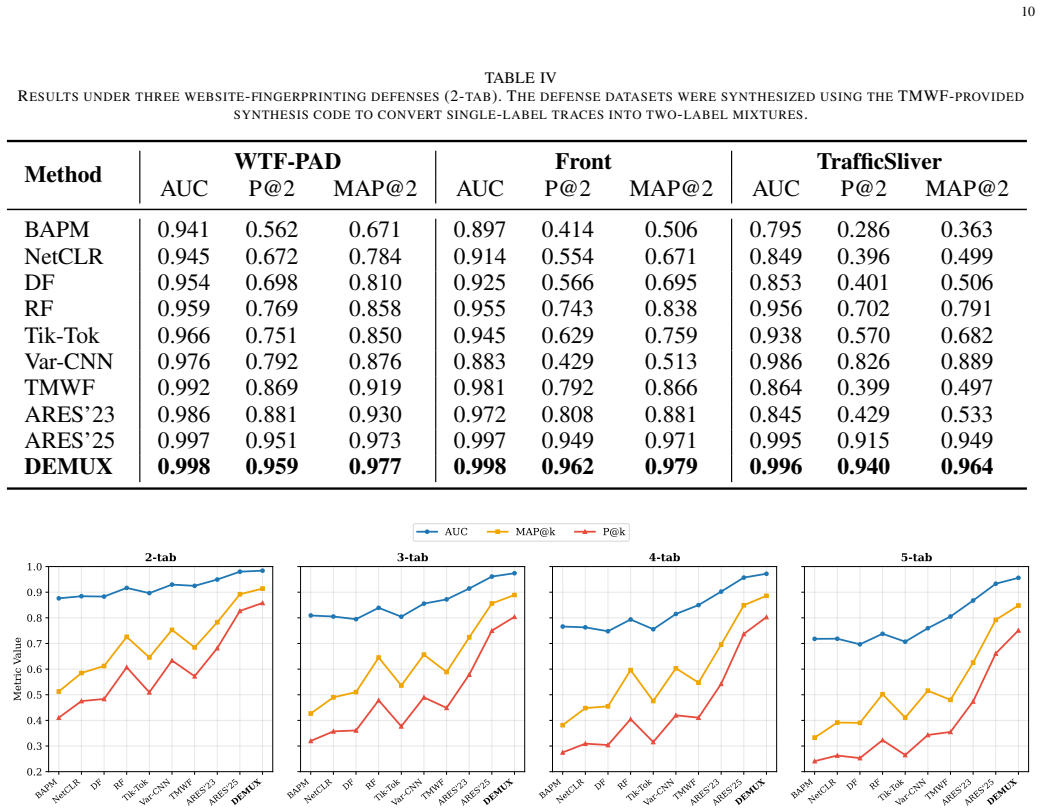

Figure 3
Figure 3. Figure 3: Dynamic-tab evaluation on the closed-world dataset. Models are trained on a mixed 2–5-tab training set and evaluated separately on each fixed-tab [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 6
Figure 6. Figure 6: Convergence behaviour of DEMUX in the open-world 5-tab setting. [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 5
Figure 5. Figure 5: Effectiveness of the Boundary Preserving Aggregation Module as a [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
read the original abstract

Website fingerprinting (WF) attacks infer the websites visited by users from encrypted traffic in anonymous networks such as Tor. Existing deep learning methods achieve high accuracy under the single-tab assumption but degrade substantially when users open multiple tabs concurrently, producing interleaved traffic that transforms WF into an implicit demixing problem. We identify three structural requirements for effective multi-tab demixing, namely signal integrity at segment boundaries, multi-scale local modeling, and relative temporal association of dispersed fragments, and show that no prior method satisfies all three simultaneously. We propose DEMUX, a designed framework that addresses these requirements through three tightly coupled components. A Boundary Preserving Aggregation Module employs overlapping window partitioning with joint packet-level and burst-level feature extraction. A Multi-Scale Parallel CNN captures heterogeneous temporal patterns via parallel branches. A two-stage Transformer encoder with Rotary Positional Embedding enables robust cross-window fragment association. The Boundary Preserving Aggregation Module additionally serves as a plug-and-play preprocessor that consistently improves existing baselines without architectural modification. Extensive experiments across closed-world, open-world, defense-augmented, dynamic-tab, and cross-configuration settings demonstrate that DEMUX achieves state-of-the-art performance. In the challenging closed-world 5-tab setting, DEMUX attains a P@5 of 0.943 and MAP@5 of 0.961, outperforming the strongest baseline by 9.2 and 6.2 percentage points respectively, confirming its strong robustness in complex multi-tab demixing scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that multi-tab website fingerprinting on Tor traffic is an implicit demixing problem requiring three structural properties (boundary signal integrity, multi-scale local modeling, and relative temporal association of fragments) that no prior method satisfies simultaneously. It proposes DEMUX with three tightly coupled components—a Boundary Preserving Aggregation module using overlapping windows, a Multi-Scale Parallel CNN, and a two-stage RoPE Transformer—to address these properties, plus a plug-and-play preprocessor that improves existing baselines. Experiments across closed-world, open-world, defense, dynamic-tab, and cross-configuration settings report SOTA results, including P@5 of 0.943 and MAP@5 of 0.961 in the closed-world 5-tab case (9.2 and 6.2 pp gains over the strongest baseline).

Significance. If the reported gains are robust and attributable to the proposed design choices, the work meaningfully advances WF attacks under realistic concurrent-tab conditions where single-tab assumptions break down. The preprocessor's ability to improve unmodified baselines is a practical strength that could see adoption, and the explicit mapping of requirements to modules provides a clearer design rationale than purely empirical prior approaches.

major comments (2)
  1. [Experiments] Experiments section: the central attribution of the 9.2 pp P@5 gain in the closed-world 5-tab setting to the three modules satisfying the identified requirements is not supported by ablation or sensitivity studies. No component-wise removal experiments, capacity-matched controls, or controlled variation of window overlap / branch count are reported, leaving open the possibility that gains arise from overall model size, training protocol, or dataset-specific factors rather than the claimed structural fixes.
  2. [Section 4] Section 4 (or equivalent, describing the preprocessor): while the Boundary Preserving Aggregation module is stated to improve existing baselines as a plug-and-play component, the manuscript provides no quantitative breakdown of which baselines were tested, the exact magnitude of improvement per baseline, or whether the improvement holds after hyperparameter re-tuning of the baselines themselves.
minor comments (2)
  1. [Abstract and Experiments] The abstract and experimental tables should explicitly state the number of independent runs, random seeds, and whether hyperparameter search was performed jointly or per baseline to allow assessment of selection effects.
  2. [Methods] Notation for the overlapping window partitioning and the two-stage Transformer should be introduced with a small diagram or pseudocode in the methods section for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and the recommendation for major revision. We address the two major comments point by point below, acknowledging where the manuscript is currently lacking and outlining the planned revisions.

read point-by-point responses

  1. Referee: [Experiments] Experiments section: the central attribution of the 9.2 pp P@5 gain in the closed-world 5-tab setting to the three modules satisfying the identified requirements is not supported by ablation or sensitivity studies. No component-wise removal experiments, capacity-matched controls, or controlled variation of window overlap / branch count are reported, leaving open the possibility that gains arise from overall model size, training protocol, or dataset-specific factors rather than the claimed structural fixes.

    Authors: We agree that the manuscript does not contain explicit ablation or sensitivity studies that would allow direct attribution of the reported gains to the three proposed modules. While the experiments demonstrate consistent outperformance across closed-world, open-world, defense-augmented, dynamic-tab, and cross-configuration settings, this does not fully exclude contributions from model capacity or training details. In the revised manuscript we will add (i) component-wise removal ablations, (ii) capacity-matched control models, and (iii) sensitivity analyses on window overlap and branch count to strengthen the causal link between the identified requirements and the observed improvements. revision: yes

  2. Referee: [Section 4] Section 4 (or equivalent, describing the preprocessor): while the Boundary Preserving Aggregation module is stated to improve existing baselines as a plug-and-play component, the manuscript provides no quantitative breakdown of which baselines were tested, the exact magnitude of improvement per baseline, or whether the improvement holds after hyperparameter re-tuning of the baselines themselves.

    Authors: We acknowledge that the manuscript currently states the plug-and-play benefit without providing a per-baseline quantitative breakdown or results after hyperparameter re-tuning. Although internal evaluations supported the claim of consistent improvement, the presentation lacks the requested detail. In the revision we will insert a dedicated table and accompanying text that (a) lists all baselines evaluated with the preprocessor, (b) reports the exact performance deltas for each, and (c) includes results obtained after re-tuning the baselines' own hyperparameters. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical claims rest on held-out evaluation against external baselines.

full rationale

The paper states three structural requirements for multi-tab demixing, designs three modules to address them, and reports empirical gains (e.g., +9.2 pp P@5 in closed-world 5-tab) on held-out test sets versus prior baselines. No equations, fitted parameters, or first-principles derivations are presented; the architecture is trained end-to-end and the preprocessor is shown to improve unmodified baselines. No self-citation chain, self-definitional steps, or renaming of known results appears in the load-bearing claims. The central result is therefore externally falsifiable and does not reduce to its own inputs by construction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on empirical validation of a new neural architecture for traffic demixing; it inherits standard deep-learning assumptions and introduces no new physical or mathematical entities.

free parameters (1)
  • Hyperparameters of the CNN branches, transformer layers, and window overlap sizes
    Chosen or tuned on training data to optimize demixing performance; exact values not stated in abstract.
axioms (1)
  • domain assumption The three structural requirements (boundary integrity, multi-scale modeling, fragment association) are the primary bottlenecks in prior multi-tab WF methods.
    Stated as identified requirements that no prior method satisfies simultaneously.

pith-pipeline@v0.9.0 · 5568 in / 1269 out tokens · 41251 ms · 2026-05-10T08:56:22.335496+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

37 extracted references · 5 canonical work pages · 1 internal anchor

  1. [1]

    Tor: The second- generation onion router,

    R. Dingledine, N. Mathewson, and P. Syverson, “Tor: The second- generation onion router,” 2004

    2004

  2. [2]

    Seeing traffic paths: Encrypted traffic classification with path signature features,

    S.-J. Xu, G.-G. Geng, X.-B. Jin, D.-J. Liu, and J. Weng, “Seeing traffic paths: Encrypted traffic classification with path signature features,”IEEE Transactions on Information Forensics and Security, vol. 17, pp. 2166– 2181, 2022

    2022

  3. [3]

    Website finger- printing in onion routing based anonymization networks,

    A. Panchenko, L. Niessen, A. Zinnen, and T. Engel, “Website finger- printing in onion routing based anonymization networks,” inProceedings of the 10th annual ACM workshop on Privacy in the electronic society, 2011, pp. 103–114

    2011

  4. [4]

    k-fingerprinting: A robust scalable web- site fingerprinting technique,

    J. Hayes and G. Danezis, “k-fingerprinting: A robust scalable web- site fingerprinting technique,” in25th USENIX Security Symposium (USENIX Security 16), 2016, pp. 1187–1203

    2016

  5. [5]

    Website fingerprinting at internet scale

    A. Panchenko, F. Lanze, J. Pennekamp, T. Engel, A. Zinnen, M. Henze, and K. Wehrle, “Website fingerprinting at internet scale.” inNDSS, vol. 1, 2016, p. 23477

    2016

  6. [6]

    p-fp: Extraction, classification, and prediction of website fingerprints with deep learning,

    S. E. Oh, S. Sunkam, and N. Hopper, “p-fp: Extraction, classification, and prediction of website fingerprints with deep learning,”Proceedings on Privacy Enhancing Technologies, vol. 3, pp. 191–209, 2019

    2019

  7. [7]

    Trafficsliver: Fighting website fingerprinting attacks with traffic splitting,

    W. De la Cadena, A. Mitseva, J. Hiller, J. Pennekamp, S. Reuter, J. Filter, T. Engel, K. Wehrle, and A. Panchenko, “Trafficsliver: Fighting website fingerprinting attacks with traffic splitting,” inProceedings of the 2020 ACM SIGSAC Conference on Computer and Communications Security, 2020, pp. 1971–1985

    2020

  8. [8]

    Deep fingerprinting: Undermining website fingerprinting defenses with deep learning,

    P. Sirinam, M. Imani, M. Juarez, and M. Wright, “Deep fingerprinting: Undermining website fingerprinting defenses with deep learning,” in Proceedings of the 2018 ACM SIGSAC conference on computer and communications security, 2018, pp. 1928–1943

    2018

  9. [9]

    Automated website fingerprinting through deep learning,

    V . Rimmer, D. Preuveneers, M. Juarez, T. Van Goethem, and W. Joosen, “Automated website fingerprinting through deep learning,” inNetwork and Distributed System Security Symposium. IEEE Internet Society, 2018, pp. 1–15

    2018

  10. [10]

    Var-cnn and dynaflow: Improved attacks and defenses for website fingerprinting.CoRR, abs/1802.10215, 2018

    S. Bhat, D. Lu, A. Kwon, and S. Devadas, “Var-cnn: A data-efficient website fingerprinting attack based on deep learning,”arXiv preprint arXiv:1802.10215, 2018

    work page arXiv 2018

  11. [11]

    More realistic website fingerprinting using deep learning,

    W. Cui, T. Chen, and E. Chan-Tin, “More realistic website fingerprinting using deep learning,” in2020 IEEE 40th International Conference on Distributed Computing Systems (ICDCS). IEEE, 2020, pp. 333–343

    2020

  12. [12]

    Snwf: Website fingerprinting attack by ensembling the snapshot of deep learning,

    Y . Wang, H. Xu, Z. Guo, Z. Qin, and K. Ren, “Snwf: Website fingerprinting attack by ensembling the snapshot of deep learning,”IEEE Transactions on Information Forensics and Security, vol. 17, pp. 1214– 1226, 2022

    2022

  13. [13]

    Towards an efficient defense against deep learning based website fingerprinting,

    Z. Ling, G. Xiao, W. Wu, X. Gu, M. Yang, and X. Fu, “Towards an efficient defense against deep learning based website fingerprinting,” in IEEE INFOCOM 2022-IEEE Conference on Computer Communications. IEEE, 2022, pp. 310–319

    2022

  14. [14]

    Toward an effective few-shot website fingerprinting attack with quadruplet networks and deep local fingerprinting features,

    H. Zou, J. Su, Z. Wei, S. Chen, C. Yang, and M. Chen, “Toward an effective few-shot website fingerprinting attack with quadruplet networks and deep local fingerprinting features,”IEEE Transactions on Dependable and Secure Computing, 2025

    2025

  15. [15]

    Cross-environmental website fingerprinting,

    J. Li, D. Wang, Y . Liu, Y . Gao, X. Zhang, Z. Lin, X. Ma, X. Luo, and X. Guan, “Cross-environmental website fingerprinting,” inIEEE INFO- COM 2025-IEEE Conference on Computer Communications. IEEE, 2025, pp. 1–10

    2025

  16. [16]

    Bapm: block attention profiling model for multi-tab website fingerprinting attacks on tor,

    Z. Guan, G. Xiong, G. Gou, Z. Li, M. Cui, and C. Liu, “Bapm: block attention profiling model for multi-tab website fingerprinting attacks on tor,” inProceedings of the 37th Annual Computer Security Applications Conference, 2021, pp. 248–259

    2021

  17. [17]

    Robust multi-tab website fingerprinting attacks in the wild,

    X. Deng, Q. Yin, Z. Liu, X. Zhao, Q. Li, M. Xu, K. Xu, and J. Wu, “Robust multi-tab website fingerprinting attacks in the wild,” in2023 IEEE symposium on security and privacy (SP). IEEE, 2023, pp. 1005– 1022

    2023

  18. [18]

    Transformer-based model for multi- tab website fingerprinting attack,

    Z. Jin, T. Lu, S. Luo, and J. Shang, “Transformer-based model for multi- tab website fingerprinting attack,” inProceedings of the 2023 ACM SIGSAC Conference on Computer and Communications Security, 2023, pp. 1050–1064

    2023

  19. [19]

    Towards robust multi-tab website fingerprinting,

    X. Deng, X. Zhao, Q. Yin, Z. Liu, Q. Li, M. Xu, K. Xu, and J. Wu, “Towards robust multi-tab website fingerprinting,”arXiv preprint arXiv:2501.12622, 2025

    work page arXiv 2025

  20. [20]

    Effective attacks and provable defenses for website fingerprinting,

    T. Wang, X. Cai, R. Nithyanand, R. Johnson, and I. Goldberg, “Effective attacks and provable defenses for website fingerprinting,” in23rd USENIX Security Symposium (USENIX Security 14), 2014, pp. 143– 157

    2014

  21. [21]

    Wtf- pad: toward an efficient website fingerprinting defense for tor,

    M. Ju ´arez, M. Imani, M. Perry, C. Dıaz, and M. Wright, “Wtf- pad: toward an efficient website fingerprinting defense for tor,”CoRR, abs/1512.00524, 2015

    work page arXiv 2015

  22. [22]

    Tik-tok: The utility of packet timing in website finger- printing attacks,

    M. S. Rahman, P. Sirinam, N. Mathews, K. G. Gangadhara, and M. Wright, “Tik-tok: The utility of packet timing in website finger- printing attacks,”arXiv preprint arXiv:1902.06421, 2019

    work page arXiv 1902

  23. [23]

    Triplet fingerprinting: More practical and portable website fingerprinting with n-shot learning,

    P. Sirinam, N. Mathews, M. S. Rahman, and M. Wright, “Triplet fingerprinting: More practical and portable website fingerprinting with n-shot learning,” inProceedings of the 2019 ACM SIGSAC Conference on Computer and Communications Security, 2019, pp. 1131–1148

    2019

  24. [24]

    Online website fingerprinting: Evaluating website fingerprinting attacks on tor in the real world,

    G. Cherubin, R. Jansen, and C. Troncoso, “Online website fingerprinting: Evaluating website fingerprinting attacks on tor in the real world,” in31st USENIX Security Symposium (USENIX Security 22), 2022, pp. 753–770

    2022

  25. [25]

    Realistic website fingerprinting by augmenting network traces,

    A. Bahramali, A. Bozorgi, and A. Houmansadr, “Realistic website fingerprinting by augmenting network traces,” inProceedings of the 2023 ACM SIGSAC Conference on Computer and Communications Security, 2023, pp. 1035–1049

    2023

  26. [26]

    Subverting website fingerprinting defenses with robust traffic representation,

    M. Shen, K. Ji, Z. Gao, Q. Li, L. Zhu, and K. Xu, “Subverting website fingerprinting defenses with robust traffic representation,” in 32nd USENIX Security Symposium (USENIX Security 23), 2023, pp. 607–624

    2023

  27. [27]

    Laserbeak: Evolving website fingerprinting attacks with attention and multi-channel feature representation,

    N. Mathews, J. K. Holland, N. Hopper, and M. Wright, “Laserbeak: Evolving website fingerprinting attacks with attention and multi-channel feature representation,”IEEE Transactions on Information Forensics and Security, 2024

    2024

  28. [28]

    A multi- tab website fingerprinting attack,

    Y . Xu, T. Wang, Q. Li, Q. Gong, Y . Chen, and Y . Jiang, “A multi- tab website fingerprinting attack,” inProceedings of the 34th Annual Computer Security Applications Conference, 2018, pp. 327–341

    2018

  29. [29]

    Zero-delay lightweight defenses against website fingerprinting,

    J. Gong and T. Wang, “Zero-delay lightweight defenses against website fingerprinting,” in29th USENIX Security Symposium (USENIX Security 20), 2020, pp. 717–734

    2020

  30. [30]

    Attention is all you need,

    A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin, “Attention is all you need,”Advances in neural information processing systems, vol. 30, 2017

    2017

  31. [31]

    Roformer: En- hanced transformer with rotary position embedding,

    J. Su, M. Ahmed, Y . Lu, S. Pan, W. Bo, and Y . Liu, “Roformer: En- hanced transformer with rotary position embedding,”Neurocomputing, vol. 568, p. 127063, 2024

    2024

  32. [32]

    Deep residual learning for image recognition,

    K. He, X. Zhang, S. Ren, and J. Sun, “Deep residual learning for image recognition,” inProceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2016, pp. 770–778. 14

    2016

  33. [33]

    Batch normalization: Accelerating deep network training by reducing internal covariate shift,

    S. Ioffe and C. Szegedy, “Batch normalization: Accelerating deep network training by reducing internal covariate shift,” inInternational Conference on Machine Learning. PMLR, 2015, pp. 448–456

    2015

  34. [34]

    Layer Normalization

    J. L. Ba, J. R. Kiros, and G. E. Hinton, “Layer normalization,”arXiv preprint arXiv:1607.06450, 2016

    work page internal anchor Pith review Pith/arXiv arXiv 2016

  35. [35]

    Auc: a statistically consistent and more discriminating measure than accuracy,

    C. X. Ling, J. Huang, H. Zhanget al., “Auc: a statistically consistent and more discriminating measure than accuracy,” inIjcai, vol. 3, 2003, pp. 519–524

    2003

  36. [36]

    Robust and reliable early-stage web- site fingerprinting attacks via spatial-temporal distribution analysis,

    X. Deng, Q. Li, and K. Xu, “Robust and reliable early-stage web- site fingerprinting attacks via spatial-temporal distribution analysis,” in Proceedings of the 2024 ACM SIGSAC Conference on Computer and Communications Security, 2024

    2024

  37. [37]

    Decoupled weight decay regularization,

    I. Loshchilov and F. Hutter, “Decoupled weight decay regularization,” inInternational Conference on Learning Representations, 2019

    2019
