Shaping Plant-Like Shape-Changing Interfaces as Vertical Charts: Maximizing Readability, Aesthetics, and Naturalness

Elodie Bouzekri , Guillaume Riviere
Authors on Pith no claims yet

Pith reviewed 2026-05-10 07:56 UTC · model grok-4.3

classification 💻 cs.HC
keywords plant-like chartsshape-changing interfacesdata visualizationenvironmental datarenewable energynaturalnessreadabilityphysical interfaces
0
0 comments X

The pith

Physical plant-like charts match graphical versions in readability while providing superior naturalness and public installability for energy data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses a research-through-design approach to create plant-like shape-changing interfaces that act as vertical charts for environmental data such as renewable energy forecasts. It tests four prototypes that differ in physical versus graphical modality and in material choices, gathering user feedback on scenarios involving these forecasts. The evaluations show that physical versions deliver promising performance alongside the highest naturalness when materials allow perception of low-tech aspects. These charts can be installed in public places without explanations because folded shapes encode rates from zero to a maximum value.

Core claim

Physical plant-like charts are worthwhile because they achieve promising performance and best-of-breed naturalness when materials allow low-tech aspects' perception, and because they can be installed in public places without explanations if folded shapes encode rates ranging from 0 to a maximum value.

What carries the argument

Four prototypes of plant-like charts compared across physical versus graphical modality and material dimensions, using folded shapes to represent data rates.

If this is right

  • Physical charts can be deployed in public spaces without additional instructions when folded shapes represent rates from zero to maximum.
  • Materials that evoke sustainability increase the perceived naturalness of the displays compared to graphical alternatives.
  • Performance on data interpretation tasks remains comparable to graphical charts in controlled renewable energy forecast scenarios.
  • Users can learn the folded shape encoding quickly enough for immediate use without training.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • These designs could support ongoing public awareness of environmental metrics by blending into everyday spaces like parks or building lobbies.
  • The same folding mechanism might extend to other rate-based data such as water usage or air quality levels in urban settings.
  • Real-world durability tests would be needed to check whether physical materials hold up to weather and repeated interactions over months.

Load-bearing premise

Feedback from controlled user scenarios with renewable energy forecasts will generalize to real public installations and the chosen prototypes truly maximize readability, aesthetics, and naturalness across broader contexts.

What would settle it

A public installation study measuring whether passersby correctly interpret data rates from the folded shapes without any prior instructions or explanations.

Figures

Figures reproduced from arXiv: 2604.15902 by Elodie Bouzekri, Guillaume Riviere.

Figure 1

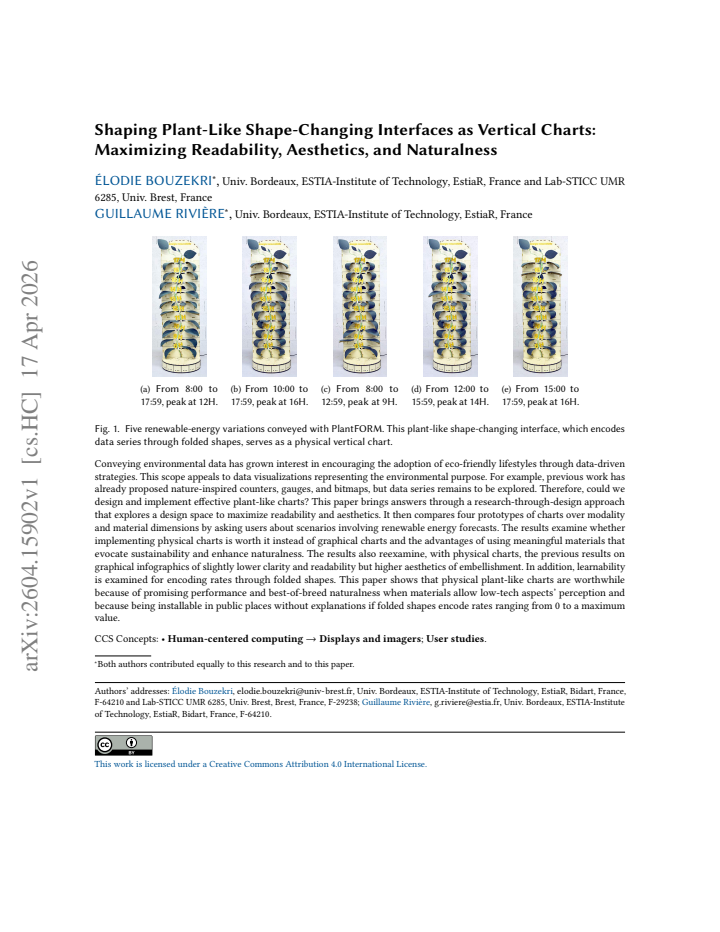

Figure 1. Figure 1: Five renewable-energy variations conveyed with PlantFORM. This plant-like shape-changing interface, which encodes [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Plants’ furling inspired our design of rate encoding. The design intent is to relate energy rates to nature’s concerns. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: A four-axis design space for plant-like vertical charts. The values are sorted from lower to higher nature-likelihood. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: First Online Study – The six low-fidelity histograms. Four dimensions are explored: trunk form (straight vs curvy), [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: First Online Study – Task success and preferences on aesthetics and clarity for the six histograms (N=16). [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Second Online Study – The two low-fidelity histograms. Two dimensions are compared: decoration (bamboo vs leaf ) [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Second Online Study – Results (N=25). (A6) Nature-evocative bar-like charts (for instance, BambHISTO) slightly outperform [+2%, +4%] unfurling-leaf charts (for instance, PlantHISTO). According to the first online study’s results on bar and bar-like charts with one-sided anchorings, reading straight bamboo sticks should slightly outperform the folded plant leaves. 6.3 Results and Analysis [PITH_FULL_IMAGE:… view at source ↗
Figure 8

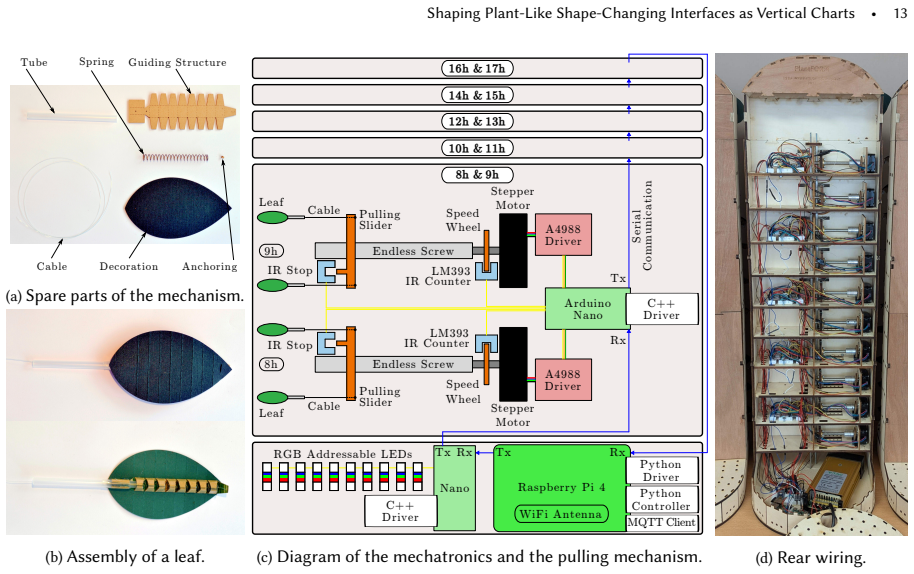

Figure 8. Figure 8: Implementing PlantFORM prototype. We provided a mechanical solution to leaf unfurling through a folding [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: The unfurling of a physical leaf prototype. Leaves are made of laser-cut cardboard and thick paper and are actuated [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗
Figure 10

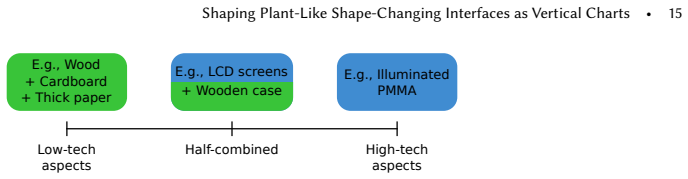

Figure 10. Figure 10: Continuum of the perceived tech trends according to materials’ choices. As packaging materials effects the perception [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: User Study – The four high-fidelity histograms. Energy variations are encoded through shape-change without [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12

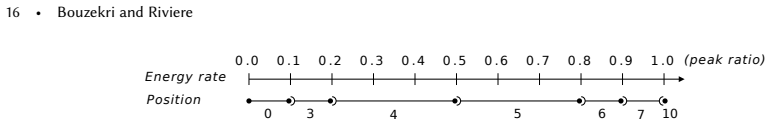

Figure 12. Figure 12: Data encoding relative to the peak. Energy rates are mapped to seven positions in a non-linear way that increases [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: User Study – Experimental setup. study, histograms’ use was counterbalanced through four presentation orders (i.e., among four groups of users) by following a Latin square to prevent biases. 8.5 Apparatus The experimental setup is depicted in Figure 13a. The four histograms were placed on two tables facing the participant’s seat. CairnFORM was further away than the other histograms in an attempt to preser… view at source ↗
Figure 14
Figure 14. Figure 14: User Study – Performance and some user preferences for the four histograms (N=28). [PITH_FULL_IMAGE:figures/full_fig_p020_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: User Study – Success rates per task for the four histograms (N=28). [PITH_FULL_IMAGE:figures/full_fig_p021_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: User Study – User experience through the ten items of the AttrakDiff short questionnaire (N=28). [PITH_FULL_IMAGE:figures/full_fig_p021_16.png] view at source ↗
read the original abstract

Conveying environmental data has grown interest in encouraging the adoption of eco-friendly lifestyles through data-driven strategies. This scope appeals to data visualizations representing the environmental purpose. For example, previous work has already proposed nature-inspired counters, gauges, and bitmaps, but data series remains to be explored. Therefore, could we design and implement effective plant-like charts? This paper brings answers through a research-through-design approach that explores a design space to maximize readability and aesthetics. It then compares four prototypes of charts over modality and material dimensions by asking users about scenarios involving renewable energy forecasts. The results examine whether implementing physical charts is worth it instead of graphical charts and the advantages of using meaningful materials that evocate sustainability and enhance naturalness. The results also reexamine, with physical charts, the previous results on graphical infographics of slightly lower clarity and readability but higher aesthetics of embellishment. In addition, learnability is examined for encoding rates through folded shapes. This paper shows that physical plant-like charts are worthwhile because of promising performance and best-of-breed naturalness when materials allow low-tech aspects' perception and because being installable in public places without explanations if folded shapes encode rates ranging from 0 to a maximum value.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper uses a research-through-design approach to explore plant-like shape-changing interfaces as vertical charts for environmental data such as renewable energy forecasts. It develops four prototypes differing in physical/graphical modality and material, then conducts user studies in controlled scenarios to compare them on readability, aesthetics, naturalness, and learnability of folded shapes encoding rates from 0 to a maximum. The central claim is that physical plant-like charts are worthwhile due to promising performance, superior naturalness (especially with materials evoking sustainability), and potential for unsupervised public installation without explanations.

Significance. If the empirical findings hold under more detailed reporting, the work contributes to HCI and sustainable visualization by showing how biomimetic physical interfaces can enhance perceived naturalness and engagement compared to graphical alternatives, while reexamining prior results on embellished infographics. The design-space exploration and focus on low-tech material perception are strengths, though the overall significance is moderated by the absence of quantitative study details and untested real-world generalization.

major comments (2)
  1. [Abstract] Abstract: The summary states that user studies examined performance and naturalness but provides no information on participant numbers, statistical methods, exact measures, or analysis procedures. This absence makes it impossible to assess the strength of evidence for the central claim that physical charts deliver 'promising performance' and 'best-of-breed naturalness.'
  2. [Abstract] Abstract (and implied Results/Conclusion sections): The claim that the charts 'being installable in public places without explanations if folded shapes encode rates ranging from 0 to a maximum value' is presented as a key advantage, yet all described studies occurred in controlled scenarios where participants were given context about renewable energy forecasts. No data from unsupervised public deployments or incidental viewing is reported, so the extrapolation to no-explanation public use is unsupported and load-bearing for the 'worthwhile' conclusion.
minor comments (2)
  1. [Abstract] Abstract: The phrasing 'This scope appeals to data visualizations representing the environmental purpose' is vague and could be clarified to improve readability.
  2. [Abstract] Abstract: The sentence beginning 'The results also reexamine, with physical charts, the previous results on graphical infographics of slightly lower clarity...' has awkward structure and should be split or reworded for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback, which highlights important areas for improving the clarity of our claims. We address each major comment below and commit to revisions that strengthen the manuscript without overstating our results.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The summary states that user studies examined performance and naturalness but provides no information on participant numbers, statistical methods, exact measures, or analysis procedures. This absence makes it impossible to assess the strength of evidence for the central claim that physical charts deliver 'promising performance' and 'best-of-breed naturalness.'

    Authors: We agree that the abstract should provide sufficient methodological details to allow readers to evaluate the evidence. The full manuscript reports two user studies with a total of 48 participants, using within-subjects designs, accuracy and response-time measures for readability, 7-point Likert scales for naturalness and aesthetics, and repeated-measures ANOVA with post-hoc tests for analysis. In the revised version we will condense these details into the abstract (e.g., “N=48, within-subjects, ANOVA on accuracy/RT and Likert ratings”) so the strength of the performance and naturalness findings can be assessed directly from the abstract. revision: yes

  2. Referee: [Abstract] Abstract (and implied Results/Conclusion sections): The claim that the charts 'being installable in public places without explanations if folded shapes encode rates ranging from 0 to a maximum value' is presented as a key advantage, yet all described studies occurred in controlled scenarios where participants were given context about renewable energy forecasts. No data from unsupervised public deployments or incidental viewing is reported, so the extrapolation to no-explanation public use is unsupported and load-bearing for the 'worthwhile' conclusion.

    Authors: We acknowledge that our empirical work was conducted in controlled lab settings where participants received a brief introduction to the renewable-energy context. The public-installation claim is an implication drawn from the learnability results: in both studies, participants could correctly interpret the folded-shape encoding of rates from zero to maximum after minimal exposure and without further instruction. We agree this does not constitute direct evidence from unsupervised public deployments. In revision we will rephrase the abstract and conclusion to present the claim as “a promising implication supported by observed learnability” rather than a demonstrated advantage, and we will explicitly note the need for future in-the-wild studies. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical design study with independent user data

full rationale

The paper follows a research-through-design methodology, exploring a design space and evaluating four prototypes via user studies on readability, aesthetics, naturalness, and learnability in renewable energy forecast scenarios. No equations, derivations, fitted parameters, or predictions appear in the provided text or abstract. Central claims rest on fresh empirical feedback rather than reducing by construction to prior results, self-citations, or renamed inputs. The work is self-contained against external benchmarks of user performance and perception.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper rests on standard HCI evaluation assumptions rather than mathematical axioms or new entities. No free parameters or invented entities are introduced as this is an empirical design study.

axioms (1)
  • domain assumption User responses in scenario-based tests with renewable energy data accurately predict performance and acceptance in real public installations without explanations
    The study relies on this to conclude installability in public places; it is invoked in the results discussion of learnability and naturalness.
