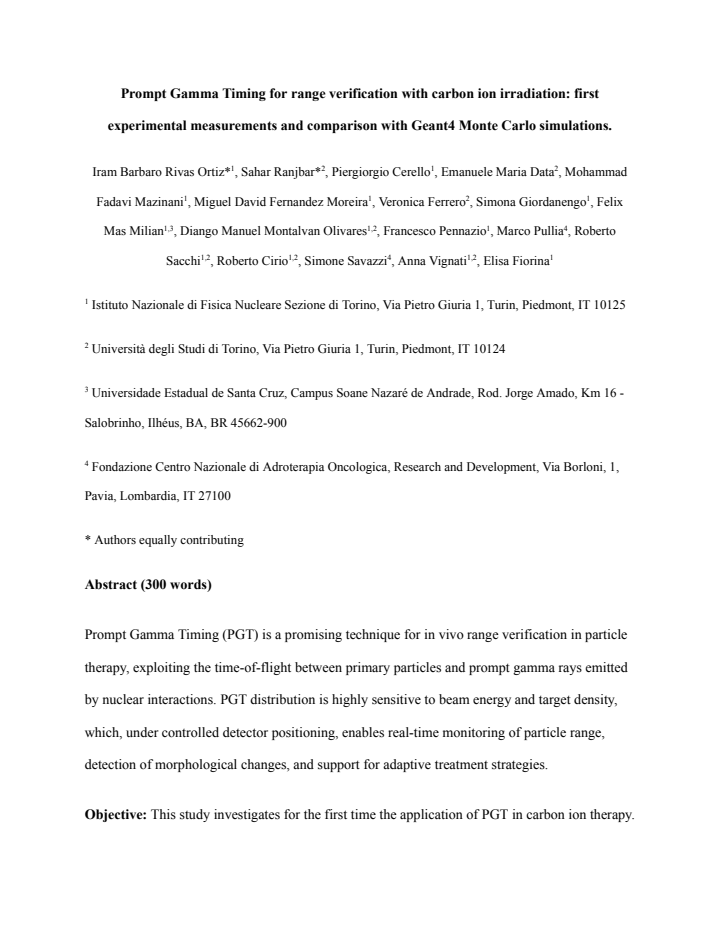

Prompt Gamma Timing for range verification with carbon ion irradiation: first experimental measurements and comparison with Geant4 Monte Carlo simulations
Pith reviewed 2026-05-10 07:07 UTC · model grok-4.3
The pith
Prompt gamma timing resolves energy-dependent range differences in carbon ion beams through validated experiment and simulation.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
A silicon-strip timing detector combined with a LaBr3 gamma detector recorded prompt-gamma time-of-flight distributions when carbon ions at 166.41, 268.86 and 398.84 MeV/u struck a 30 cm PMMA target. Bin-by-bin comparison with Geant4 simulations showed agreement inside the 95 percent confidence interval, with zero incompatible bins at the lowest energy and at most 8 percent incompatible bins at the highest energy. Photons were shown to dominate the recorded signal, especially when the detector sat upstream of the beam, while neutrons and charged fragments contributed less contamination at those positions. The resulting distributions differed clearly with beam energy, confirming that the PGT
What carries the argument
The prompt-gamma time-of-flight distribution, formed by the arrival-time difference between primary carbon ions recorded on a silicon strip sensor and secondary gamma rays recorded on a LaBr3 crystal read out by SiPM, which encodes the depth of the nuclear interaction and therefore the beam range.
If this is right
- The system distinguishes the three tested beam energies through changes in the timing distributions.
- Upstream detector positions reduce contamination from neutrons and fragments, preserving a cleaner photon signal.
- The experimental-simulation match supports use of PGT for detecting changes in particle range during carbon ion delivery.
- The framework can guide further engineering toward real-time range monitoring in clinical carbon ion treatments.
Where Pith is reading between the lines
- Clinical deployment would still need separate tests on tissue-equivalent phantoms with known density variations to set detection thresholds for range shifts of a few millimeters.
- The same timing principle might be adapted to proton beams once the higher interaction rate and different secondary particle mix are accounted for.
- Integration with treatment planning software could allow automatic adjustment of beam energy when a PGT shift exceeds a preset tolerance.
- Multiple detector angles could be combined to reconstruct a coarse depth profile rather than a single scalar range value.
Load-bearing premise
That agreement between measured and simulated timing distributions on a uniform plastic target at selected energies and detector positions will translate to reliable detection of small range shifts inside irregular, heterogeneous tissue.
What would settle it
A measurement that deliberately shifts the carbon-ion range by 2 mm inside a heterogeneous target and shows no corresponding shift in the recorded PGT distribution outside statistical fluctuations.
read the original abstract
Prompt Gamma Timing (PGT) is a promising technique for in vivo range verification in particle therapy, exploiting the time-of-flight between primary particles and prompt gamma rays emitted by nuclear interactions. PGT distribution is highly sensitive to beam energy and target density, which, under controlled detector positioning, enables real-time monitoring of particle range, detection of morphological changes, and support for adaptive treatment strategies. This study investigates for the first time the application of PGT in carbon ion therapy. Measurements were performed using a dedicated detection system composed of a silicon strip sensor for primary ion timing and a LaBr3(Ce) read out by a SiPM for secondary radiation. Carbon ion beams with energies of 166.41, 268.86, and 398.84 MeV/u irradiated a homogeneous 30.0 cm PMMA target at CNAO. The secondary radiation detector was positioned at four off-beam positions to assess the robustness of the PGT technique. Simulations based on Geant4 were conducted for all configurations to evaluate agreement and predictive capability. A bin-by-bin comparison of experimental and simulated PGT intensities demonstrated strong agreement within the 95% confidence interval, with no incompatible bins at 166.41 MeV/u, at most 1% at 268.86 MeV/u, and up to 8% at 398.84 MeV/u, depending on detector position. Photons were identified as the dominant contribution to the detected signals, particularly for detector positions upstream with respect to the primary particle beam, minimizing signal contamination from neutrons and charged fragments. The validated experimental-simulation framework confirms the capability of the proposed PGT system to resolve energy-dependent differences and highlights its potential for detecting clinically relevant changes in the particle beam range, supporting further development toward real-time monitoring in carbon ion therapy.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports the first experimental measurements of Prompt Gamma Timing (PGT) for in vivo range verification in carbon ion therapy. Using a silicon strip sensor for primary ion timing and a LaBr3(Ce) detector read out by SiPM, measurements were performed at CNAO with carbon beams at 166.41, 268.86, and 398.84 MeV/u incident on a homogeneous 30 cm PMMA target. Geant4 simulations were run for the same configurations at four off-axis detector positions. Bin-by-bin comparisons show agreement within 95% confidence intervals, with 0% incompatible bins at the lowest energy, at most 1% at intermediate energy, and up to 8% at the highest energy. Photons are identified as the dominant signal component. The validated framework is said to confirm resolution of energy-dependent differences and to highlight potential for detecting clinically relevant range changes.
Significance. If the central validation holds, the work provides the first experimental benchmark of PGT in carbon-ion beams and a usable experimental-simulation framework. This is a concrete step toward real-time range monitoring in carbon therapy, where prompt-gamma methods are less mature than in proton therapy. The reported agreement on homogeneous targets and photon dominance at upstream positions are useful reference data.
major comments (2)
- [Abstract] Abstract and Conclusions: The statement that the framework 'highlights its potential for detecting clinically relevant changes in the particle beam range' is not supported by the presented measurements. The data consist of PGT spectra for three widely spaced energies (differences of ~100 MeV/u, corresponding to many-cm range shifts) on a uniform PMMA target; no controlled mm-scale range perturbations (e.g., thin slabs or density inserts) or heterogeneous targets are reported, nor is a sensitivity curve relating PGT peak shift/width/intensity to range error relative to Poisson statistics and timing resolution.
- [Results] Results section (bin-by-bin comparison paragraph): The claim of 'strong agreement within the 95% confidence interval' with low percentages of incompatible bins cannot be fully assessed because details of error propagation, background subtraction, and the precise definition of the confidence intervals are not provided. Without these, it is unclear whether the reported compatibility accounts for all systematic uncertainties in timing calibration and detector response.
minor comments (2)
- [Results] The manuscript would benefit from an explicit table or figure summarizing the quantitative metrics (peak position, FWHM, integrated yield) extracted from the PGT distributions at each energy and position, rather than relying solely on visual bin-by-bin overlays.
- [Methods] A short paragraph on the timing resolution of the silicon strip sensor and LaBr3/SiPM system (FWHM of the prompt-gamma time-of-flight peak) should be added to allow readers to judge the intrinsic range sensitivity.
Simulated Author's Rebuttal
We thank the referee for the constructive comments and detailed review of our manuscript. We provide point-by-point responses to the major comments below and will revise the manuscript to address the concerns raised.
read point-by-point responses
-
Referee: [Abstract] Abstract and Conclusions: The statement that the framework 'highlights its potential for detecting clinically relevant changes in the particle beam range' is not supported by the presented measurements. The data consist of PGT spectra for three widely spaced energies (differences of ~100 MeV/u, corresponding to many-cm range shifts) on a uniform PMMA target; no controlled mm-scale range perturbations (e.g., thin slabs or density inserts) or heterogeneous targets are reported, nor is a sensitivity curve relating PGT peak shift/width/intensity to range error relative to Poisson statistics and timing resolution.
Authors: We agree that the presented measurements do not include controlled mm-scale range perturbations or heterogeneous targets, and thus do not directly demonstrate sensitivity to small clinically relevant changes. The experiments show that PGT can resolve large range differences corresponding to the energy steps of approximately 100 MeV/u (many cm shifts) on a homogeneous PMMA target, with simulations matching the data well. This provides a first benchmark for carbon ions. However, to avoid overstating the implications, we will revise the abstract and conclusions to emphasize that the framework validates the PGT approach for energy-dependent range differences and indicates potential for real-time monitoring, while noting that additional studies with smaller perturbations are needed to fully assess sensitivity to mm-scale changes. We will also include a brief discussion on the timing resolution and statistical precision observed, which suggest the method could detect smaller shifts. revision: yes
-
Referee: [Results] Results section (bin-by-bin comparison paragraph): The claim of 'strong agreement within the 95% confidence interval' with low percentages of incompatible bins cannot be fully assessed because details of error propagation, background subtraction, and the precise definition of the confidence intervals are not provided. Without these, it is unclear whether the reported compatibility accounts for all systematic uncertainties in timing calibration and detector response.
Authors: We acknowledge that the manuscript lacks sufficient detail on the statistical analysis. In the revised version, we will expand the relevant paragraph in the Results section to describe the error propagation, including how Poisson uncertainties in the bin counts are calculated, the background subtraction method (which involves subtracting the neutron and fragment contributions identified via simulations and timing cuts), and the definition of the 95% confidence intervals for the bin-by-bin comparison. The compatibility is assessed using statistical uncertainties only; we will clarify this and discuss that systematic uncertainties from timing calibration (estimated at < 100 ps) and detector response are not fully included in the current error bars but are small compared to statistical errors in the presented data. This will allow readers to better evaluate the agreement. revision: yes
Circularity Check
No significant circularity; direct experimental validation against independent Monte Carlo
full rationale
The paper reports new experimental PGT measurements for carbon ions at 166.41, 268.86, and 398.84 MeV/u on a uniform PMMA target, with bin-by-bin comparison to Geant4 simulations showing agreement within 95% confidence intervals. No derivation chain, equation, or claim reduces the reported agreements, energy-dependent resolution, or potential for range monitoring to a fitted parameter, self-definition, or self-citation that is itself unverified. The central result is an empirical test of an external simulation code against fresh data; the framework is self-contained and does not rely on any of the enumerated circular patterns.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Geant4 Monte Carlo accurately models nuclear interactions, prompt gamma emission, and time-of-flight for carbon ions in PMMA.
Reference graph
Works this paper leans on
-
[1]
Bartosik N., Cavanna F., Ramello L., Scavarda L., Alexandrov A., Alpat B., Ambrosi G., Argiro S., Barbanera M., Battistoni G. et al. (2025). Development and performance assessment of the BGO calorimeter module for FOOT experiment. Journal of Instrumentation, vol. 20, P03021, doi: 10.1088/1748-0221/20/03/P03021 Cazzaniga C., Nocente M., Tardocchi M., Rebai...
-
[2]
Spectrometers, Detectors and Associated Equipment, vol. 1015, no. 165757, doi: 10.1016/j.nima.2021.165757 Dedes G., Pinto M., Dauvergene D., Freud N., Krimmer J., Letang J. M., Ray C., Testa E. (2014). Assessment and improvements of Geant4 hadronic models in the context of prompt-gamma hadrontherapy monitoring. Physics in Medicine and Biology, vol. 59, pp...
-
[3]
Health, Part A, vol. 53, pp. 1139-1148, doi: 10.1080/10934529.2018.1530177 Lai P. T. C., Hai V. H., Phuc N. T. T. (2025). Impacts of Geant4 hadronic physics models on secondary particle productions in proton therapy simulations. Radiation Physics and Chemistry, vol. 229, 112451, doi: 10.1016/j.radphyschem.2024.112451 Lecoq P. (2016). Development of new sc...
-
[4]
Spectrometers, Detectors and Associated Equipment, vol. 809, pp. 130-139, doi: 10.1016/j.nima.2015.08.041 Lysakovski P., Ferrari A., Tessonnier T., Besuglow J., Koop B., Mein S., Haberer T., Debus J., Mairani A. (2021). Development and benchmarking of a Monte Carlo dose engine for proton radiation therapy. Frontiers in Physics, vol. 9, doi: 10.3389/fphy.2...
-
[5]
1-1, doi: 10.1109/NSS/MIC/RTSD57108.2024.10655573 Ryan C
FL, USA, pp. 1-1, doi: 10.1109/NSS/MIC/RTSD57108.2024.10655573 Ryan C. G., Clayton E., Griffin W. L., Sie S. H., Cousens D. R. (1988). SNIP, a statistics-sensitive background treatment for the quantitative analysis of pixe spectra in geoscience applications. Nuclear Instruments and Methods in Physics Research B, vol. 34, no. 3, pp. 396-402, doi: 10.1016/0...
