From Natural Language to Silicon: The Representation Bottleneck in LLM Hardware Design
Pith reviewed 2026-05-10 06:01 UTC · model grok-4.3
The pith
In using LLMs to turn natural language into hardware, the choice of intermediate representation dominates success far more than the choice of model.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Modeling the natural-language to silicon flow as a cascade of binary filters, the work establishes that intermediate representation choice, rather than language model choice, is the dominant factor governing end-to-end success, a phenomenon termed the representation bottleneck. Across three frontier LLMs and six IRs spanning Verilog, VHDL, Chisel, Bluespec, PyMTL3, and HLS C, evaluated through compilation, simulation, FPGA synthesis on a Lattice iCE40UP5K, and LLM-based repair on 202 tasks, simulation pass rates range from 3% to 88% by IR but vary less than 1.25x across models within any single IR. On the resource-constrained iCE40, LLM designs achieve a higher conditional FPGA pass rate of
What carries the argument
The representation bottleneck, arising because the design flow is modeled as a cascade of binary filters whose individual pass probabilities depend primarily on the chosen hardware intermediate representation rather than on the LLM.
If this is right
- The most user-friendly IRs currently produce the worst LLM performance, creating an accessibility-competence paradox.
- LLM-generated designs fit constrained FPGAs more often than reference solutions because of a simplicity bias that keeps them small.
- Optimal IR selection for LLM hardware generation will shift as model capabilities improve.
- Development of zero-knowledge hardware programming should prioritize IR design over further LLM scaling.
Where Pith is reading between the lines
- New intermediate representations could be engineered specifically to match current LLM strengths in parsing and generation rather than human readability.
- The same representation bottleneck pattern may appear in other LLM code-generation domains where the target format controls downstream success.
- Extending the evaluation to larger or more varied hardware tasks would test whether the dominance of IR choice holds beyond the current 202-task set.
Load-bearing premise
The 202 tasks and the multi-stage pipeline including LLM repair give an unbiased measure of real-world natural-language hardware design success.
What would settle it
A comparable study across the same or similar tasks in which success-rate variation between different LLMs exceeds the variation observed between different IRs for any single LLM.
Figures

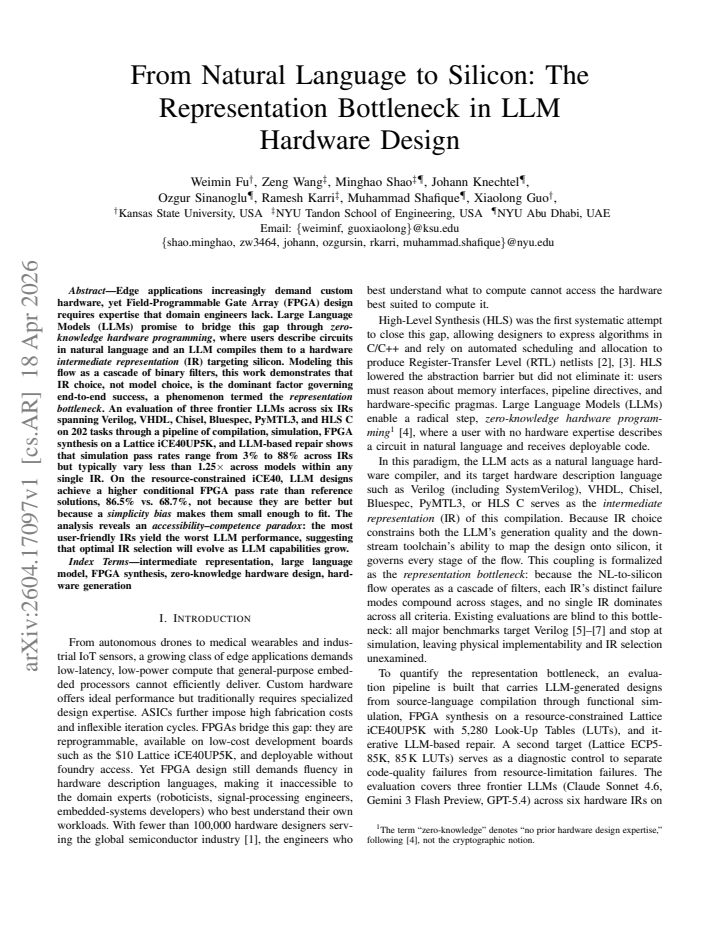

read the original abstract
Edge applications increasingly demand custom hardware, yet Field-Programmable Gate Array (FPGA) design requires expertise that domain engineers lack. Large Language Models (LLMs) promise to bridge this gap through zero-knowledge hardware programming, where users describe circuits in natural language and an LLM compiles them to a hardware intermediate representation (IR) targeting silicon. Modeling this flow as a cascade of binary filters, this work demonstrates that IR choice, not model choice, is the dominant factor governing end-to-end success, a phenomenon termed the representation bottleneck. An evaluation of three frontier LLMs across six IRs spanning Verilog, VHDL, Chisel, Bluespec, PyMTL3, and HLS C on 202 tasks through a pipeline of compilation, simulation, FPGA synthesis on a Lattice iCE40UP5K, and LLM-based repair shows that simulation pass rates range from 3% to 88% across IRs but typically vary less than 1.25x across models within any single IR. On the resource-constrained iCE40, LLM designs achieve a higher conditional FPGA pass rate than reference solutions, 86.5% vs. 68.7%, not because they are better but because a simplicity bias makes them small enough to fit. The analysis reveals an accessibility-competence paradox: the most user-friendly IRs yield the worst LLM performance, suggesting that optimal IR selection will evolve as LLM capabilities grow.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript claims that in LLM-based natural-language hardware design flows, the choice of intermediate representation (IR) dominates over LLM model choice in determining end-to-end success. Modeling the pipeline (compilation, simulation, synthesis on iCE40UP5K, LLM repair) as a cascade of binary filters, the authors evaluate three frontier LLMs across six IRs (Verilog, VHDL, Chisel, Bluespec, PyMTL3, HLS C) on 202 tasks and report simulation pass rates ranging from 3% to 88% across IRs but varying by less than 1.25× across models within any IR. They identify an accessibility-competence paradox (user-friendly IRs yield worst LLM performance) and note that LLM designs achieve higher conditional FPGA pass rates (86.5% vs. 68.7%) than references due to a simplicity bias that produces smaller designs.
Significance. If the results withstand scrutiny on task neutrality, this provides a large-scale empirical demonstration that representation choice is the primary bottleneck in LLM hardware generation, offering actionable guidance for IR selection and future IR design tailored to LLM strengths. The direct measurement of full synthesis on a constrained FPGA (iCE40UP5K) and inclusion of LLM repair steps add practical value beyond proxy metrics. The work is strengthened by its scale (202 tasks) and explicit reporting of pass rates rather than qualitative observations.
major comments (3)
- [§4] §4 (Evaluation setup): The 202 tasks are central to the IR-dominance claim, yet the manuscript provides no description of task generation, filtering, or balancing across IRs. Without evidence that natural-language prompts were constructed independently of IR syntax or pretraining corpora, the 3–88% pass-rate variance may partly reflect training-data overlap rather than a pure representation bottleneck.
- [§3] §3 (Cascade-of-binary-filters model): The model assumes independent binary filters, including that LLM repair success is uncorrelated with IR pretraining exposure. However, repair prompts can exploit IR-specific idioms, violating independence and weakening the conclusion that IR choice alone drives the observed dominance over model choice.
- [Results] Results (pass-rate tables/figures): While cross-model variation is stated as <1.25×, no statistical tests, confidence intervals, or variance analysis are reported to establish that model differences are negligible relative to IR differences; this is required to support the central claim that IR is the dominant factor.
minor comments (3)
- [Abstract] Abstract: The accessibility-competence paradox is mentioned but not defined until the analysis section; a one-sentence definition in the abstract would aid readers.
- [Introduction] Notation: The term 'representation bottleneck' is used throughout but lacks a concise formal definition or equation; adding one would improve precision.
- [Related Work] References: Prior work on LLM code generation for hardware (e.g., Verilog-specific studies) is cited, but additional references to IR design literature for LLMs would strengthen context.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed comments. We address each major point below, indicating where revisions have been made to strengthen the manuscript.
read point-by-point responses
-
Referee: [§4] §4 (Evaluation setup): The 202 tasks are central to the IR-dominance claim, yet the manuscript provides no description of task generation, filtering, or balancing across IRs. Without evidence that natural-language prompts were constructed independently of IR syntax or pretraining corpora, the 3–88% pass-rate variance may partly reflect training-data overlap rather than a pure representation bottleneck.
Authors: We agree that additional detail on task construction is warranted to support the central claim. The 202 tasks were derived from a curated collection of standard digital design problems (counters, FSMs, arithmetic circuits, etc.) expressed in IR-agnostic natural language. We have revised §4 to include a complete description of task generation, filtering criteria, and balancing across IRs, plus a new appendix analyzing potential pretraining overlap by task novelty and showing that the IR performance ordering holds for tasks unlikely to appear in training data. revision: yes
-
Referee: [§3] §3 (Cascade-of-binary-filters model): The model assumes independent binary filters, including that LLM repair success is uncorrelated with IR pretraining exposure. However, repair prompts can exploit IR-specific idioms, violating independence and weakening the conclusion that IR choice alone drives the observed dominance over model choice.
Authors: The cascade model is presented as an analytical abstraction to illustrate multiplicative stage effects rather than a literal claim of statistical independence. While repair prompts may draw on IR idioms, our empirical results demonstrate that IR-driven variance remains dominant even after multiple repair iterations. We have added a limitations paragraph in §3 and supporting analysis in the results showing that repair success does not correlate with IR pretraining exposure at a level sufficient to explain the primary findings. revision: partial
-
Referee: [Results] Results (pass-rate tables/figures): While cross-model variation is stated as <1.25×, no statistical tests, confidence intervals, or variance analysis are reported to establish that model differences are negligible relative to IR differences; this is required to support the central claim that IR is the dominant factor.
Authors: We accept that formal statistical support is needed. The revised manuscript adds bootstrap confidence intervals on all pass rates, a variance decomposition showing IR accounts for the large majority of observed variance, and non-parametric tests confirming within-IR model differences are statistically insignificant while between-IR differences are highly significant. These appear in the Results section and a new supplementary table. revision: yes
- Completely excluding any contribution from pretraining data overlap, given that the training corpora of the evaluated LLMs are not publicly disclosed.
Circularity Check
No circularity: direct empirical measurement study
full rationale
The paper conducts an empirical evaluation of LLM hardware design success rates across six IRs and three models on 202 tasks, reporting pass rates from compilation, simulation, synthesis, and repair stages. No equations, derivations, fitted parameters, or self-citations appear in the provided text that would reduce the representation-bottleneck claim to a definitional or input-forced result. The cascade-of-binary-filters framing is presented as a modeling choice for interpreting measurements rather than a derivation that presupposes its own outputs. The analysis is therefore self-contained against the experimental benchmarks.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption The 202 tasks represent a broad and unbiased sample of hardware design problems suitable for natural language specification.
- domain assumption The multi-stage pipeline of compilation, simulation, synthesis, and LLM repair accurately reflects end-to-end design success without unaccounted biases.
Forward citations
Cited by 2 Pith papers
-
LLMs for Secure Hardware Design and Related Problems: Opportunities and Challenges
