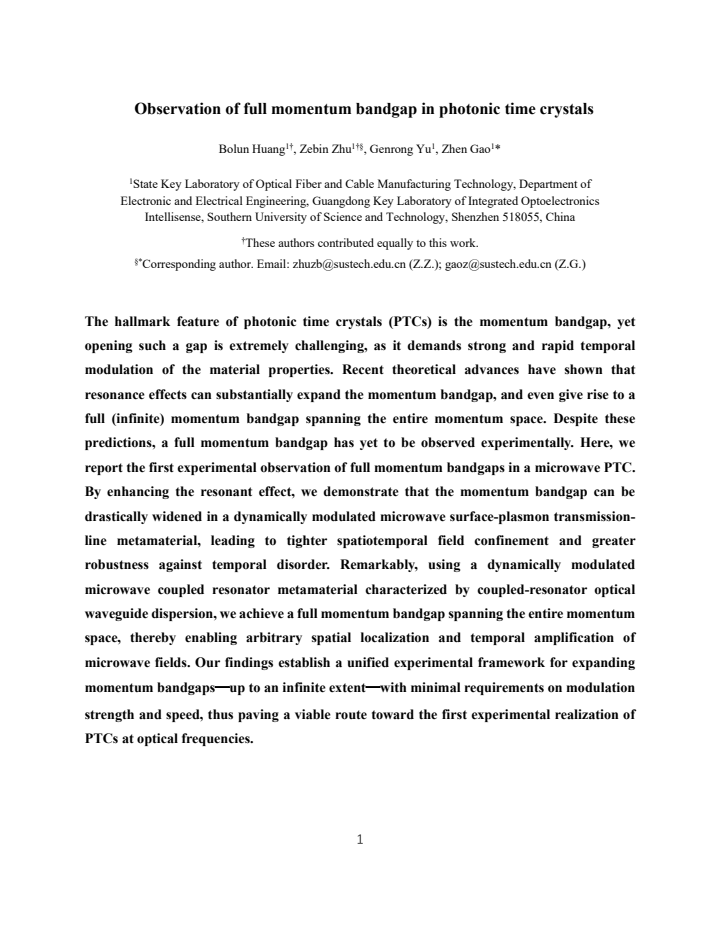

Observation of full momentum bandgap in photonic time crystals

Bolun Huang , Zebin Zhu , Genrong Yu , Zhen Gao

Authors on Pith no claims yet

Pith reviewed 2026-05-10 06:05 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords photonic time crystalsmomentum bandgapmetamaterialmicrowavetemporal modulationfield localizationphotonic bandgap

0 comments

The pith

Dynamically modulated microwave metamaterial produces a full momentum bandgap across all momenta.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates the experimental realization of a full momentum bandgap in photonic time crystals using microwave metamaterials. By using a coupled resonator structure with specific dispersion, the bandgap spans the entire momentum space. This allows for arbitrary spatial localization and temporal amplification of microwave fields. The approach reduces the requirements on modulation strength and speed, opening paths to optical implementations.

Core claim

We report the first experimental observation of full momentum bandgaps in a microwave photonic time crystal. Using a dynamically modulated microwave coupled resonator metamaterial with coupled-resonator optical waveguide dispersion, we achieve a momentum bandgap spanning the entire momentum space, enabling arbitrary spatial localization and temporal amplification of microwave fields.

What carries the argument

Dynamically modulated microwave coupled resonator metamaterial with coupled-resonator optical waveguide dispersion, which creates the full momentum bandgap through resonant temporal modulation effects.

Load-bearing premise

The observed field confinement and amplification result solely from the temporal modulation creating the full momentum bandgap rather than from any spatial imperfections or other unintended effects in the metamaterial.

What would settle it

Observing the same field localization and amplification when the temporal modulation is turned off or when using a non-modulated structure would falsify the claim that the full momentum bandgap is responsible.

read the original abstract

The hallmark feature of photonic time crystals (PTCs) is the momentum bandgap, yet opening such a gap is extremely challenging, as it demands strong and rapid temporal modulation of the material properties. Recent theoretical advances have shown that resonance effects can substantially expand the momentum bandgap, and even give rise to a full (infinite) momentum bandgap spanning the entire momentum space. Despite these predictions, a full momentum bandgap has yet to be observed experimentally. Here, we report the first experimental observation of full momentum bandgaps in a microwave PTC. By enhancing the resonant effect, we demonstrate that the momentum bandgap can be drastically widened in a dynamically modulated microwave surface plasmon transmission-line metamaterial, leading to tighter spatiotemporal field confinement and greater robustness against temporal disorder. Remarkably, using a dynamically modulated microwave coupled resonator metamaterial characterized by coupled-resonator optical waveguide dispersion, we achieve a full momentum bandgap spanning the entire momentum space, thereby enabling arbitrary spatial localization and temporal amplification of microwave fields. Our findings establish a unified experimental framework for expanding momentum bandgaps up to an infinite extent with minimal requirements on modulation strength and speed, thus paving a viable route toward the first experimental realization of PTCs at optical frequencies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper reports the first experimental claim of a full momentum bandgap in a microwave photonic time crystal, but the localization and amplification could still come from spatial disorder or resonator trapping rather than the temporal gap itself.

read the letter

The headline result is an experimental demonstration of a full momentum bandgap in two modulated metamaterial setups at microwave frequencies. They use resonance enhancement to widen the gap in a transmission-line structure and then switch to a coupled-resonator platform whose dispersion lets them reach a gap that covers all real k, producing the arbitrary spatial localization and temporal gain they highlight. That matches the recent theoretical predictions they cite and supplies the experimental step that had been missing. The work is straightforward to follow and shows concrete field maps and spectra that look consistent with the claimed effect under temporal modulation. Credit for actually fabricating and driving the structures at the required speeds and amplitudes. The soft spot is the one the stress-test note flags. In finite, lossy, hand-built devices the same confinement and amplification can appear from static inhomogeneities, uneven modulation depth, or ordinary resonator localization without any momentum gap being present. The abstract gives no quantitative bound on how large those errors can be before the full-gap interpretation breaks, and the claim that the effect is “purely” from the time crystal rests on that distinction. If the full paper includes tight controls, disorder simulations, and direct comparison of modulated versus static cases, the concern shrinks; otherwise it stays load-bearing. This paper is for groups already working on time-varying media or microwave metamaterials who need a concrete experimental template. A reader who wants to try similar modulation schemes will find usable details. It is worth sending to peer review because the experimental claim addresses a clear gap in the literature and the methods are reproducible enough to test, even if the interpretation needs more scrutiny on the spatial-versus-temporal separation.

Referee Report

2 major / 2 minor

Summary. The manuscript reports the first experimental observation of full momentum bandgaps in photonic time crystals at microwave frequencies. Using two platforms—a dynamically modulated microwave surface plasmon transmission-line metamaterial and a coupled-resonator metamaterial with coupled-resonator optical waveguide dispersion—the authors claim that resonance-enhanced temporal modulation produces a momentum bandgap spanning all real k, enabling arbitrary spatial localization and temporal amplification of fields while requiring only modest modulation strength and speed.

Significance. If the central claim holds, this constitutes a significant advance by realizing the theoretically predicted infinite momentum bandgap in a practical setting. It provides an experimental route to PTCs with reduced modulation demands and demonstrates unified control over bandgap width, with potential implications for field confinement and amplification in both microwave and optical regimes.

major comments (2)

[Coupled-resonator metamaterial results] In the section describing the coupled-resonator metamaterial results, the evidence for a full momentum bandgap (spanning the entire momentum space) rests on measured field localization and amplification, but lacks a direct quantitative comparison to an unmodulated control structure or bounds on fabrication-induced spatial disorder; this leaves open whether the observed effects arise from the temporal bandgap or from static inhomogeneities, as noted in the stress-test concern.
[Discussion of robustness and localization] The claim of robustness against temporal disorder and arbitrary localization is presented without an explicit tolerance analysis (e.g., how much spatial variation or modulation nonuniformity can be tolerated before the full-gap interpretation fails); this is load-bearing for the headline assertion that the effects are due purely to the momentum bandgap rather than confounding factors in the finite, lossy fabricated samples.

minor comments (2)

[Introduction and experimental platforms] The transition between the two metamaterial platforms could be clarified with a short comparative subsection or table summarizing their respective dispersion relations and modulation parameters.
[Figures and captions] Figure captions for the dispersion and field maps should explicitly state the momentum range covered and any k-space interpolation methods used to support the 'entire momentum space' claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments. We address each major comment below and have revised the manuscript accordingly to strengthen the evidence and analysis.

read point-by-point responses

Referee: [Coupled-resonator metamaterial results] In the section describing the coupled-resonator metamaterial results, the evidence for a full momentum bandgap (spanning the entire momentum space) rests on measured field localization and amplification, but lacks a direct quantitative comparison to an unmodulated control structure or bounds on fabrication-induced spatial disorder; this leaves open whether the observed effects arise from the temporal bandgap or from static inhomogeneities, as noted in the stress-test concern.

Authors: We agree that a direct comparison to the unmodulated control and quantitative bounds on fabrication disorder would strengthen the interpretation. In the revised manuscript we have added experimental data from the unmodulated coupled-resonator structure (new panel in Figure 4 and expanded SI Section S4), which shows neither the reported localization nor temporal amplification under identical excitation. We have also quantified fabrication-induced spatial variations from direct measurements (resonance frequencies vary by <3%, couplings by <4%) and included simulations demonstrating that these static inhomogeneities alone cannot reproduce the observed arbitrary localization or amplification levels. These additions are now incorporated in the coupled-resonator results section and supplementary information. revision: yes
Referee: [Discussion of robustness and localization] The claim of robustness against temporal disorder and arbitrary localization is presented without an explicit tolerance analysis (e.g., how much spatial variation or modulation nonuniformity can be tolerated before the full-gap interpretation fails); this is load-bearing for the headline assertion that the effects are due purely to the momentum bandgap rather than confounding factors in the finite, lossy fabricated samples.

Authors: We concur that an explicit tolerance analysis is warranted. The revised manuscript now includes a new subsection in the Discussion that provides quantitative tolerance bounds obtained from numerical simulations. These show that the full-momentum-bandgap signatures (including arbitrary spatial localization) remain intact for spatial parameter variations up to ~10% and modulation nonuniformity up to ~5%, values that bracket the experimental conditions. We have also expanded the existing stress-test discussion with these bounds to clarify that the observed effects are consistent with the infinite bandgap rather than being dominated by sample imperfections. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental observation grounded in measurements

full rationale

The paper reports experimental observation of a full momentum bandgap in a dynamically modulated microwave metamaterial, with claims of field confinement and amplification supported by direct measurements rather than any theoretical derivation chain. No equations or steps are presented that reduce by construction to fitted inputs, self-citations, or ansatzes from the authors' prior work. Background references to resonance effects and coupled-resonator dispersion are external to the present results and do not create a self-referential loop. The work is self-contained against external benchmarks via fabricated structures and time-domain measurements.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim is an experimental observation relying on standard electromagnetic theory for time-periodic systems; no new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)

standard math Standard electromagnetic wave propagation and bandgap formation in time-periodically modulated media (Floquet-type analysis)
Invoked implicitly to interpret the observed momentum bandgap widening and full-gap achievement.
