Coherent terahertz field tomographic imaging in warm Rydberg vapors

Jan Nowosielski, Marcin Jastrz\k{e}bski, Mateusz Mazelanik, Micha{\l} Parniak, Wojciech Wasilewski

Pith reviewed 2026-05-10 03:03 UTC · model grok-4.3

classification ⚛️ physics.atom-ph physics.optics
keywords terahertz imagingRydberg vaportomographic imagingphase matchingcoherent conversionroom temperatureatomic sensorsTHz holography
0
0 comments X

The pith

An adjustable interference pattern in warm Rb vapor enables tomographic THz field imaging with phase sensitivity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The method establishes that an adjustable interference pattern of optical probe beams in warm Rb vapor can control phase-matching to enable coherent conversion and tomographic reconstruction of THz fields. This preserves complex amplitude information for imaging. A sympathetic reader cares because it offers phase-resolved THz imaging at room temperature, where prior methods often lose phase data. Validation experiments resolve sub-centimeter features and determine arrival angles.

Core claim

The central claim is a coherent THz-to-optical conversion scheme in warm Rb vapor that uses an adjustable interference pattern of optical probe beams to manipulate phase-matching conditions, thereby enabling tomographic reconstruction of the THz field distribution.

What carries the argument

The adjustable interference pattern of optical probe beams, which selectively controls phase-matching conditions to support coherent detection and tomography.

Load-bearing premise

That the adjustable interference pattern of the optical probe beams can control phase-matching conditions without introducing uncontrolled phase noise, spatial inhomogeneities, or significant decoherence.

What would settle it

Observing that tomographic reconstructions do not match known input THz fields when the probe beam interference is varied, or that angle identification fails due to phase inconsistencies.

Figures

Figures reproduced from arXiv: 2604.18440 by Jan Nowosielski, Marcin Jastrz\k{e}bski, Mateusz Mazelanik, Micha{\l} Parniak, Wojciech Wasilewski.

Figure 1
Figure 1. Figure 1: a) Energy level scheme used in the experiment. b) Schematic depiction of two wavevector configurations considered in the experi [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

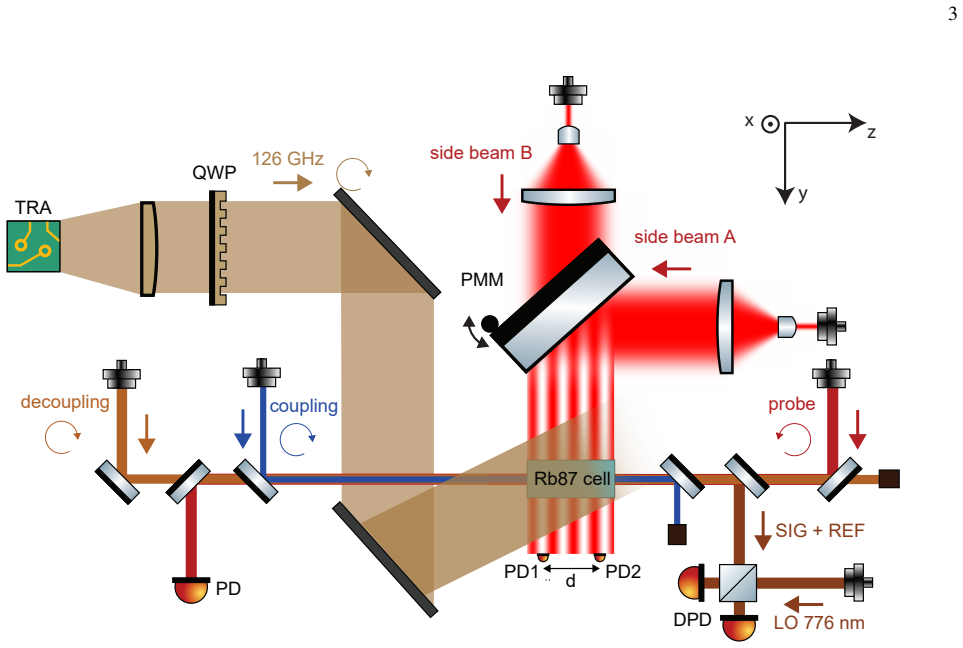

Figure 2
Figure 2. Figure 2: Schematic depiction of the experimental setup. QWP - quarter waveplate, PD - photodiode, DPD - differential photodiode, PMM - [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

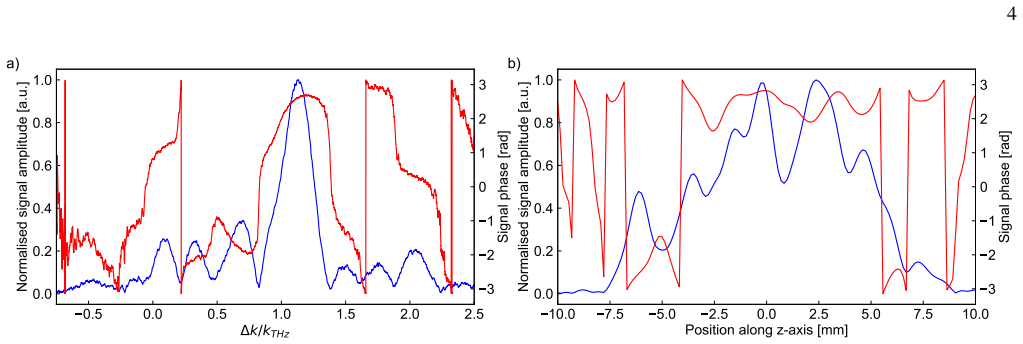

Figure 3
Figure 3. Figure 3: a) Amplitude of the SIG conversion signal (blue) and its phase (red) as a function of wavevector difference [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: a) Amplitude of the spatial distribution of the THz field for different positions of the gap in the side beams, where [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

Rydberg atom-based sensors have emerged as highly sensitive tools for terahertz (THz) metrology, yet most current imaging techniques discard crucial phase information. In this Letter, we present a coherent THz-to-optical conversion scheme in warm Rb vapor that enables complex-amplitude field imaging. By manipulating the phase-matching conditions via an adjustable interference pattern of optical probe beams, we demonstrate the ability to perform tomographic reconstruction of the THz field distribution. We experimentally validate the spatial resolution and phase-sensitivity of the system by resolving sub-centimeter features and identifying incident angles of arrival. Our results establish a robust framework for phase-resolved THz imaging and holography using atomic vapors at room temperature.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims a coherent THz-to-optical conversion scheme in warm Rb vapor using Rydberg atoms that preserves complex amplitude for THz field imaging. Phase-matching conditions are manipulated via an adjustable interference pattern of optical probe beams to enable tomographic reconstruction of the THz field distribution. Experimental validation is asserted for sub-centimeter spatial resolution and phase sensitivity by resolving features and identifying incident angles of arrival, establishing a room-temperature framework for phase-resolved THz imaging and holography.

Significance. If the experimental claims hold, the work would provide a phase-sensitive, room-temperature atomic-vapor alternative to existing THz metrology techniques that often discard phase information. This could enable new approaches to THz holography and field tomography with potential applications in sensing and imaging.

major comments (2)
  1. [Abstract] Abstract: the central claim of tomographic reconstruction and experimental validation of sub-centimeter resolution plus angle-of-arrival sensitivity rests on unshown data, error analysis, and reconstruction algorithm details; no figures, quantitative metrics, or noise floors are referenced, rendering the validation impossible to assess from the manuscript.
  2. [Experimental methods / results] The load-bearing assumption that the adjustable optical-probe interference pattern selectively enforces phase-matching without introducing vapor-induced phase noise, spatial inhomogeneities, or decoherence exceeding the Rydberg coherence floor is not quantitatively verified; no measurements comparing phase accumulation with and without the pattern, or position-dependent wave-vector mismatch, are provided.
minor comments (1)
  1. [Abstract] The abstract uses 'tomographic reconstruction' without specifying the algorithm, number of projections, or inversion method, which would aid clarity for readers unfamiliar with the technique.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments. We address each major comment point by point below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim of tomographic reconstruction and experimental validation of sub-centimeter resolution plus angle-of-arrival sensitivity rests on unshown data, error analysis, and reconstruction algorithm details; no figures, quantitative metrics, or noise floors are referenced, rendering the validation impossible to assess from the manuscript.

    Authors: We agree that the abstract is concise by design and does not reference specific figures, quantitative metrics, or error analysis. The full manuscript contains dedicated sections and figures presenting the tomographic reconstructions, sub-centimeter resolution measurements, angle-of-arrival phase sensitivity results, the reconstruction algorithm, and associated error bars plus noise-floor estimates. To address the concern, we will revise the abstract to incorporate brief quantitative statements on the demonstrated resolution and phase sensitivity while preserving its length and readability. revision: yes

  2. Referee: [Experimental methods / results] The load-bearing assumption that the adjustable optical-probe interference pattern selectively enforces phase-matching without introducing vapor-induced phase noise, spatial inhomogeneities, or decoherence exceeding the Rydberg coherence floor is not quantitatively verified; no measurements comparing phase accumulation with and without the pattern, or position-dependent wave-vector mismatch, are provided.

    Authors: We acknowledge that direct quantitative verification of this assumption strengthens the claims. The original manuscript presents results consistent with effective phase-matching but lacks explicit comparative data. In the revised manuscript we will add measurements of phase accumulation and coherence times with versus without the interference pattern, together with an analysis of position-dependent wave-vector mismatch across the cell, supported by new figures or supplementary material to confirm that any vapor-induced effects remain below the Rydberg coherence floor. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration is self-contained

full rationale

The paper reports an experimental technique for coherent THz imaging via Rydberg atoms in warm vapor, with the central claims resting on direct laboratory measurements of sub-centimeter resolution and angle-of-arrival sensitivity. No derivation chain, equations, or fitted parameters are presented that reduce by construction to the inputs; the phase-matching control is implemented physically and validated empirically rather than asserted via self-referential definitions or prior self-citations. The result is therefore independent of any circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work rests on standard domain assumptions about Rydberg-atom THz coupling and optical phase matching in warm vapors; no new free parameters or invented entities are introduced in the abstract.

axioms (2)
  • domain assumption Rydberg states in warm Rb vapor support coherent THz-to-optical conversion under appropriate optical dressing and phase-matching conditions.
    Standard assumption in Rydberg electrometry literature; invoked to justify the conversion scheme.
  • domain assumption The interference pattern of the optical probe beams can be adjusted to control phase-matching without destroying the coherence needed for phase-sensitive detection.
    Central to the tomographic capability; appears as the key manipulation step.

pith-pipeline@v0.9.0 · 5431 in / 1267 out tokens · 42958 ms · 2026-05-10T03:03:03.257823+00:00 · methodology
