pyTRAIN -- a modern TRAIN implementation

Michi Hostettler , Xavier Buffat , Tobias Persson , Tatiana Pieloni , Jorg Wenninger

Authors on Pith no claims yet

Pith reviewed 2026-05-10 02:58 UTC · model grok-4.3

classification ⚛️ physics.acc-ph

keywords pyTRAINTRAIN codebeam-beam long-rangePACMAN effectsclosed orbitsLHCtunes and chromaticitiesaccelerator simulation

0 comments

The pith

A Python re-implementation of the 1995 TRAIN code reproduces its calculations of beam-beam effects while adding support for arbitrary particles and interaction points.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents pyTRAIN as a modern Python version of the TRAIN code originally developed to compute self-consistent closed orbits, tunes, and chromaticities for bunch trains under beam-beam long-range and PACMAN effects at facilities such as LEP and the LHC. It uses numpy and scipy for the core numerics, with an optional connection to MAD-X, to improve usability and allow extensions beyond the original Fortran implementation. The new code is shown to match the classic TRAIN outputs and real LHC operating data while introducing the ability to handle any particle type, any number or arrangement of beam-beam points, and extrapolation of orbit distortions to arbitrary locations.

Core claim

The pyTRAIN code reproduces results from the classic TRAIN code and matches observations from LHC physics operation while adding support for arbitrary particle types, an arbitrary number of beam-beam interaction points, and extrapolation of beam-beam induced closed-orbit effects.

What carries the argument

The self-consistent numerical solution for closed orbits, tunes, and chromaticities under beam-beam long-range and PACMAN perturbations, now performed in Python with numpy and scipy.

If this is right

Beam-beam studies can now treat arbitrary particle species instead of being limited to protons.
An arbitrary number and distribution of beam-beam interaction points can be modeled without code changes.
Beam-beam induced closed-orbit effects can be evaluated at any chosen point in the accelerator lattice.
The Python structure improves maintainability and allows direct comparison against current LHC data.
The optional MAD-X link enables seamless use within existing accelerator design workflows.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The added flexibility in particle type and interaction-point layout makes it straightforward to explore beam-beam effects in proposed future colliders with non-standard parameters.
Extrapolation of orbit effects to arbitrary locations could reduce the need for repeated full-lattice runs when assessing local beam quality.
The open Python implementation invites combination with other modern tools for integrated beam-dynamics studies.
Validation against LHC observations suggests the code can serve as a reliable reference for operational tuning of bunch trains.

Load-bearing premise

The numerical implementation in Python using numpy and scipy accurately captures the original TRAIN physics models for self-consistent closed orbits, tunes, and chromaticities under BBLR and PACMAN effects without introducing discrepancies or numerical instabilities.

What would settle it

A direct numerical comparison that reveals a mismatch in computed tunes, chromaticities, or closed-orbit shifts between pyTRAIN and the original TRAIN code for the same LHC bunch-train configuration.

Figures

Figures reproduced from arXiv: 2604.18466 by Jorg Wenninger, Michi Hostettler, Tatiana Pieloni, Tobias Persson, Xavier Buffat.

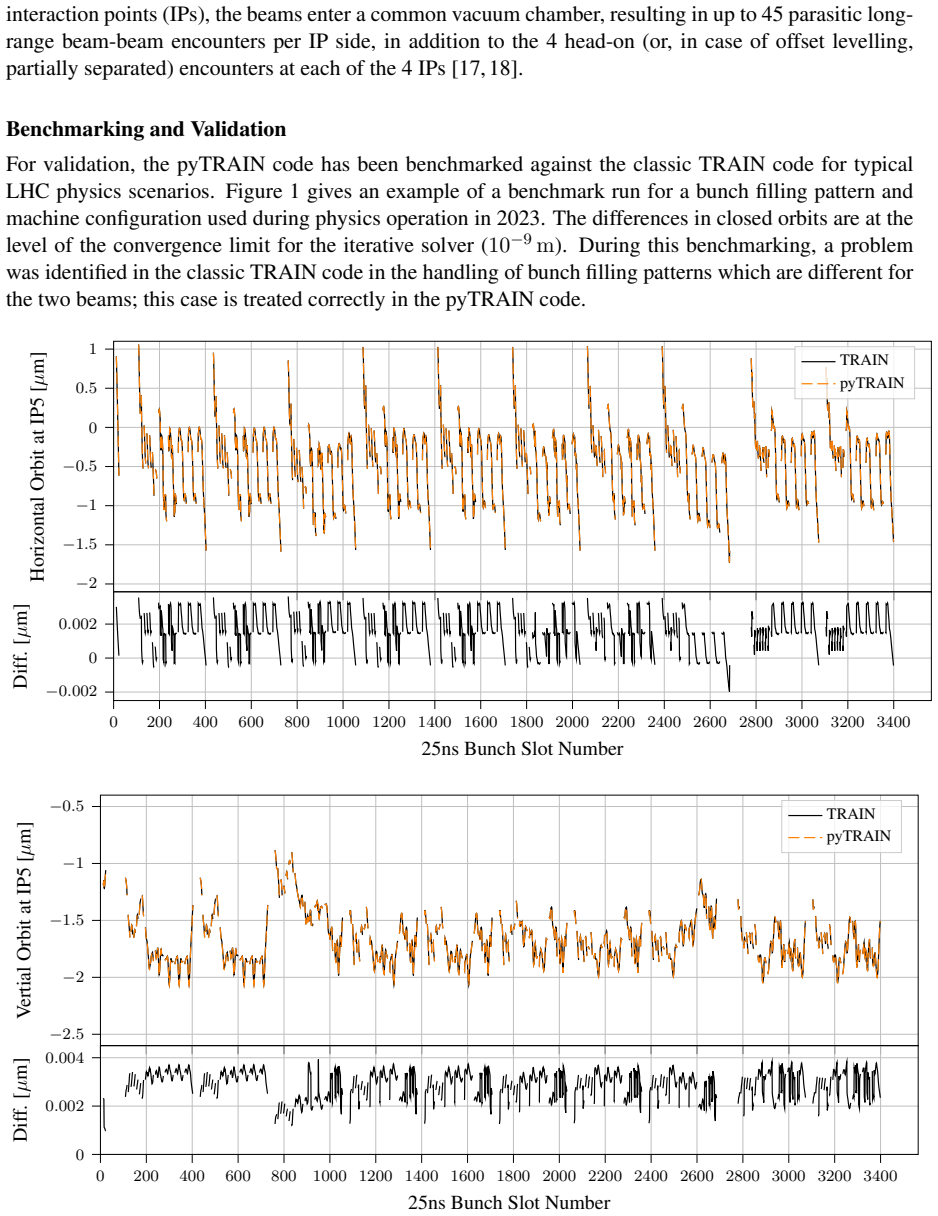

**Figure 1.** Figure 1: Closed orbits of beam 1 at IP5 in a typical 2023 LHC physics scenario, predicted by the classic TRAIN and pyTRAIN codes. The results for the other beams, and in other points of the machine, are similar. The differences are at the level of 10−9 m. 3 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

**Figure 2.** Figure 2: Parasitic separation of the colliding bunch pairs at LHC IP5, introduced by long-range beam-beam effects. The right panels show a magnification of one bunch train structure. LHC proton physics fill 10066 (August 2024), at β ∗ = 1.2 m with 1.6 · 1011 protons per bunch. Luminous Centroid Positions at the Collision Points During collisions, the LHC experiments reconstruct the primary vertices of each recorded… view at source ↗

**Figure 3.** Figure 3: Transverse luminous region position (centroid) of the bunch pairs colliding at LHC IP1, as predicted by pyTRAIN and measured by the ATLAS experiment. The right panels show a magnification of one bunch train structure. LHC calibration transfer fill 9635 (May 2024), β ∗ = 30 cm with 1.3 · 1011 protons per bunch. The preliminary reconstructed luminous region data is provided courtesy of the ATLAS collaboratio… view at source ↗

**Figure 4.** Figure 4: shows bunch offsets measured by the wire scanners in comparison to the pyTRAIN orbit prediction at the wire scanner location. It is worth noting that several wire scans show almost no closed orbit distortion; these measurements were taken when only the first 12 bunches, but no longer bunch trains, were circulating in one of the two beams of the machine. 0 20 40 60 80 100 120 140 −50 0 50 100 25ns Bunch Slo… view at source ↗

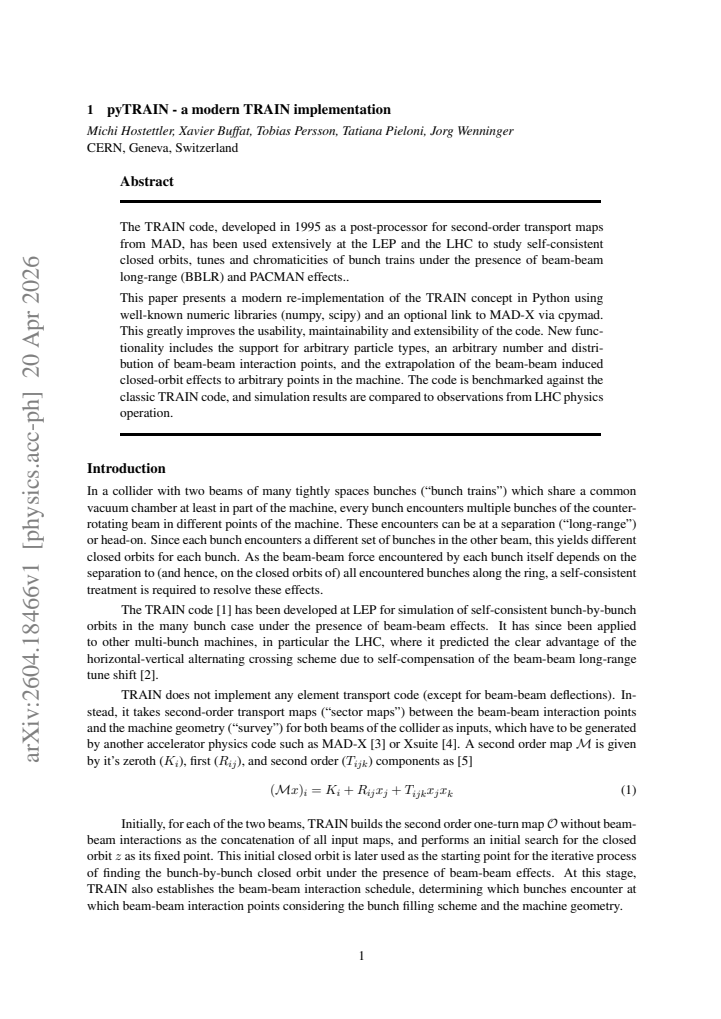

read the original abstract

The TRAIN code, developed in 1995 as a post-processor for second-order transport maps from MAD, has been used extensively at the LEP and the LHC to study self-consistent closed orbits, tunes and chromaticities of bunch trains under the presence of beam-beam long-range (BBLR) and PACMAN effects.. This paper presents a modern re-implementation of the TRAIN concept in Python using well-known numeric libraries (numpy, scipy) and an optional link to MAD-X via cpymad. This greatly improves the usability, maintainability and extensibility of the code. New functionality includes the support for arbitrary particle types, an arbitrary number and distribution of beam-beam interaction points, and the extrapolation of the beam-beam induced closed-orbit effects to arbitrary points in the machine. The code is benchmarked against the classic TRAIN code, and simulation results are compared to observations from LHC physics operation.
