Logarithmic Entanglement and Emergent Dipole Symmetry from a Strongly Coupled Light-Matter Quantum Circuit

Luiz H. Santos
Authors on Pith no claims yet

Pith reviewed 2026-05-10 03:20 UTC · model grok-4.3

classification ❄️ cond-mat.str-el quant-ph
keywords light-matter entanglementultrastrong couplingdipole symmetrySu-Schrieffer-Heeger modellogarithmic entanglementquantum circuitPower-Zienau-Woolley transformationcollective coordinate
0
0 comments X

The pith

Strong light-matter coupling in a solvable quantum circuit produces logarithmic entanglement scaling with system size via an emergent dipole symmetry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reinterprets the Power-Zienau-Woolley transformation as a light-matter quantum circuit that couples a cavity photon's position quadrature to the collective dipole of a one-dimensional chain. This mapping supplies a closed-form reduced density matrix that remains valid from weak through ultrastrong coupling. At strong coupling the photon field dynamically enforces an emergent dipole symmetry, so that both the light-matter entanglement entropy and the spatial entanglement of the dressed matter state grow as alpha over two times the logarithm of system length. The logarithmic form is traced to the photon distinguishing states according to one collective coordinate whose fluctuations increase as length to the power alpha over two. The scaling persists across every phase of the half-filled Su-Schrieffer-Heeger chain and supplies a concrete mechanism distinct from criticality-induced logarithms.

Core claim

At strong coupling the reduced density matrix becomes exactly block-diagonal in sectors of fixed many-body dipole, reflecting an emergent dipole symmetry imposed by the photon. Both the light-matter entanglement entropy and the spatial entanglement entropy of the photon-dressed state then equal the Shannon entropy over the dipole-sector weights and scale as S_infinity approximately alpha over two times log L. This scaling holds uniformly across the entire phase diagram of the half-filled Su-Schrieffer-Heeger model because the photon resolves fluctuations of a single collective dipole coordinate P that grow proportionally to L to the alpha over two.

What carries the argument

The light-matter quantum circuit obtained by reinterpreting the Power-Zienau-Woolley transformation, which couples the photonic position quadrature X to the many-body dipole P and supplies an exact reduced density matrix valid at every coupling strength.

If this is right

  • Both light-matter and spatial entanglement entropies scale logarithmically with system size at strong coupling.
  • The density matrix becomes block-diagonal in dipole sectors at ultrastrong coupling, enforcing an emergent dipole symmetry.
  • The logarithmic scaling is robust and holds for every phase of the half-filled Su-Schrieffer-Heeger chain.
  • The logarithm arises because the photon distinguishes a single collective dipole coordinate whose fluctuations grow as L to the alpha over two.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same collective-coordinate mechanism could be used to tune entanglement scaling in other one-dimensional chains by adjusting cavity parameters.
  • If a similar photon-resolved collective operator exists in two-dimensional materials, the framework may predict analogous logarithmic entanglement there.
  • Circuit-QED experiments that vary both chain length and coupling strength could directly map the crossover from Lindbladian to block-diagonal regimes.

Load-bearing premise

Reinterpreting the Power-Zienau-Woolley transformation as a light-matter quantum circuit that couples the photonic position quadrature to the many-body dipole produces an exactly solvable model whose reduced density matrix remains valid at all coupling strengths.

What would settle it

Measure or compute the entanglement entropy as a function of chain length L at fixed strong coupling strength and check whether the scaling is logarithmic with prefactor alpha over two and independent of the Su-Schrieffer-Heeger phase.

Figures

Figures reproduced from arXiv: 2604.18670 by Luiz H. Santos.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Cavity-quantum matter setup: a one-dimensional [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

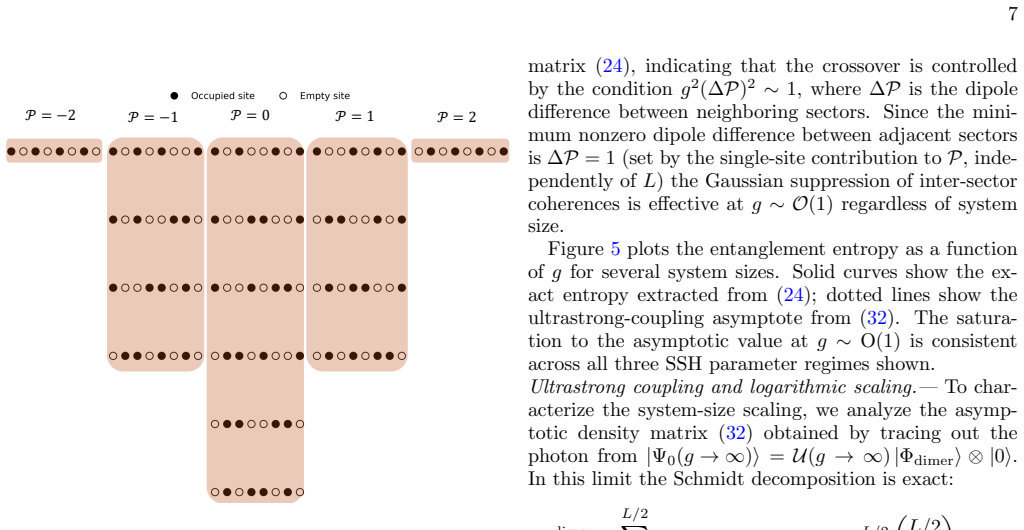

Figure 2. Figure 2: FIG. 2. Dipole-sector structure of the dimer state for [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

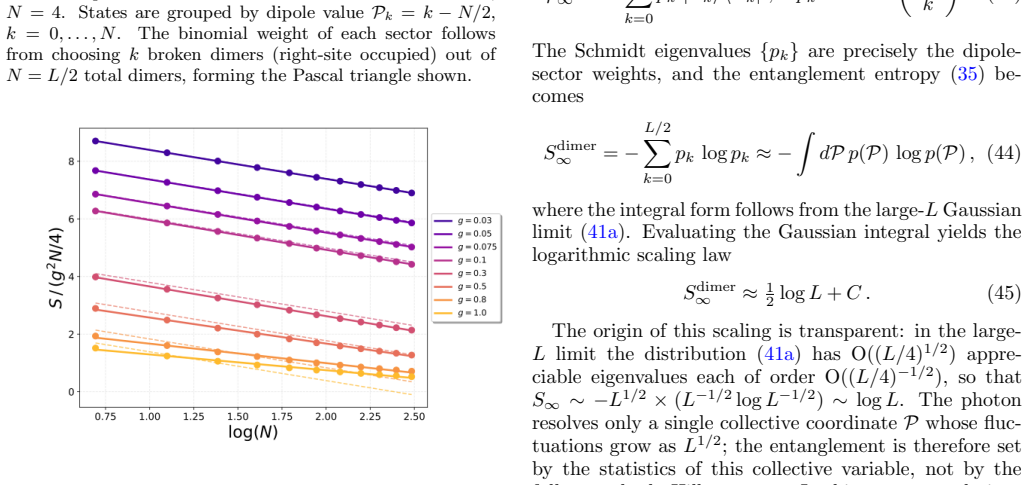

Figure 3. Figure 3: FIG. 3. Light-matter entanglement entropy at weak coupling. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Evolution of the reduced density matrix ( [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

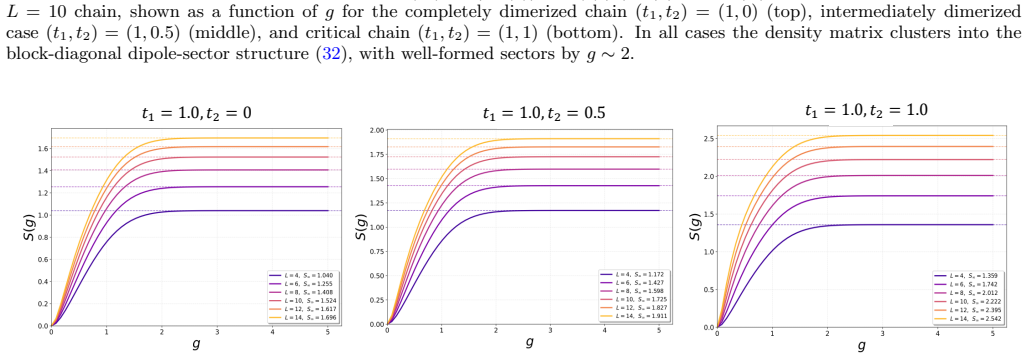

Figure 5. Figure 5: FIG. 5. Light-matter entanglement entropy for [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Scaling of the light-matter entanglement entropy [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Coupling-strength dependence of the entanglement [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Entanglement scaling away from the dimerized limit. [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
read the original abstract

Hybrid systems where a quantum material strongly couples to a nonlocal cavity photon mode have emerged as a new frontier for controlling and probing quantum correlations, yet the structure and scaling of light-matter entanglement produced by the nonlocal coupling remains poorly understood. We address this problem through an exactly solvable framework based on reinterpreting the Power--Zienau--Woolley (PZW) transformation as a \textit{light-matter quantum circuit} that couples the photonic position quadrature $X \sim a + a^\dagger$ to the many-body dipole $\mathcal{P}$ of a one-dimensional quantum chain. We derive a closed-form expression for the reduced density matrix valid at all coupling strengths, in which off-diagonal elements between matter states of unequal dipole are suppressed by a Gaussian factor encoding the full weak-to-ultrastrong coupling crossover. At weak coupling, the reduced density matrix takes a Lindbladian form with $\mathcal{P}$ as the jump operator, and the entanglement entropy is controlled by the dipole variance. At ultrastrong coupling, the density matrix becomes exactly block-diagonal in dipole sectors, reflecting an \textit{emergent dipole symmetry} dynamically imposed by the photon field, with entanglement entropy given exactly by the Shannon entropy of the dipole-sector weight distribution. Applying this framework to a half-filled Su--Schrieffer--Heeger chain, we show that, at strong coupling, both the light-matter entanglement and the spatial entanglement of the photon-dressed matter state scale logarithmically with system size, $S_\infty \sim \frac{\alpha}{2}\log L$, robust across the SSH phase diagram. The logarithm originates from the photon resolving a single collective coordinate $\mathcal{P}$ whose fluctuations grow as $L^{\alpha/2}$, a distinct mechanism from the logarithmic entanglement of critical one-dimensional systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript reinterprets the Power-Zienau-Woolley transformation as a light-matter quantum circuit coupling the photonic position quadrature X to the collective dipole P of a 1D chain. It derives a closed-form reduced density matrix valid at all couplings, with a Gaussian suppression of off-diagonal elements between unequal-P states that interpolates from a Lindbladian form at weak coupling to exact block-diagonality in dipole sectors at ultrastrong coupling (emergent dipole symmetry). Applied to the half-filled SSH chain, both light-matter entanglement and spatial entanglement of the photon-dressed state are shown to scale as S_∞ ∼ (α/2) log L at strong coupling, with the logarithm arising from photon resolution of a single collective coordinate whose fluctuations grow as L^{α/2}.

Significance. If the central claims hold, the work supplies an exactly solvable, parameter-free framework for light-matter entanglement that yields a distinct logarithmic mechanism tied to collective dipole fluctuations rather than criticality. The closed-form reduced density matrix and its explicit weak-to-ultrastrong crossover constitute a clear technical advance for hybrid quantum systems.

major comments (1)
  1. [SSH application / spatial entanglement results] In the SSH application (abstract and results section on spatial entanglement of the photon-dressed state): the claim that spatial entanglement entropy inherits the full (α/2) log L scaling from the Shannon entropy of the P distribution rests on the assumption that a spatial bipartition fully resolves global dipole sectors. Because P is a nonlocal sum over the entire chain, reduced density operators belonging to different P eigenvalues generally have overlapping support on one half; the von Neumann entropy of their mixture is therefore strictly smaller than the Shannon entropy plus average intra-sector entropy. This point is load-bearing for the spatial-entanglement claim and requires explicit verification or a quantitative bound.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for identifying this important subtlety in the spatial entanglement analysis. We address the comment directly below and will revise the manuscript to incorporate a quantitative clarification.

read point-by-point responses

  1. Referee: In the SSH application (abstract and results section on spatial entanglement of the photon-dressed state): the claim that spatial entanglement entropy inherits the full (α/2) log L scaling from the Shannon entropy of the P distribution rests on the assumption that a spatial bipartition fully resolves global dipole sectors. Because P is a nonlocal sum over the entire chain, reduced density operators belonging to different P eigenvalues generally have overlapping support on one half; the von Neumann entropy of their mixture is therefore strictly smaller than the Shannon entropy plus average intra-sector entropy. This point is load-bearing for the spatial-entanglement claim and requires explicit verification or a quantitative bound.

    Authors: We agree that the non-locality of the collective dipole operator P implies that the reduced density matrices on a spatial half for different P sectors generally overlap, so that the von Neumann entropy of the mixture is strictly less than the Shannon entropy of the P distribution plus the weighted intra-sector entropies. This is a valid technical observation. At ultrastrong coupling the full state is block-diagonal in P, and the leading (α/2) log L term originates from the growing variance of P (∼ L^α). While the overlap reduces the entropy relative to the naive sum, the correction is controlled by local dipole fluctuations, which remain O(1) per site and do not grow with L. Consequently the difference is sub-leading and the asymptotic scaling S_∞ ∼ (α/2) log L is preserved. We will add to the revised manuscript an explicit bound on the overlap (or a direct numerical extraction of the correction term) together with a clarification in the abstract and results section that the logarithmic scaling is the leading behavior, not an exact equality to the Shannon entropy. Our existing finite-size data already confirm the log L growth, consistent with this analysis. revision: yes

Circularity Check

0 steps flagged

Derivation self-contained from standard PZW transformation with no load-bearing self-references or fitted predictions

full rationale

The paper begins from the standard Power-Zienau-Woolley transformation, reinterpreted as a light-matter quantum circuit coupling photonic quadrature X to many-body dipole P. It derives a closed-form reduced density matrix (valid at all couplings) whose block-diagonal structure at strong coupling directly yields the Shannon entropy of the P-distribution. The logarithmic scaling S_∞ ∼ (α/2) log L follows analytically from the stated dipole fluctuations ∼ L^{α/2} in the SSH model. No parameters are fitted then renamed as predictions, no self-citations are invoked to justify uniqueness or ansatz, and the spatial-entanglement claim is presented as following from the same reduced-density-matrix construction rather than by redefinition. The chain is independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the reinterpretation of the PZW transformation as an exactly solvable quantum circuit and on the standard properties of the SSH model at half filling; no additional free parameters or invented entities are introduced.

axioms (2)
  • domain assumption The Power-Zienau-Woolley transformation can be reinterpreted as a light-matter quantum circuit coupling photonic position quadrature X to the many-body dipole P
    This reinterpretation is invoked to obtain the closed-form reduced density matrix valid at all coupling strengths.
  • standard math Standard quantum mechanics and the dipole approximation apply to the hybrid system
    Background assumption used throughout the derivation of the density matrix and entanglement expressions.
