The Dehn-Nielsen-Baer Theorem for Bounded Surfaces

Elysia Wang

Authors on Pith no claims yet

Pith reviewed 2026-05-10 02:47 UTC · model grok-4.3

classification 🧮 math.GT

keywords Dehn-Nielsen-Baer theoremmapping class groupfundamental groupoidbounded surfacessurface topologygroupoid automorphisms

0 comments

The pith

The mapping class group of a bounded surface equals the automorphisms of its fundamental groupoid that fix the boundary loops.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proves the Dehn-Nielsen-Baer theorem for surfaces with boundary. It shows that the mapping class group of such a surface is isomorphic to the automorphisms of the fundamental groupoid that preserve the loops around each boundary component. This algebraic description matters because the mapping class group classifies homeomorphisms of the surface up to isotopy, and the isomorphism translates geometric symmetries into data from the fundamental groupoid. A sympathetic reader cares because the result supplies a uniform algebraic model for the symmetries of surfaces that have boundary, which arise throughout low-dimensional topology.

Core claim

Let Σ be a bounded surface. The mapping class group of Σ is isomorphic to the automorphisms of the fundamental groupoid of Σ that fix loops around the boundary.

What carries the argument

The fundamental groupoid of Σ together with the subgroup of automorphisms that fix the loops around each boundary component.

Load-bearing premise

The surface Σ must be bounded and the automorphisms of the fundamental groupoid must be required to fix the loops around each boundary component.

What would settle it

An explicit bounded surface Σ together with an automorphism of its fundamental groupoid that fixes every boundary loop but cannot be realized by any homeomorphism of Σ.

Figures

Figures reproduced from arXiv: 2604.18815 by Elysia Wang.

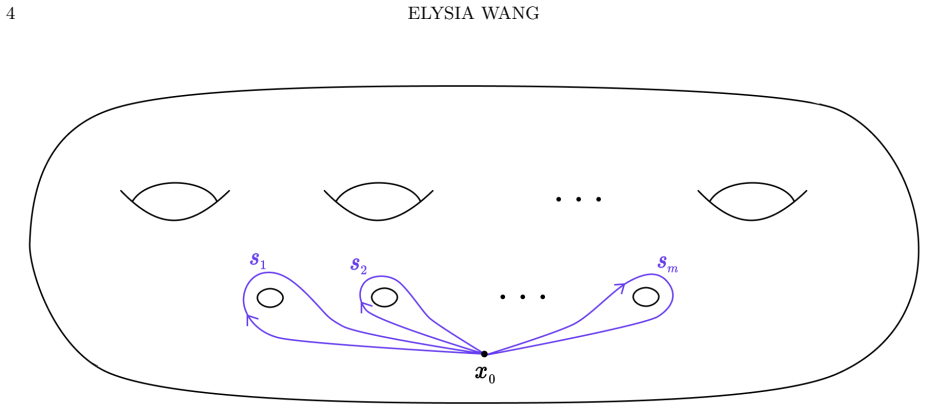

**Figure 1.** Figure 1: si around a surface with m boundary components. • for each i ∈ I, there is an identity element, ei ∈ Gii, such that ei · a = a and b · ei = b for all a ∈ Gij and b ∈ Gji • for each a ∈ Gij , there is an inverse element, a −1 ∈ Gji, such that a · a −1 = ei and a −1 · a = ej . I is called the object set of G and when |I| = 1, G is a group. In fact, Gii is a group for all i ∈ I, and we call these vertex group… view at source ↗

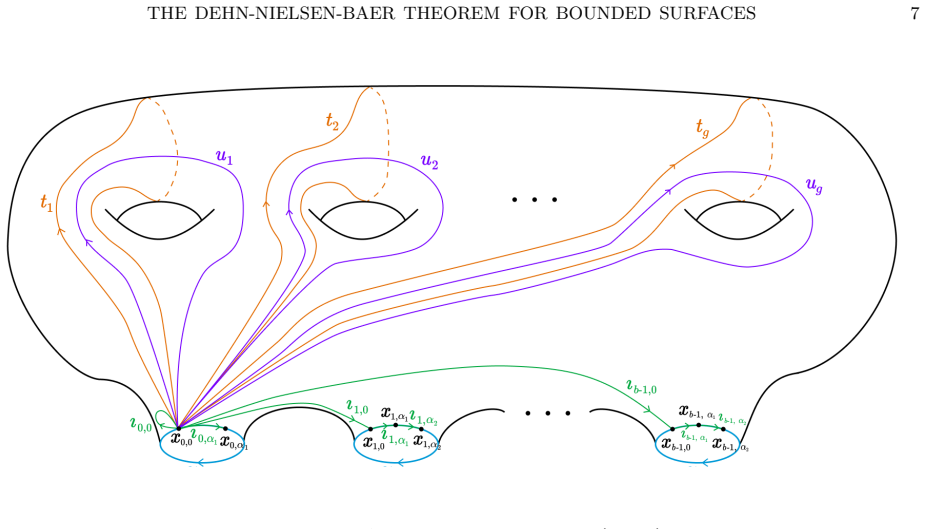

**Figure 2.** Figure 2: A generating set for π1(Σ, X) For brevity, let x0 denote x0,0 and let ιi denote ιi,0 from now on. By Lemma 3.1.1, we have that we can represent a pure automorphism of a groupoid as an element of (Aut(G)⋉ Q i∈I G)/ {(Inng,(g −1 , g−1 , ...)) | g ∈ G}. The following lemma shows that we can do better for a boundary-constant automorphism of the fundamental groupoid. Lemma 3.3.1. Let ϕ ∈ BCAut(π1(Σ, X)). Let ψ … view at source ↗

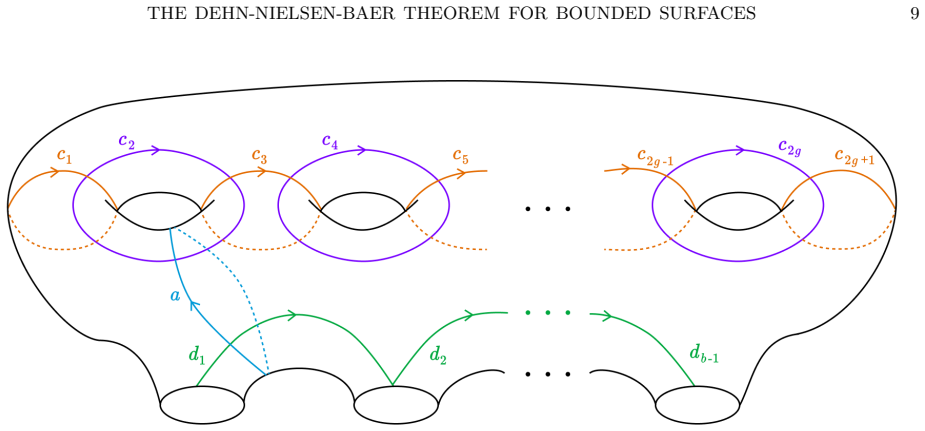

**Figure 3.** Figure 3: Collection of curves for the Alexander method for a surface with multiple boundary components [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

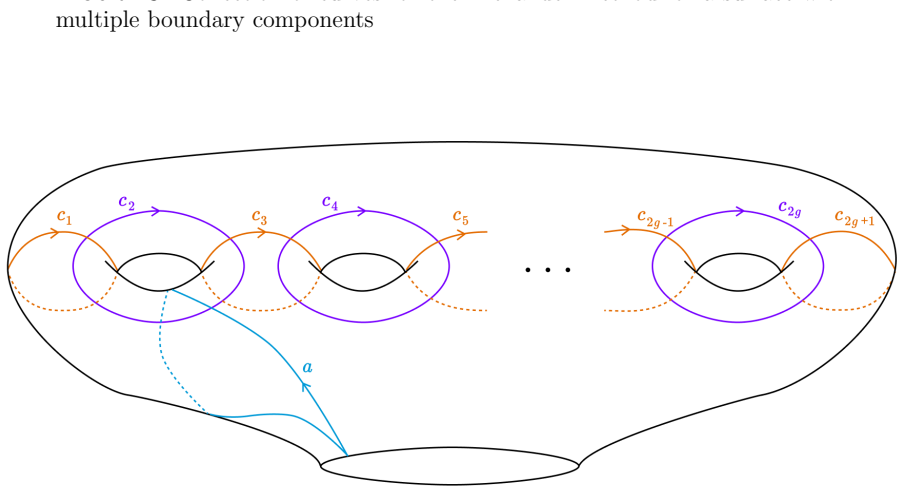

**Figure 4.** Figure 4: Collection of curves for the Alexander method for a surface with one boundary component It remains to show that Φ is surjective. First, fix an orientation on Σ such that the induced orientation of the boundary components is such that the surface is to the left of the boundary. Select the same set of generating curves, A, and the same star as in Section 3.3. Take φ ∈ BCAut(π1(Σ, X)) [PITH_FULL_IMAGE:figur… view at source ↗

**Figure 5.** Figure 5: Dehn twist about ¯γi µ certainly still induces φ, since T −ki i ([a]) = [a] for any a ∈ A by the way we have chosen the elements of the generating set A. Notice that s −ki i = ιiγi −ki ι −1 i . Now, we have µ∗(ιi) = η∗ ◦ T −k1 1 ◦ · · · ◦ T −kb−1 b−1 (ιi) = η∗ ◦ T −ki i (ιi), since γj (and thus Tj ) is disjoint with ιi when i ̸= j = η∗(ιiγ −ki i ) = giιiγ −ki i Note that hi = gis −ki i = giιiγ −ki i ι −1 i… view at source ↗

read the original abstract

Let $\Sigma$ be a bounded surface. We prove the Dehn-Nielsen-Baer theorem for bounded surfaces to show that the mapping class group of $\Sigma$ is isomorphic to the automorphisms of the fundamental groupoid of $\Sigma$ that fix loops around the boundary.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper proves the Dehn-Nielsen-Baer theorem for bounded surfaces by identifying the mapping class group with automorphisms of the fundamental groupoid that fix boundary loops.

read the letter

This paper proves that for a bounded surface the mapping class group is isomorphic to the automorphisms of its fundamental groupoid that fix the loops around each boundary component. The groupoid setup lets the argument treat the boundary curves as fixed objects rather than up to conjugacy, which fits the bounded case directly. The write-up defines the groupoid, specifies the automorphism condition, and builds the two directions of the isomorphism using standard generators and relations for mapping classes. The steps stay algebraic and avoid extra choices of basepoints. The result lines up with the classical closed-surface statement once boundaries are accounted for, and the proof appears self-contained without obvious gaps or circular moves. One limitation is that the core idea is a standard extension already present in the literature on surface groups and outer automorphisms; the contribution is mainly the explicit groupoid version rather than a wholly new technique. Readers who already know the closed case will recognize the adaptations. The paper is aimed at geometric topologists who need an algebraic handle on mapping classes for surfaces with boundary, such as in computations involving fundamental groups or further theorems on homeomorphisms. A referee could usefully check the details of the isomorphism construction and any edge cases for low-genus or high-boundary surfaces. I would send it to peer review because the statement is precise and the approach is appropriate for the claim.

Referee Report

0 major / 3 minor

Summary. The manuscript proves the Dehn-Nielsen-Baer theorem for bounded surfaces: for a surface Σ with boundary, the mapping class group MCG(Σ) is isomorphic to the group of automorphisms of the fundamental groupoid Π₁(Σ) that fix each boundary loop.

Significance. The result is the standard extension of the classical Dehn-Nielsen-Baer theorem to the bounded case, replacing Out(π₁(Σ)) with peripheral-structure-preserving automorphisms of the fundamental groupoid. This formulation is useful in contexts where basepoint issues and boundary components are handled via groupoids rather than groups. The proof, if complete and self-contained, would be a convenient reference, though the statement itself is not new.

minor comments (3)

The abstract is extremely terse; a sentence outlining the main steps of the argument (e.g., how the groupoid automorphisms are shown to be realized by homeomorphisms) would improve readability.
Define the fundamental groupoid Π₁(Σ) and the precise fixing condition on boundary loops at the first appearance rather than assuming familiarity.
Include a brief comparison with the classical statement for closed surfaces and with the Out(π₁) formulation to clarify the precise role of the groupoid.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive report and the recommendation to accept the manuscript. The referee's summary accurately captures the main result: the isomorphism between the mapping class group of a bounded surface and the automorphisms of its fundamental groupoid that fix the boundary loops. We agree that this is the natural extension of the classical Dehn-Nielsen-Baer theorem and that the groupoid formulation is useful for managing basepoints and boundary components.

Circularity Check

0 steps flagged

No significant circularity detected in the derivation

full rationale

The paper states and proves the Dehn-Nielsen-Baer theorem for bounded surfaces as an isomorphism MCG(Σ) ≅ Aut(Π₁(Σ)) where automorphisms fix boundary loops. This is a direct extension of a classical result using standard topological arguments on surfaces and groupoids. No self-definitional reductions, fitted parameters renamed as predictions, or load-bearing self-citations appear in the provided abstract or description. The central claim relies on independent mathematical structure rather than reducing to its own inputs by construction, making the derivation self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review is abstract-only; no free parameters, ad-hoc axioms, or invented entities are visible. The claim rests on standard definitions of mapping class group and fundamental groupoid for surfaces with boundary.

pith-pipeline@v0.9.0 · 5320 in / 880 out tokens · 38491 ms · 2026-05-10T02:47:39.330028+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

6 extracted references

[1]

Murat Alp and Christopher D. Wensley. Automorphisms and homotopies of groupoids and crossed mod- ules.Applied Categorical Structures, 18(5):473–504, 2009. THE DEHN-NIELSEN-BAER THEOREM FOR BOUNDED SURF ACES 13

2009
[2]

J. Cerf. Isotopy. InLectures on the Differential Topology of Knots and Bifurcation Points of Functions, pages 133–168. Springer, 1965

1965
[3]

Princeton University Press, 2012

Benson Farb and Dan Margalit.A Primer on Mapping Class Groups. Princeton University Press, 2012

2012
[4]

Mapping class groups of covers with boundary and braid group embeddings.Algebraic & Geometric Topology, 20:239–278, 2020

Tyrone Ghaswala and Alan McLeay. Mapping class groups of covers with boundary and braid group embeddings.Algebraic & Geometric Topology, 20:239–278, 2020

2020
[5]

Cambridge University Press, 2002

Allen Hatcher.Algebraic Topology. Cambridge University Press, 2002

2002
[6]

Springer, 1980

Heiner Zieschang, Elmar Vogt, and Hans-Dieter Coldewey.Surfaces and Planar Discontinuous Groups, volume 835 ofLecture Notes in Mathematics. Springer, 1980

1980
