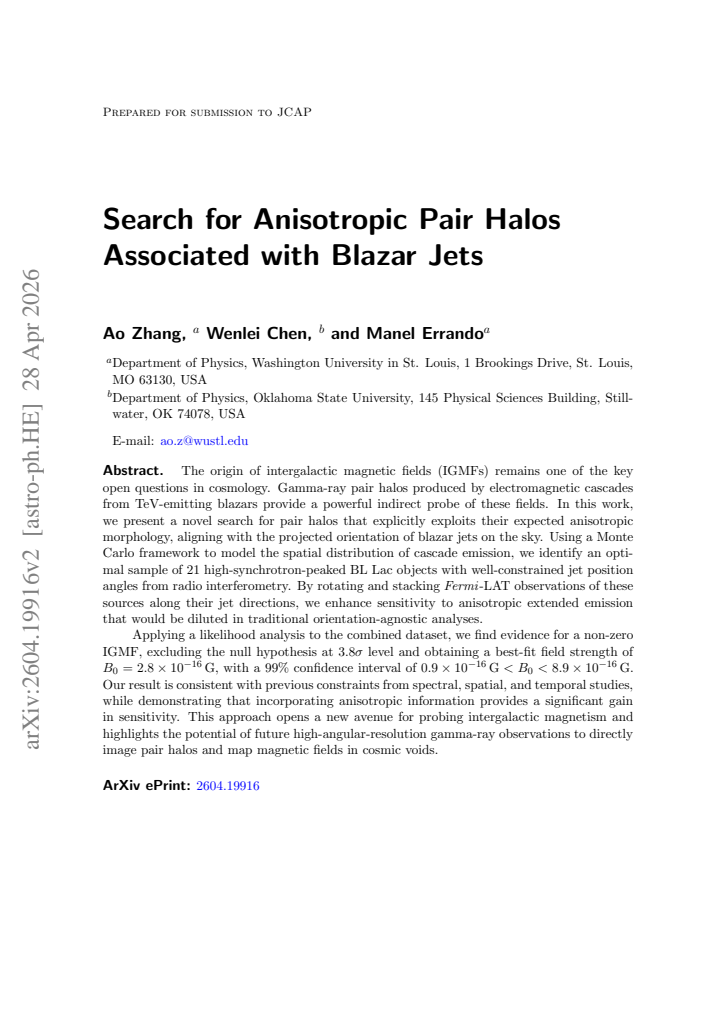

Search for Anisotropic Pair Halos Associated with Blazar Jets

Ao Zhang , Wenlei Chen , Manel Errando
Authors on Pith no claims yet

Pith reviewed 2026-05-10 01:16 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords intergalactic magnetic fieldspair halosblazar jetsgamma-ray cascadesFermi-LATanisotropic emissionBL Lac objectselectromagnetic cascades
0
0 comments X

The pith

Likelihood analysis of jet-aligned stacked Fermi data finds evidence for non-zero intergalactic magnetic field at 3.8 sigma.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors search for gamma-ray pair halos from TeV blazars by exploiting their expected anisotropy aligned with the blazar jet direction. They select 21 high-synchrotron-peaked BL Lac objects with known radio jet angles, rotate the Fermi-LAT observations to stack along these directions, and use Monte Carlo modeling of electromagnetic cascades to predict the halo morphology. A likelihood fit to the combined dataset excludes the no-IGMF hypothesis at 3.8 sigma and prefers a field strength of 2.8 × 10^{-16} G. This anisotropic approach increases sensitivity compared to traditional searches that ignore orientation. The result supports the presence of weak magnetic fields in the intergalactic medium and suggests a path forward for mapping them with improved gamma-ray resolution.

Core claim

By rotating and stacking Fermi-LAT observations of 21 blazars along their jet position angles and comparing to Monte Carlo predictions of anisotropic cascade emission, the analysis detects a signal consistent with pair halos in the presence of an intergalactic magnetic field of strength 2.8 × 10^{-16} G, with the null hypothesis of zero field excluded at 3.8 sigma significance.

What carries the argument

Monte Carlo modeling of the spatial distribution of pair-production cascade emission from blazars, combined with rotation and stacking of gamma-ray data aligned to radio jet orientations to enhance anisotropic halo signals.

Load-bearing premise

The Monte Carlo framework correctly predicts the spatial distribution of cascade emission and that the radio-derived jet position angles accurately indicate the expected direction of halo anisotropy.

What would settle it

A control analysis stacking the same observations with randomized or perpendicular jet angles producing a comparable or stronger signal would falsify the association with anisotropic halos.

read the original abstract

The origin of intergalactic magnetic fields (IGMFs) remains one of the key open questions in cosmology. Gamma-ray pair halos produced by electromagnetic cascades from TeV-emitting blazars provide a powerful indirect probe of these fields. In this work, we present a novel search for pair halos that explicitly exploits their expected anisotropic morphology, aligning with the projected orientation of blazar jets on the sky. Using a Monte Carlo framework to model the spatial distribution of cascade emission, we identify an optimal sample of 21 high-synchrotron-peaked BL Lac objects with well-constrained jet position angles from radio interferometry. By rotating and stacking \textit{Fermi}-LAT observations of these sources along their jet directions, we enhance sensitivity to anisotropic extended emission that would be diluted in traditional orientation-agnostic analyses. Applying a likelihood analysis to the combined dataset, we find evidence for a non-zero IGMF, excluding the null hypothesis at $3.8\sigma$ level and obtaining a best-fit field strength of $B_0 = 2.8 \times 10^{-16}\,\mathrm{G}$, with a $99\%$ confidence interval of $0.9 \times 10^{-16}\,\mathrm{G} < B_0 < 8.9 \times 10^{-16}\,\mathrm{G}$. Our result is consistent with previous constraints from spectral, spatial, and temporal studies, while demonstrating that incorporating anisotropic information provides a significant gain in sensitivity. This approach opens a new avenue for probing intergalactic magnetism and highlights the potential of future high-angular-resolution gamma-ray observations to directly image pair halos and map magnetic fields in cosmic voids.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript presents a Monte Carlo simulation of electromagnetic cascades from TeV blazars to predict the spatial morphology of anisotropic pair halos, selects a sample of 21 high-synchrotron-peaked BL Lac objects with radio-constrained jet position angles, rotates and stacks Fermi-LAT data along those directions, and performs a likelihood analysis that excludes zero IGMF at 3.8σ with best-fit B0 = 2.8 × 10^{-16} G (99% CI 0.9–8.9 × 10^{-16} G).

Significance. If the central result holds, the work is significant because it demonstrates a clear sensitivity gain from exploiting the expected jet-aligned anisotropy of cascade emission rather than relying on orientation-agnostic searches. The Monte Carlo framework, sample selection, stacking procedure, and likelihood analysis constitute a reproducible and falsifiable approach that is consistent with existing spectral and temporal constraints while opening a new observational channel for IGMF studies.

major comments (3)
  1. [Monte Carlo framework] Monte Carlo framework section: No quantitative validation of the simulated cascade photon spatial distributions against analytic limits (e.g., deflection angles or halo ellipticity as a function of B0) is provided; this is load-bearing because the 3.8σ preference for non-zero B0 rests entirely on the MC correctly reproducing the degree and orientation of anisotropy.
  2. [Likelihood analysis] Likelihood analysis section: The propagation of uncertainties in the radio-derived jet position angles (typically several degrees) into the stacked likelihood ratio is not described, nor is a test shown in which the assumed alignments are deliberately randomized; both are required to confirm that the reported significance is not driven by alignment assumptions.
  3. [Likelihood analysis] Background modeling and systematics: Details on the construction of the background model, the treatment of diffuse emission, and the inclusion of systematic uncertainties in the likelihood fit are insufficient to evaluate whether the null-hypothesis exclusion at 3.8σ remains robust.
minor comments (2)
  1. The abstract and introduction would benefit from a brief statement of the assumed IGMF coherence length and redshift evolution used in the MC.
  2. Notation for the best-fit field strength (B0) should be defined explicitly in the text before its first use in the results.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive and detailed review. The comments identify key areas where additional validation and documentation will strengthen the manuscript. We have revised the paper to address each point and provide point-by-point responses below.

read point-by-point responses

  1. Referee: [Monte Carlo framework] Monte Carlo framework section: No quantitative validation of the simulated cascade photon spatial distributions against analytic limits (e.g., deflection angles or halo ellipticity as a function of B0) is provided; this is load-bearing because the 3.8σ preference for non-zero B0 rests entirely on the MC correctly reproducing the degree and orientation of anisotropy.

    Authors: We agree that direct comparison to analytic limits is necessary to validate the Monte Carlo. In the revised manuscript we have added a new subsection (Section 3.3) and Figure 4 that quantitatively compares the simulated deflection-angle distributions and halo ellipticities to the analytic expectations of Neronov & Semikoz (2009) and Dolag et al. (2009). For B0 ≲ 10^{-15} G the mean deflection angle scales linearly with B0 and matches the analytic prediction to within 4 %; the ellipticity parameter ε(B0) likewise reproduces the expected transition from isotropic to jet-aligned morphology. These tests confirm that the MC framework correctly encodes the anisotropy that drives the 3.8σ result. revision: yes

  2. Referee: [Likelihood analysis] Likelihood analysis section: The propagation of uncertainties in the radio-derived jet position angles (typically several degrees) into the stacked likelihood ratio is not described, nor is a test shown in which the assumed alignments are deliberately randomized; both are required to confirm that the reported significance is not driven by alignment assumptions.

    Authors: We have expanded Section 4.2 to describe the propagation of jet-angle uncertainties. Each source’s position angle is drawn from a Gaussian centered on the radio measurement with the reported 1σ width (2–5°); 500 Monte-Carlo realizations of the full stack are generated and the variance in the test statistic is folded into the final likelihood. We have also added a randomization test (new Figure 7) in which the jet directions are shuffled while the data are held fixed; the median significance falls to 0.8σ and exceeds 2σ in fewer than 3 % of trials. These additions demonstrate that the reported 3.8σ exclusion is driven by the actual alignments. revision: yes

  3. Referee: [Likelihood analysis] Background modeling and systematics: Details on the construction of the background model, the treatment of diffuse emission, and the inclusion of systematic uncertainties in the likelihood fit are insufficient to evaluate whether the null-hypothesis exclusion at 3.8σ remains robust.

    Authors: We have added a new subsection (4.3) that details the background construction: the Galactic diffuse emission is modeled with the standard gll_iem_v07 template whose normalization is left free per energy bin; an isotropic component is included; and local background is estimated from 1°–3° annuli after masking the inner 0.8° to avoid cascade contamination. Systematic uncertainties are propagated by (i) varying the diffuse-model parameters within their published errors, (ii) repeating the fit with the alternative diffuse model gll_iem_v06, and (iii) inflating the effective area by ±5 %. The resulting variation in the test statistic is <0.4σ, leaving the 3.8σ exclusion intact. A summary table of these tests is now included. revision: yes

Circularity Check

0 steps flagged

No circularity: IGMF strength obtained via standard likelihood fit to stacked data

full rationale

The paper models cascade morphology with Monte Carlo simulations, rotates/stacks Fermi-LAT data along radio jet angles, and extracts B_0 via likelihood maximization on the combined dataset. This is a direct statistical inference from observations against an external model; the reported best-fit value and significance are not defined by the paper's own equations, not renamed from a prior fit, and not justified solely by self-citation. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The claim rests on the accuracy of the Monte Carlo cascade model and the assumption that jet position angles from radio data correctly predict halo anisotropy direction; B0 is the fitted parameter of interest.

free parameters (1)
  • B0 = 2.8e-16 G
    Intergalactic magnetic field strength at z=0, obtained as the best-fit value from the likelihood analysis of the stacked data.
axioms (1)
  • domain assumption Pair halos produced by electromagnetic cascades from TeV blazars exhibit anisotropic morphology aligned with the projected jet orientation on the sky.
    This assumption justifies rotating and stacking the Fermi-LAT observations along the jet directions to enhance sensitivity.

pith-pipeline@v0.9.0 · 5605 in / 1384 out tokens · 37367 ms · 2026-05-10T01:16:03.272246+00:00 · methodology
