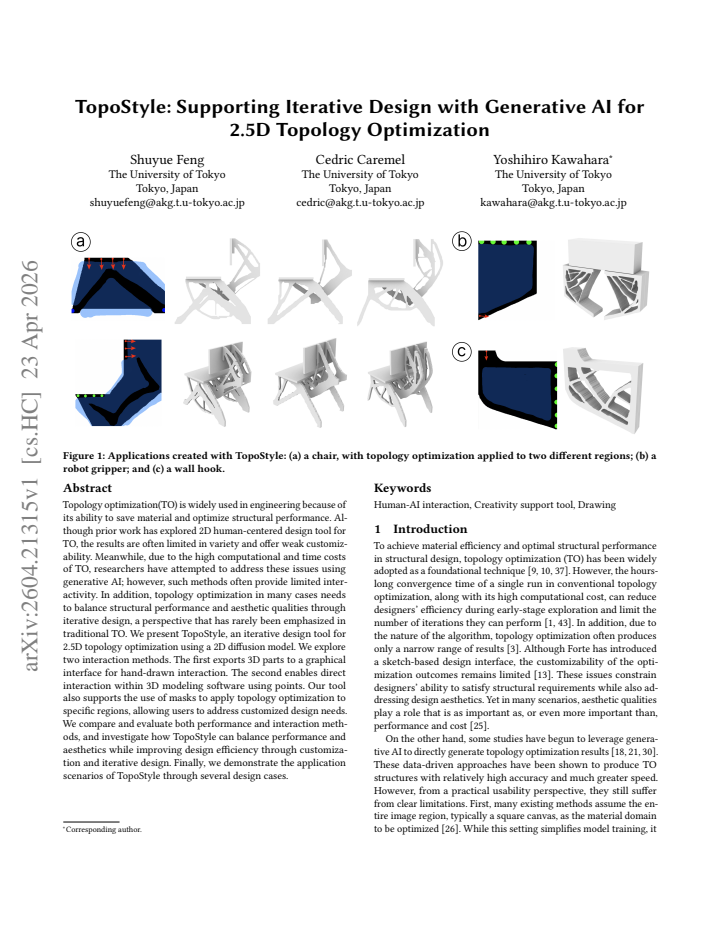

TopoStyle: Supporting Iterative Design with Generative AI for 2.5D Topology Optimization

Shuyue Feng , Cedric Caremel , Yoshihiro Kawahara
Authors on Pith no claims yet

Pith reviewed 2026-05-09 21:24 UTC · model grok-4.3

classification 💻 cs.HC
keywords topology optimizationgenerative AIdiffusion modeliterative design2.5D structureshuman-AI interactioncustomizable designstructural performance
0
0 comments X

The pith

A 2D diffusion model lets users iteratively refine 2.5D topology-optimized parts through hand-drawn sketches, point selections, and regional masks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents TopoStyle as a tool that integrates a 2D diffusion model with interactive controls to overcome limited variety in traditional 2D topology optimization tools and the low interactivity of earlier AI approaches. It enables designers to guide the generation of 2.5D structures by exporting parts for hand-drawn edits or by selecting points directly inside 3D modeling software. Masks further allow the optimization to be applied only to chosen regions so that custom requirements can be met without altering the whole object. The work evaluates these methods for both structural performance and user interaction while showing how repeated cycles help balance material efficiency against aesthetic qualities.

Core claim

TopoStyle is an iterative design tool for 2.5D topology optimization that uses a 2D diffusion model to produce optimized structures. It offers two interaction modes: exporting 3D parts to a graphical interface where users draw edits by hand, and direct point-based interaction inside 3D modeling software. The system also lets users apply masks to restrict optimization to specific regions, supporting customized needs. Through these features the tool improves design efficiency by allowing repeated refinement that trades off structural performance and visual appeal, as demonstrated in several application cases.

What carries the argument

The 2D diffusion model that generates topology-optimized 2.5D structures, steered by hand-drawn inputs on an exported GUI or by direct point selections inside 3D software, together with regional masks that limit the optimization scope.

If this is right

  • Designers can perform multiple optimization cycles in far less time than repeated full simulations would require.
  • Regional masks let users preserve existing geometry in some areas while optimizing others to meet specific functional or visual constraints.
  • The two interaction styles give users a choice between free-form sketching for creative control and precise point placement for engineering accuracy.
  • Iterative refinement becomes practical for exploring trade-offs between material reduction and aesthetic form without restarting from scratch each time.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the interaction patterns prove stable, the same pattern of sketch-plus-mask guidance could be tested on full 3D diffusion models once they mature.
  • Lowering the expertise threshold for topology optimization might shift its use from specialist engineering offices to broader product and industrial design workflows.
  • The emphasis on aesthetics alongside performance suggests a route for embedding similar generative loops inside consumer CAD packages where appearance matters as much as strength.

Load-bearing premise

The 2D diffusion model can produce 2.5D structures whose performance and appearance respond reliably to hand-drawn or point-based inputs and masks without creating unacceptable weaknesses or needing heavy post-processing.

What would settle it

A side-by-side finite-element comparison of load-bearing capacity and failure modes between TopoStyle outputs and results from a standard topology-optimization solver on the same boundary conditions; clear inferiority in the AI-generated parts would falsify the claim of usable performance.

Figures

Figures reproduced from arXiv: 2604.21315 by Cedric Caremel, Shuyue Feng, Yoshihiro Kawahara.

Figure 1
Figure 1. Figure 1: Applications created with TopoStyle: (a) a chair, with topology optimization applied to two different regions; (b) a [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

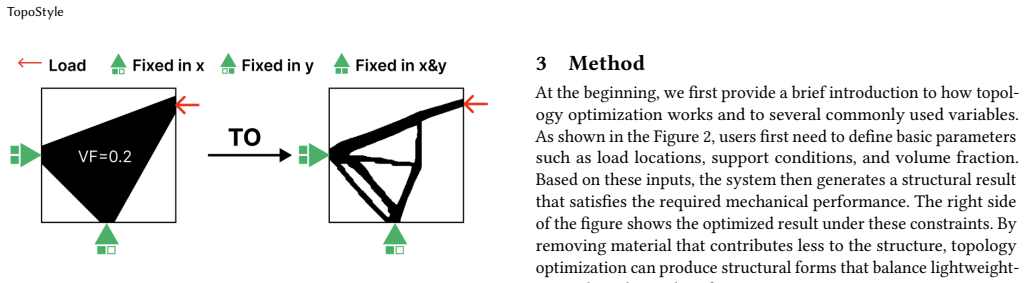

Figure 2. Figure 2: Left figure shows the original shape of the mate [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Three different interaction methods for topology optimization using generative AI [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

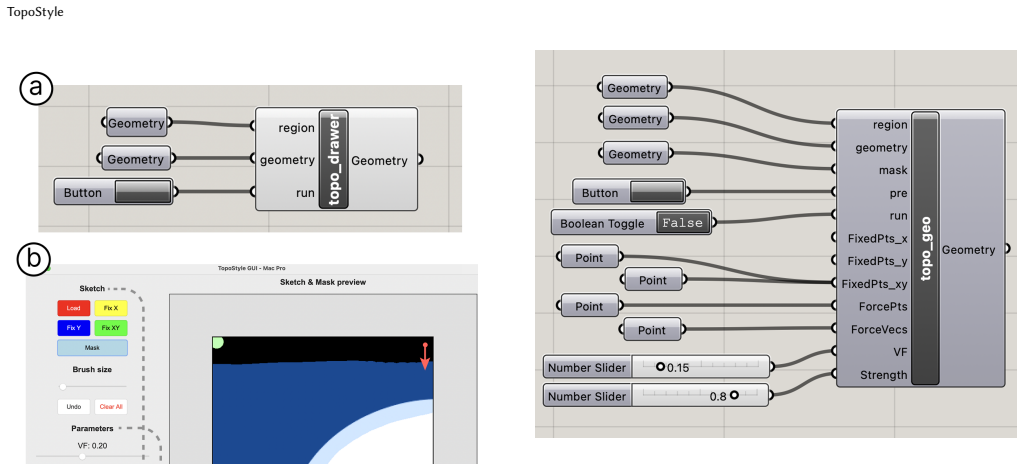

Figure 5. Figure 5: Grasshopper components of TopoStyle-GEO. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 4

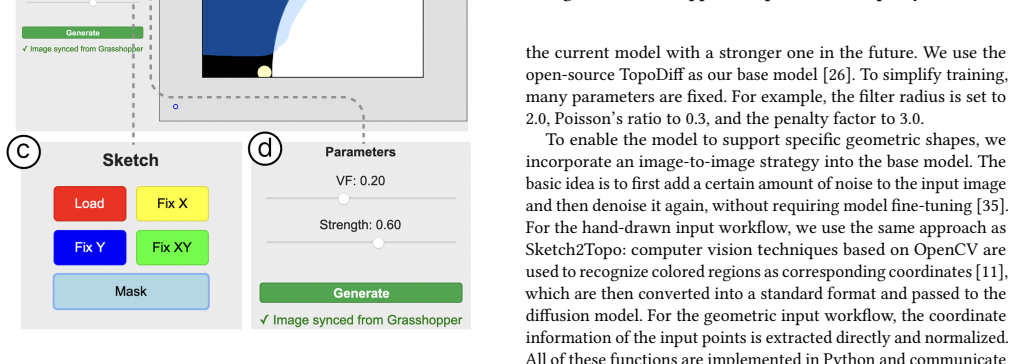

Figure 4. Figure 4: User interface of TopoStyle-DRAWER. (a) The [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Physical boundary conditions of the three tasks [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7

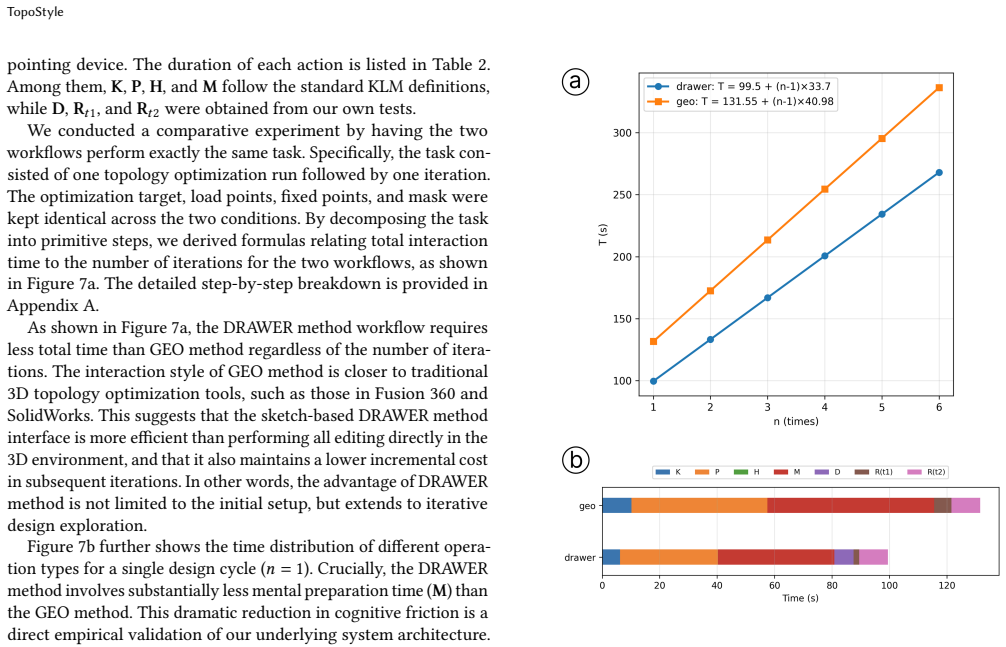

Figure 7. Figure 7: (a) Time required by the two interaction methods [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Iterative design of a chair using TopoStyle: (a) the base 3D model of the chair; (b) the constraints used for the first [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Designing structures with different functions for a [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

Topology optimization(TO) is widely used in engineering because of its ability to save material and optimize structural performance. Although prior work has explored 2D human-centered design tool for TO, the results are often limited in variety and offer weak customizability. Meanwhile, due to the high computational and time costs of TO, researchers have attempted to address these issues using generative AI; however, such methods often provide limited interactivity. In addition, topology optimization in many cases needs to balance structural performance and aesthetic qualities through iterative design, a perspective that has rarely been emphasized in traditional TO. We present TopoStyle, an iterative design tool for 2.5D topology optimization using a 2D diffusion model. We explore two interaction methods. The first exports 3D parts to a graphical interface for hand-drawn interaction. The second enables direct interaction within 3D modeling software using points. Our tool also supports the use of masks to apply topology optimization to specific regions, allowing users to address customized design needs. We compare and evaluate both performance and interaction methods, and investigate how TopoStyle can balance performance and aesthetics while improving design efficiency through customization and iterative design. Finally, we demonstrate the application scenarios of TopoStyle through several design cases.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents TopoStyle, an iterative design tool for 2.5D topology optimization that employs a 2D diffusion model. It describes two interaction methods (hand-drawn sketches exported to a graphical interface and direct point-based interactions inside 3D modeling software), mask support for region-specific application, comparisons of performance and interaction methods, exploration of balancing structural performance with aesthetics, and several design case studies demonstrating improved efficiency and customizability.

Significance. If the core claims hold, the work could meaningfully advance human-centered computational design by offering an interactive generative-AI layer over topology optimization that supports user-driven customization and aesthetic steering while reducing reliance on purely computational TO pipelines. The emphasis on iterative 2.5D workflows and explicit performance-aesthetics trade-offs addresses documented limitations in both traditional TO tools and prior generative approaches.

major comments (2)
  1. [Evaluation] Evaluation section: The abstract asserts that performance and interaction methods were compared and evaluated and that TopoStyle balances performance and aesthetics, yet no quantitative metrics (compliance, volume fraction, stress, or runtime), baselines (standard SIMP or other TO solvers), participant counts, or statistical results are supplied. This absence is load-bearing for the central claim, as visual plausibility from a diffusion model does not automatically guarantee structural validity.
  2. [System and Methods] System and Methods sections: The claim that user-steered 2D diffusion outputs produce valid 2.5D topology-optimized structures rests on the untested assumption that the generative process implicitly enforces TO constraints (equilibrium, connectivity, volume fraction). Without physics-informed fine-tuning, explicit loss terms, or post-generation verification against a TO solver, the outputs risk stress concentrations or disconnected members; this must be demonstrated with concrete comparisons before the interactivity claims can be accepted.
minor comments (2)
  1. [Abstract] Abstract: The description of the two interaction methods and the mask functionality is high-level; a single sentence clarifying how 2D diffusion outputs are lifted to 2.5D geometry would improve readability.
  2. [Introduction] Introduction: Prior work on generative TO and human-in-the-loop design tools is referenced but not contrasted in sufficient technical detail (e.g., differences in conditioning mechanisms or optimization objectives).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on evaluation and validation. We address each major comment below and will revise the manuscript accordingly to strengthen the claims.

read point-by-point responses

  1. Referee: Evaluation section: The abstract asserts that performance and interaction methods were compared and evaluated and that TopoStyle balances performance and aesthetics, yet no quantitative metrics (compliance, volume fraction, stress, or runtime), baselines (standard SIMP or other TO solvers), participant counts, or statistical results are supplied. This absence is load-bearing for the central claim, as visual plausibility from a diffusion model does not automatically guarantee structural validity.

    Authors: We agree the current evaluation relies on qualitative case studies and visual comparisons rather than quantitative metrics. The abstract's reference to comparisons refers to side-by-side demonstrations of the two interaction methods and aesthetic-performance trade-offs in the design cases. We will revise the Evaluation section to add quantitative metrics (compliance, volume fraction) for the case-study outputs versus standard SIMP baselines, plus runtime data. No formal user study with participant counts was conducted; the work uses expert design cases, which we will clarify. revision: yes

  2. Referee: System and Methods sections: The claim that user-steered 2D diffusion outputs produce valid 2.5D topology-optimized structures rests on the untested assumption that the generative process implicitly enforces TO constraints (equilibrium, connectivity, volume fraction). Without physics-informed fine-tuning, explicit loss terms, or post-generation verification against a TO solver, the outputs risk stress concentrations or disconnected members; this must be demonstrated with concrete comparisons before the interactivity claims can be accepted.

    Authors: The diffusion model was trained on TO-generated data, so structures approximate equilibrium and connectivity through learned patterns, but we acknowledge this is implicit. We will add a verification subsection in Methods that runs generated outputs through a standard TO solver for post-checks on connectivity, volume fraction, and stress. We will also note limitations where user edits for aesthetics may require relaxing strict TO constraints, and report any observed discrepancies. revision: yes

Circularity Check

0 steps flagged

No circularity; tool presentation is self-contained with no derivational reductions

full rationale

The paper presents TopoStyle as an interactive design tool for 2.5D topology optimization via a 2D diffusion model, with claims centered on interaction methods (hand-drawn, point-based, masks), performance-aesthetics balance, and design efficiency. No equations, fitted parameters, predictions, or first-principles derivations appear in the abstract or described content. The central claim is the existence and utility of the tool, supported by comparisons and design cases rather than any chain that reduces to its own inputs by construction. This matches the default expectation of no circularity for descriptive tool papers; external benchmarks or evaluations are referenced without self-referential collapse.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The paper introduces a software system whose core premise is that a 2D diffusion model can serve as a controllable generator for 2.5D topology-optimized geometry. No numerical free parameters are mentioned. The main domain assumption is the adequacy of the diffusion model for this engineering task.

axioms (1)
  • domain assumption A 2D diffusion model can be used to generate or guide 2.5D topology-optimized structures that remain structurally valid after user edits.
    This is the central technical premise required for the tool to produce usable designs.
invented entities (1)
  • TopoStyle system no independent evidence
    purpose: Interactive interface layer that couples 2D diffusion output with 3D modeling workflows and masking for iterative 2.5D TO.
    The system itself is the primary contribution; no external falsifiable evidence for its performance is supplied in the abstract.
