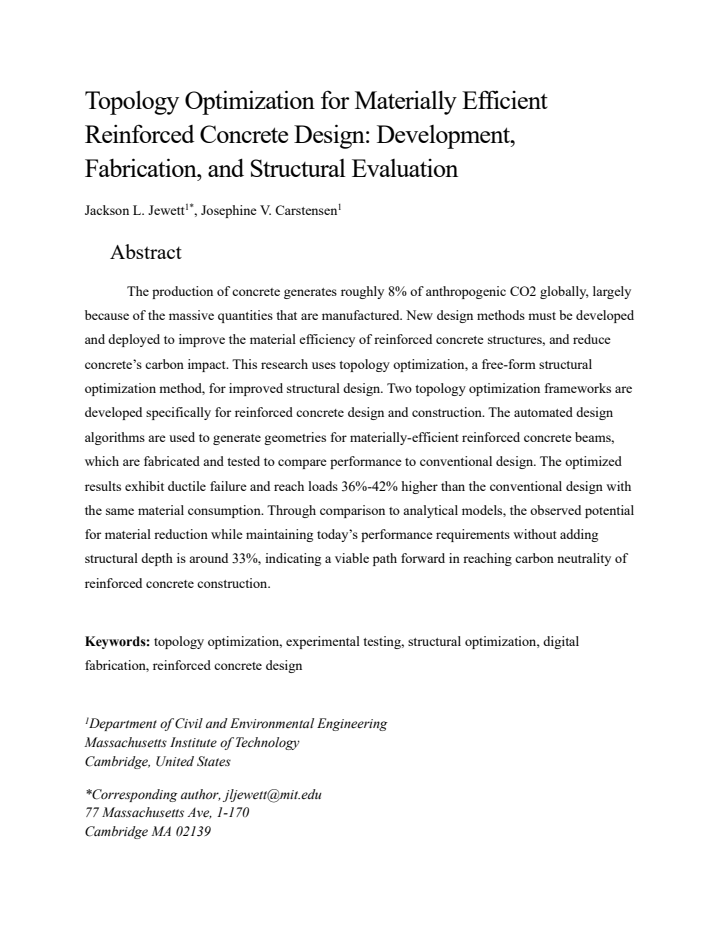

Topology Optimization for Materially Efficient Reinforced Concrete Design: Development, Fabrication, and Structural Evaluation

Jackson L. Jewett , Josephine V. Carstensen

Authors on Pith no claims yet

Pith reviewed 2026-05-08 13:07 UTC · model grok-4.3

classification 💻 cs.CE

keywords topology optimizationreinforced concretematerial efficiencybeam designstructural testingductile failurecarbon footprint

0 comments

The pith

Topology optimization tailored for reinforced concrete produces beams that carry 36-42% higher loads than conventional designs at identical material volume.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops two topology optimization frameworks specifically for reinforced concrete to generate free-form beam geometries that use material more efficiently. These designs are fabricated and subjected to structural testing, which shows ductile failure modes and superior load capacity compared to standard reinforced concrete beams with the same concrete and steel consumption. Comparison against analytical models indicates that the same performance targets could be met with roughly one-third less material without increasing beam depth. A reader would care because concrete production accounts for a large share of global CO2 emissions, so any reliable method to cut volume while preserving strength offers a direct route to lower emissions in construction.

Core claim

Two topology optimization frameworks developed for reinforced concrete generate beam geometries that, when built and tested, reach 36-42% higher loads than conventional designs using the same material volume; analytical comparisons further show that today's performance requirements can be met with approximately 33% less material without added structural depth.

What carries the argument

Two custom topology optimization frameworks that incorporate reinforced concrete behavior to generate materially efficient beam geometries.

Load-bearing premise

The optimization frameworks correctly capture steel-concrete interaction, cracking, and ductility, and the fabricated test specimens exactly match the digital designs without significant defects or scale effects.

What would settle it

Laboratory tests in which the optimized beams reach failure loads equal to or below the conventional design, or in which measured capacities fall short of the analytical predictions due to unmodeled cracking or fabrication inaccuracies.

read the original abstract

The production of concrete generates roughly 8% of anthropogenic CO2 globally, largely because of the massive quantities that are manufactured. New design methods must be developed and deployed to improve the material efficiency of reinforced concrete structures, and reduce concrete's carbon impact. This research uses topology optimization, a free-form structural optimization method, for improved structural design. Two topology optimization frameworks are developed specifically for reinforced concrete design and construction. The automated design algorithms are used to generate geometries for materially-efficient reinforced concrete beams, which are fabricated and tested to compare performance to conventional design. The optimized results exhibit ductile failure and reach loads 36%-42% higher than the conventional design with the same material consumption. Through comparison to analytical models, the observed potential for material reduction while maintaining today's performance requirements without adding structural depth is around 33%, indicating a viable path forward in reaching carbon neutrality of reinforced concrete construction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper moves topology optimization for reinforced concrete from simulation to tested prototypes, with beams showing 36-42% higher loads at equal material use, but the modeling of cracking and bond needs clearer validation.

read the letter

The main point is that the authors fabricated and tested topology-optimized reinforced concrete beams that carried 36 to 42 percent more load than a conventional reference at the same material volume, with an estimated 33 percent material reduction possible while keeping current performance levels and depth. They also report ductile failure in the optimized specimens. This is the concrete result that stands out from the abstract and methods description. Most prior topology optimization work on reinforced concrete has stayed at the numerical stage, so the step to physical beams and structural testing is the real addition here. The two RC-specific frameworks they developed appear to have produced constructible shapes that performed well under load, and the comparison against analytical models gives a practical sense of the efficiency gain. That experimental grounding is what makes the environmental motivation land: concrete production is a big CO2 source, and showing measurable savings without added depth is useful for engineers who actually build things. The fabrication details and test outcomes provide evidence that these optimized geometries can be realized without major defects or scale problems in the reported cases. On the soft side, the performance claims depend on how well the optimization frameworks capture reinforced concrete nonlinearities such as progressive cracking, tension stiffening, and steel-concrete bond. If the models stay linear or use basic elastoplastic assumptions without direct checks against detailed nonlinear finite element benchmarks or known RC test data, the optimized topologies could partly reflect model artifacts rather than true structural improvements. The paper would be tighter with explicit predicted-versus-measured load-displacement curves and any sensitivity checks on the constitutive choices. This work is aimed at structural engineers and researchers focused on material-efficient concrete design. Anyone looking for documented examples of optimization translated into testable components will get value from the fabrication and test results. The experimental component is solid enough to justify sending it for peer review, even if referees will want more on the modeling validation.

Referee Report

2 major / 1 minor

Summary. The manuscript develops two topology optimization frameworks specifically for reinforced concrete, applies them to design materially efficient beams, fabricates the resulting geometries, and performs structural testing. It reports that the optimized beams fail in a ductile manner and sustain 36-42% higher ultimate loads than conventional designs at equivalent material consumption; comparison to analytical models further indicates a potential 33% material reduction while meeting current performance requirements without increasing depth.

Significance. If the central claims are substantiated, the work offers a concrete demonstration that topology optimization can yield measurable improvements in load capacity and material efficiency for reinforced concrete beams. The combination of algorithmic design, physical fabrication, and experimental evaluation provides empirical grounding that is uncommon in purely computational TO studies and directly addresses the carbon intensity of concrete construction.

major comments (2)

The optimization frameworks' ability to capture reinforced-concrete-specific nonlinearities (cracking, tension stiffening, bond-slip, and progressive ductility) is not demonstrated through direct comparison of predicted versus measured load-displacement responses or failure modes. Without such validation, the reported 36-42% load gains cannot be unambiguously attributed to the optimized topologies rather than fabrication tolerances or unmodeled effects.
The experimental section provides no error bars, replicate statistics, or raw load-displacement data, and does not quantify fabrication deviations from the idealized TO geometries. These omissions make it impossible to assess whether the observed performance differences exceed experimental variability.

minor comments (1)

The abstract states specific percentage improvements but does not reference the corresponding figures or tables that contain the underlying test data; cross-referencing should be added for traceability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for these constructive comments on model validation and experimental reporting. We respond to each point below, indicating revisions that will be incorporated to improve clarity and transparency while preserving the manuscript's core contributions.

read point-by-point responses

Referee: The optimization frameworks' ability to capture reinforced-concrete-specific nonlinearities (cracking, tension stiffening, bond-slip, and progressive ductility) is not demonstrated through direct comparison of predicted versus measured load-displacement responses or failure modes. Without such validation, the reported 36-42% load gains cannot be unambiguously attributed to the optimized topologies rather than fabrication tolerances or unmodeled effects.

Authors: The two topology optimization frameworks rely on a computationally efficient formulation that incorporates linear-elastic analysis with equivalent-section reinforcement to enable free-form design exploration. Full nonlinear constitutive modeling of bond-slip and tension stiffening was deliberately omitted to keep the optimization tractable for practical beam geometries. The experimental program nevertheless demonstrates that the resulting topologies produce ductile failure modes and consistent load increases relative to the conventional reference at identical material volume. We will revise the manuscript to (i) explicitly state the modeling assumptions, (ii) overlay the optimization-derived load estimates against the measured load-displacement curves for each tested specimen, and (iii) discuss the implications of the simplifications for attributing performance gains to topology rather than unmodeled effects. revision: partial
Referee: The experimental section provides no error bars, replicate statistics, or raw load-displacement data, and does not quantify fabrication deviations from the idealized TO geometries. These omissions make it impossible to assess whether the observed performance differences exceed experimental variability.

Authors: We agree that greater transparency is required. In the revised manuscript we will (i) supply the complete raw load-displacement records as supplementary material, (ii) report measured as-built dimensions and quantify deviations from the target optimized geometries, and (iii) include error bars or variability ranges for any quantities where replicate measurements exist. These additions will allow readers to judge whether the reported 36-42 % load differences exceed fabrication and testing variability. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on external experimental validation

full rationale

The paper develops two TO frameworks for RC, generates beam geometries, fabricates and tests them, then reports 36-42% higher loads than conventional designs at equal material use and infers ~33% material reduction potential via comparison to analytical models. These performance claims are grounded in physical tests and external benchmarks rather than any derivation that reduces by construction to fitted inputs, self-definitions, or self-citation chains. No load-bearing steps match the enumerated circularity patterns; the experimental results serve as independent evidence outside the optimization models themselves.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Central claim depends on the validity of the topology optimization algorithms for reinforced concrete, assumptions about material constitutive laws and failure modes, and the assumption that lab-scale tests represent real-world performance. Full details on any volume constraints, penalty parameters, or material models are unavailable from the abstract alone.
