Downward ultra-high-energy neutrino detection in the air with radio antennas at ground-based observatories

Baobiao Yue , Karl-Heinz Kampert , Julian Rautenberg

Authors on Pith no claims yet

Pith reviewed 2026-05-09 20:09 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.IMhep-ex

keywords ultra-high-energy neutrinosradio detectionair showersneutrino identificationground-based observatorieseffective areainclined showers

0 comments

The pith

Ground-based radio antennas can identify ultra-high-energy neutrinos by reconstructing the depth of their air showers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how radio antennas on the ground can detect ultra-high-energy neutrinos by capturing the radio signals from air showers that develop deep in the atmosphere after neutrino interactions. It introduces a reconstruction method centered on the radio emission maximum to separate these neutrino showers from the more common cosmic-ray background. Simulations of electron neutrino interactions demonstrate that this approach improves trigger rates and effective collection area for highly inclined showers above 1 EeV. The method complements existing particle detectors and scales to larger arrays, offering a practical route to the exposures needed for neutrino detection.

Core claim

Using simulations of electron-neutrino charged-current air showers, a reconstruction algorithm based on the radio emission maximum distinguishes deeply developing neutrino-induced showers from cosmic-ray background, yielding higher trigger efficiency, better reconstruction, and increased effective area and aperture for very inclined events above 1 EeV.

What carries the argument

The radio emission maximum (X_radio_max), which locates the depth of peak radio emission and thereby reveals whether the shower started deep in the atmosphere, as expected for neutrinos.

If this is right

Radio antennas extend the observable range for inclined UHE neutrino showers beyond what particle detectors alone can achieve.
The X_radio_max cut supplies an independent handle for rejecting cosmic-ray background in radio data.
The technique can be applied directly to planned large radio arrays to increase overall neutrino exposure.
Combined with surface detectors, radio measurements improve longitudinal reconstruction for inclined events.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Arrays that already record radio signals could add a neutrino search channel without new hardware.
Long-term operation might yield the first statistically significant sample of downward UHE neutrinos.
The same depth-sensitive radio observable could help test models of neutrino cross sections at extreme energies.

Load-bearing premise

The simulated separation in radio emission maximum between neutrino and cosmic-ray showers will survive real-world noise, calibration errors, and reconstruction inaccuracies without significant misidentification.

What would settle it

A data set of real air-shower events in which the reconstructed radio emission maximum fails to separate candidate neutrino events from cosmic-ray events at the efficiency and purity levels predicted by the simulations.

Figures

Figures reproduced from arXiv: 2604.22083 by Baobiao Yue, Julian Rautenberg, Karl-Heinz Kampert.

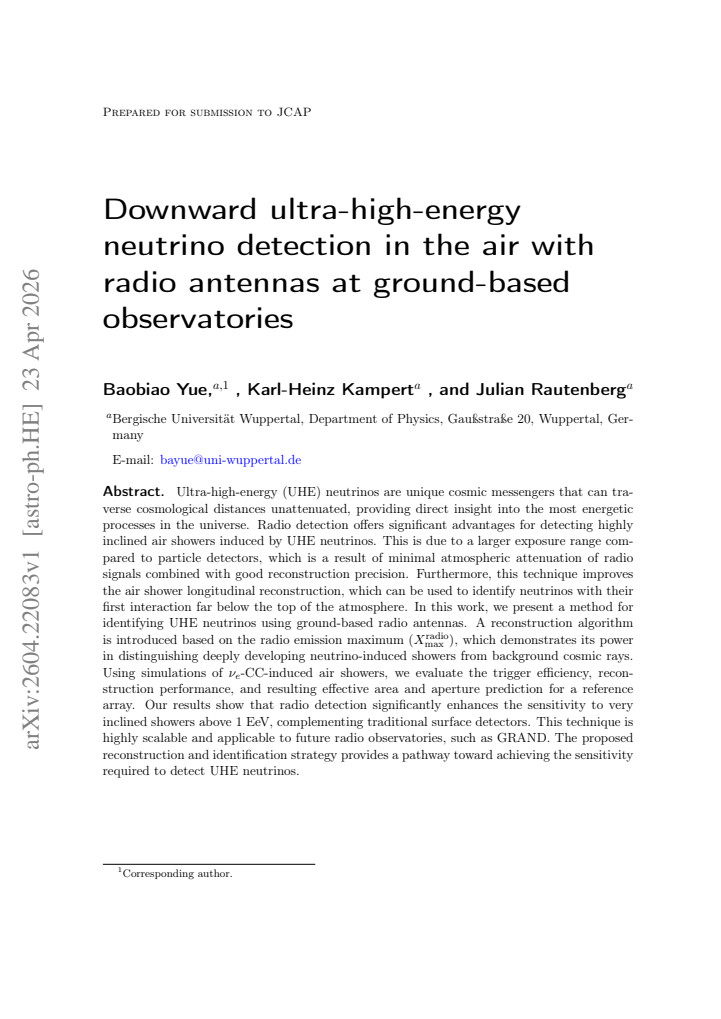

read the original abstract

Ultra-high-energy (UHE) neutrinos are unique cosmic messengers that can traverse cosmological distances unattenuated, providing direct insight into the most energetic processes in the universe. Radio detection offers significant advantages for detecting highly inclined air showers induced by UHE neutrinos. This is due to a larger exposure range compared to particle detectors, which is a result of minimal atmospheric attenuation of radio signals combined with good reconstruction precision. Furthermore, this technique improves the air shower longitudinal reconstruction, which can be used to identify neutrinos with their first interaction far below the top of the atmosphere. In this work, we present a method for identifying UHE neutrinos using ground-based radio antennas. A reconstruction algorithm is introduced based on the radio emission maximum ($X^{\text{radio}}_{\text{max}}$), which demonstrates its power in distinguishing deeply developing neutrino-induced showers from background cosmic rays. Using simulations of $\nu_e$-CC-induced air showers, we evaluate the trigger efficiency, reconstruction performance, and resulting effective area and aperture prediction for a reference array. Our results show that radio detection significantly enhances the sensitivity to very inclined showers above 1 EeV, complementing traditional surface detectors. This technique is highly scalable and applicable to future radio observatories, such as GRAND. The proposed reconstruction and identification strategy provides a pathway toward achieving the sensitivity required to detect UHE neutrinos.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper offers a simulation-based method to tag downward UHE neutrinos via radio emission maximum depth, which could add exposure for inclined events but rests on untested assumptions about real-data performance.

read the letter

The main takeaway is that ground radio arrays can identify downward UHE neutrinos by reconstructing the radio emission maximum, which sits deeper in neutrino-induced showers than in cosmic-ray ones. Simulations of electron neutrino charged-current interactions show this separation improves trigger efficiency and effective area for very inclined events above 1 EeV, complementing surface detectors in arrays like GRAND.

Referee Report

2 major / 3 minor

Summary. The manuscript proposes using ground-based radio antennas to detect downward ultra-high-energy neutrinos by reconstructing the radio emission maximum (X_radio_max) from air-shower simulations. It evaluates trigger efficiency, reconstruction performance, effective area, and aperture for a reference array using ν_e-CC-induced showers, claiming that radio detection significantly improves sensitivity to very inclined events above 1 EeV and complements surface detectors, with applicability to arrays like GRAND.

Significance. If the simulation-derived separation via X_radio_max holds under realistic conditions, the work offers a scalable, complementary technique for UHE neutrino identification that exploits the deeper development of neutrino showers and the low attenuation of radio signals. This addresses a key limitation of particle detectors for inclined events and could contribute to achieving the exposure needed for UHE neutrino detection, with the simulation framework providing a clear, falsifiable basis for future experimental tests.

major comments (2)

[§4] §4 (reconstruction performance): The separation power of X_radio_max between neutrino and cosmic-ray showers is shown in idealized simulations, but the central identification claim requires a quantitative error budget including realistic noise, calibration uncertainties, and reconstruction biases; without this, the effective-area enhancement above 1 EeV cannot be fully assessed for load-bearing reliability.
[§5] §5 (effective area and aperture): The aperture predictions for the reference array assume perfect trigger and identification efficiency after the X_radio_max cut; the paper should demonstrate how these metrics degrade when folding in the finite angular resolution and background contamination rates reported in the reconstruction section.

minor comments (3)

[Abstract] Abstract and §2: The phrase 'very inclined showers' should be accompanied by a specific zenith-angle threshold (e.g., >60°) to allow direct comparison with surface-detector performance.
[§3] Notation: The symbol X^radio_max is introduced without an explicit definition equation; adding Eq. (X) linking it to the radio emission profile would improve clarity.
[Figures 3-5] Figure captions: Several panels lack error bars or simulation statistics (number of showers), which are needed to judge the robustness of the reported trigger efficiencies.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive assessment and recommendation for minor revision. We address the two major comments below and will revise the manuscript accordingly to strengthen the quantitative aspects of the analysis.

read point-by-point responses

Referee: [§4] §4 (reconstruction performance): The separation power of X_radio_max between neutrino and cosmic-ray showers is shown in idealized simulations, but the central identification claim requires a quantitative error budget including realistic noise, calibration uncertainties, and reconstruction biases; without this, the effective-area enhancement above 1 EeV cannot be fully assessed for load-bearing reliability.

Authors: We agree that a quantitative error budget is necessary for robust assessment of the identification method. The presented simulations are idealized to demonstrate the core separation capability of X_radio_max. In the revised manuscript we will add a dedicated subsection to §4 that quantifies the effects of realistic noise levels, calibration uncertainties, and reconstruction biases on the X_radio_max distributions. This will include estimates of the resulting degradation in separation power and its propagation to the effective-area enhancement above 1 EeV, allowing a more complete evaluation of the technique's reliability. revision: yes
Referee: [§5] §5 (effective area and aperture): The aperture predictions for the reference array assume perfect trigger and identification efficiency after the X_radio_max cut; the paper should demonstrate how these metrics degrade when folding in the finite angular resolution and background contamination rates reported in the reconstruction section.

Authors: We acknowledge that the current aperture and effective-area calculations in §5 use ideal post-cut efficiencies. In the revision we will convolve the trigger and identification efficiencies with the finite angular resolution and background contamination rates already reported in the reconstruction section. The updated aperture values will be presented in revised figures and text in §5, providing a more realistic assessment of the performance for the reference array. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results derive from independent simulations

full rationale

The paper evaluates trigger efficiency, reconstruction performance, effective area, and aperture using simulations of ν_e-CC-induced air showers and a reconstruction algorithm based on simulated X_radio_max differences between neutrino and cosmic-ray showers. These quantities are computed directly from the simulation outputs rather than by fitting parameters to the target observables and then predicting them. No self-definitional loops, fitted-input predictions, or load-bearing self-citations appear in the derivation chain; the methodology remains self-contained against external air-shower simulation benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; the work relies on standard air-shower simulation frameworks and radio-emission models from prior literature.
