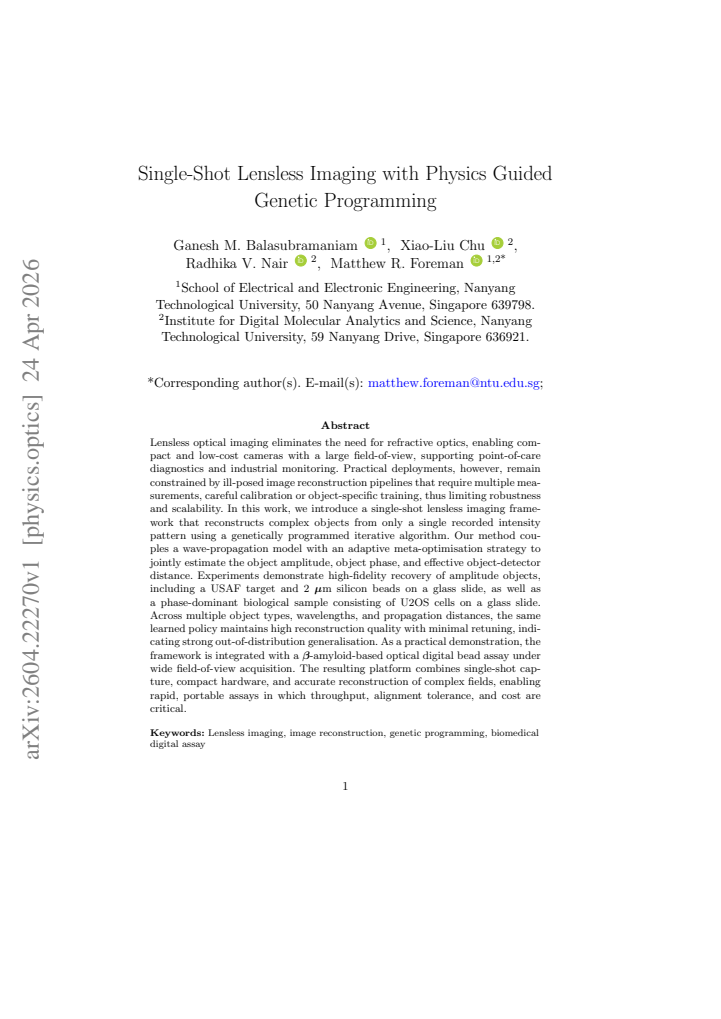

Single-Shot Lensless Imaging with Physics Guided Genetic Programming
Pith reviewed 2026-05-08 10:52 UTC · model grok-4.3
The pith
A genetically programmed iterative algorithm reconstructs complex objects from a single lensless intensity pattern by jointly estimating amplitude, phase, and detector distance.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We introduce a single-shot lensless imaging framework that reconstructs complex objects from only a single recorded intensity pattern using a genetically programmed iterative algorithm. Our method couples a wave-propagation model with an adaptive meta-optimisation strategy to jointly estimate the object amplitude, object phase, and effective object-detector distance. Experiments demonstrate high-fidelity recovery of amplitude objects, including a USAF target and 2 μm silicon beads on a glass slide, as well as a phase-dominant biological sample consisting of U2OS cells on a glass slide. Across multiple object types, wavelengths, and propagation distances, the same learned policy maintains高重建,
What carries the argument
Genetically programmed iterative algorithm that uses a wave-propagation model inside an adaptive meta-optimization loop to estimate object amplitude, phase, and effective propagation distance simultaneously.
If this is right
- High-fidelity amplitude recovery for resolution targets and silicon beads, plus phase recovery for biological cells.
- Integration into a wide-field β-amyloid bead assay for portable, single-shot measurements.
- Consistent performance across object types, wavelengths, and distances using the identical learned policy.
- Compact hardware becomes viable for point-of-care diagnostics and industrial monitoring where alignment tolerance and low cost matter.
Where Pith is reading between the lines
- The method could reduce reliance on extensive per-setup calibration in other computational imaging tasks that involve ill-posed inverse problems.
- Evolutionary meta-optimization guided by physics models may serve as a lighter-weight alternative to deep-learning approaches in resource-constrained optical systems.
- Testing the framework on dynamic or scattering samples would reveal whether the current generalization extends to more challenging biological or industrial scenes.
- Adapting the same genetic-programming loop to different forward models might transfer the single-shot capability to modalities such as X-ray or acoustic imaging.
Load-bearing premise
The physical wave-propagation model used inside the optimization loop accurately describes light transport for the tested objects and distances.
What would settle it
Reconstruction quality dropping sharply on a new object type or at a propagation distance outside the training range, even when the same evolved policy is applied without retuning, would falsify the generalization claim.
read the original abstract
Lensless optical imaging eliminates the need for refractive optics, enabling compact and low-cost cameras with a large field-of-view, supporting point-of-care diagnostics and industrial monitoring. Practical deployments, however, remain constrained by ill-posed image reconstruction pipelines that require multiple measurements, careful calibration or object-specific training, thus limiting robustness and scalability. In this work, we introduce a single-shot lensless imaging framework that reconstructs complex objects from only a single recorded intensity pattern using a genetically programmed iterative algorithm. Our method couples a wave-propagation model with an adaptive meta-optimisation strategy to jointly estimate the object amplitude, object phase, and effective object-detector distance. Experiments demonstrate high-fidelity recovery of amplitude objects, including a USAF target and 2~$\mu$m silicon beads on a glass slide, as well as a phase-dominant biological sample consisting of U2OS cells on a glass slide. Across multiple object types, wavelengths, and propagation distances, the same learned policy maintains high reconstruction quality with minimal retuning, indicating strong out-of-distribution generalisation. As a practical demonstration, the framework is integrated with a $\beta$-amyloid-based optical digital bead assay under wide field-of-view acquisition. The resulting platform combines single-shot capture, compact hardware, and accurate reconstruction of complex fields, enabling rapid, portable assays in which throughput, alignment tolerance, and cost are critical.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents a single-shot lensless imaging method that employs a genetically programmed iterative algorithm coupling a wave-propagation forward model with an adaptive meta-optimization strategy. This jointly recovers object amplitude, object phase, and effective object-detector distance from one recorded intensity pattern. Experiments on amplitude targets (USAF resolution chart, 2 µm silicon beads), phase-dominant biological samples (U2OS cells), and a β-amyloid bead assay are reported to achieve high-fidelity reconstructions; the same learned policy is asserted to maintain performance across object types, wavelengths, and propagation distances with only minimal retuning, indicating out-of-distribution generalization.
Significance. If the generalization and fidelity claims hold under quantitative scrutiny, the approach could enable compact, calibration-light lensless systems for point-of-care diagnostics and industrial monitoring by eliminating the need for multiple exposures, object-specific training, or extensive alignment. The physics-guided genetic programming formulation offers a distinct route to solving the ill-posed inverse problem that may complement existing iterative phase-retrieval and learned-reconstruction techniques.
major comments (3)
- [Abstract] Abstract: the assertions of 'high-fidelity recovery' and 'strong out-of-distribution generalisation' with 'minimal retuning' across object types, wavelengths, and distances are unsupported by any quantitative reconstruction metrics (PSNR, SSIM, phase/amplitude error), baseline comparisons, or error analysis, which directly undermines evaluation of the central performance claims.
- [Experiments] Experiments section: no information is supplied on the exact hyper-parameters or population settings held constant across trials, nor is a quantitative measure of retuning (e.g., change in generations or mutation rate) or reconstruction metrics on deliberately held-out wavelengths/distances reported; this leaves open the possibility that per-experiment adaptation drives the results rather than a fixed policy.
- [Method] Method section: details on how the genetic-programming meta-optimization avoids overfitting or incorporates post-hoc tuning are absent, making it impossible to verify that the learned policy remains independent of the target data as required for the out-of-distribution claim.
minor comments (2)
- [Method] Notation for the wave-propagation operator and the genetic-programming fitness function should be introduced with explicit equations early in the method description to improve readability.
- [Figures] Figure captions for the experimental reconstructions would benefit from inclusion of scale bars and a brief statement of the imaging wavelength and nominal propagation distance for each panel.
Simulated Author's Rebuttal
We thank the referee for their constructive feedback, which has helped strengthen the quantitative rigor and clarity of our claims. We address each major comment below and have revised the manuscript accordingly.
read point-by-point responses
-
Referee: [Abstract] Abstract: the assertions of 'high-fidelity recovery' and 'strong out-of-distribution generalisation' with 'minimal retuning' across object types, wavelengths, and distances are unsupported by any quantitative reconstruction metrics (PSNR, SSIM, phase/amplitude error), baseline comparisons, or error analysis, which directly undermines evaluation of the central performance claims.
Authors: We agree that quantitative metrics are needed to support the abstract claims. In the revised manuscript we have added PSNR, SSIM, and mean phase/amplitude error values for all experiments, together with comparisons against the Gerchberg-Saxton algorithm and a standard iterative phase-retrieval baseline. Standard-deviation error bars across repeated runs are now reported in the Experiments section. revision: yes
-
Referee: [Experiments] Experiments section: no information is supplied on the exact hyper-parameters or population settings held constant across trials, nor is a quantitative measure of retuning (e.g., change in generations or mutation rate) or reconstruction metrics on deliberately held-out wavelengths/distances reported; this leaves open the possibility that per-experiment adaptation drives the results rather than a fixed policy.
Authors: We have added a table in the revised Experiments section listing all hyper-parameters and population settings (population size, mutation rate, number of generations, crossover probability) that remained fixed across trials. We also quantify retuning as the fractional change in generations (typically <10 %) and report PSNR/SSIM on deliberately held-out wavelengths and propagation distances that were excluded from policy learning. revision: yes
-
Referee: [Method] Method section: details on how the genetic-programming meta-optimization avoids overfitting or incorporates post-hoc tuning are absent, making it impossible to verify that the learned policy remains independent of the target data as required for the out-of-distribution claim.
Authors: The fitness function is defined exclusively by the physics-based wave-propagation model, which acts as a hard constraint and prevents data-specific overfitting. We have expanded the Methods section to describe the post-hoc tuning procedure: only a small set of fitness-weight coefficients are adjusted on an independent validation set; the core policy parameters are never updated on target data. This detail now explicitly supports the out-of-distribution claim. revision: yes
Circularity Check
No significant circularity detected
full rationale
The paper's core method couples an external wave-propagation model (standard physics) with genetic programming for adaptive optimization to jointly recover amplitude, phase, and distance from single-shot intensity data. No derivation step reduces by construction to its own inputs, fitted parameters, or self-citations. The generalization claim across object types, wavelengths, and distances rests on reported experiments rather than tautological renaming or self-referential definitions. The provided abstract and context contain no load-bearing self-citation chains or ansatz smuggling that would elevate the circularity score.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Wave propagation model accurately describes light transport from object to detector
Reference graph
Works this paper leans on
-
[1]
Boominathan, V., Robinson, J.T., Waller, L., Veeraraghavan, A.: Recent advances in lensless imaging. Optica9(1), 1–16 (2022) https://doi.org/10.1364/OPTICA. 431361
-
[2]
Annual Review of Biomedical Engineering18, 77–102 (2016) https://doi.org/10.1146/ annurev-bioeng-092515-010849
Ozcan, A., McLeod, E.: Lensless imaging and sensing. Annual Review of Biomedical Engineering18, 77–102 (2016) https://doi.org/10.1146/ annurev-bioeng-092515-010849
2016
-
[3]
Applied Physics B130(9), 166 (2024)
Rosen, J., Alford, S., Allan, B., Anand, V., Arnon, S., Arockiaraj, F.G., Art, J., Bai, B., Balasubramaniam, G.M., Birnbaum, T.,et al.: Roadmap on computa- tional methods in optical imaging and holography. Applied Physics B130(9), 166 (2024)
2024
-
[4]
Laser & Photonics Reviews18(10), 2400197 (2024) 21
Potter, C.J., Xiong, Z., McLeod, E.: Clinical and biomedical applications of lensless holographic microscopy. Laser & Photonics Reviews18(10), 2400197 (2024) 21
2024
-
[5]
Lab on a Chip9(6), 777–787 (2009) https://doi.org/10.1039/B813943A
Seo, S., Su, T.-W., Tseng, D.K., Erlinger, A., Ozcan, A.: Lensfree holographic imaging for on-chip cytometry and diagnostics. Lab on a Chip9(6), 777–787 (2009) https://doi.org/10.1039/B813943A
-
[6]
Im, H., Castro, C.M., Shao, H., Liong, M., Song, J., Pathania, D., Fexon, L., Min, C., Avila-Wallace, M., Zurkiya, O., Rho, J., Magaoay, B., Tambouret, R.H., Pivovarov, M., Weissleder, R., Lee, H.: Digital diffraction analysis enables low- cost molecular diagnostics on a smartphone. Proceedings of the National Academy of Sciences of the United States of A...
-
[7]
IEEE Signal Processing Magazine32(3), 87–109 (2015) https://doi.org/10.1109/MSP.2015.2398954
Shechtman, Y., Eldar, Y.C., Cohen, O., Chapman, H.N., Miao, J., Segev, M.: Phase retrieval with application to optical imaging. IEEE Signal Processing Magazine32(3), 87–109 (2015) https://doi.org/10.1109/MSP.2015.2398954
-
[8]
Optics and Lasers in Engineering172, 107878 (2024) https://doi.org/10.1016/j.optlaseng.2023
Arcab, P., Rogalski, M., Trusiak, M.: Single-shot experimental-numerical twin- image removal in lensless digital holographic microscopy. Optics and Lasers in Engineering172, 107878 (2024) https://doi.org/10.1016/j.optlaseng.2023. 107878
-
[9]
Optik35, 237–246 (1972)
Gerchberg, R.W., Saxton, W.O.: A practical algorithm for the determination of phase from image and diffraction plane pictures. Optik35, 237–246 (1972)
1972
-
[10]
Applied Optics21(15), 2758–2769 (1982) https://doi.org/10.1364/AO.21.002758
Fienup, J.R.: Phase retrieval algorithms: A comparison. Applied Optics21(15), 2758–2769 (1982) https://doi.org/10.1364/AO.21.002758
-
[11]
Optics Express20(3), 3129–3143 (2012) https://doi.org/10.1364/OE.20.003129
Greenbaum, A., Ozcan, A.: Maskless imaging of dense samples using pixel super- resolution based multi-height lensfree on-chip microscopy. Optics Express20(3), 3129–3143 (2012) https://doi.org/10.1364/OE.20.003129
-
[12]
Ultramicroscopy109(10), 1256–1262 (2009) https://doi.org/10.1016/j.ultramic.2009.05.012
Maiden, A.M., Rodenburg, J.M.: An improved ptychographical phase retrieval algorithm for diffractive imaging. Ultramicroscopy109(10), 1256–1262 (2009) https://doi.org/10.1016/j.ultramic.2009.05.012
-
[13]
Nature Photonics7, 739–745 (2013) https://doi.org/10.1038/ nphoton.2013.187
Zheng, G., Horstmeyer, R., Yang, C.: Wide-field, high-resolution fourier ptycho- graphic microscopy. Nature Photonics7, 739–745 (2013) https://doi.org/10.1038/ nphoton.2013.187
2013
-
[14]
Asif, M.S., Ayremlou, A., Sankaranarayanan, A.C., Veeraraghavan, A., Baraniuk, R.: Flatcam: Thin, lensless cameras using coded aperture and computation. IEEE Transactions on Computational Imaging3(3), 384–397 (2017) https://doi.org/ 10.1109/TCI.2016.2593662
-
[15]
Optica5(1), 1–9 (2018) https: //doi.org/10.1364/OPTICA.5.000001 22
Antipa, N., Kuo, G., Heckel, R., Mildenhall, B., Bostan, E., Ng, R., Waller, L.: Diffusercam: Lensless single-exposure 3d imaging. Optica5(1), 1–9 (2018) https: //doi.org/10.1364/OPTICA.5.000001 22
-
[16]
Rudin, L.I., Osher, S., Fatemi, E.: Nonlinear total variation based noise removal algorithms. Physica D: Nonlinear Phenomena60(1–4), 259–268 (1992) https:// doi.org/10.1016/0167-2789(92)90242-F
-
[17]
Scientific Reports6, 37862 (2016) https://doi.org/10.1038/srep37862
Rivenson, Y., Weiss, A., Stern, A., Zalevsky, Z., Ozcan, A.: Sparsity-based multi- height phase recovery in holographic microscopy. Scientific Reports6, 37862 (2016) https://doi.org/10.1038/srep37862
-
[18]
Light: Science & Applications7, 17141 (2018) https://doi.org/10
Rivenson, Y., Wu, Y., Zhang, Y., Weiss, Z., G¨ unaydin, H., Lin, X., Ozcan, A.: Phase recovery and holographic image reconstruction using deep learning in neu- ral networks. Light: Science & Applications7, 17141 (2018) https://doi.org/10. 1038/lsa.2017.141
2018
-
[19]
Optica5(6), 704–710 (2018) https://doi
Wu, Y., Rivenson, Y., Wang, H., Luo, Y., Ben-David, E., Stern, A., Ozcan, A.: Extended depth of field in holographic image reconstruction using deep learning based autofocusing and phase recovery. Optica5(6), 704–710 (2018) https://doi. org/10.1364/OPTICA.5.000704
-
[20]
Optics Express26(18), 22603–22614 (2018) https://doi.org/10.1364/OE.26.022603
Wang, H., Lyu, M., Situ, G.: eholonet: a learning based end to end approach for in line digital holographic reconstruction. Optics Express26(18), 22603–22614 (2018) https://doi.org/10.1364/OE.26.022603
-
[21]
IEEE Access8, 202648–202659 (2020) https://doi.org/10.1109/ACCESS.2020.3036380
Li, H., Chen, X., Chi, Z., Mann, C., Razi, A.: Deep dih: Single shot digital in line holography reconstruction by deep learning. IEEE Access8, 202648–202659 (2020) https://doi.org/10.1109/ACCESS.2020.3036380
-
[22]
Optica7(6), 559–562 (2020) https://doi.org/10.1364/OPTICA.387381
Bostan, E., Heckel, R., Chen, M., Kellman, M., Waller, L.: Self calibrating phase microscopy with an untrained deep neural network. Optica7(6), 559–562 (2020) https://doi.org/10.1364/OPTICA.387381
-
[23]
Phase imaging with an untrained neural network
Wang, F., Bian, Y., Wang, H., Lyu, M., Pedrini, G., Osten, W., Barbastathis, G., Situ, G.: Phase imaging with an untrained neural network. Light: Science & Applications9, 77 (2020) https://doi.org/10.1038/s41377-020-0302-3
-
[24]
Optics Express32(6), 10444–10460 (2024) https://doi.org/10
Zhang, Y., Liu, X., Lam, E.Y.: Single shot inline holography using a physics aware diffusion model. Optics Express32(6), 10444–10460 (2024) https://doi.org/10. 1364/OE.517233
2024
-
[25]
Scientific Reports13, 11105 (2023) https://doi.org/10.1038/ s41598-023-37810-w
Manisha, Mandal, A.C.,et al.: Randomness assisted in line holography with deep learning. Scientific Reports13, 11105 (2023) https://doi.org/10.1038/ s41598-023-37810-w
2023
-
[26]
Nature Communications16, 4840 (2025) https://doi.org/10.1038/s41467-025-60200-x 23
Kim, J., Kim, Y., Lee, H.S., Seo, E., Lee, S.J.: Single-shot reconstruction of three-dimensional morphology of biological cells in digital holographic microscopy using a physics-driven neural network. Nature Communications16, 4840 (2025) https://doi.org/10.1038/s41467-025-60200-x 23
-
[27]
MIT Press, Cambridge, MA (1992)
Koza, J.R.: Genetic Programming: On the Programming of Computers by Means of Natural Selection. MIT Press, Cambridge, MA (1992)
1992
-
[28]
Lulu.com, Freely available at http://www.gp-field-guide.org.uk (2008)
Poli, R., Langdon, W.B., McPhee, N.F., Koza, J.R.: A Field Guide to Genetic Programming. Lulu.com, Freely available at http://www.gp-field-guide.org.uk (2008)
2008
-
[29]
Eiben, A.E., Smith, J.E.: Introduction to Evolutionary Computing, 2nd edn. Springer, Berlin (2015). https://doi.org/10.1007/978-3-662-44874-8
-
[30]
Computational Intelligence37(4), 1745–1778 (2021) https://doi.org/10.1111/coin.12459
Khan, A., Qureshi, A.S., Wahab, N., Hussain, M., Hamza, M.Y.: A recent survey on the applications of genetic programming in image processing. Computational Intelligence37(4), 1745–1778 (2021) https://doi.org/10.1111/coin.12459
-
[31]
In preparation
Nair, R.V., Balasubramaniam, G.M., Chu, X.-L., Parikh, A., Foreman, M.R.: Quantitative Digital Bead Profiling of EPPS Mediated Amyloid-βProtofibril Disassembly. In preparation
-
[32]
Nature Communications6, 8997 (2015) https://doi.org/10.1038/ncomms9997
Kim, H.Y., Kim, H.V., Jo, S., Lee, C.J., Choi, S.Y., Kim, D.J., Kim, Y.: Epps rescues hippocampus-dependent cognitive deficits in app/ps1 mice by disaggrega- tion of amyloid-βoligomers and plaques. Nature Communications6, 8997 (2015) https://doi.org/10.1038/ncomms9997
-
[33]
Nair, R.V., Tran, B.N., Parikh, A.N., Foreman, M.R.: Small molecule ensembles reshape amyloid aggregation land- scapes. bioRxiv (2026) https://doi.org/10.64898/2026.02.22.706957 https://www.biorxiv.org/content/early/2026/02/23/2026.02.22.706957.full.pdf
-
[34]
Roberts and Company Publishers, Englewood, CO (2005)
Goodman, J.W.: Introduction to Fourier Optics, 3rd edn. Roberts and Company Publishers, Englewood, CO (2005). ISBN-10: 0974707724; xvi+491 pp
2005
-
[35]
SPIE Tutorial Texts, vol
Voelz, D.G.: Computational Fourier Optics: A MATLAB Tutorial. SPIE Tutorial Texts, vol. TT89. SPIE Press, Bellingham, WA (2011). https://doi.org/10.1117/ 3.858456 . PDF eISBN: 978-0-8194-8205-1
2011
-
[36]
The Annals of Mathemat- ical Statistics35(1), 73–101 (1964) https://doi.org/10.1214/aoms/1177703732
Huber, P.J.: Robust estimation of a location parameter. The Annals of Mathemat- ical Statistics35(1), 73–101 (1964) https://doi.org/10.1214/aoms/1177703732
-
[37]
In: Interna- tional Conference on Learning Representations (2015)
Kingma, D.P., Ba, J.: Adam, a method for stochastic optimization. In: Interna- tional Conference on Learning Representations (2015)
2015
-
[38]
Wiley, Chichester (2001) 24
Deb, K.: Multi-Objective Optimization Using Evolutionary Algorithms. Wiley, Chichester (2001) 24
2001
