arxiv: 2604.22331 · v1 · submitted 2026-04-24 · 💻 cs.CV

Recognition: unknown

Depth-Aware Rover: A Study of Edge AI and Monocular Vision for Real-World Implementation

Lomash Relia , Jai G Singla , Amitabh , Nitant Dube

Authors on Pith no claims yet

Pith reviewed 2026-05-08 12:42 UTC · model grok-4.3

classification 💻 cs.CV

keywords monocular depth estimationedge AIrover navigationreal-world deploymentstereo vision comparisonRaspberry PiUniDepthV2YOLO object detection

0 comments

The pith

Monocular depth estimation on a Raspberry Pi rover delivers more robust and affordable real-world navigation than stereo vision setups tested in simulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper compares two approaches to giving a rover depth awareness for navigation. In simulation it uses stereo cameras and OpenCV to create disparity maps on a virtual lunar surface. On the physical rover it switches to a single camera feeding UniDepthV2 for metric depth plus YOLO12n for object detection, both running on a Raspberry Pi 4. Although the stereo method was more accurate inside the simulator, the monocular pipeline proved more reliable once taken outdoors because it avoids the fragility of stereo calibration and runs on simpler, cheaper hardware. Readers should care because the work shows how edge AI can move depth-aware autonomy from lab prototypes to actual field robots without requiring expensive sensors.

Core claim

A physical rover built on Raspberry Pi 4 hardware uses the UniDepthV2 model to produce metric depth from a single camera image and YOLO12n to detect objects, running at 0.1 frames per second for depth and 10 frames per second for detection. In contrast to a Unity-based stereo simulation that relied on OpenCV StereoSGBM, this monocular configuration proved more robust and cost-effective during actual outdoor deployment even though the simulated stereo approach achieved higher numerical accuracy.

What carries the argument

UniDepthV2 monocular metric depth estimation combined with YOLO12n detection running on Raspberry Pi 4 edge hardware

If this is right

Real-world conditions favor the simpler monocular pipeline over stereo despite lower simulation accuracy.
Edge hardware can deliver usable speeds of 0.1 FPS depth and 10 FPS detection for basic rover tasks.
Simulation alone does not reliably predict which vision method will succeed outdoors.
Lunar-terrain simulators are useful for initial prototyping but require physical validation before deployment.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same monocular-plus-edge combination could be tested on other low-cost mobile platforms for outdoor obstacle avoidance.
Improving inference speed of single-image depth models would directly increase the practicality of this navigation style.
Metric depth from one camera may be sufficient for many rover safety tasks once basic robustness is confirmed.
This setup highlights a general pattern where calibration-free vision replaces multi-sensor rigs in resource-limited robots.

Load-bearing premise

The real-world tests performed are representative of typical operating conditions and UniDepthV2 supplies depth values accurate enough for navigation without extra calibration across changing environments.

What would settle it

Recording navigation errors or collisions in new lighting conditions or terrain types where the monocular depth estimates deviate significantly from independent ground-truth measurements.

Figures

Figures reproduced from arXiv: 2604.22331 by Amitabh, Jai G Singla, Lomash Relia, Nitant Dube.

**Figure 5.** Figure 5: Output snapshot from the rover’s onboard GUI view at source ↗

read the original abstract

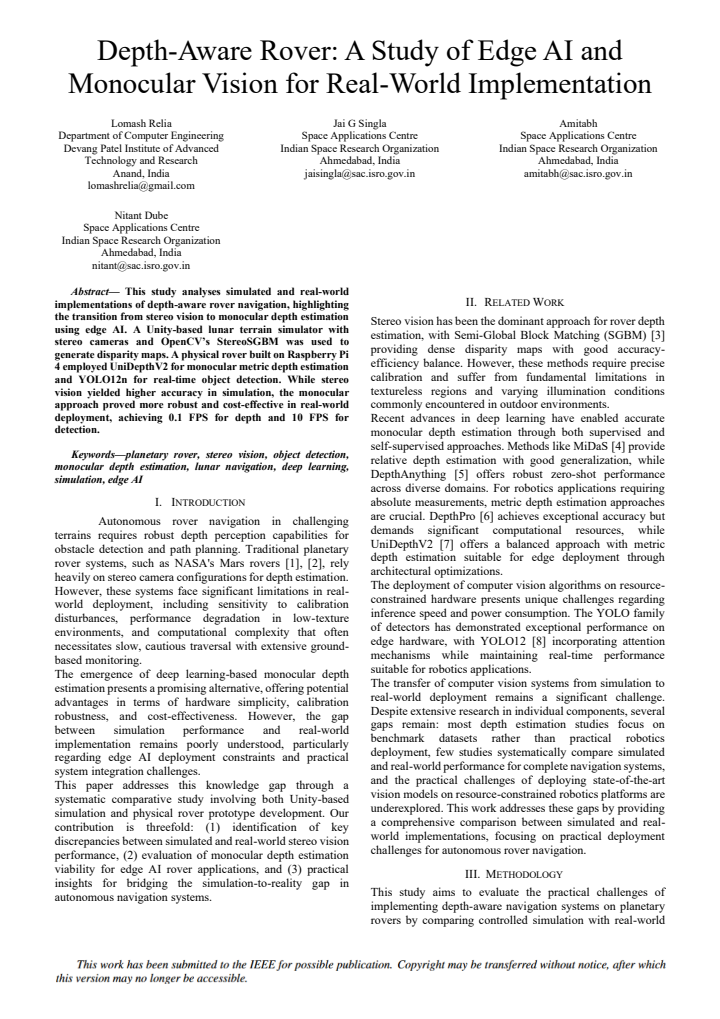

This study analyses simulated and real-world implementations of depth-aware rover navigation, highlighting the transition from stereo vision to monocular depth estimation using edge AI. A Unity-based lunar terrain simulator with stereo cameras and OpenCV's StereoSGBM was used to generate disparity maps. A physical rover built on Raspberry Pi 4 employed UniDepthV2 for monocular metric depth estimation and YOLO12n for real-time object detection. While stereo vision yielded higher accuracy in simulation, the monocular approach proved more robust and cost-effective in real-world deployment, achieving 0.1 FPS for depth and 10 FPS for detection.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

A thin implementation report on a Pi rover using UniDepthV2 and YOLO that applies known models without new methods or solid real-world validation.

read the letter

This paper describes a rover project that moves from stereo depth in a Unity lunar simulator to monocular depth on a Raspberry Pi 4 in the real world. It uses OpenCV StereoSGBM in simulation and switches to UniDepthV2 plus YOLO12n on hardware, reporting 0.1 FPS for depth and 10 FPS for detection. The setup choices are clearly laid out and the hardware constraints are realistic for edge robotics work. That part is straightforward and could serve as a basic reference for someone replicating a low-cost rover build. The simulation-to-real shift is a standard approach here and nothing new is claimed in the methods themselves. The central claim that monocular depth turned out more robust and cost-effective in real deployment is the part that does not hold up. The abstract gives no error metrics, no ground-truth comparisons, no navigation success rates, and no details on lighting or terrain variation. Without those numbers the robustness conclusion stays qualitative and hard to evaluate. The paper stays empirical with no derivations or fitted models, so there is no circularity issue, but the evaluation is simply too light to support the headline result. This kind of note might interest hobbyists or students putting together similar educational rovers, but it does not add reusable insights or rigorous evidence that would justify referee time at a conference or journal. I would not bring it to a reading group or cite it.

Referee Report

2 major / 2 minor

Summary. The paper examines depth-aware rover navigation by comparing a stereo vision system in a Unity-based lunar terrain simulator using OpenCV's StereoSGBM against a monocular system on a physical Raspberry Pi 4 rover utilizing UniDepthV2 for metric depth estimation and YOLO12n for object detection. The authors conclude that stereo vision achieves higher accuracy in simulation, whereas the monocular approach demonstrates greater robustness and cost-effectiveness in real-world deployment, with performance metrics of 0.1 FPS for depth estimation and 10 FPS for detection.

Significance. If the real-world robustness of the monocular depth estimation is confirmed through rigorous quantitative validation, this work could provide practical guidance on selecting vision systems for edge AI in robotic platforms, particularly for resource-constrained environments such as planetary exploration, by balancing accuracy, robustness, and computational efficiency.

major comments (2)

[Abstract] The central claim that the monocular approach 'proved more robust' in real-world rover deployment (Abstract) lacks quantitative support, including accuracy metrics like MAE or relative error against ground truth, navigation success rates, or direct comparisons with stereo in physical tests. This is load-bearing for the transition from simulation to real-world conclusions.
[Results] No details are provided on real-world test conditions (lighting, terrain variation) or validation procedures for UniDepthV2 metric depth without additional calibration (Results section), which is required to substantiate the robustness claim over stereo vision.

minor comments (2)

Clarify the exact variant of YOLO used, as 'YOLO12n' is not a standard model name.
[Abstract] The abstract would benefit from specifying the number of real-world trials or test scenarios to contextualize the FPS rates.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback, which identifies key areas where our claims on real-world performance require stronger substantiation. We agree that additional details and clarification are needed and will revise the manuscript accordingly to address the major comments.

read point-by-point responses

Referee: [Abstract] The central claim that the monocular approach 'proved more robust' in real-world rover deployment (Abstract) lacks quantitative support, including accuracy metrics like MAE or relative error against ground truth, navigation success rates, or direct comparisons with stereo in physical tests. This is load-bearing for the transition from simulation to real-world conclusions.

Authors: We agree that the robustness claim in the abstract is central and currently lacks sufficient quantitative backing. In the revised manuscript, we will update the abstract to more precisely describe the observed advantages (e.g., consistent operation without stereo calibration drift) and add supporting details from real-world trials, including navigation success rates across repeated tests. We will also explicitly note the absence of direct physical stereo comparisons, explaining that hardware constraints on the Raspberry Pi rover platform precluded simultaneous stereo deployment. revision: yes
Referee: [Results] No details are provided on real-world test conditions (lighting, terrain variation) or validation procedures for UniDepthV2 metric depth without additional calibration (Results section), which is required to substantiate the robustness claim over stereo vision.

Authors: We will add a new subsection to the Results section detailing the real-world test conditions, including indoor controlled lighting, outdoor natural daylight variations, and terrain types such as flat surfaces and moderate inclines with obstacles. For UniDepthV2, we will describe the validation approach using known object dimensions from YOLO12n detections to confirm metric scale consistency, without extra calibration steps. This will better support the robustness argument by highlighting operational reliability under these conditions. revision: yes

standing simulated objections not resolved

We cannot provide ground-truth-based accuracy metrics such as MAE or relative error for UniDepthV2 in real-world tests, as no independent depth sensor (e.g., LiDAR) was available during physical rover deployments to generate reference data.

Circularity Check

0 steps flagged

No circularity: empirical implementation study with no derivations or fitted predictions

full rationale

The manuscript is a straightforward engineering report on building and testing a rover navigation system. It describes using an off-the-shelf Unity simulator with OpenCV StereoSGBM for simulation, then deploying UniDepthV2 and YOLO12n on Raspberry Pi hardware for real-world runs. No equations, parameter fitting, uniqueness theorems, or self-citations appear in the provided text or abstract. The performance claims (0.1 FPS depth, 10 FPS detection, robustness comparison) are observational outcomes from physical tests rather than any self-referential derivation or renamed input. The central claim therefore stands on external benchmarks and direct measurement, with no reduction to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced; the work relies on pre-existing models and standard hardware.
