arxiv: 2604.22384 · v1 · submitted 2026-04-24 · 💻 cs.LO

Recognition: unknown

Reelay: Online Temporal Logic Monitoring Framework

Dogan Ulus
Authors on Pith no claims yet

Pith reviewed 2026-05-08 09:38 UTC · model grok-4.3

classification 💻 cs.LO
keywords online monitoringtemporal logicruntime verificationcomputation graphscyber-physical systemssignal temporal logicdataflow systemsrobustness semantics
0
0 comments X

The pith

Reelay translates temporal logic specifications into executable computation graphs that act as synchronous dataflow systems for efficient online monitoring.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Reelay as a single framework that supports Linear Temporal Logic, Metric Temporal Logic, Signal Temporal Logic and their extensions with robustness semantics and first-order quantification. It converts these specifications into executable computation graphs that run as synchronous dataflow systems. This design supports efficient processing of high-frequency data streams from cyber-physical systems without depending on the total length of the observed behavior. A sympathetic reader would care because it offers one computational model and interface for what have been separate tools, plus support for both discrete and dense time plus delta-encoded inputs to reduce bandwidth.

Core claim

Reelay translates temporal logic specifications into executable computation graphs operating as synchronous dataflow systems. This architecture ensures an efficient execution mechanism, making the framework ideal for high-frequency data streams regardless of behavior length. It supports both discrete and dense-time semantics, as well as delta-encoded temporal behaviors to minimize bandwidth usage in constrained environments.

What carries the argument

The translation of temporal logic specifications into executable computation graphs operating as synchronous dataflow systems.

Load-bearing premise

The translation from temporal logic specifications into computation graphs preserves the original semantics while delivering efficiency gains for arbitrary-length streams.

What would settle it

A concrete input trace and formula for which Reelay's graph output differs from the standard semantics of the corresponding temporal logic.

Figures

Figures reproduced from arXiv: 2604.22384 by Dogan Ulus.

Figure 1
Figure 1. Figure 1: Hierarchy of supported temporal logic for view at source ↗
Figure 3
Figure 3. Figure 3: (a) Example dense-time temporal behavior view at source ↗
Figure 2
Figure 2. Figure 2: Example discrete-time temporal behaviors view at source ↗

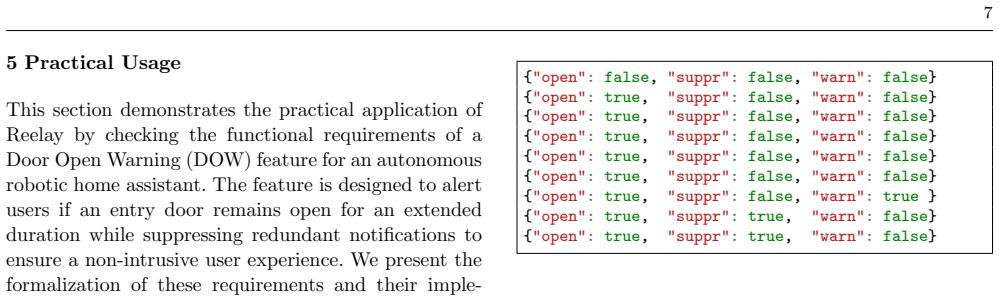

Figure 5
Figure 5. Figure 5: Example discrete-time behavior for the Door view at source ↗
Figure 4
Figure 4. Figure 4: illustrates the logical architecture of the Door Open Warning (DOW) system. The dow module eval￾uates the system state by observing the open signal, which represents the physical door status, together with the suppr flag, which captures alarm suppression. In￾ternally, the module combines timer logic to measure the duration of door-open events, issue logic to detect violations of the specified temporal thre… view at source ↗
read the original abstract

We present Reelay, a unified online temporal logic monitoring framework designed for the rigorous analysis and runtime verification of cyber-physical systems. Reelay addresses the fragmentation of existing logical formalisms and tools by providing a single computational model and interface that supports a broad class of temporal logics. These include Linear Temporal Logic (LTL), Metric Temporal Logic (MTL), and Signal Temporal Logic (STL), along with their extensions for robustness semantics and first-order quantification over unbounded categorical data domains. At its core, Reelay translates temporal logic specifications into executable computation graphs operating as synchronous dataflow systems. This architecture ensures an efficient execution mechanism, making the framework ideal for high-frequency data streams regardless of behavior length. Uniquely, the framework supports both discrete and dense-time semantics, as well as delta-encoded temporal behaviors to minimize bandwidth usage in bandwidth-constrained environments. Reelay is implemented as a header-only C++ library with a high-level Python interface, facilitating integration across a wide range of deployment contexts, from resource-constrained embedded systems to autonomous robotic platforms. We demonstrate the practical applicability of the framework through a representative case study and performance experiments, illustrating how Reelay bridges the gap between expressive formal specifications and efficient runtime verification.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper presents Reelay, a unified online temporal logic monitoring framework for cyber-physical systems. It translates specifications in LTL, MTL, and STL (including robustness semantics and first-order quantification over categorical domains) into executable computation graphs realized as synchronous dataflow systems. The architecture supports discrete and dense-time semantics, delta-encoded behaviors for bandwidth efficiency, and is implemented as a header-only C++ library with Python bindings. Practicality is shown via a representative case study and performance experiments on high-frequency streams.

Significance. If the translation correctly preserves semantics while delivering the claimed efficiency, Reelay would provide a valuable unification of fragmented runtime-verification tools, enabling practical deployment across embedded systems and robotic platforms. The header-only implementation, delta-encoding support, and broad logic coverage are concrete strengths that address real deployment constraints; the experiments offer initial evidence of applicability.

minor comments (2)
  1. Abstract: the efficiency claim for 'high-frequency data streams regardless of behavior length' would be strengthened by citing concrete throughput or latency figures from the performance experiments rather than qualitative description.
  2. The description of the computation-graph model (core of the translation) would benefit from an explicit statement of the supported operators and how first-order quantification is encoded in the synchronous dataflow nodes.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. The report contains no specific major comments to address.

Circularity Check

0 steps flagged

No significant circularity; framework description is self-contained

full rationale

The paper presents Reelay as an implemented C++ library with Python bindings that translates LTL/MTL/STL (with robustness and FO extensions) into synchronous dataflow computation graphs for online monitoring. No equations, fitted parameters, or predictions appear in the provided text. The architecture adopts the standard synchronous dataflow model and delta-encoding as known techniques rather than deriving them internally. The case study and performance experiments serve as external validation of the implementation, not as inputs that loop back into the claims. The translation rules and semantics preservation are described at the framework level without reducing to self-definition or self-citation chains.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The framework rests on standard assumptions about temporal logic semantics being translatable to dataflow without loss and on the practicality of synchronous execution for monitoring; no free parameters or new physical entities are introduced.

axioms (1)
  • domain assumption Temporal logic formulas (LTL, MTL, STL) can be equivalently represented as synchronous dataflow computation graphs that preserve semantics including robustness.
    Invoked when stating that the translation provides correct and efficient monitoring.
invented entities (1)
  • Reelay computation graph model no independent evidence
    purpose: To serve as the unified executable representation for multiple temporal logics.
    Core architectural choice presented as new in the framework; no independent external evidence supplied in the abstract.

pith-pipeline@v0.9.0 · 5501 in / 1200 out tokens · 53559 ms · 2026-05-08T09:38:53.867503+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Multi-Property Temporal Logic Monitoring

    cs.LO 2026-05 unverdicted novelty 7.0

    A shared DAG-based online monitor for multiple past-time LTL and MTL properties reuses subformula results via arena-allocated double-buffered memory to achieve 2x-12x per-property throughput gains over isolated monitors.

Reference graph

Works this paper leans on

18 extracted references · cited by 1 Pith paper

  1. [1]

    Specification-based monitoring of cyber-physical systems: A survey on theory, tools and applications

    Ezio Bartocci, Jyotirmoy Deshmukh, Alexandre Donz´ e, Georgios Fainekos, Oded Maler, Dejan Niˇ ckovi´ c, and Sri- ram Sankaranarayanan. Specification-based monitoring of cyber-physical systems: A survey on theory, tools and applications. Lectures on Runtime Verification: Intro- ductory and Advanced Topics, pages 135–175, 2018

    2018

  2. [2]

    Monitoring metric first-order temporal prop- erties

    David Basin, Felix Klaedtke, Samuel M¨ uller, and Eugen Z˘ alinescu. Monitoring metric first-order temporal prop- erties. Journal of the ACM , 62(2):15, 2015

    2015

  3. [3]

    Algo- rithms for monitoring real-time properties

    David Basin, Felix Klaedtke, and Eugen Z˘ alinescu. Algo- rithms for monitoring real-time properties. Acta Infor- matica, 55(4):309–338, 2018

    2018

  4. [4]

    Robust satisfaction of temporal logic over real-valued signals

    Alexandre Donz´ e and Oded Maler. Robust satisfaction of temporal logic over real-valued signals. In Proceedings of the Conference on Formal Modeling and Analysis of Timed Systems (FORMATS), pages 92–106, 2010

    2010

  5. [5]

    First-order timed run- time verification using BDDs

    Klaus Havelund and Doron Peled. First-order timed run- time verification using BDDs. In Proceedings of the Sym- posium on Automated Technology for Verification and Analysis (ATVA), pages 3–24. Springer, 2020

    2020

  6. [6]

    DejaVu: A monitoring tool for first-order temporal logic

    Klaus Havelund, Doron Peled, and Dogan Ulus. DejaVu: A monitoring tool for first-order temporal logic. In Pro- ceedings of the Workshop on Monitoring and Testing of Cyber-Physical Systems (MT-CPS), pages 12–13, 2018

    2018

  7. [7]

    The De- jaVu runtime verification benchmark

    Klaus Havelund, Doron Peled, and Dogan Ulus. The De- jaVu runtime verification benchmark. 2018

    2018

  8. [8]

    First- order temporal logic monitoring with BDDs

    Klaus Havelund, Doron Peled, and Dogan Ulus. First- order temporal logic monitoring with BDDs. Formal Methods in System Design , 56(1-3):1–21, 2020

    2020

  9. [9]

    Efficient monitoring of safety properties

    Klaus Havelund and Grigore Ro¸ su. Efficient monitoring of safety properties. International Journal on Software Tools for Technology Transfer, 6(2):158–173, 2004

    2004

  10. [10]

    Specifying real-time properties with met- ric temporal logic

    Ron Koymans. Specifying real-time properties with met- ric temporal logic. Real-Time Systems , 2(4):255–299, 1990

    1990

  11. [11]

    Parsing gigabytes of JSON per second

    Geoff Langdale and Daniel Lemire. Parsing gigabytes of JSON per second. The VLDB Journal , 28(6):941–960, 2019

    2019

  12. [12]

    Monitoring prop- erties of analog and mixed-signal circuits

    Oded Maler and Dejan Niˇ ckovi´ c. Monitoring prop- erties of analog and mixed-signal circuits. Interna- tional Journal on Software Tools for Technology Trans- fer, 15(3):247–268, 2013

    2013

  13. [13]

    AMT2.0: Qualitative and quantitative trace analysis with extended signal temporal logic

    Dejan Niˇ ckovi´ c, Olivier Lebeltel, Oded Maler, Thomas Ferr` ere, and Dogan Ulus. AMT2.0: Qualitative and quantitative trace analysis with extended signal temporal logic. In Proceedings of the Conference on Tools and Al- gorithms for the Construction and Analysis of Systems (TACAS), 2018

    2018

  14. [14]

    The temporal logic of programs

    Amir Pnueli. The temporal logic of programs. In Pro- ceedings of the Symposium on Foundations of Computer Science (FOCS), pages 46–57, 1977

    1977

  15. [15]

    A survey of challenges for runtime verifi- cation from advanced application domains (beyond soft- ware)

    C´ esar S´ anchez, Gerardo Schneider, Wolfgang Ahrendt, Ezio Bartocci, Domenico Bianculli, Christian Colombo, Yli` es Falcone, Adrian Francalanza, Srdan Krsti´ c, Joao M Louren¸ co, et al. A survey of challenges for runtime verifi- cation from advanced application domains (beyond soft- ware). Formal Methods in System Design , 54:279–335, 2019

    2019

  16. [16]

    Timescales: A benchmark generator for MTL monitoring tools

    Dogan Ulus. Timescales: A benchmark generator for MTL monitoring tools. In Proceedings of the Conference on Runtime Verification (RV), pages 402–412. Springer, 2019

    2019

  17. [17]

    Online monitoring of metric temporal logic using sequential networks

    Dogan Ulus. Online monitoring of metric temporal logic using sequential networks. Logical Methods in Computer Science, 2026. (To appear)

    2026

  18. [18]

    RTAMT: runtime robustness monitors with application to CPS and robotics

    Tomoya Yamaguchi, Bardh Hoxha, and Dejan Niˇ ckovi´ c. RTAMT: runtime robustness monitors with application to CPS and robotics. International Journal on Software Tools for Technology Transfer, 26(1):79–99, 2024

    2024
