Particle-Matter Interactions

Giuseppe Lerner

Authors on Pith no claims yet

Pith reviewed 2026-05-08 08:44 UTC · model grok-4.3

classification ⚛️ physics.acc-ph

keywords particle-matter interactionselectromagnetic showershadronic showersbeam loss mechanismshigh-energy acceleratorsMonte Carlo simulationsFLUKALHC radiation showers

0 comments

The pith

Particle interactions with matter create electromagnetic and hadronic showers that control beam loss in high-energy accelerators.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The lecture reviews the core principles of how photons and charged particles interact with matter to build the background needed for beam loss in accelerators. It covers primary interaction mechanisms for photons and charged particles, plus an overview of nuclear reactions. Electromagnetic and hadronic showers receive the main emphasis because they dominate the resulting radiation fields. Monte Carlo codes are introduced with special attention to FLUKA before the text walks through the development of a typical LHC radiation shower in concrete detail.

Core claim

Electromagnetic and hadronic showers play a central role in particle-matter interaction physics, and the lecture establishes this by reviewing the main interaction processes of photons and charged particles together with nuclear reactions, providing an overview of Monte Carlo tools with emphasis on FLUKA, and concluding with a detailed examination of a representative LHC-type radiation shower.

What carries the argument

Electromagnetic and hadronic showers that develop from successive photon, electron, and hadron interactions in matter and are modeled by Monte Carlo codes such as FLUKA.

If this is right

The reviewed processes determine the spatial extent and intensity of radiation fields around beam-loss points in accelerators.
Monte Carlo modeling with FLUKA becomes the practical tool for predicting shower evolution and associated radiation levels.
Nuclear reactions contribute the hadronic component that extends shower development beyond purely electromagnetic cascades.
The detailed LHC shower example supplies a concrete reference case for assessing beam-loss consequences during accelerator operation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same shower description could be adapted to evaluate radiation environments in other high-energy machines once their beam parameters are inserted into the same Monte Carlo framework.
The emphasis on FLUKA implies that experimental validation campaigns at operating accelerators would be the next step to confirm the modeled shower profiles.
Radiation-safety calculations for new accelerator designs would rest on the same sequence of interaction processes and shower development outlined here.

Load-bearing premise

The overview of standard interaction processes and Monte Carlo tools with emphasis on FLUKA supplies a sufficient and accurate description of beam loss mechanisms.

What would settle it

A set of measured energy-deposition profiles and particle multiplicities recorded during an actual LHC beam-loss event that cannot be reproduced by the FLUKA simulation of the described shower development.

Figures

Figures reproduced from arXiv: 2604.22508 by Giuseppe Lerner.

**Figure 1.** Figure 1: (a) Particles incident on a material at a depth l, and (b) photo of a TCDIH collimator in the transfer line from the SPS to the LHC at CERN. 3.3 An example at the LHC As an example, one can consider the case of a bunch of 450 GeV protons (with 1.6 · 1011 p/bunch) injected from the Super Proton Synchrotron (SPS) into the LHC, and assume that they are all intercepted (by accident) by a 1.2 m-long Graphite co… view at source ↗

**Figure 2.** Figure 2: Photon interaction mechanisms, showing the diagrams of (a) Rayleigh and Compton scattering and (b) photoelectric effect and electron-positron pair production (from Ref. [4]), as well as (c) the photon interaction cross section as a function of energy in Carbon (from Ref. [5]). 4 view at source ↗

**Figure 3.** Figure 3: Mass attenuation length of photons as a function of energy in different materials (from Ref. [5]). 4.2 Charged particle interactions The interaction of charged particles with matter is primarily governed by the electromagnetic force, with the notable exception of high-energy charged hadrons, for which nuclear interactions can play a significant role (see Section 5). The associated phenomenology can be cla… view at source ↗

**Figure 4.** Figure 4: Graphs showing (a) the stopping power of positive muons in Copper and (b) the critical energy of electrons as a function of the atomic number of the target elements (from Ref. [5]). Lastly, as discussed above, angular deflections of charged particles are primarily caused by successive Coulomb interactions with atomic nuclei and are well described by Molière’s theory of Multiple Coulomb Scattering (MCS) [6… view at source ↗

**Figure 5.** Figure 5: Proton fluence map in water for 50 MeV protons simulated with FLUKA, where the broadening is caused by multiple Coulomb scattering. 6 view at source ↗

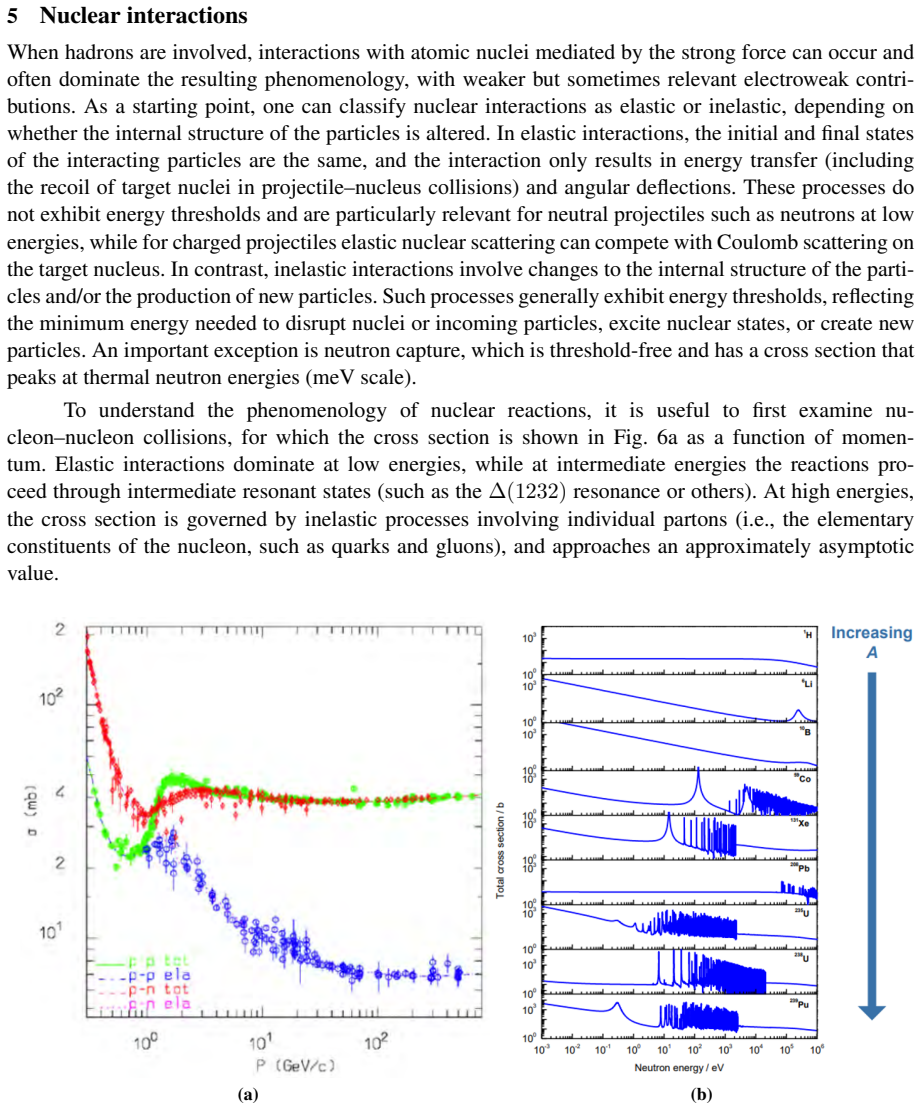

**Figure 6.** Figure 6: (a) Nucleon-nucleon interaction cross sections (from Ref. [7]), and (b) neutron cross sections in different materials (from Ref. [8]). Concerning hadron-nucleus reactions, one can identify two characteristic stages. In the fast stage (lasting ∼ 10−22 s), the projectile with energy E interacts with nucleons, producing a large number of secondary particles (mostly pions, but also other hadrons and photons) w… view at source ↗

**Figure 7.** Figure 7: Diagrams of (a) EM and (b) hadronic showers, with tables showing the main decay mode of relevant hadrons and the radiation and nuclear interaction lengths of reference materials. For EM showers, the cascade develops as long as the individual particles remain above the critical energy Ec, defined in Section 4 and shown in Fig. 4b as a function of the target atomic number. A key material parameter governing … view at source ↗

**Figure 8.** Figure 8: a, where particle multiplicity is shown as a function of depth in units of X0 (with t ≡ z/X0). The maximum multiplicity is reached at tmax ∝ ln(E0/Ec), typically a few radiation lengths depending on the projectile energy and material. The energy deposition profile, important to assess the impact of the shower on the target material, is shown in Fig. 8b for a Copper target and different electron energies. T… view at source ↗

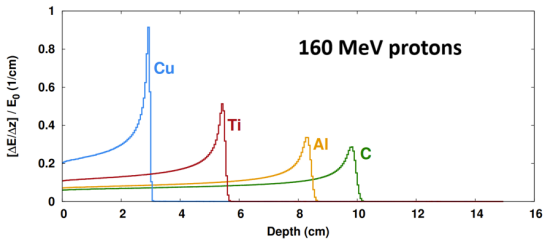

**Figure 9.** Figure 9: Energy deposition profile from 160 MeV protons impacting on different materials, showing Bragg peaks at different depths. the second consists of a uniform aluminium target. In general, however, MC codes provide far more sophisticated source definitions, which users can adapt to their specific needs. Likewise, the geometrical description can be made substantially more complex, as illustrated by the detailed… view at source ↗

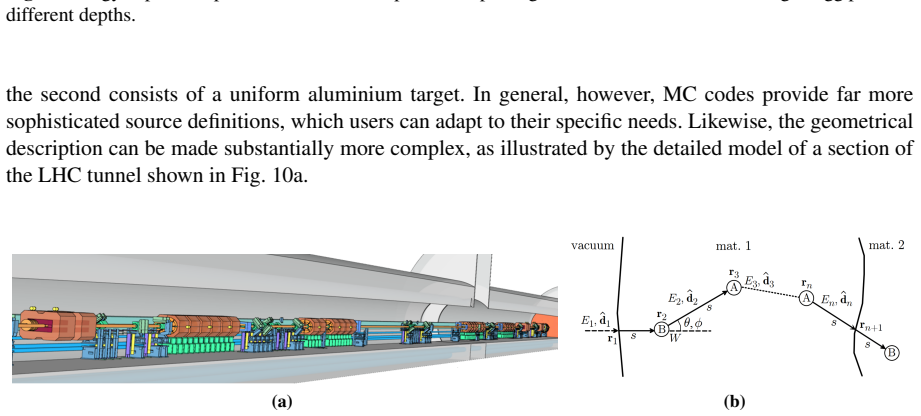

**Figure 10.** Figure 10: (a) FLUKA geometry of a portion of LHC tunnel and (b) multi-step particle transport. The propagation of particles in matter is described by a transport equation, which is solved numerically using the Monte Carlo method. For each particle, the mean free path is evaluated based on its type and its relevant interaction mechanisms in the material where it is located. A random step length to the next interact… view at source ↗

**Figure 11.** Figure 11: FLUKA simulations of the products of 450 GeV proton interactions in a uniform aluminium target, showing the particle tracks after (a) 4 ns (zoomed over a smaller area), (b) 12 ns, and (c) 20 ms. 9 Summary and next steps This lecture reviewed the main mechanisms of particle-matter interactions, focusing on the fundamental concepts and emphasizing the aspects that are most relevant for the phenomenology of … view at source ↗

read the original abstract

This lecture reviews the principles of particle-matter interactions, providing the essential physics background required to understand beam loss mechanisms in high-energy accelerators and their associated implications. The main interaction processes of photons and charged particles are introduced, together with an overview of nuclear reactions. The lecture then addresses electromagnetic and hadronic showers, which play a central role in particle-matter interaction physics. Following a brief overview of Monte Carlo simulation tools, with emphasis on FLUKA, the lecture concludes with a detailed examination of a representative LHC-type radiation shower.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a standard pedagogical review lecture on particle-matter interactions with no new results or derivations.

read the letter

This lecture is a clear summary of established particle-matter physics for accelerator beam-loss contexts. It covers photon and charged-particle interactions, nuclear reactions, electromagnetic and hadronic showers, Monte Carlo tools with FLUKA emphasis, and walks through a representative LHC-type shower. Nothing in it is new; the content draws directly from long-known principles without fresh derivations, data, or predictions. What it does well is organize the material accessibly for readers who need the background but are not experts in radiation physics. The structure moves logically from single-particle processes to full showers and simulation, which is useful for newcomers. Soft spots are minor and expected for a review: the LHC shower example is presented as illustrative rather than a new analysis, and without independent verification of the specific numbers or diagrams one cannot judge how deeply it goes beyond textbooks. No circularity or fitting issues arise because there are no equations being solved or parameters tuned. The paper is for graduate students or accelerator physicists who want a compact refresher before diving into FLUKA runs or beam-loss studies. It will not advance the field or supply citable results, but it could save time for someone entering the topic. I would bring it to a reading group only if the group is explicitly covering background material. It does not merit peer review for a research journal; the right home is a lecture-note series or conference proceedings where educational overviews are welcome.

Referee Report

0 major / 3 minor

Summary. The manuscript is a pedagogical lecture reviewing the principles of particle-matter interactions to provide essential background for beam loss mechanisms in high-energy accelerators. It introduces the main interaction processes of photons and charged particles along with nuclear reactions, then covers electromagnetic and hadronic showers, provides an overview of Monte Carlo simulation tools with emphasis on FLUKA, and concludes with a detailed examination of a representative LHC-type radiation shower.

Significance. If the descriptions of standard processes and the LHC shower example are accurate, this lecture offers a clear, consolidated pedagogical resource for accelerator physicists and students. It usefully focuses established physics on practical beam-loss contexts and simulation tools without introducing new derivations or claims, serving as accessible background material.

minor comments (3)

The abstract states that the lecture provides 'essential physics background' but does not specify the assumed prior knowledge level of the audience (e.g., whether basic QED or nuclear physics is presupposed), which could be clarified in the introduction section for better accessibility.
In the section on Monte Carlo tools, the emphasis on FLUKA is appropriate, but adding a short comparison table of key features versus other codes (GEANT4, MARS) would strengthen the overview without altering the central pedagogical aim.
The detailed LHC-type shower examination would benefit from explicit cross-references back to the earlier sections on electromagnetic versus hadronic components to help readers trace how individual processes contribute to the overall shower.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their careful reading and positive assessment of the manuscript as a pedagogical resource. The recommendation for minor revision is noted, though no specific major comments were provided in the report. We have reviewed the text for clarity, accuracy of standard processes, and consistency with the LHC shower example.

Circularity Check

0 steps flagged

No significant circularity in pedagogical review

full rationale

The manuscript is a lecture-style overview of established particle-matter interaction processes, electromagnetic and hadronic showers, nuclear reactions, and Monte Carlo tools (with FLUKA emphasis) for accelerator contexts. It contains no mathematical derivations, parameter fits, predictions, or uniqueness claims that could reduce to the paper's own inputs by construction. All material draws on standard, externally verifiable physics without self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations. The central claim—that the summarized processes provide background for LHC-type showers—rests on well-known physics and is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a review lecture and does not introduce new free parameters, axioms, or invented entities. It relies on standard particle physics knowledge.
