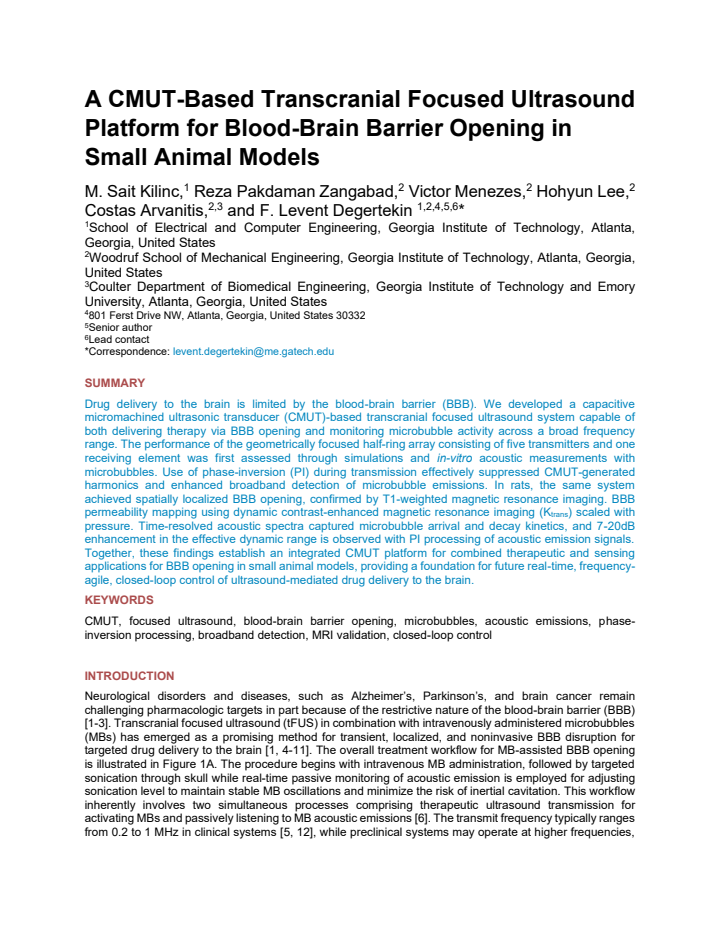

A CMUT-Based Transcranial Focused Ultrasound Platform for Blood-Brain Barrier Opening in Small Animal Models

Sait Kilinc , Reza Pakdaman Zangabad , Victor Menezes , Hohyun Lee , Costas Arvanitis , Levent Degertekin

Authors on Pith no claims yet

Pith reviewed 2026-05-08 08:48 UTC · model grok-4.3

classification ⚛️ physics.med-ph

keywords CMUTblood-brain barrierfocused ultrasoundmicrobubblestranscranialdrug deliveryacoustic monitoring

0 comments

The pith

A CMUT-based ultrasound system opens the blood-brain barrier in rats while monitoring microbubble activity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a transcranial focused ultrasound platform built around a capacitive micromachined ultrasonic transducer array. This half-ring device delivers therapeutic ultrasound to open the blood-brain barrier in small animal models and simultaneously senses microbubble emissions across a wide frequency range. Phase-inversion processing suppresses unwanted harmonics from the transducers and boosts the detection of microbubble signals by 7 to 20 decibels. Experiments in rats confirm localized barrier opening through MRI scans, with permeability increasing as ultrasound pressure rises. The integrated approach combines treatment and monitoring in one tool.

Core claim

The authors developed a CMUT-based transcranial focused ultrasound system using a geometrically focused half-ring array with five transmitters and one receiving element. Phase-inversion during transmission suppresses CMUT-generated harmonics and enhances broadband detection of microbubble emissions. In rat models, the system achieves spatially localized blood-brain barrier opening confirmed by T1-weighted MRI, with Ktrans permeability maps scaling with applied pressure. Time-resolved acoustic spectra capture microbubble arrival and decay kinetics.

What carries the argument

The geometrically focused half-ring CMUT array with phase-inversion transmission technique, which enables both focused ultrasound delivery for BBB opening and enhanced acoustic monitoring of microbubbles.

Load-bearing premise

That the phase-inversion method and half-ring geometry will preserve therapeutic precision and avoid undetected off-target effects from skull interactions in living subjects.

What would settle it

An in-vivo experiment revealing significant harmonic artifacts or microbubble activation outside the target region that is not reflected in the Ktrans MRI permeability maps.

Figures

Figures reproduced from arXiv: 2604.22666 by Costas Arvanitis, Hohyun Lee, Levent Degertekin, Reza Pakdaman Zangabad, Sait Kilinc, Victor Menezes.

**Figure 1.** Figure 1: System overview and acoustic characterization of the CMUT view at source ↗

**Figure 2.** Figure 2: Acoustic field validation and PI processing using the CMUT view at source ↗

**Figure 3.** Figure 3: In vivo validation of pressure-dependent BBB opening and Acoustic Emission monitoring using the CMUT-based system (A) Experimental timeline for BBB-opening protocol in rats and schematic of the in vivo sonication window showing the experimentally measured elliptical ultrasound focal region overlaid on the rat brain. (B) Frequency spectra of acoustic emissions recorded before (blue) and after (red) MB injec… view at source ↗

read the original abstract

Drug delivery to the brain is limited by the blood-brain barrier (BBB). We developed a capacitive micromachined ultrasonic transducer (CMUT)-based transcranial focused ultrasound system capable of both delivering therapy via BBB opening and monitoring microbubble activity across a broad frequency range. The performance of the geometrically focused half-ring array consisting of five transmitters and one receiving element was first assessed through simulations and in-vitro acoustic measurements with microbubbles. Use of phase-inversion (PI) during transmission effectively suppressed CMUT-generated harmonics and enhanced broadband detection of microbubble emissions. In rats, the same system achieved spatially localized BBB opening, confirmed by T1-weighted magnetic resonance imaging. BBB permeability mapping using dynamic contrast-enhanced magnetic resonance imaging (Ktrans) scaled with pressure. Time-resolved acoustic spectra captured microbubble arrival and decay kinetics, and 7-20dB enhancement in the effective dynamic range is observed with PI processing of acoustic emission signals. Together, these findings establish an integrated CMUT platform for combined therapeutic and sensing applications for BBB opening in small animal models, providing a foundation for future real-time, frequency-agile, closed-loop control of ultrasound-mediated drug delivery to the brain.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper shows a working CMUT half-ring array for rat BBB opening with phase-inversion monitoring, but the single receiver keeps the sensing basic and the quantitative details thin.

read the letter

The main takeaway is that the authors built and tested a five-transmitter plus one-receiver CMUT half-ring for transcranial focused ultrasound in rats. It opens the BBB in a localized spot confirmed by MRI, Ktrans rises with pressure, and phase inversion cleans up the acoustic emissions enough to track bubble kinetics with a reported 7-20 dB dynamic-range gain. That combination of hardware and in-vivo readout is the concrete advance here. They start with simulations and in-vitro bubble tests, then move to rats without obvious overreach in the abstract. The experimental flow is direct and the MRI confirmation gives the results some grounding. The phase-inversion trick for suppressing CMUT harmonics while keeping broadband detection is a practical detail that others could use. On the downside, the abstract gives no error bars, no statistical tests, and no full parameter tables, so it is hard to judge how repeatable the Ktrans scaling actually is across animals. The single receiver also means acoustic monitoring stays global rather than spatially resolved, which undercuts any strong claim about real-time closed-loop control. Skull aberrations are not quantified beyond the fact that opening stayed localized on MRI, so off-target effects could still be present at levels MRI does not catch. This work is aimed at groups doing preclinical focused-ultrasound drug delivery in small animals, especially those who want to try CMUT arrays instead of traditional piezos. A reader building similar hardware or needing a ready rat platform would get usable methods and proof-of-concept data. It is solid enough on the experimental side to go to peer review, though the referees will likely ask for more numbers and a clearer discussion of what the single-receiver data can and cannot show.

Referee Report

2 major / 3 minor

Summary. The manuscript presents the development of a CMUT-based transcranial focused ultrasound system using a half-ring array (5 transmitters, 1 receiver) for blood-brain barrier opening in small animal models. It includes simulations and in-vitro tests demonstrating phase-inversion for harmonic suppression and 7-20 dB dynamic range improvement in microbubble emission detection. In-vivo rat experiments show localized BBB opening via T1-weighted MRI, Ktrans scaling with pressure from DCE-MRI, and time-resolved acoustic spectra for microbubble kinetics. The authors conclude this establishes an integrated platform for therapeutic and sensing applications, foundational for closed-loop control.

Significance. If validated, this represents a meaningful advance in integrated ultrasound devices for preclinical BBB opening studies. The CMUT platform's dual use for therapy and broadband sensing, combined with the phase-inversion technique, could enable more precise, real-time monitoring of microbubble activity during drug delivery. The in-vivo demonstration in rats with MRI confirmation is a strength, providing direct evidence for the system's feasibility in small animal models.

major comments (2)

[Abstract] Abstract and system design: The central claim that the platform provides a foundation for closed-loop control is load-bearing but not fully supported, as the single receiving element in the half-ring geometry cannot spatially resolve microbubble emissions, and no quantification of skull-induced aberrations or off-target microbubble activation is provided despite reliance on Ktrans maps for localization claims.
[In-vivo experiments] In-vivo results: The reported scaling of Ktrans with pressure lacks error bars, statistical tests, or a complete parameter table (pressures, frequencies, durations), which undermines the robustness of the therapeutic efficacy and permeability mapping claims central to validating the integrated platform.

minor comments (3)

[Figures] Figures: MRI images should include clear scale bars, focal region annotations, and error indicators to better demonstrate spatial localization and Ktrans variations.
[Methods] Methods: Expand details on CMUT array dimensions, exact operating frequencies, simulation parameters, and microbubble concentrations for improved reproducibility.
[Discussion] Discussion: Add citations to prior transcranial ultrasound and CMUT sensing literature to better contextualize the dynamic range improvements and sensing approach.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review. The comments highlight important aspects of clarity and robustness that we will address in the revision. Below we provide point-by-point responses to the major comments.

read point-by-point responses

Referee: [Abstract] Abstract and system design: The central claim that the platform provides a foundation for closed-loop control is load-bearing but not fully supported, as the single receiving element in the half-ring geometry cannot spatially resolve microbubble emissions, and no quantification of skull-induced aberrations or off-target microbubble activation is provided despite reliance on Ktrans maps for localization claims.

Authors: We acknowledge that a single receiving element inherently cannot provide spatial resolution of microbubble emissions, which limits the current platform's capability for spatially resolved closed-loop feedback. The phase-inversion processing improves broadband detection sensitivity (7-20 dB) for monitoring microbubble kinetics via time-resolved spectra, but does not add spatial information. Localization of BBB opening is validated by T1-weighted and DCE-MRI Ktrans maps, which serve as the established gold standard in preclinical studies. We did not quantify skull-induced aberrations or off-target activation in this work, as the study focused on demonstrating integrated therapy and sensing feasibility with MRI-confirmed localized effects. The statement regarding a 'foundation for closed-loop control' is forward-looking and refers to the combined therapeutic delivery and real-time acoustic monitoring of kinetics (including frequency content), which could support future control strategies. We will revise the abstract to clarify this scope and avoid implying current spatial resolution for closed-loop applications. revision: partial
Referee: [In-vivo experiments] In-vivo results: The reported scaling of Ktrans with pressure lacks error bars, statistical tests, or a complete parameter table (pressures, frequencies, durations), which undermines the robustness of the therapeutic efficacy and permeability mapping claims central to validating the integrated platform.

Authors: We agree that the in-vivo results section would benefit from greater statistical rigor and transparency. The Ktrans scaling with pressure was observed consistently across animals, but the manuscript summarized the trend without full supporting details. In the revised manuscript we will add error bars to the relevant figure, include statistical analysis (e.g., linear regression or ANOVA with post-hoc tests) to support the scaling relationship, and provide a complete parameter table (or supplementary table) listing acoustic pressures, frequencies, pulse durations, repetition rates, total sonication times, and animal numbers per condition. These additions will strengthen the presentation of the therapeutic efficacy and permeability mapping data. revision: yes

Circularity Check

0 steps flagged

No significant circularity; all claims rest on direct experimental measurements

full rationale

The manuscript reports simulations, in-vitro acoustic tests, and in-vivo rat experiments with MRI (T1-weighted and DCE-MRI Ktrans) plus time-resolved acoustic spectra. No mathematical derivation, fitted-parameter predictions, or self-citation load-bearing steps appear in the provided text. Claims of localized BBB opening and dynamic-range improvement are presented as outcomes of direct measurements rather than reductions to prior inputs. This matches the reader's assessment of zero circularity burden.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work is experimental platform development and relies on established ultrasound physics, microbubble cavitation behavior, and MRI contrast kinetics rather than new free parameters, axioms, or invented entities.

axioms (2)

standard math Standard linear and nonlinear acoustic propagation through skull and brain tissue
Invoked implicitly when interpreting in-vitro measurements and in-vivo focusing performance
domain assumption Microbubble response produces detectable broadband acoustic emissions under focused ultrasound
Core premise for using the receiver element to monitor BBB-opening activity
