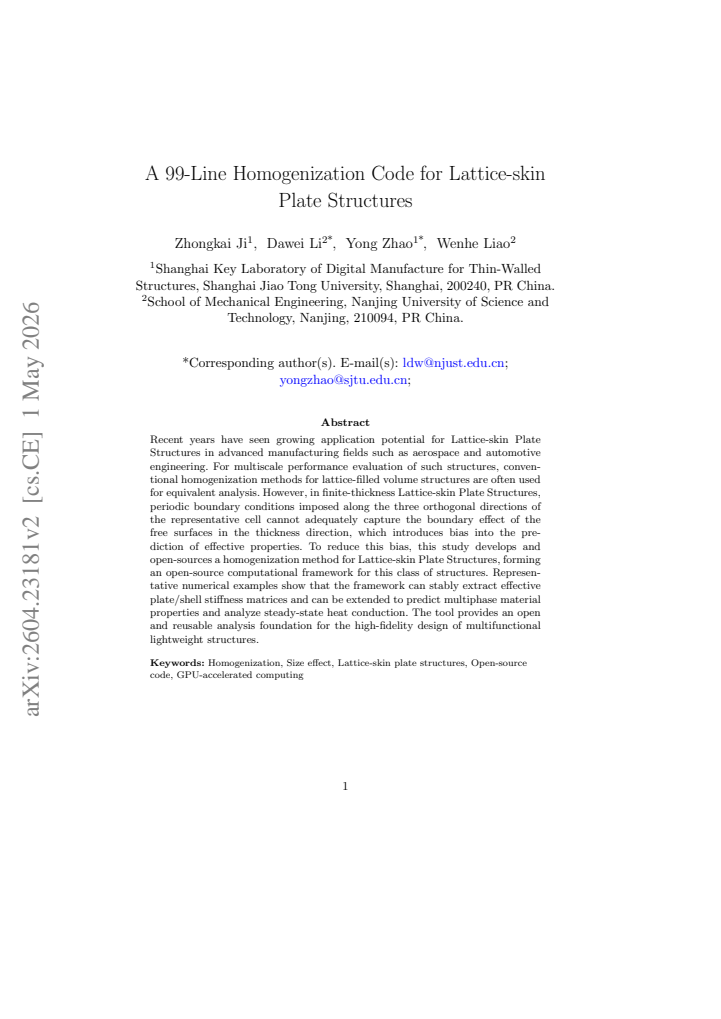

A 99-Line Homogenization Code for Lattice-skin Plate Structures

Dawei Li, Wenhe Liao, Yong Zhao, Zhongkai Ji

Authors on Pith no claims yet

Pith reviewed 2026-05-08 06:52 UTC · model grok-4.3

classification 💻 cs.CE

keywords homogenizationlattice-skin plateseffective stiffnessperiodic boundary conditionsfree surface effectsmultiscale analysisfinite element methodopen-source code

0 comments

The pith

Adjusting periodic boundary conditions on the representative cell lets a 99-line code extract accurate effective stiffness for lattice-skin plates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper creates a short open-source code to homogenize lattice-skin plate structures, where a lattice core sits between thin skins. Standard periodic conditions applied in all three directions introduce bias because the top and bottom surfaces in the thickness direction are free rather than periodic. The authors modify the boundary conditions on a small repeating cell to reduce that bias. Numerical tests show the resulting effective plate and shell stiffness matrices remain stable, and the same setup extends to multiphase materials and steady-state heat flow. The code therefore supplies a reusable starting point for multiscale analysis of lightweight aerospace and automotive components.

Core claim

A homogenization method for Lattice-skin Plate Structures is obtained by imposing adjusted periodic boundary conditions on the representative cell that respect the free surfaces in the thickness direction. This change removes the bias that arises when full three-directional periodicity is enforced. The method is realized in a compact 99-line implementation that stably yields effective plate and shell stiffness matrices and supports direct extension to multiphase property prediction and steady-state heat conduction.

What carries the argument

The adjusted periodic boundary conditions applied to the representative cell of the lattice-skin plate, which replace full periodicity in the thickness direction with conditions that account for free surfaces.

If this is right

Effective plate and shell stiffness matrices can be extracted in a stable manner for lattice-skin structures.
The same framework extends to prediction of effective properties in multiphase materials.
Steady-state heat conduction can be analyzed within the homogenized model.
The open implementation supplies a reusable base for high-fidelity design of multifunctional lightweight structures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The boundary adjustment could be tested on curved shell geometries where thickness-direction effects interact with curvature.
Because the code is short and open, it can be inserted directly into topology-optimization loops to design lattice plates for prescribed stiffness.
Similar surface-aware boundary corrections may apply to other thin periodic media such as sandwich panels with different core topologies.

Load-bearing premise

The boundary-condition adjustment on the representative cell removes bias from free surfaces without introducing new errors that would require full three-dimensional validation or experiments.

What would settle it

A side-by-side comparison of global deflection or stress under bending or in-plane loads between the homogenized plate model and a full three-dimensional finite-element simulation of the same finite lattice-skin plate geometry.

read the original abstract

Recent years have seen growing application potential for Lattice-skin Plate Structures in advanced manufacturing fields such as aerospace and automotive engineering. For multiscale performance evaluation of such structures, conventional homogenization methods for lattice-filled volume structures are often used for equivalent analysis. However, in finite-thickness Lattice-skin Plate Structures, periodic boundary conditions imposed along the three orthogonal directions of the representative cell cannot adequately capture the boundary effect of the free surfaces in the thickness direction, which introduces bias into the prediction of effective properties. To reduce this bias, this study develops and open-sources a homogenization method for Lattice-skin Plate Structures, forming an open-source computational framework for this class of structures. Representative numerical examples show that the framework can stably extract effective plate/shell stiffness matrices and can be extended to predict multiphase material properties and analyze steady-state heat conduction. The tool provides an open and reusable analysis foundation for the high-fidelity design of multifunctional lightweight structures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This delivers a compact 99-line code that adapts homogenization for finite-thickness lattice-skin plates by adjusting periodic boundaries for free surfaces, but the accuracy of that adjustment rests on internal stability rather than external benchmarks.

read the letter

The main contribution is a short, open-source 99-line MATLAB code for homogenizing lattice-skin plates of finite thickness. It modifies standard periodic boundary conditions on the representative cell to reduce bias from the two free surfaces in the thickness direction, then extracts effective plate or shell stiffness matrices. The authors also show extensions to multiphase materials and steady-state heat conduction, with numerical examples that demonstrate stable convergence.

Referee Report

1 major / 1 minor

Summary. The manuscript presents a 99-line open-source homogenization code for lattice-skin plate structures. It identifies that standard periodic boundary conditions on a representative cell introduce bias due to free surfaces in the thickness direction and proposes an adjustment to these conditions. Representative numerical examples are used to demonstrate stable extraction of effective plate/shell stiffness matrices, with extensions shown for multiphase material property prediction and steady-state heat conduction analysis.

Significance. If the boundary-condition adjustment proves accurate, the concise open-source code would offer a practical, accessible tool for multiscale analysis of finite-thickness lattice structures in aerospace and automotive applications, extending beyond conventional volume homogenization methods.

major comments (1)

[Numerical examples] Numerical examples section: the demonstrations of internal stability and convergence of the extracted stiffness matrices are shown, but no independent cross-validation (full 3D FEM on identical geometries, analytical limits for simple lattices, or experimental stiffness data) is provided to confirm that the proposed boundary-condition adjustment on the representative cell removes free-surface bias without under- or over-correction. This is load-bearing for the central claim.

minor comments (1)

[Abstract] The abstract states that the framework 'can stably extract' effective matrices but does not specify the quantitative metrics (e.g., convergence rates or residual norms) used to assess stability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and for recognizing the potential utility of the open-source 99-line homogenization code for lattice-skin plate structures. We address the major comment below and outline the revisions we will make to strengthen the validation.

read point-by-point responses

Referee: [Numerical examples] Numerical examples section: the demonstrations of internal stability and convergence of the extracted stiffness matrices are shown, but no independent cross-validation (full 3D FEM on identical geometries, analytical limits for simple lattices, or experimental stiffness data) is provided to confirm that the proposed boundary-condition adjustment on the representative cell removes free-surface bias without under- or over-correction. This is load-bearing for the central claim.

Authors: We agree that independent cross-validation is necessary to substantiate the central claim that the adjusted boundary conditions effectively mitigate free-surface bias. The current numerical examples demonstrate internal stability and convergence of the extracted plate stiffness matrices, but do not directly compare against external references. In the revised manuscript we will add full 3D FEM simulations on identical representative geometries for at least one simple lattice configuration (e.g., a uniform square lattice) to quantify the reduction in bias relative to standard periodic conditions and to check for under- or over-correction. Where feasible we will also include analytical limits for limiting cases such as thin solid plates. revision: yes

Circularity Check

0 steps flagged

No circularity: method and validation are independent of inputs

full rationale

The paper introduces a homogenization framework for finite-thickness lattice-skin plates by modifying periodic boundary conditions on the representative cell to mitigate free-surface bias in the thickness direction. This adjustment is presented as a modeling choice derived from standard periodic homogenization principles, implemented in an open-source 99-line code, and then tested on separate numerical examples that extract effective plate/shell stiffness matrices. No equation or claim reduces a 'prediction' to a fitted parameter from the same data, nor does any load-bearing step rely on self-citation chains or ansatzes that are defined circularly; the outputs are shown to converge and remain stable under the proposed BC adjustment rather than being tautological with the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method rests on standard periodic homogenization assumptions adapted for plates; no free parameters, invented entities, or ad-hoc axioms are mentioned in the abstract.

axioms (1)

domain assumption Homogenization theory can be applied to periodic lattice cells to obtain effective plate properties when appropriate boundary conditions are chosen.
Implicit in the development of any homogenization method for lattice structures.
