arxiv: 2604.24255 · v1 · submitted 2026-04-27 · 🌌 astro-ph.HE · astro-ph.IM

Recognition: unknown

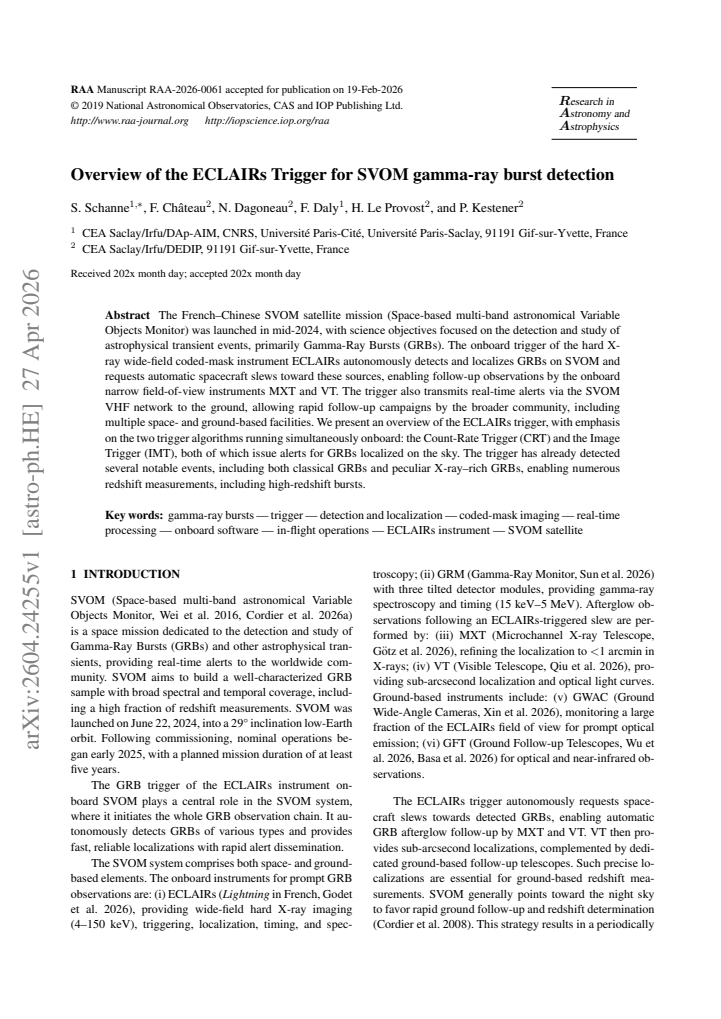

Overview of the ECLAIRs Trigger for SVOM gamma-ray burst detection

S. Schanne , F. Ch\^ateau , N. Dagoneau , F. Daly , H. Le Provost , P. Kestener

Authors on Pith no claims yet

Pith reviewed 2026-05-08 01:47 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.IM

keywords SVOMECLAIRsgamma-ray burststrigger algorithmscoded maskGRB detectionreal-time alertssatellite mission

0 comments

The pith

The ECLAIRs trigger on SVOM detects and localizes gamma-ray bursts using two simultaneous algorithms to enable rapid follow-up.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the onboard trigger system of the ECLAIRs instrument aboard the SVOM satellite mission. This system autonomously identifies gamma-ray bursts in wide-field hard X-ray data and localizes them on the sky. Two algorithms, the Count-Rate Trigger and the Image Trigger, operate in parallel to issue alerts. These alerts prompt the spacecraft to slew its narrow-field instruments toward the burst and send real-time notifications to ground observers. Early results include detections of both typical and X-ray-rich bursts that have allowed redshift measurements for high-redshift events.

Core claim

The ECLAIRs trigger combines the Count-Rate Trigger, which monitors increases in detector counts, and the Image Trigger, which identifies sources in reconstructed images, both running onboard to detect GRBs and request slews to the MXT and VT instruments while transmitting VHF alerts.

What carries the argument

Dual trigger algorithms consisting of the Count-Rate Trigger (CRT) for rate excesses and the Image Trigger (IMT) for sky image excesses in a coded-mask telescope.

If this is right

Automatic slews allow the MXT and VT to observe the GRB prompt emission and afterglow in X-ray and visible bands.
VHF network alerts enable coordinated observations by other space and ground telescopes.
Detection of X-ray-rich GRBs expands the sample of events with measured redshifts.
High-redshift GRB detections provide data on the early universe.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The simultaneous use of rate-based and image-based triggers may improve detection efficiency for different GRB types compared to single-method systems.
The system's success with peculiar GRBs suggests it can contribute to studies of GRB diversity and their use as cosmological probes.
Future quantitative reports on trigger performance could allow direct comparison of detection rates with other gamma-ray missions.

Load-bearing premise

The two trigger algorithms function reliably in the space environment with sufficiently low false positive rates and accurate enough localizations to support follow-up.

What would settle it

A performance report or set of observations showing either an unacceptably high fraction of false triggers or localization errors too large for the narrow-field instruments to acquire the source.

read the original abstract

The French-Chinese SVOM satellite mission (Space-based multi-band astronomical Variable Objects Monitor) was launched in mid-2024, with science objectives focused on the detection and study of astrophysical transient events, primarily Gamma-Ray Bursts (GRBs). The onboard trigger of the hard X-ray wide-field coded-mask instrument ECLAIRs autonomously detects and localizes GRBs on SVOM and requests automatic spacecraft slews toward these sources, enabling follow-up observations by the onboard narrow field-of-view instruments MXT and VT. The trigger also transmits real-time alerts via the SVOM VHF network to the ground, allowing rapid follow-up campaigns by the broader community, including multiple space- and ground-based facilities. We present an overview of the ECLAIRs trigger, with emphasis on the two trigger algorithms running simultaneously onboard: the Count-Rate Trigger (CRT) and the Image Trigger (IMT), both of which issue alerts for GRBs localized on the sky. The trigger has already detected several notable events, including both classical GRBs and peculiar X-ray-rich GRBs, enabling numerous redshift measurements, including high-redshift bursts.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a descriptive overview of the SVOM ECLAIRs trigger with detection claims that lack any numbers or validation.

read the letter

This paper is an overview of the ECLAIRs trigger on the SVOM satellite. It describes two algorithms running in parallel, the Count-Rate Trigger and the Image Trigger, that detect and localize gamma-ray bursts and then trigger slews and ground alerts. The main takeaway is that the system has already caught some classical and X-ray-rich GRBs, including high-redshift events that allowed redshift measurements. That is the extent of the new information here. The paper does a clear job laying out the basic architecture and the alert pathways from onboard detection to follow-up by MXT, VT, and external facilities via the VHF network. That part is straightforward and useful as background for anyone tracking the mission. The soft spot is that the detection claims sit without support. The text states that notable events were found and redshifts obtained, but supplies no false-alarm rates, localization accuracy, efficiency curves, or any comparison to simulations or other instruments. Without those numbers the performance statements remain assertions rather than demonstrated results. There are no new methods, derivations, or quantitative results beyond the mission status report. The thinking on the system design is direct and free of internal contradictions, but the evidential gap on the central claims is real. This is the sort of paper that might interest SVOM team members or observers who need a quick reference on how the trigger logic works. It will not be cited for technical content by most researchers. I would not bring it to a reading group. I would not cite it. It does not need a full peer review; a short mission note or conference proceeding would be enough given its descriptive nature and missing validation data.

Referee Report

2 major / 1 minor

Summary. The manuscript provides an overview of the ECLAIRs hard X-ray coded-mask instrument trigger on the SVOM satellite, describing the two simultaneously operating onboard algorithms (Count-Rate Trigger, CRT, and Image Trigger, IMT) that detect and localize GRBs, generate real-time alerts via the VHF network, and trigger spacecraft slews for follow-up by MXT and VT. It states that the system has already detected several notable events, including classical and X-ray-rich GRBs, enabling multiple redshift measurements including high-redshift cases.

Significance. If the in-orbit performance claims hold, the work is significant for documenting the operational design of a dedicated wide-field GRB trigger that enables rapid multi-wavelength follow-up, a key capability for the SVOM mission's science goals. The dual-algorithm approach (rate-based and image-based) is a practical contribution to transient detection instrumentation. However, the absence of any quantitative validation data substantially limits the paper's value as a citable reference on demonstrated performance.

major comments (2)

[Abstract] Abstract: The central assertion that 'the trigger has already detected several notable events, including both classical GRBs and peculiar X-ray-rich GRBs, enabling numerous redshift measurements, including high-redshift bursts' is presented without supporting data. No event list, detection efficiency curves, false-alarm rates, localization accuracy statistics, or comparison to ground truth/simulations is provided anywhere in the manuscript, rendering the claim of successful in-orbit operation an unsupported assertion rather than a demonstrated result.
[Trigger algorithms description] Section on trigger algorithms (CRT and IMT description): The overview details the algorithmic logic and alert pathways but supplies no in-flight metrics on reliability, such as trigger thresholds in orbit, background rejection performance, or false-positive rates under actual space conditions. This directly undermines the weakest assumption that the algorithms 'operate reliably in orbit with acceptable false-positive rates and localization accuracy.'

minor comments (1)

The manuscript would benefit from a dedicated section or table summarizing any available housekeeping data on trigger rates or alert latencies, even if preliminary.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their careful reading and constructive comments on our overview of the ECLAIRs trigger system. We respond to each major comment below, noting that this manuscript is intended as a high-level description of the onboard algorithms and alert pathways rather than a comprehensive performance validation study.

read point-by-point responses

Referee: [Abstract] Abstract: The central assertion that 'the trigger has already detected several notable events, including both classical GRBs and peculiar X-ray-rich GRBs, enabling numerous redshift measurements, including high-redshift bursts' is presented without supporting data. No event list, detection efficiency curves, false-alarm rates, localization accuracy statistics, or comparison to ground truth/simulations is provided anywhere in the manuscript, rendering the claim of successful in-orbit operation an unsupported assertion rather than a demonstrated result.

Authors: We acknowledge that the abstract states the occurrence of detections without including supporting quantitative data, event lists, or statistical measures within this manuscript. The paper is structured as an overview of the trigger design and implementation; the specific events and their follow-up results are documented in separate SVOM collaboration papers on early GRB detections. To address the concern, we will revise the abstract to qualify the statement (e.g., 'early in-orbit operations have enabled detections of... as reported in companion works') and add a reference to the relevant performance or catalog papers. This keeps the focus on the trigger while making the claim traceable. revision: partial
Referee: [Trigger algorithms description] Section on trigger algorithms (CRT and IMT description): The overview details the algorithmic logic and alert pathways but supplies no in-flight metrics on reliability, such as trigger thresholds in orbit, background rejection performance, or false-positive rates under actual space conditions. This directly undermines the weakest assumption that the algorithms 'operate reliably in orbit with acceptable false-positive rates and localization accuracy.'

Authors: The section describes the pre-launch design, logic, and alert generation of the CRT and IMT algorithms. Specific in-orbit thresholds, background rejection rates, and false-alarm statistics are not provided because they are configuration-dependent, subject to ongoing tuning during the mission's early phase, and best presented in a dedicated technical performance paper. We will insert a short clarifying paragraph noting that the dual-algorithm system has been operating successfully in orbit with the expected alert pathways active, while deferring detailed metrics and validation to future work. This maintains the overview scope without introducing unsubstantiated numbers. revision: partial

standing simulated objections not resolved

Inclusion of full quantitative in-orbit validation data, event lists, detection efficiency curves, or statistical comparisons, which lie outside the scope of the current overview manuscript.

Circularity Check

0 steps flagged

No circularity: descriptive overview with no derivations, equations, or fitted predictions

full rationale

The paper is an instrument overview describing the ECLAIRs trigger design, CRT and IMT algorithms, alert pathways, and reported detections of GRBs including redshift measurements. No equations, derivations, parameter fits, or predictions are presented anywhere in the text. The central claims are straightforward factual assertions about in-orbit performance rather than results derived from inputs via any chain that could reduce by construction. No self-citations, ansatzes, or uniqueness theorems are invoked in a load-bearing way. The derivation chain is empty, making the paper self-contained as a descriptive report with no opportunity for circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an overview paper describing an operational instrument; it introduces no free parameters, axioms, or invented entities.

pith-pipeline@v0.9.0 · 5523 in / 962 out tokens · 62021 ms · 2026-05-08T01:47:39.699563+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

32 extracted references · 14 canonical work pages

[1]

H., Watson, A

Basa, S., Lee, W. H., Watson, A. M., et al. 2026, , this issue, 1--10

2026
[2]

Chateau, F., Schanne, S., Kestener, P. et al. 2025, Proc. IEEE European Data Handling & Data Processing Conf. (EDHPC 2025), Elche, Spain, 2025, pp. 1-8

2025
[3]

2026, IEEE Transactions on Nuclear Science (submitted)

Claret, A., Bouchet, L., Godet, O., Schanne, S., et al. 2026, IEEE Transactions on Nuclear Science (submitted)

2026
[4]

SVOM pointing strategy: how to optimize the redshift measurements?

Cordier, B., Desclaux, F., Foliard, J., & Schanne, S. 2008, in Gamma-ray Bursts 2007, ed. M. Galassi, D. Palmer, & E. Fenimore, AIP Conf. Ser., 1000, 585--588, doi:10.1063/1.2943538

work page doi:10.1063/1.2943538 2008
[5]

SVOM GRB 250314A at <i>z</i> ≃ 7.3: An exploding star in the era of re-ionization

Cordier, B., Wei, J. Y., Tanvir, N. R., et al.\ 2025, , 704, L7. doi:10.1051/0004-6361/202556580

work page doi:10.1051/0004-6361/202556580 2025
[6]

Y., Zhang, S

Cordier, B., Wei, J. Y., Zhang, S. N., et al. 2026, , this issue, 1--10

2026
[7]

2026b, , this issue, 1--10

Cordier, B., Jeannin, L., Lafabrie, Ph., et al. 2026b, , this issue, 1--10
[8]

doi:10.1007/s10686-020-09665-w

Dagoneau, N., Schanne, S., Atteia, J.-L., et al.\ 2020, Experimental Astronomy, 50, 1, 91. doi:10.1007/s10686-020-09665-w

work page doi:10.1007/s10686-020-09665-w 2020
[9]

doi:10.1051/0004-6361/202038995

Dagoneau, N., Schanne, S., Rodriguez, J., et al.\ 2021, , 645, A18. doi:10.1051/0004-6361/202038995

work page doi:10.1051/0004-6361/202038995 2021
[10]

& Schanne, S.\ 2022, , 665, A40

Dagoneau, N. & Schanne, S.\ 2022, , 665, A40. doi:10.1051/0004-6361/202141891

work page doi:10.1051/0004-6361/202141891 2022
[11]

2026, , this issue, 1--10

Godet, O., Atteia, J.-L., Schanne, S., et al. 2026, , this issue, 1--10

2026
[12]

2026, , this issue, 1--10

Godet, O., Atteia, J.-L., Pons, R., et al. 2026, , this issue, 1--10

2026
[13]

Goldwurm, A., Gros, A., 2022, Coded Mask Instruments in Handbook of X-ray and Gamma-ray Astrophysics. Eds. Bambi, Santangelo, Goldwurm et al., Springer, Singapore, doi:10.1007/978-981-16-4544-044-1

work page doi:10.1007/978-981-16-4544-044-1 2022
[14]

2026, , this issue, 1--10

G\"otz, D., Crepaldi, S., Doumayrou, E., et al. 2026, , this issue, 1--10

2026
[15]

2026, , this issue, 1--10

Lachaud, C., Givaudan, A., Karakac, M., et al. 2026, , this issue, 1--10

2026
[16]

2013, IEEE Nuclear Science Symposium (2013 NSS/MIC), Seoul, Korea (South), 2013, pp

Le Provost, H., Schanne, S., Flouzat., C., et al. 2013, IEEE Nuclear Science Symposium (2013 NSS/MIC), Seoul, Korea (South), 2013, pp. 1-6, https://doi.org/10.1109/NSSMIC.2013.6829557

work page doi:10.1109/nssmic.2013.6829557 2013
[17]

2026, , this issue, 1--10

Louvin, H., Corre, D., Formica, A., et al. 2026, , this issue, 1--10

2026
[18]

L., Wang, J

Qiu, Y. L., Wang, J. M., Ho, L. C., et al. 2026, , this issue, 1--10

2026
[19]

doi:10.1109/TNS.2005.862780

Schanne, S., Atteia, J.-L., Barret, D., et al.\ 2005, IEEE Transactions on Nuclear Science, 52, 6, 2778. doi:10.1109/TNS.2005.862780

work page doi:10.1109/tns.2005.862780 2005
[20]

doi:10.48550/arXiv.0711.3754

Schanne, S., Cordier, B., G \"o tz, D., et al.\ 2008, International Cosmic Ray Conference, 3, 1147. doi:10.48550/arXiv.0711.3754

work page doi:10.48550/arxiv.0711.3754 2008
[21]

2013, IEEE Nuclear Science Symposium (2013 NSS/MIC), Seoul, Korea (South), 2013, pp

Schanne, S., Le Provost, H., Kestener, P., et al. 2013, IEEE Nuclear Science Symposium (2013 NSS/MIC), Seoul, Korea (South), 2013, pp. 1-5, https://doi.org/10.1109/NSSMIC.2013.6829408

work page doi:10.1109/nssmic.2013.6829408 2013
[22]

Schanne, S., Dagoneau, N., Ch \^a teau, F., et al.\ 2019, , 90, 267

2019
[23]

36854, 36854, 1

Schanne, S., Godet, O., et al.\ 2024, GRB Coordinates Network, Circular Service, No. 36854, 36854, 1

2024
[24]

ECLAIRs coded mask design for SVOM mission

Givaudan, A., B \'e goc, S., Bertoli, W., et al.\ 2024, , 13093, 1309370. doi:10.1117/12.3020147

work page doi:10.1117/12.3020147 2024
[25]

On-ground calibration highlights for the SVOM/ECLAIRs camera

Godet, O., Atteia, J.-L., Amoros, C., et al.\ 2022, , 12181, 121815O. doi:10.1117/12.2628932

work page doi:10.1117/12.2628932 2022
[26]

L., Godet, O., Bouchet, L., et al.\ 2022, EAS2022, European Astronomical Society Annual Meeting, 2057

Atteia, J. L., Godet, O., Bouchet, L., et al.\ 2022, EAS2022, European Astronomical Society Annual Meeting, 2057

2022
[27]

Schanne, S.\ 2022, EAS2022, European Astronomical Society Annual Meeting, 2022

2022
[28]

C., Dong, Y

Sun, J. C., Dong, Y. W., He, J., et al. 2026, , this issue, 1--10

2026
[29]

The Deep and Transient Universe in the SVOM Era: New Challenges and Opportunities - Scientific prospects of the SVOM mission

Wei, J., Cordier, et al. 2016, arXiv:1610.06892, doi:10.48550/arXiv.1610.06892

work page Pith review doi:10.48550/arxiv.1610.06892 2016
[30]

M., et al

Wu, C., Kang, Z., Lu, X. M., et al. 2026, , this issue, 1--10

2026
[31]

Study of SVOM/ECLAIRs inhomogeneities in the detection plane below 8 keV and their mitigation for the trigger performances

Xie, W., Cordier, B., Dagoneau, N., et al.\ 2024, , 683, A60. doi:10.1051/0004-6361/202347695

work page doi:10.1051/0004-6361/202347695 2024
[32]

2026, , this issue, 1--10

Xin, L., Huang, L., Cai, H., et al. 2026, , this issue, 1--10

2026
